VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-137

C

D

E

F

G

H

J

K

L

M

A

B

BL

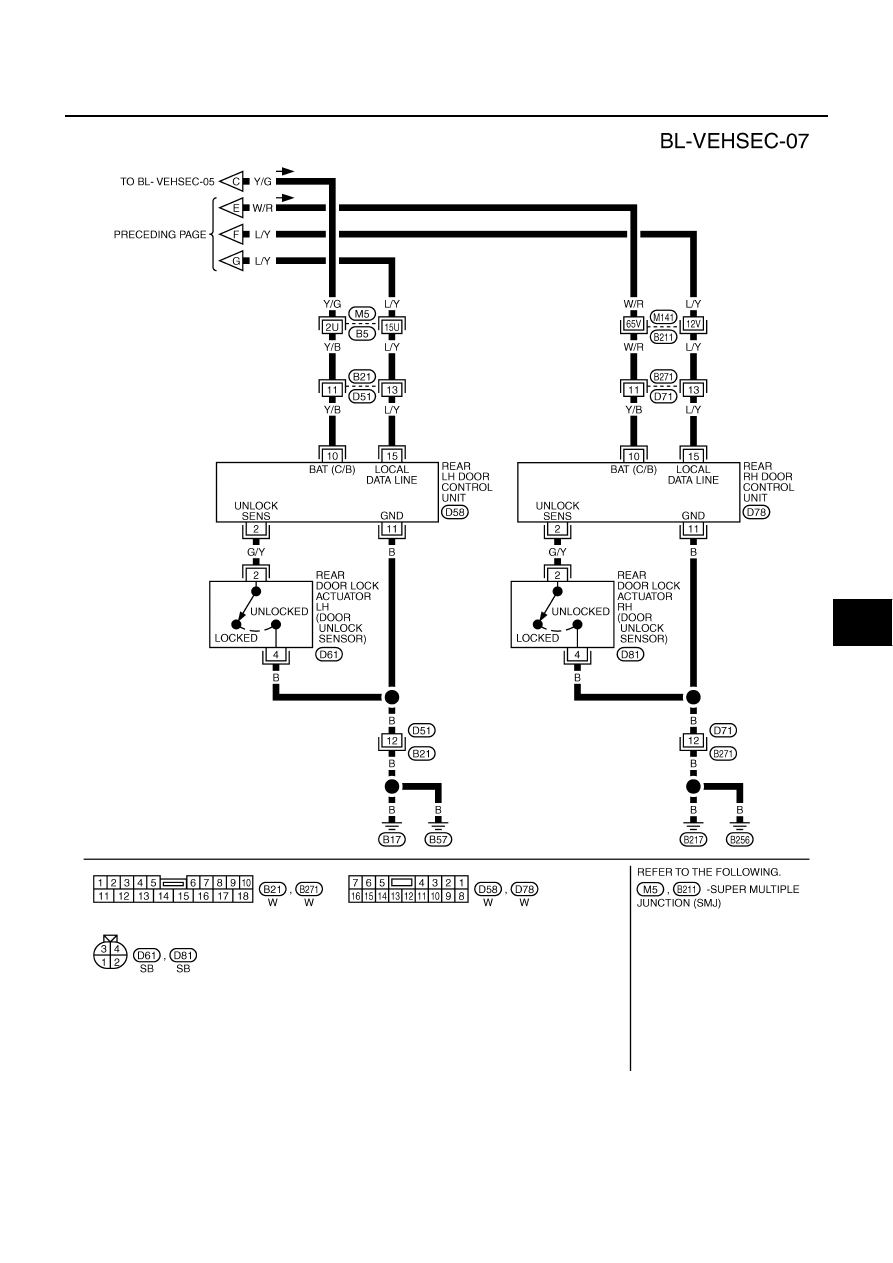

TIWA0206E

BL-138

VEHICLE SECURITY (THEFT WARNING) SYSTEM

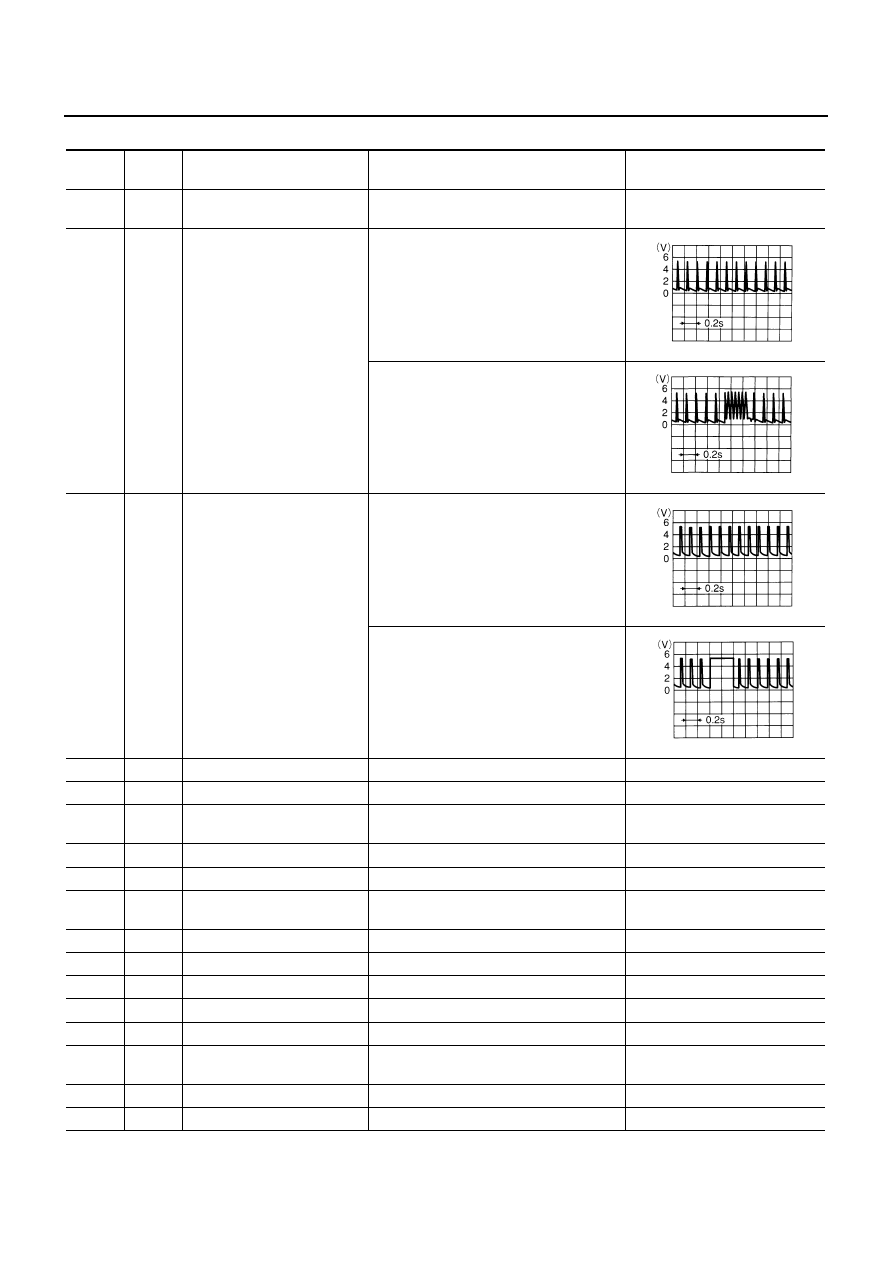

Terminals and Reference Value for BCM

AIS002ES

TERMI-

NAL

WIRE

COLOR

ITEM

CONDITION

VOLTAGE (V)

(Approx.)

5

W/PU

Headlamp relay control signal

When panic alarm is operated using elec-
tronic key. (ON

 OFF)

 Battery voltage

27

BR/W

Remote keyless entry receiver
(Pulse)

Stand-by

Press any of the electronic key switches

28

L

Remote keyless entry receiver
(Power supply)

Stand-by

Press any of the electronic key switches

33

W

Rear LH door switch

Door open (ON)

 close (OFF)

 Battery voltage

37

LG

Passenger door switch

Door open (ON)

 close (OFF)

 Battery voltage

44

Y

Remote keyless entry receiver
(Ground)

0

56

B

Ground

0

60

L/OR

Ignition switch

Ignition switch ACC or ON position

Battery voltage

65

G

Multifunction switch (security
indicator lamp)

Goes OFF

 Illuminates (every 2.4 sec-

onds)

Battery voltage

 0

67

G/W

Data line A-3

68

W/B

IGN power supply

Ignition switch ON

Battery voltage

105

Y/L

Battery power supply

Battery voltage

113

B

Ground

0

122

LG/B

Hood switch

Hood open (ON)

 close (OFF)

 Battery voltage

127

P/L

Security horn relay

When panic alarm is operated using elec-
tronic key. (ON

 OFF)

 Battery voltage

142

R/Y

Driver door switch

Door open (ON)

 close (OFF)

 Battery voltage

143

W/L

Rear RH door switch

Door open (ON)

 close (OFF)

 Battery voltage

OCC3879D

OCC3880D

OCC3881D

OCC3882D

VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-139

C

D

E

F

G

H

J

K

L

M

A

B

BL

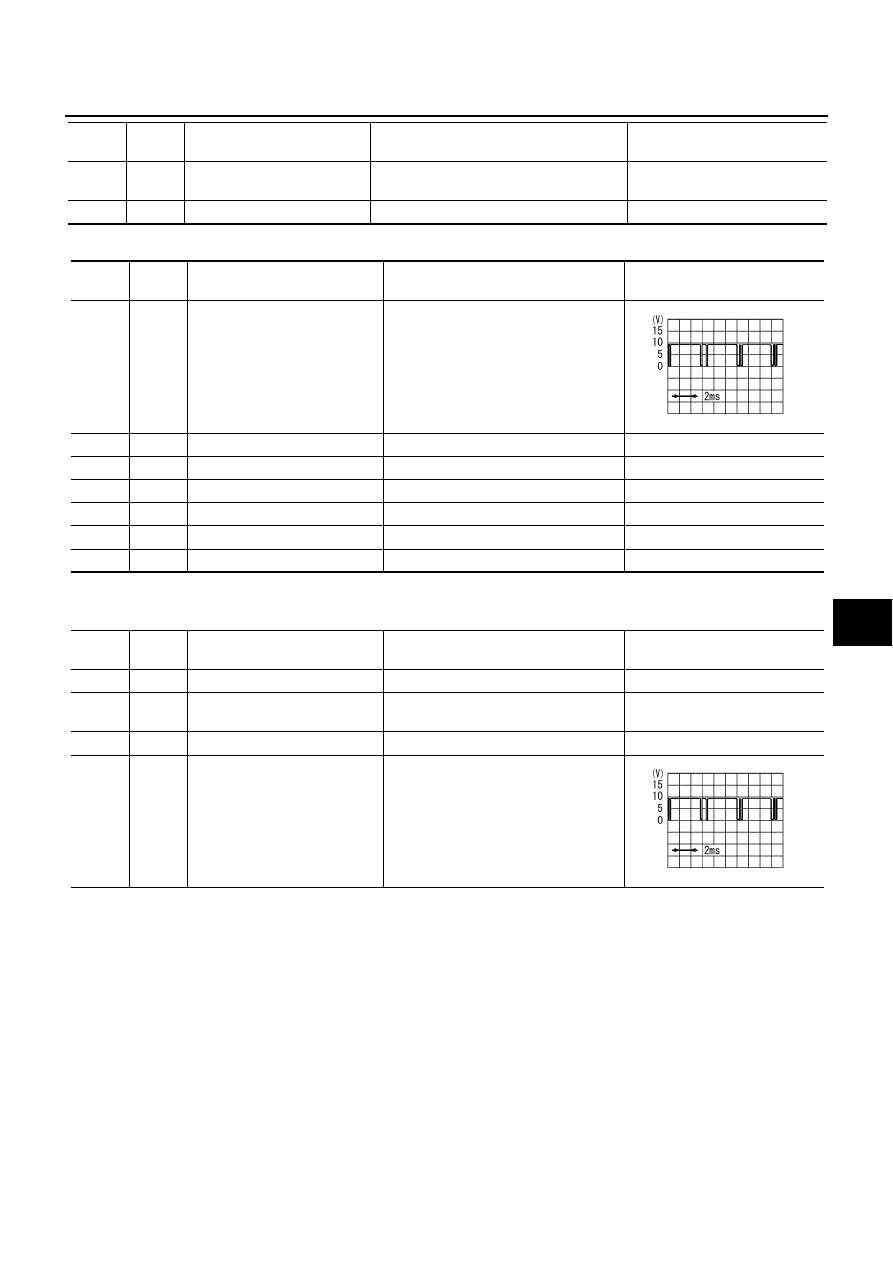

Terminals and Reference Value for Driver Door Control Unit (LCU01)

AIS002ET

Terminals and Reference Value for Passenger and Rear LH, RH Door Control
Units

AIS002EU

(

): Wire color for rear LH, RH door control unit.

145

LG/R

Trunk lid key cylinder switch
(unlock switch)

Trunk lid switch “N” position

 between full

stroke and “N” position

 0

146

P

Trunk room lamp switch

Trunk lid open (ON)

 close (OFF)

 Battery voltage

TERMI-

NAL

WIRE

COLOR

ITEM

CONDITION

VOLTAGE (V)

(Approx.)

TERMI-

NAL

WIRE

COLOR

ITEM

CONDITION

VOLTAGE (V)

(Approx.)

5

L/Y

Local data line

6

G/Y

Door unlock sensor

OFF (Locked)

 ON (Unlocked)

 0

8

G/W

Data line A-3

9

PU/W

Door key cylinder unlock switch

 OFF (Neutral)

 ON (Unlocked)

 0

10

GY

Door key cylinder lock switch

 OFF (Neutral)

 ON (Locked)

 0

14

Y/G

Battery power supply (C/B)

Battery voltage

15

B

Ground

0

SIIA0591J

TERMI-

NAL

WIRE

COLOR

ITEM

CONDITION

VOLTAGE (V)

(Approx.)

2

G/Y

Door unlock sensor

OFF (Locked)

 ON (Unlocked)

 0

10

W/R

(Y/B)

Battery power supply (C/B)

Battery voltage

11

B

Ground

0

15

L/Y

Local data line

SIIA0591J

BL-140

VEHICLE SECURITY (THEFT WARNING) SYSTEM

CONSULT-II Function

AIS001EV

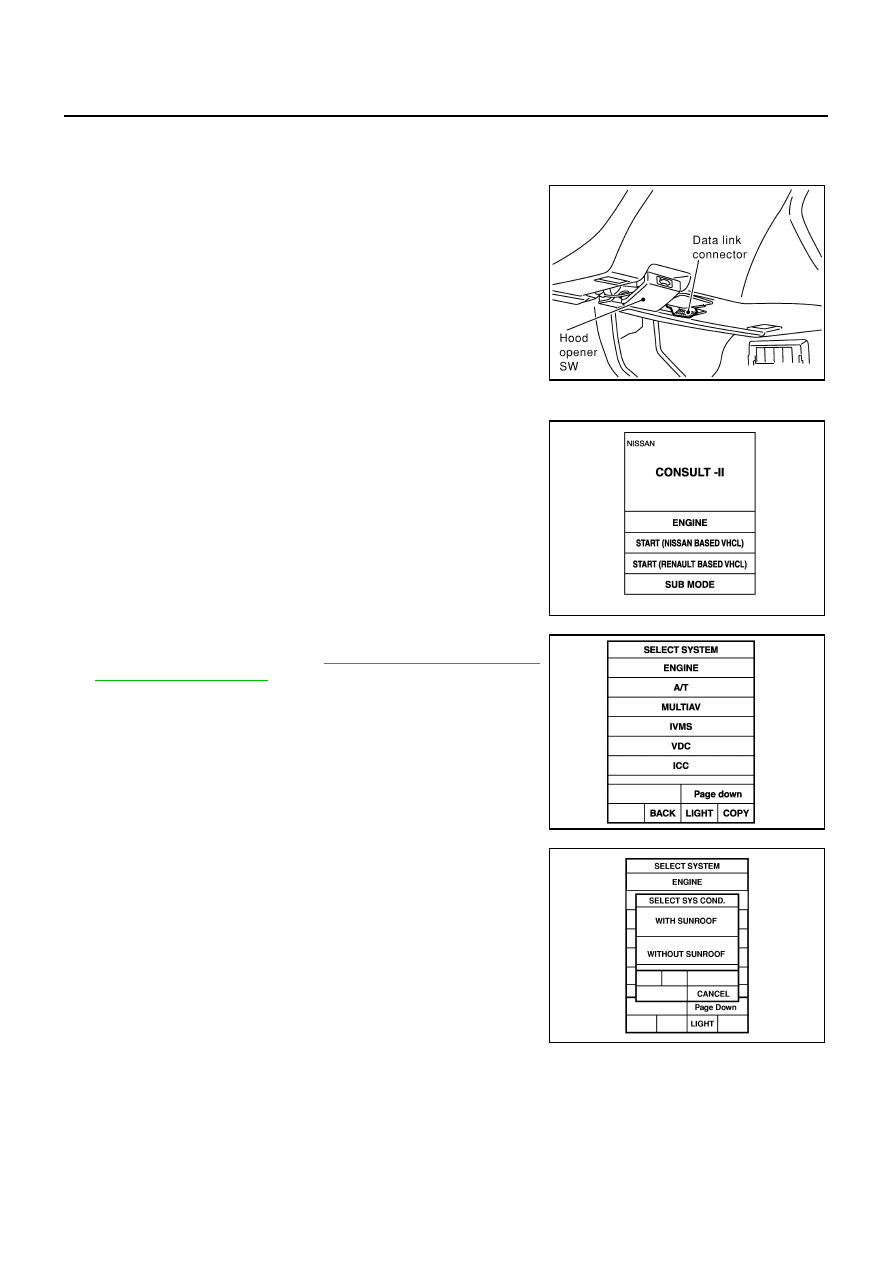

CONSULT-II INSPECTION PROCEDURE

1.

Turn ignition switch OFF.

2.

Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector.

3.

Turn ignition switch ON.

4.

Touch “START (NISSAN BASED VHCL)”.

5.

Touch “IVMS” on the “SELECT SYSTEM” screen.
If “IVMS” is not indicated, go to

GI-38, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

6.

Check the model specification, touch either “WITH SUNROOF”
or “WITH OUT SUNROOF”.

7.

Touch “OK”. If the selection is wrong, touch “CANCEL”.

SHIA0179E

MBIB0233E

PIIA2796E

PIIA0184E
