Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap
Rings

ACS004HA

SCIA5456E

AT-342

DISASSEMBLY

DISASSEMBLY

PFP:31020

Disassembly

ACS004HB

CAUTION:

Do not disassemble parts behind Drum Support. Refer to

AT-19, "Cross-Sectional View"

 .

When replacing the control valve assembly, erase EEP ROM in TCM. Refer to

AT-8, "Precautions

for TCM, A/T Assembly and Control Valve Assembly Replacement"

 .

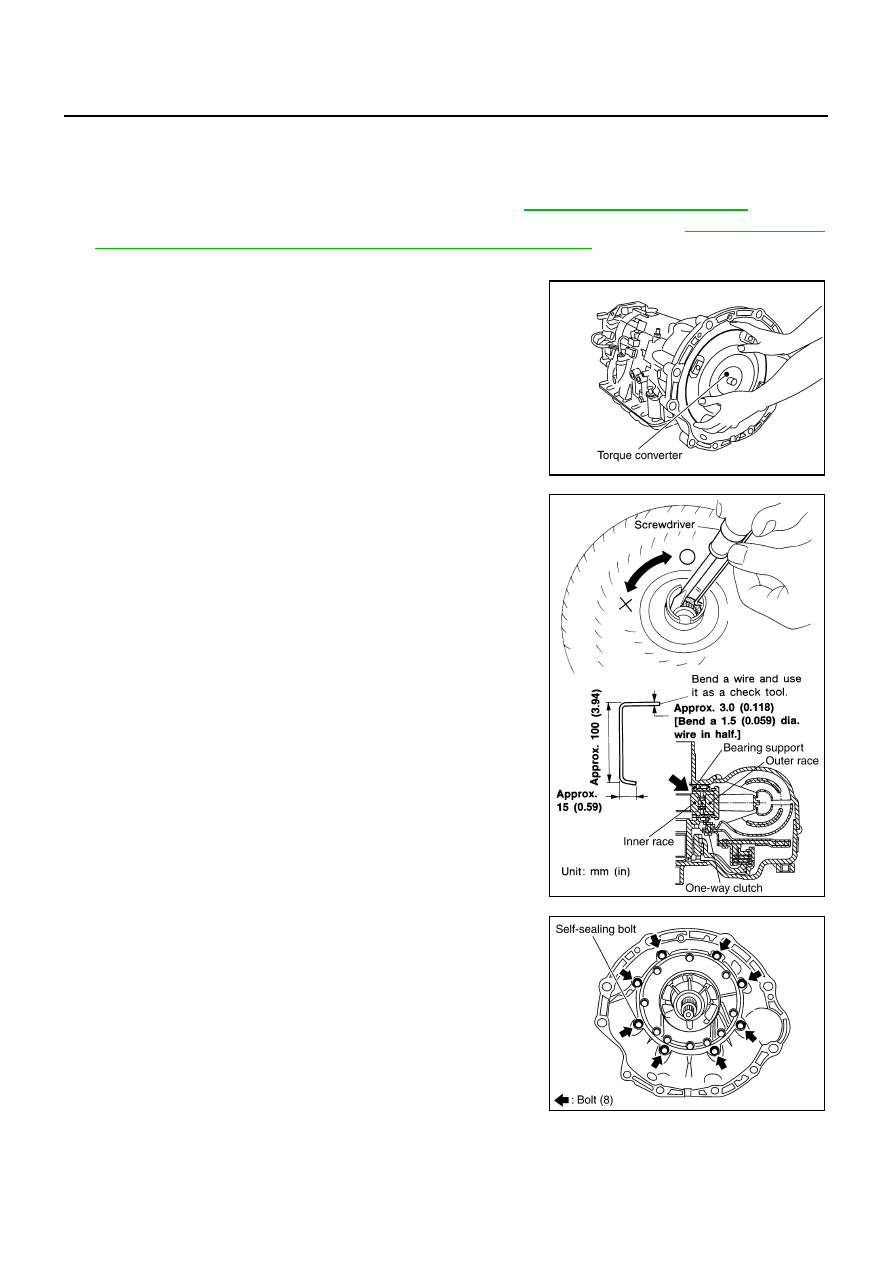

1.

Drain ATF through drain plug.

2.

Remove torque converter by holding it firmly and turing while
pulling straight out.

3.

Check torque converter one-way clutch using a check tool as
shown in the figure.

a.

Insert the check tool into the groove of bearing support built into
one-way clutch outer race.

b.

When fixing bearing support with the check tool, rotate one-way
clutch spline using a screwdriver.

c.

Check that inner race rotates clockwise only. If not, replace
torque converter assembly.

4.

Remove converter housing from transmission case.

CAUTION:

Be careful not to scratch converter housing.

SCIA2297E

SCIA3171E

SCIA2298E

DISASSEMBLY

AT-343

D

E

F

G

H

I

J

K

L

M

A

B

AT

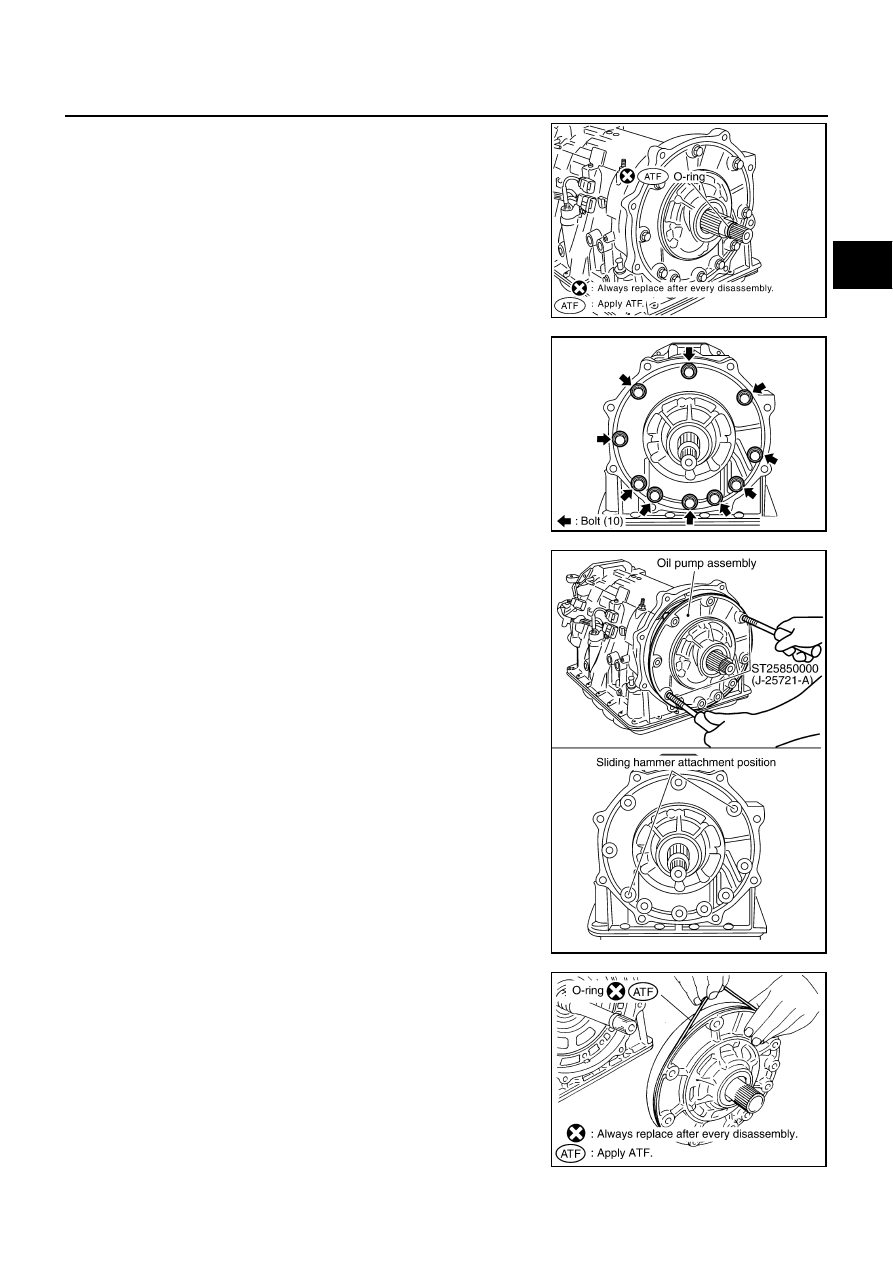

5.

Remove O-ring from input clutch assembly.

6.

Remove tightening bolts for oil pump assembly and transmis-
sion case.

7.

Attach the sliding hammers to oil pump assembly and extract it
evenly from transmission case.

CAUTION:

Fully tighten the sliding hammer screws.

Make sure that bearing race is installed to the oil pump
assembly edge surface.

8.

Remove O-ring from oil pump assembly.

SCIA2299E

SCIA2300E

SCIA5312E

SCIA5172E

AT-344

DISASSEMBLY

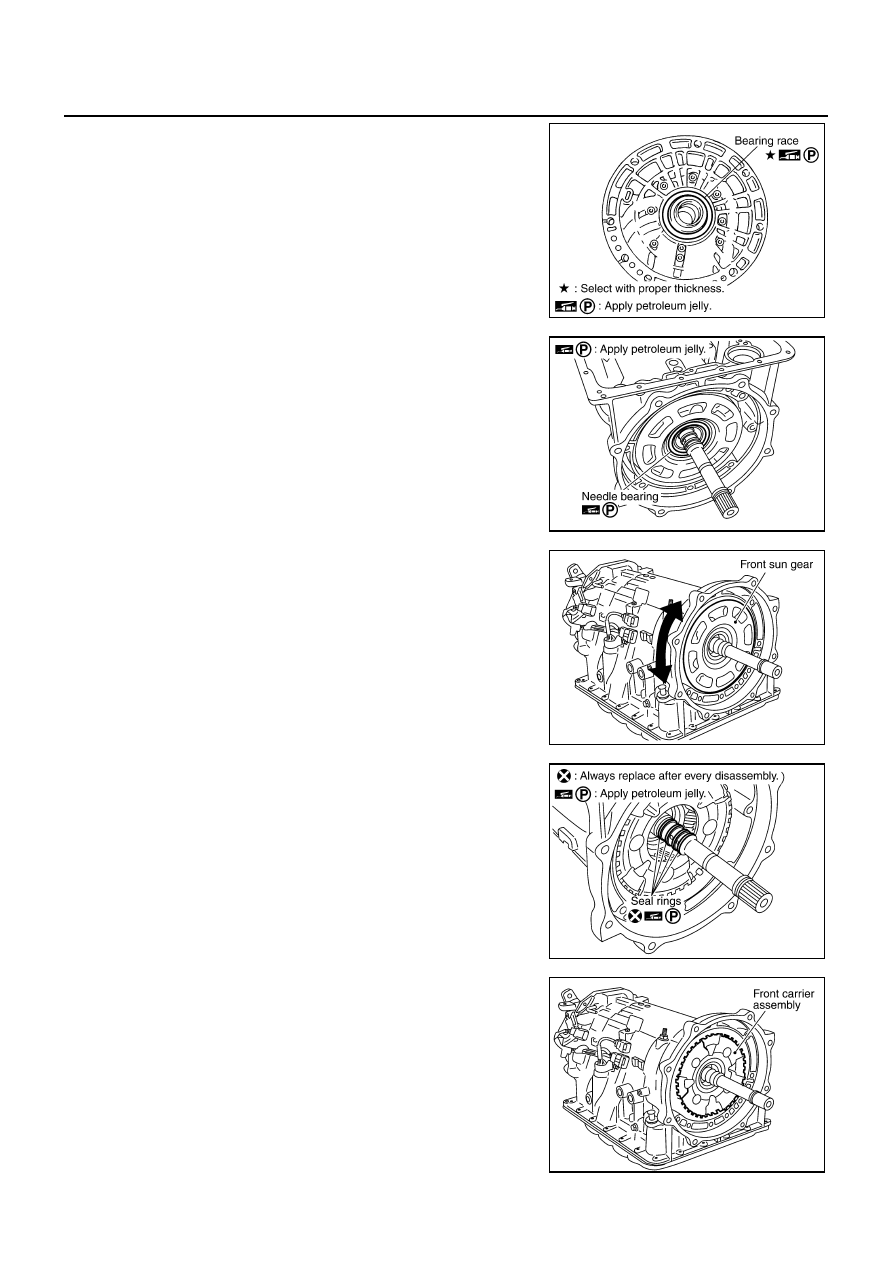

9.

Remove bearing race from oil pump assembly.

10. Remove needle bearing from front sun gear.

11. Remove front sun gear assembly from front carrier assembly.

NOTE:
Remove front sun gear by rotating left/right.

12. Remove seal rings from input clutch assembly.

13. Remove front carrier assembly from transmission case. (With

input clutch assembly and rear internal gear.)

CAUTION:

Be careful to remove it with needle bearing.

SCIA6529E

SCIA2808E

SCIA2302E

SCIA2470E

SCIA2303E
