Infiniti M45 (Y34). Manual - part 13
LASER BEAM AIMING ADJUSTMENT
ACS-45
[ICC]
C
D
E
F
G
H
I
J
L
M
A
B
ACS

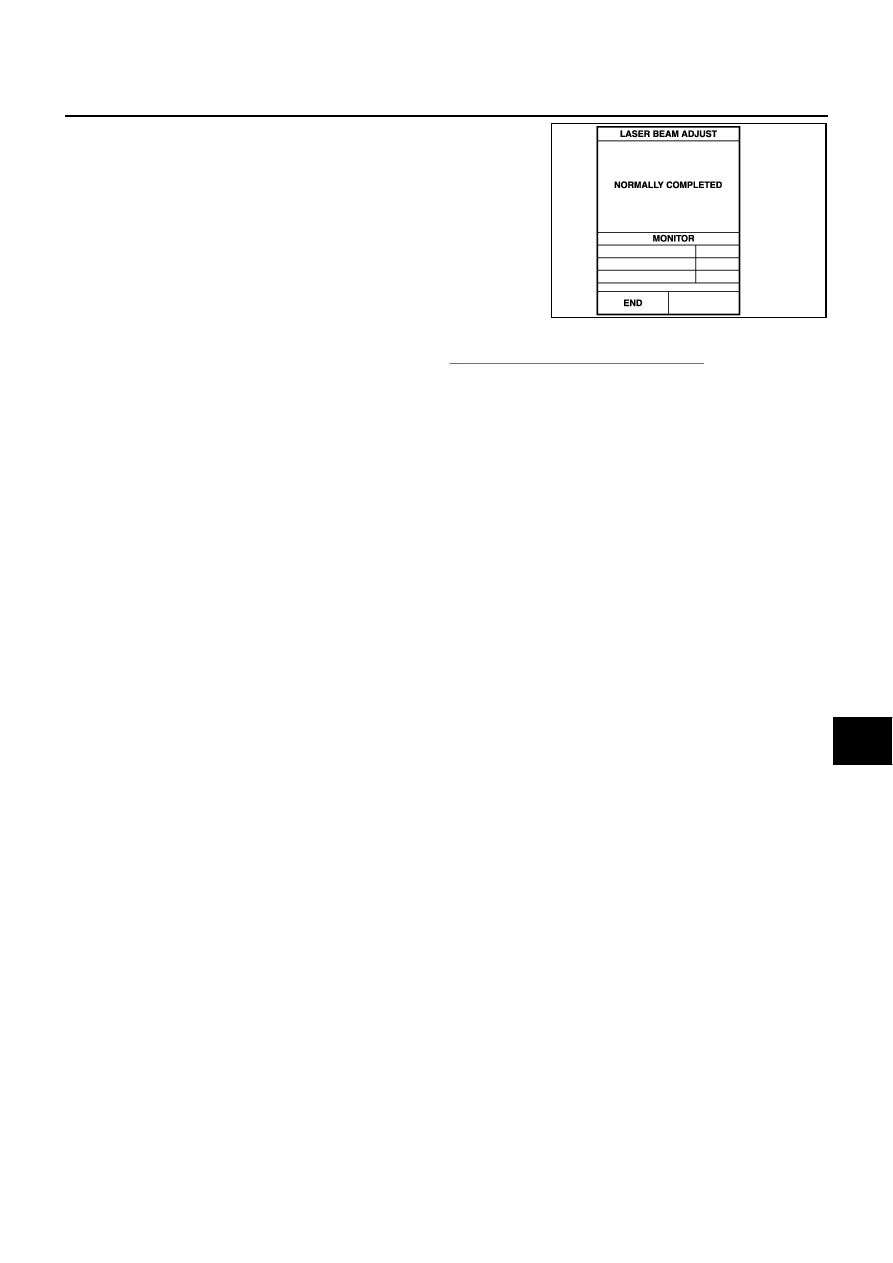

11. Confirm that “NORMALLY COMPLETED” is displayed on CON-
SULT-II and close the aiming adjustment procedure by touching
“END”.
CAUTION:
Complete all the procedures once “LASER BEAM ADJUST”
mode is entered in CONSULT-II. When the procedure is dis-
continued, the ICC system is inoperable.
CHECK AFTER THE ADJUSTMENT
Test the ICC system operation by running test. Refer to
ACS-37, "ICC System Running Test"
.
SKIA1225E
