TURN SIGNAL AND HAZARD WARNING LAMPS

LT-217

C

D

E

F

G

H

I

J

L

M

A

B

LT

TKWT5264E

LT-218

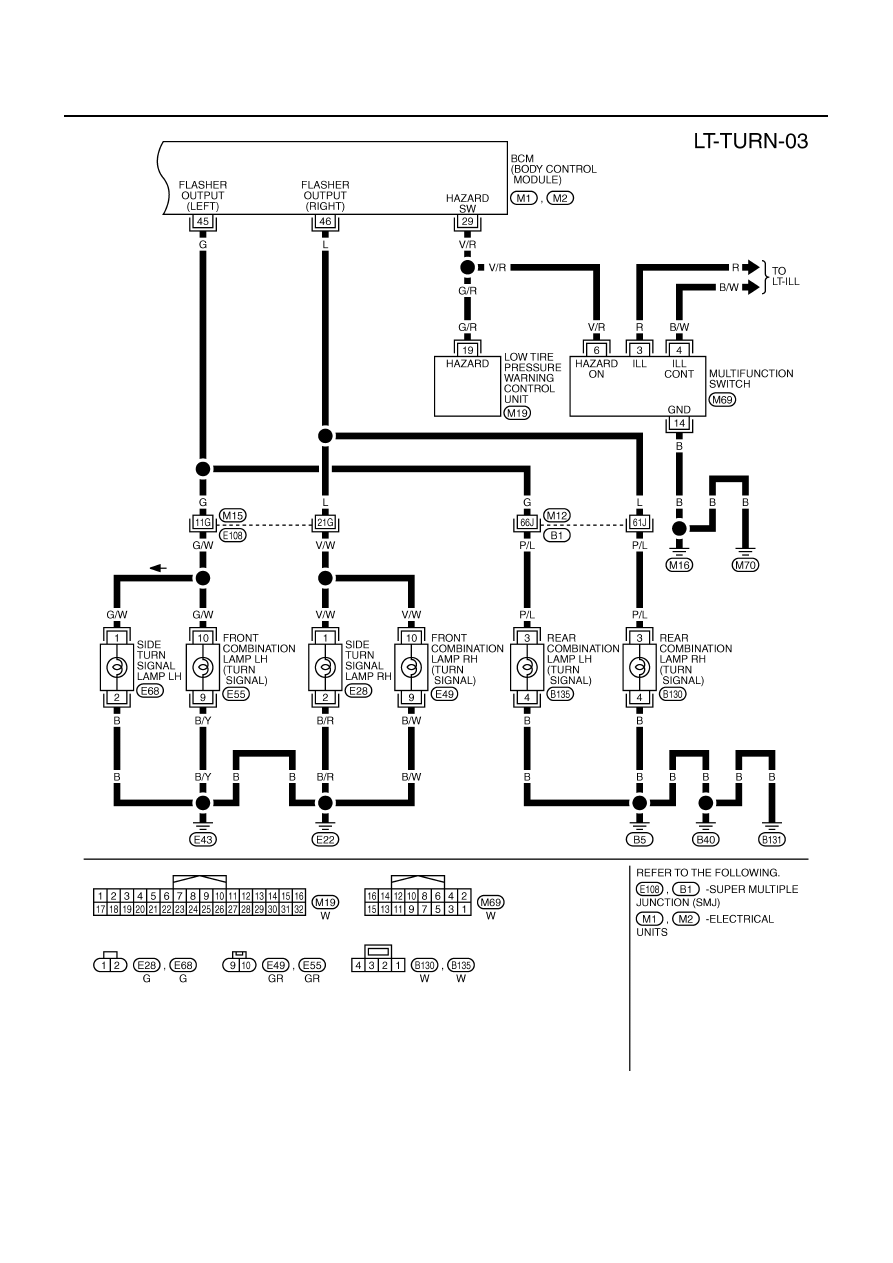

TURN SIGNAL AND HAZARD WARNING LAMPS

TKWT5278E

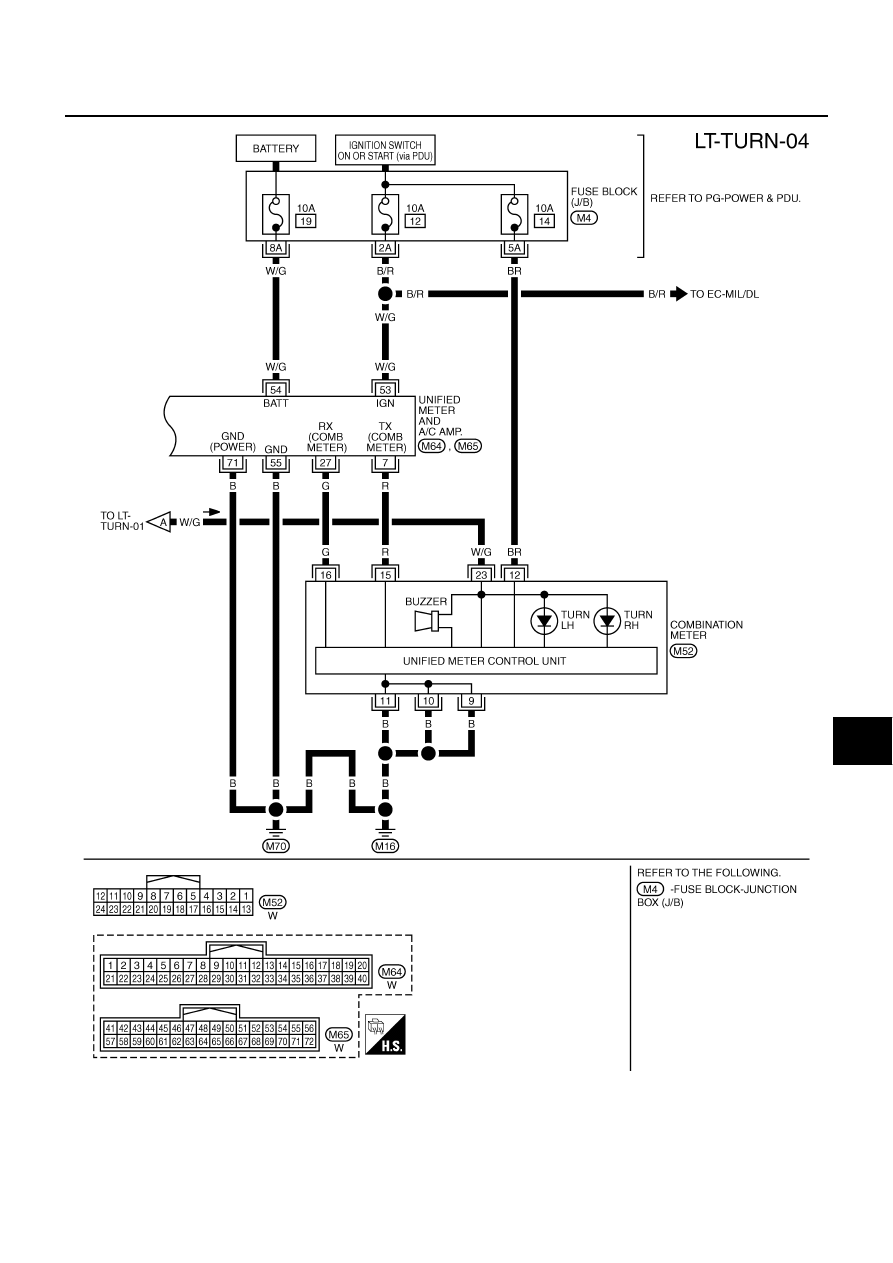

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-219

C

D

E

F

G

H

I

J

L

M

A

B

LT

TKWT4859E

LT-220

TURN SIGNAL AND HAZARD WARNING LAMPS

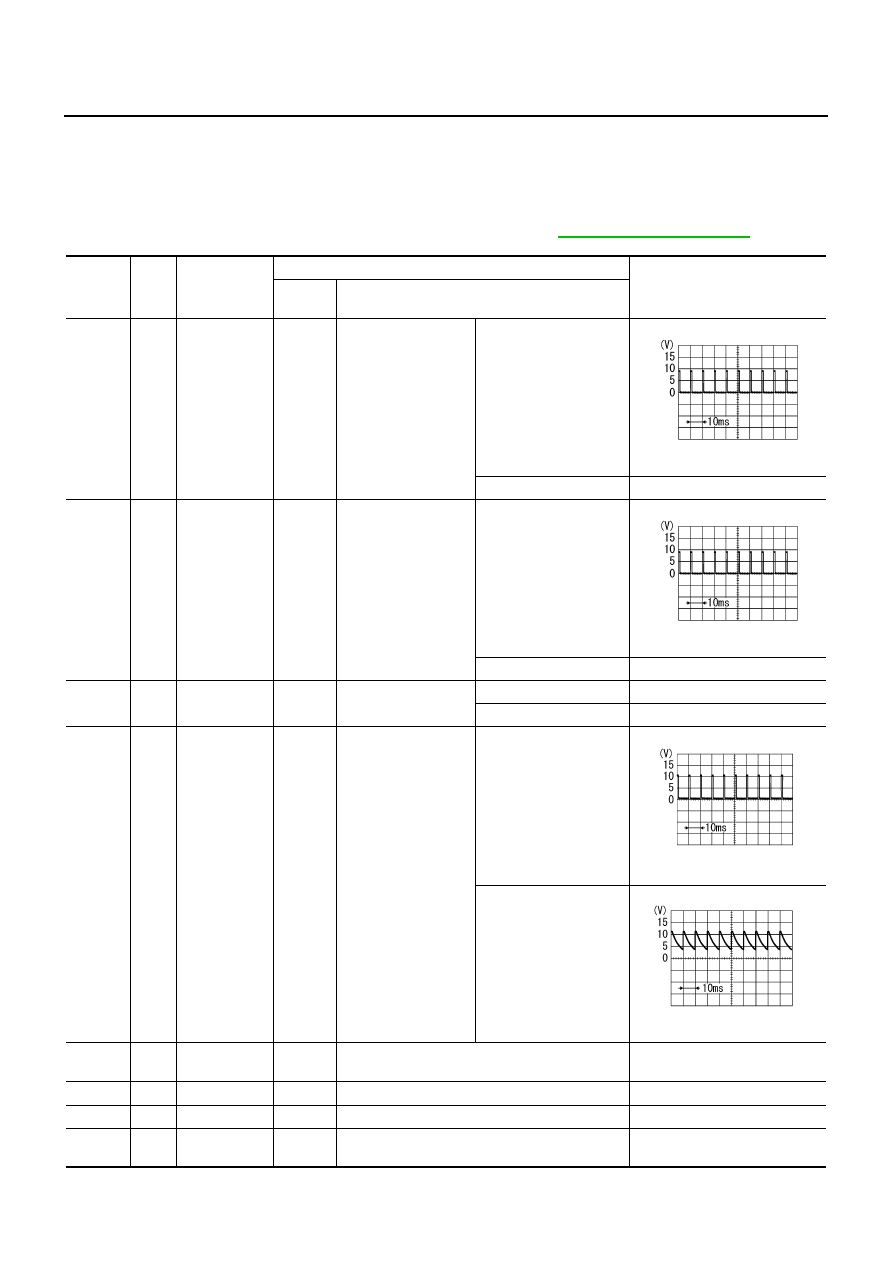

Terminals and Reference Values for BCM

NKS003RQ

CAUTION:

●

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

●

Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-II. Refer to

LT-238, "DATA MONITOR"

 .

Terminal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

2

L/R

Combination
switch input 5

ON

Lighting, turn, wiper
switch
(Wiper dial position 4)

Turn signal switch to
right

Approx. 1.0 V

OFF

Approx. 0 V

3

O/L

Combination
switch input 4

ON

Lighting, turn, wiper
switch
(Wiper dial position 4)

Turn signal switch to left

Approx. 1.0 V

OFF

Approx. 0 V

29

V/R

Hazard switch
signal

OFF

Hazard switch

ON

Approx. 0 V

OFF

Battery voltage

36

V

Combination
switch output 1

ON

Lighting, turn, wiper
switch
(Wiper dial position 4)

Any of several con-
ditions below

●

Turn signal switch to
right

●

Turn signal switch to
left

Approx. 1.2 V

OFF

Approx. 7.0 - 7.5 V

38

W

Ignition switch

(ON)

ON

—

Battery voltage

39

L

CAN

−



H

—

—

—

40

P

CAN

−



L

—

—

—

42

P

Battery power
supply

OFF

—

Battery voltage

PKIB4957J

PKIB4957J

PKIB4958J

PKIB4960J
