Infiniti M35/M45 Y50. Manual - part 1153

FRONT WIPER AND WASHER SYSTEM

WW-17

C

D

E

F

G

H

I

J

L

M

A

B

WW

TKWT5093E

WW-18

FRONT WIPER AND WASHER SYSTEM

TKWT5291E

FRONT WIPER AND WASHER SYSTEM

WW-19

C

D

E

F

G

H

I

J

L

M

A

B

WW

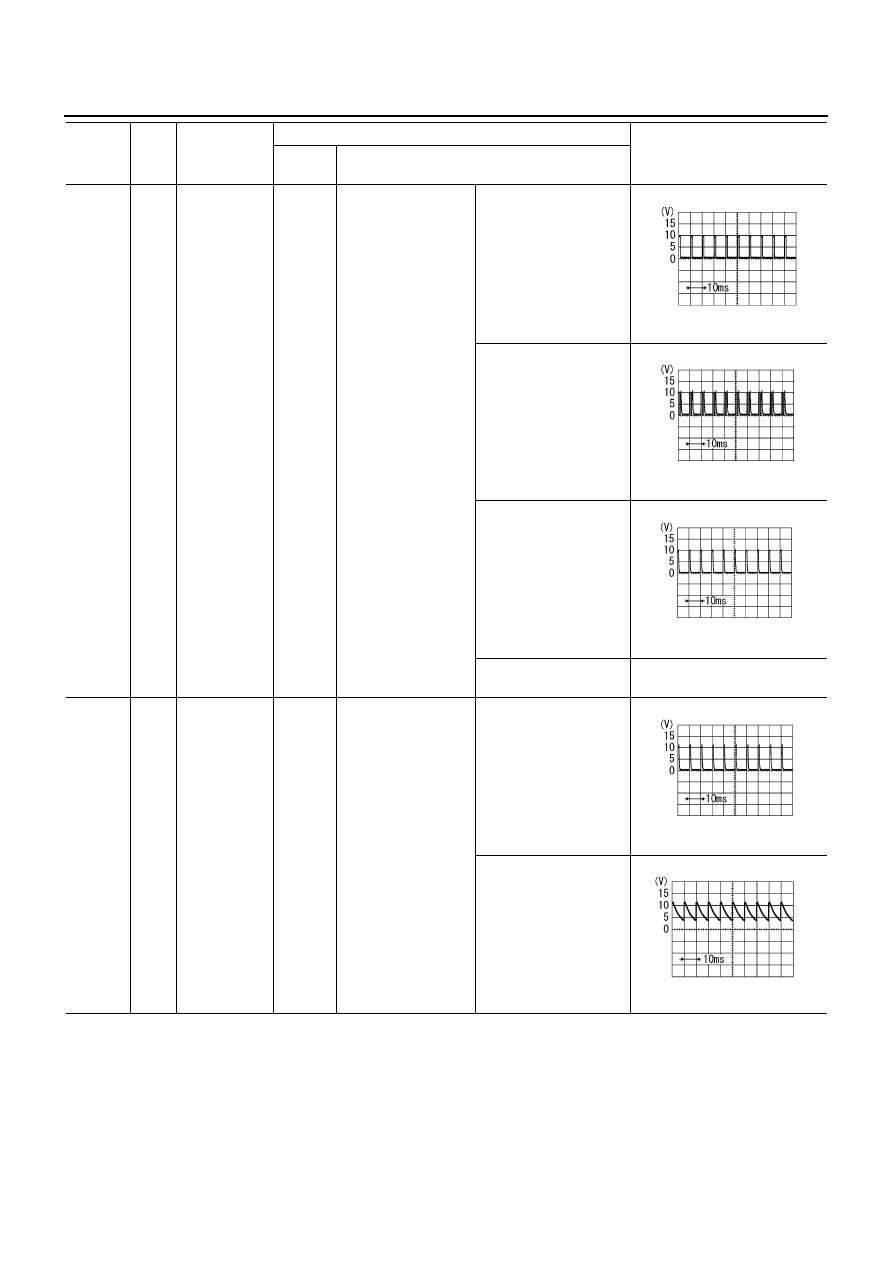

Terminals and Reference Values for BCM

NKS003WH

CAUTION:

●

Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.

●

Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-II. Refer to

WW-25, "DATA MONITOR"

 .

Terminal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

4

R/G

Combination
switch input 3

ON

Lighting, turn, wiper
OFF
(Wiper dial position 4)

Any of several con-
ditions below

●

Front wiper SW MIST

●

Front wiper SW INT

●

Front wiper SW LO

Approx. 1.0 V

OFF

Approx. 0 V

5

Y

Combination
switch input 2

ON

Lighting, turn, wiper
OFF

Any of several con-
ditions below

●

Front washer switch
(Wiper dial position 4)

●

Wiper dial position 1

●

Wiper dial position 5

●

Wiper dial position 6

Approx. 1.0 V

OFF

(Wiper dial position 4)

Approx. 0 V

PKIB4957J

PKIB4957J

WW-20

FRONT WIPER AND WASHER SYSTEM

6

LG/B

Combination
switch input 1

ON

Lighting, turn, wiper
OFF

Any of several con-
ditions below

●

Front wiper switch HI
(Wiper dial position 4)

●

Wiper dial position 3

Approx. 1.0 V

Any of several con-
ditions below

●

Wiper dial position 1

●

Wiper dial position 2

Approx. 1.7 V

Any of several con-
ditions below

●

Wiper dial position 6

●

Wiper dial position 7

Approx. 0.8 V

OFF

(Wiper dial position 4)

Approx. 0 V

32

LG

Combination
switch output 5

ON

Lighting, turn, wiper
OFF

Any of several con-
ditions below

●

Wiper dial position 1

●

Wiper dial position 2

●

Wiper dial position 6

●

Wiper dial position 7

Approx. 1.0 V

OFF

(Wiper dial position 4)

Approx. 7.0 - 7.5 V

Terminal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

PKIB4959J

PKIB4952J

PKIB4955J

PKIB4956J

PKIB4960J
