CLIMATE CONTROLLED SEAT

SE-117

C

D

E

F

G

H

J

K

L

M

A

B

SE

●

through climate controlled seat control unit terminal 16,

ground is supplied

●

to climate controlled seat control unit terminal 15,

●

through seatback thermal electric device terminal 4,

●

through climate controlled seat control unit terminal 3,

●

through body grounds B5, B40 and B131.

When climate controlled switch selects HEAT,
Power is supplied

●

to climate controlled seat switch terminal 5,

●

through climate controlled seat control unit terminal 8.

Ground is supplied

●

to the climate controlled seat switch terminal 6,

●

through body grounds B402 and B405.

Then climate controlled seat switch HEAT indicator is energized.
When climate controlled switch select COOL,
Power is supplied

●

to climate controlled seat switch terminal 4,

●

through climate controlled seat control unit terminal 9.

Ground is supplied

●

to the climate controlled seat switch terminal 6,

●

through body grounds B402 and B405.

Then climate controlled seat switch COOL indicator is energized.

SE-118

CLIMATE CONTROLLED SEAT

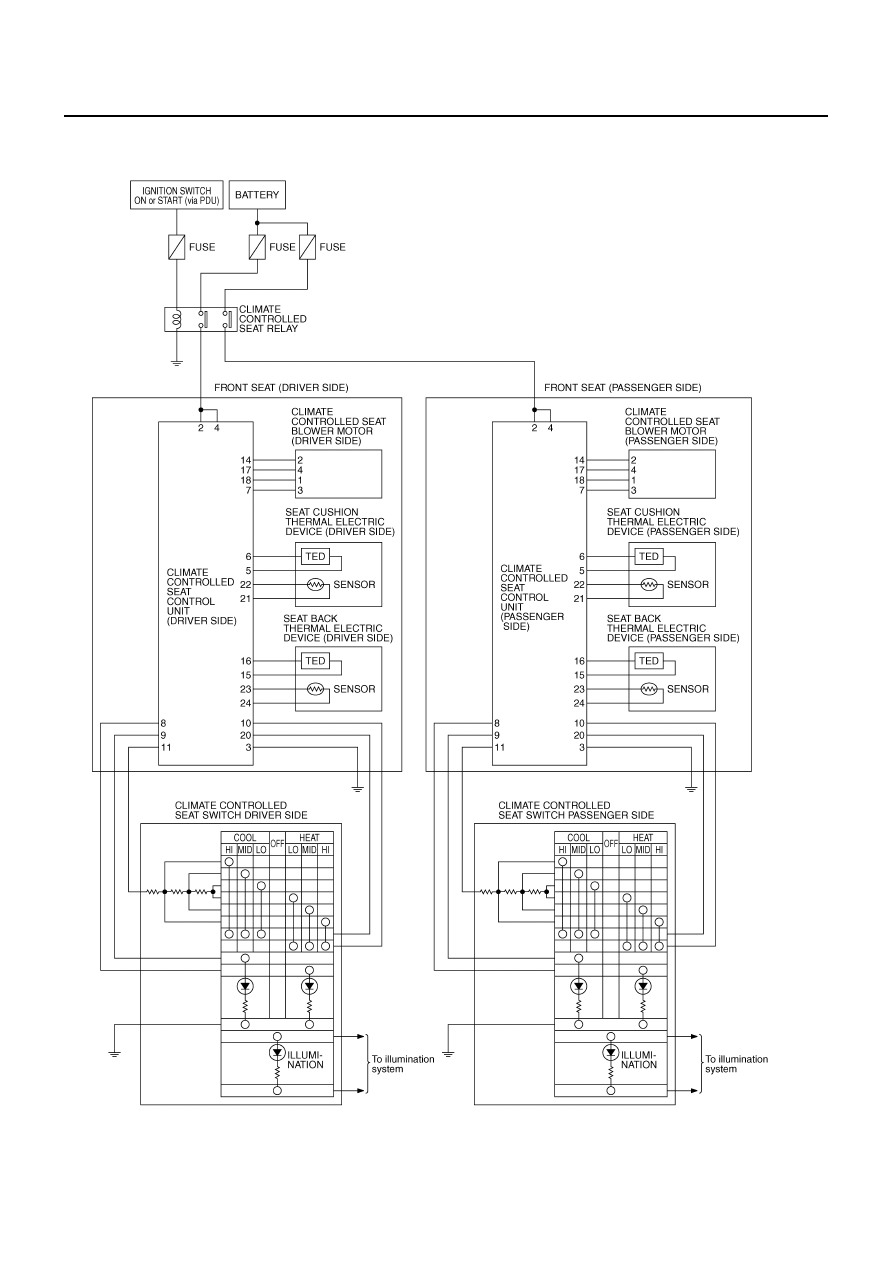

Schematic

NIS0027J

TIWT1391E

CLIMATE CONTROLLED SEAT

SE-119

C

D

E

F

G

H

J

K

L

M

A

B

SE

Wiring Diagram — C/SEAT —

NIS0027K

TIWT2129E

SE-120

CLIMATE CONTROLLED SEAT

TIWT2130E
