Infiniti F50. Manual - part 807





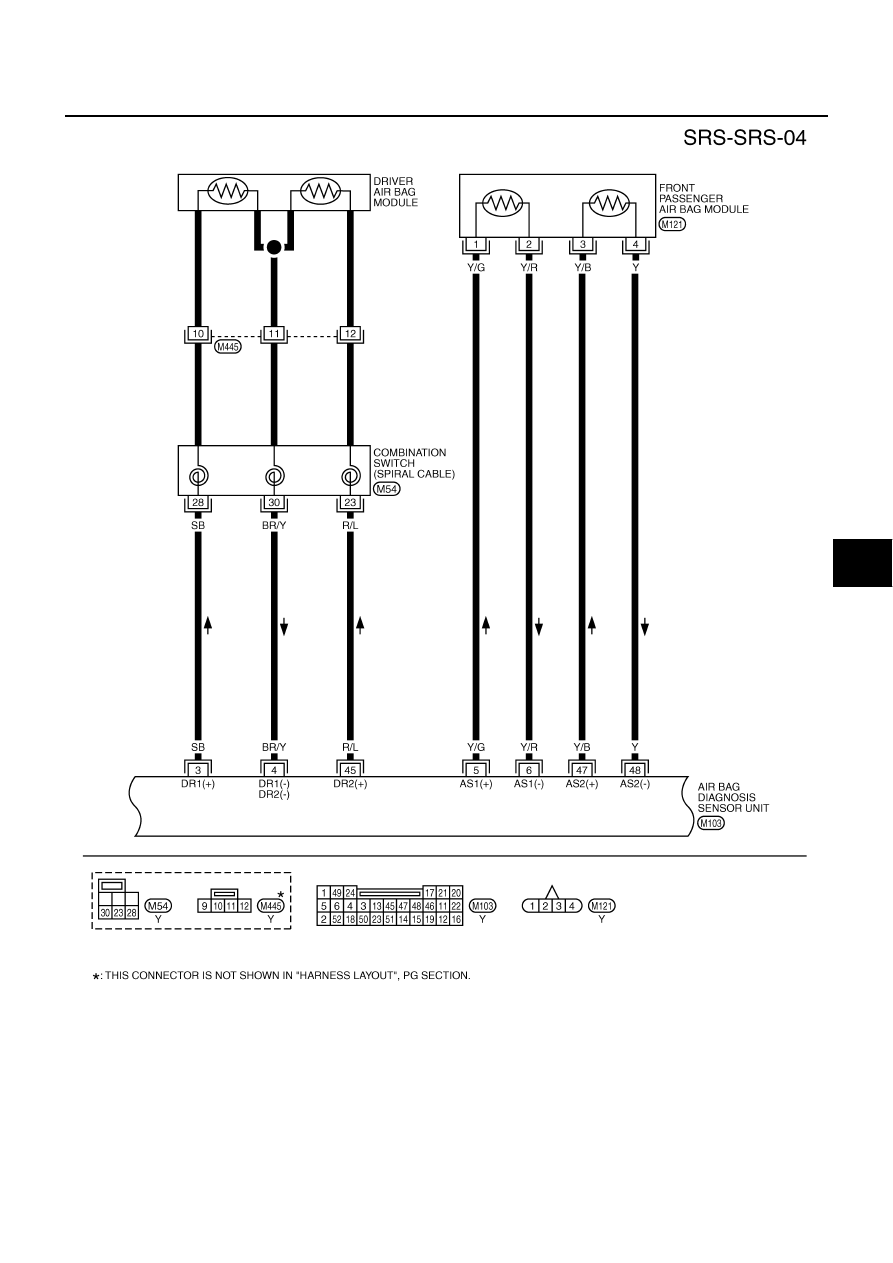

TROUBLE DIAGNOSIS

SRS-15

C

D

E

F

G

I

J

K

L

M

A

B

SRS

THWM0005E

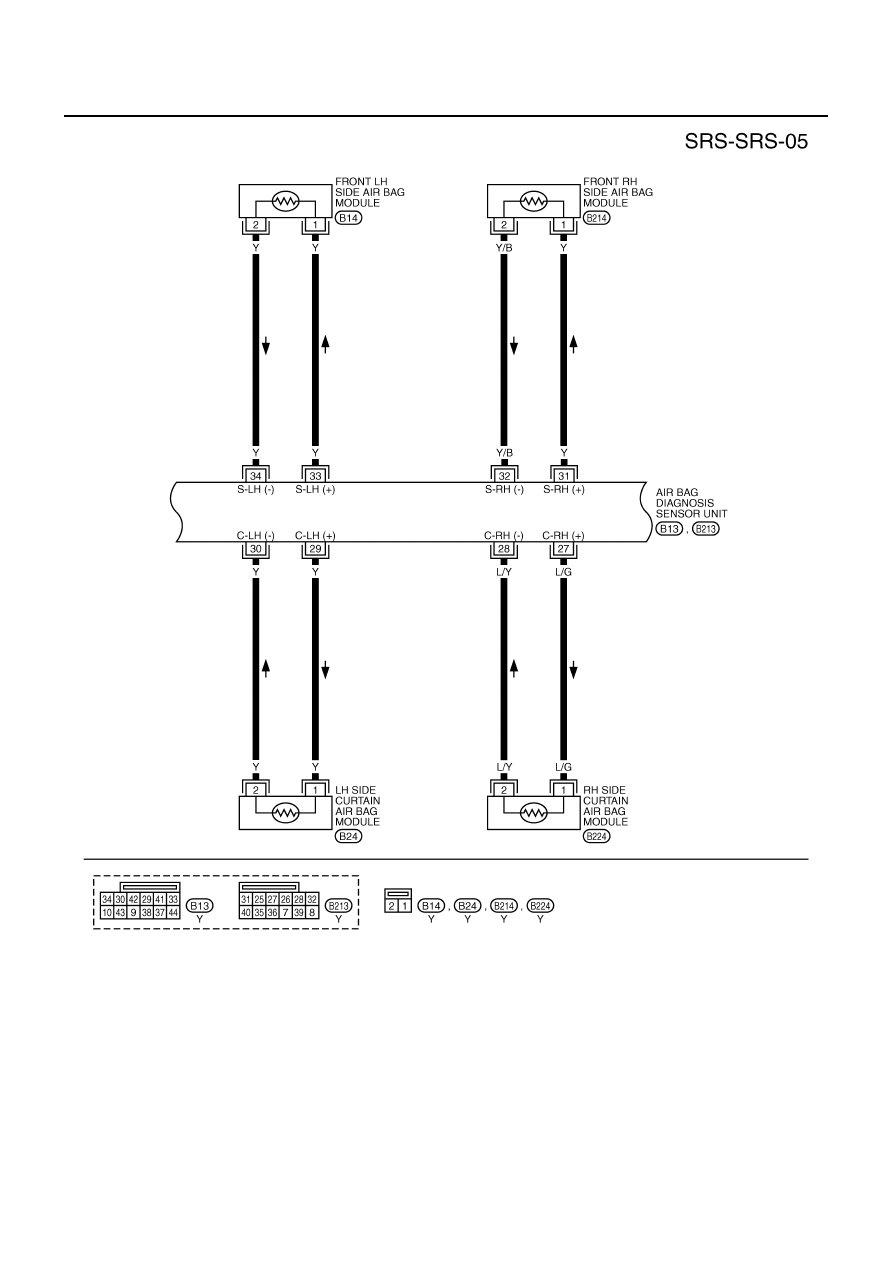

SRS-16

TROUBLE DIAGNOSIS

THWM0021E

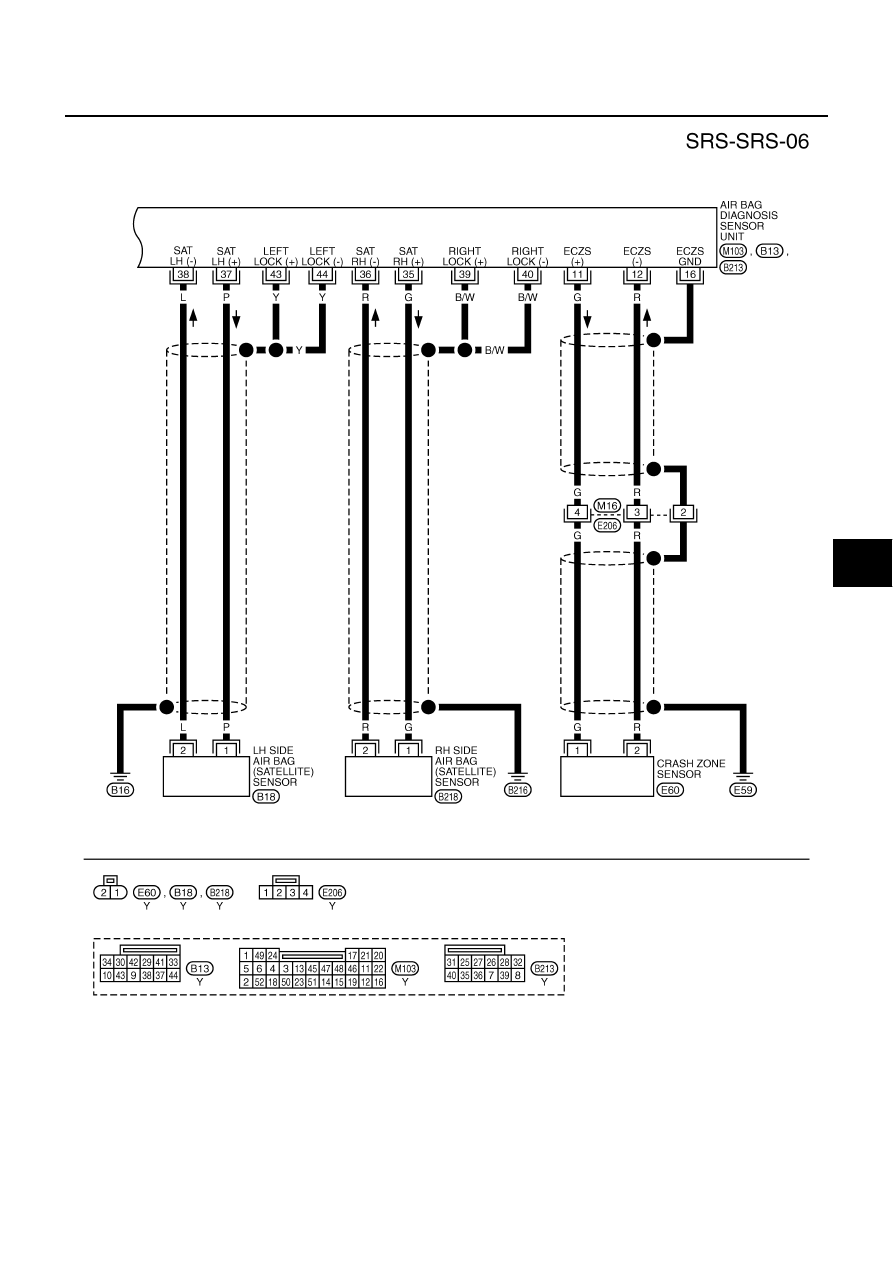

TROUBLE DIAGNOSIS

SRS-17

C

D

E

F

G

I

J

K

L

M

A

B

SRS

THWM0022E

SRS-18

TROUBLE DIAGNOSIS

CONSULT-II Function

EHS000MB

DIAGNOSIS MODE FOR CONSULT-II

“SELF-DIAG [CURRENT]”
A current Self-diagnosis result (also indicated by the number of warning lamp flashes in the Diagnosis
mode) is displayed on the CONSULT-II screen in real time. This refers to a malfunctioning part requiring
repairs.

“SELF-DIAG [PAST]”
Diagnosis results previously stored in the memory are displayed on the CONSULT-II screen. The stored
results are not erased until memory erasing is executed.

“TROUBLE DIAG RECORD”
With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be dis-
played on the CONSULT-II screen.

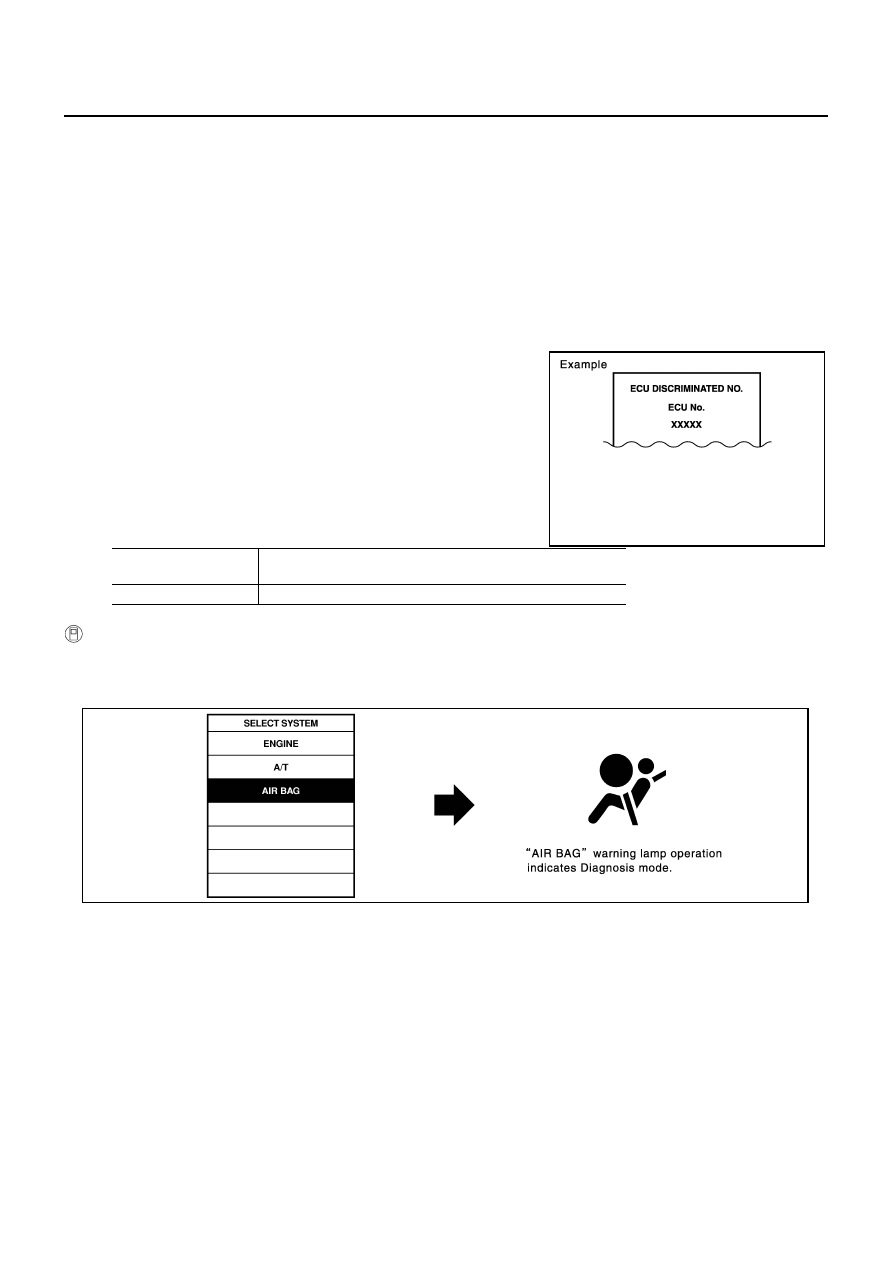

“ECU DISCRIMINATED NO.”
The diagnosis sensor unit for each vehicle model is assigned
with its own, individual classification number. This number will
be displayed on the CONSULT-II screen, as shown. When
replacing the diagnosis sensor unit, refer to the part number for
the compatibility. After installation, replacement with a correct
unit can be checked by confirming this classification number on
the CONSULT-II screen.
After repair, make sure the discriminated number shown in the
below table and the discriminated number of diagnosis sensor
unit installed to vehicle are same.

 HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-II

From User Mode to Diagnosis Mode

After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagnosis
mode.

Discriminated No.

Driver air bag module and passenger air bag module with side
air bag module and side curtain air bag module

F342

×

PHIA0218E

SRS803
