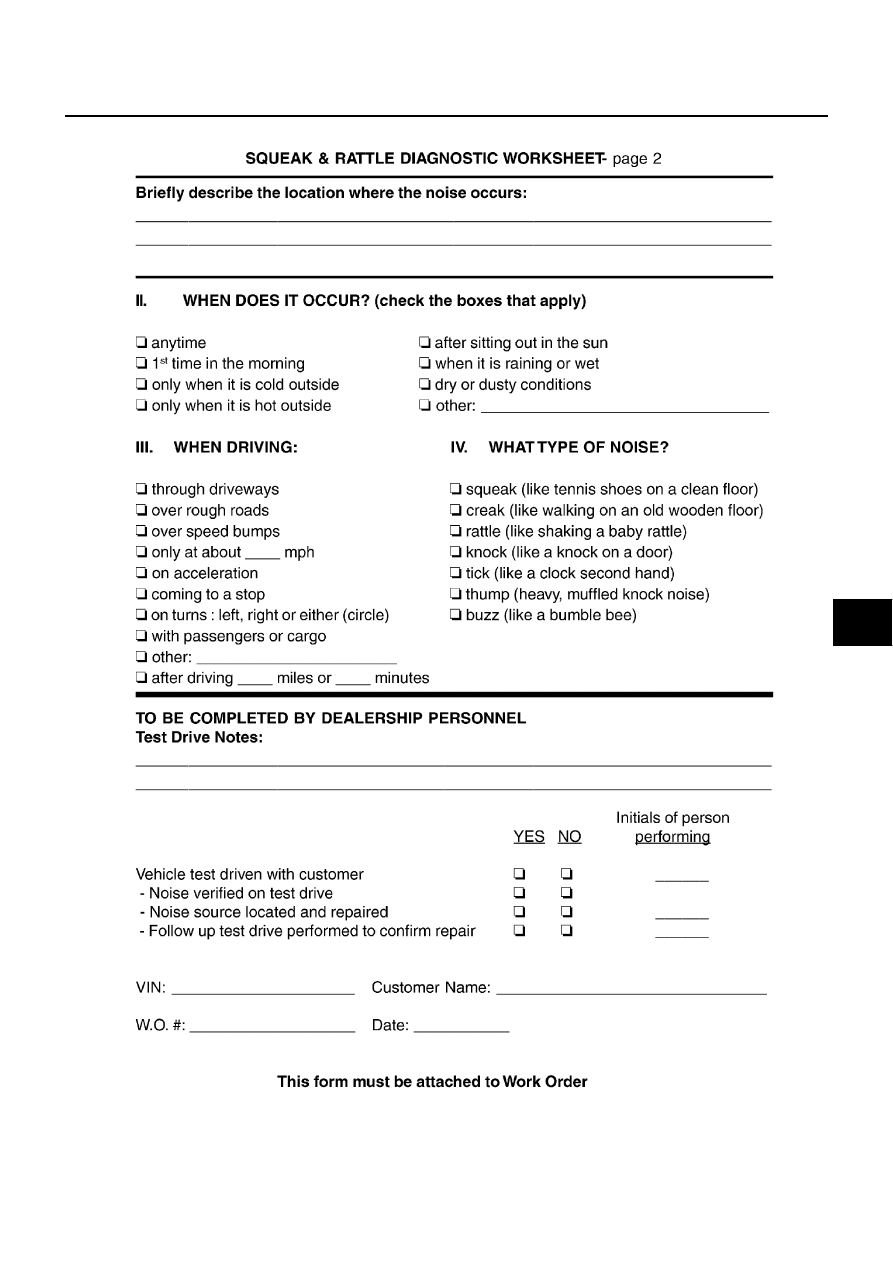

SQUEAK AND RATTLE TROUBLE DIAGNOSES

RF-9

C

D

E

F

G

H

J

K

L

M

A

B

RF

SBT844

RF-10

SUNROOF

SUNROOF

PFP:91210

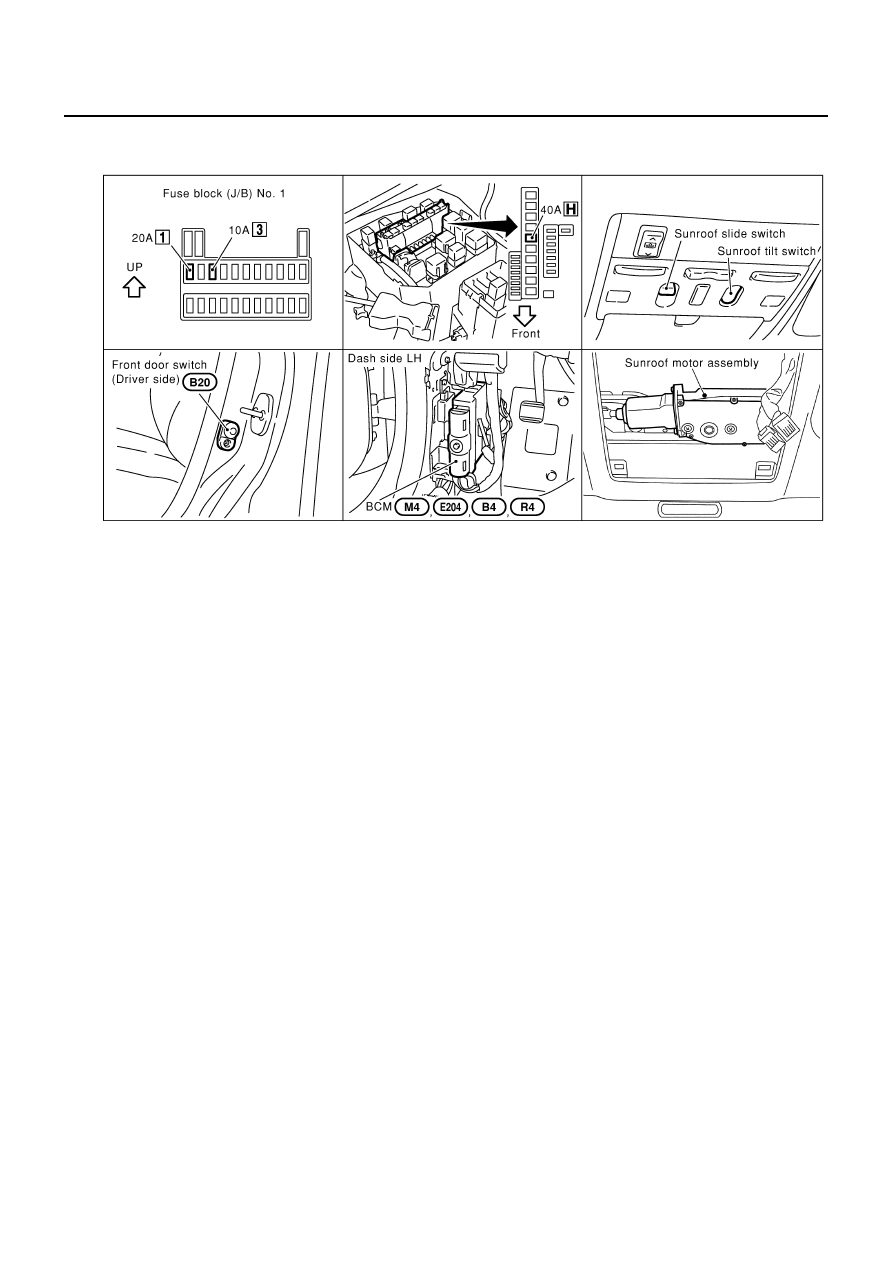

Component Parts and Harness Connector Location

EIS000JQ

System Description

EIS000JP

OUTLINE

Electric sunroof system consists of

Sunroof switch

Sunroof motor assembly

Front door switches

BCM (Body Control Module)

BCM controls power supply for  the operation of sunroof motor. Power is supplied from BCM to sunroof motor
assembly. Sunroof will be operated depending on sunroof switch condition.

OPERATION

Sunroof can be opened or closed and tilted up or down with sunroof switch.

AUTO OPERATION

The power sunroof AUTO feature makes it possible to open and close the sunroof without holding the sunroof
switch in the down or up position.

DELAYED POWER OPERATION

When the ignition switch is turned to the “OFF” position, the sunroof will still operate for up to approximately 45
seconds unless driver’s side or passenger side door is opened.

ANTI-PINCH SYSTEM

The CPU of sunroof motor monitors the sunroof motor operation and the sunroof position (full closed or other)
by the signals from sunroof motor. When sunroof motor detects interruption during the following close opera-
tion, sunroof switch controls the motor for open and the sunroof will operate about 150 mm (5.91 in).
The operation condition is the following.

automatic close operation when ignition switch is in the “ON” position

automatic close operation during retained power operation.

CIIM0002E

SUNROOF

RF-11

C

D

E

F

G

H

J

K

L

M

A

B

RF

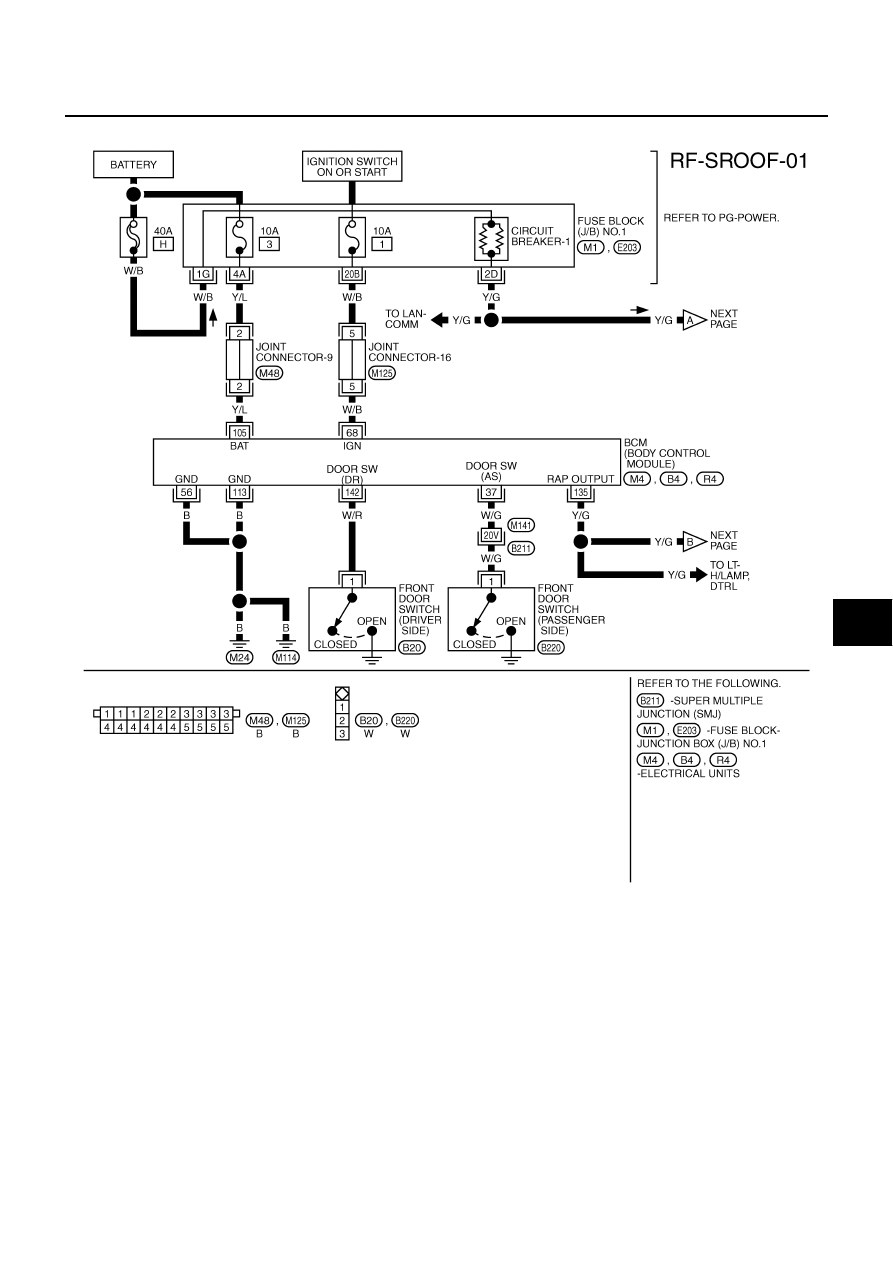

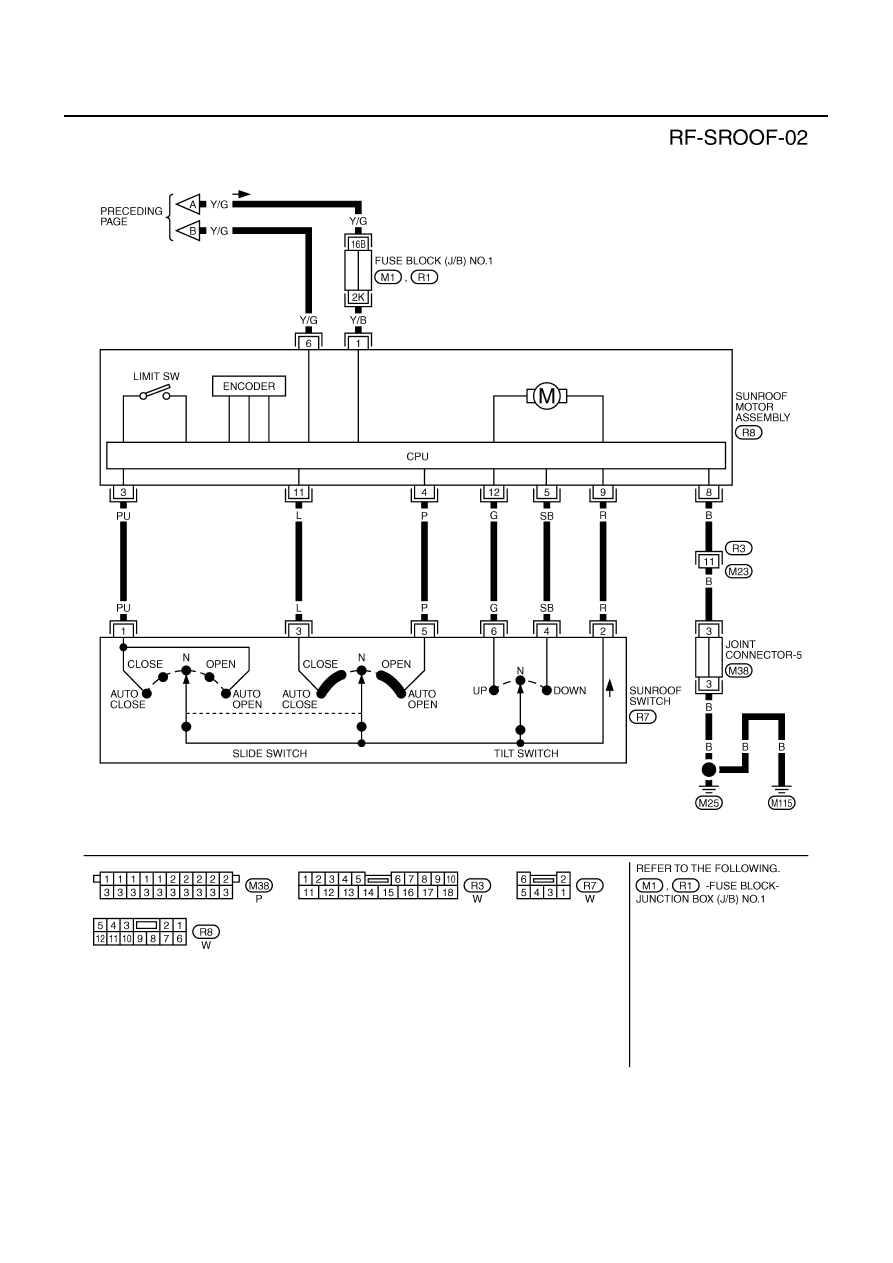

Wiring Diagram — SROOF —
