HARNESS CONNECTOR
PG-57
C
D
E
F
G
H
I
J
L
M
A
B
PG
HARNESS CONNECTOR (SLIDE-LOCKING TYPE)
●
A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.
●
The slide-locking type connectors help prevent incomplete locking and accidental looseness or discon-
nection.
●

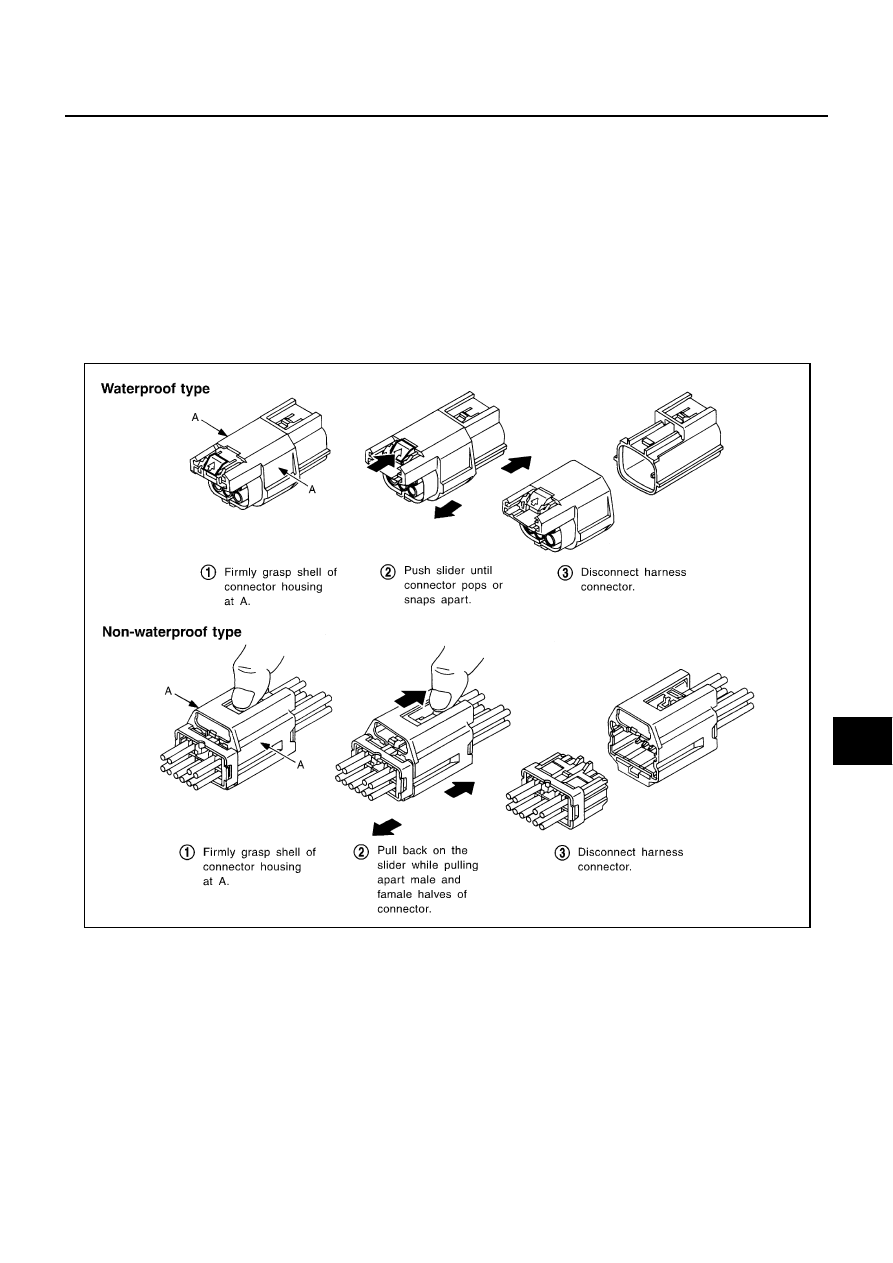

The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustra-
tion below.
CAUTION:
●
Do not pull the harness or wires when disconnecting the connector.
●
Be careful not to damage the connector support bracket when disconnecting the connector.
[Example]
SEL769V
