Infiniti F50. Manual - part 690

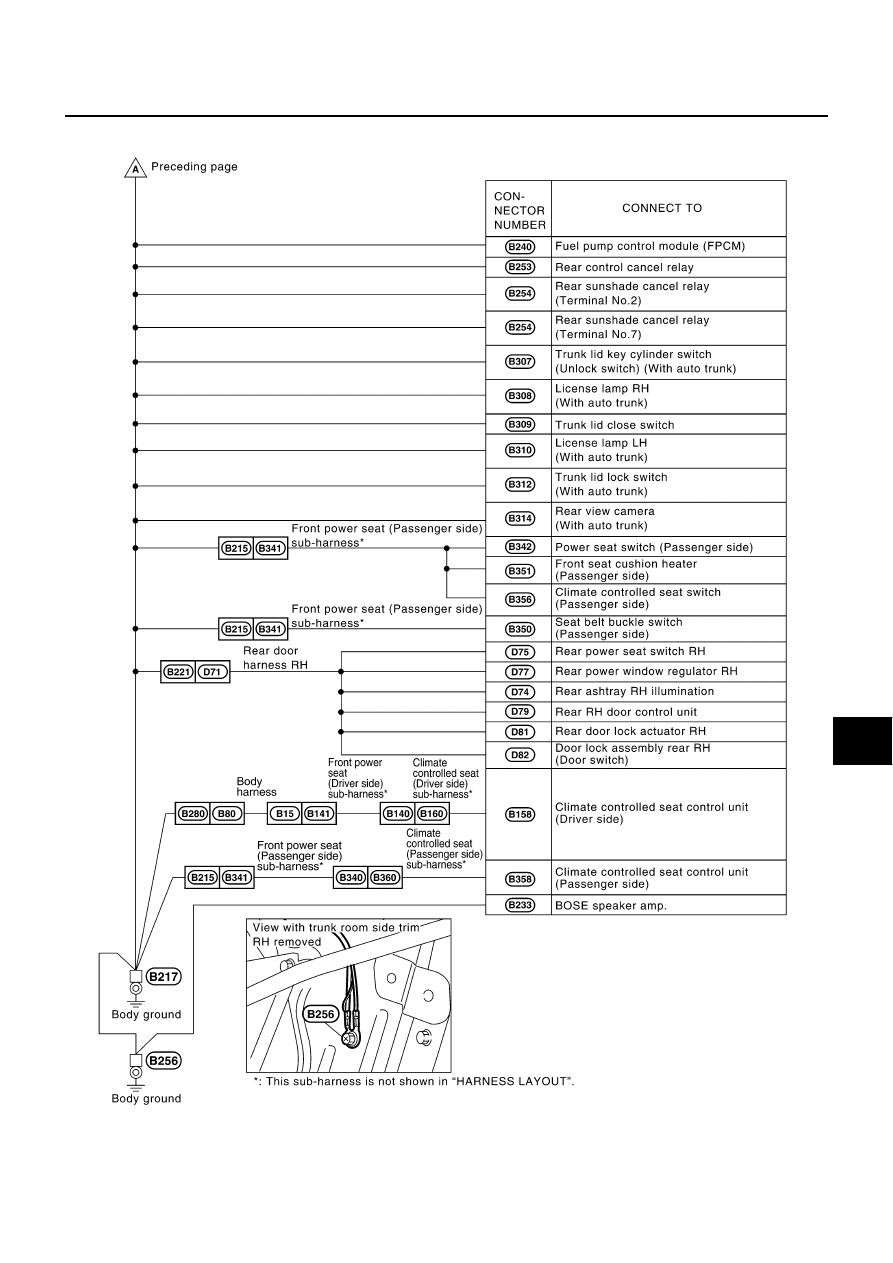

GROUND

PG-25

C

D

E

F

G

H

I

J

L

M

A

B

PG

CKIM0189E

PG-26

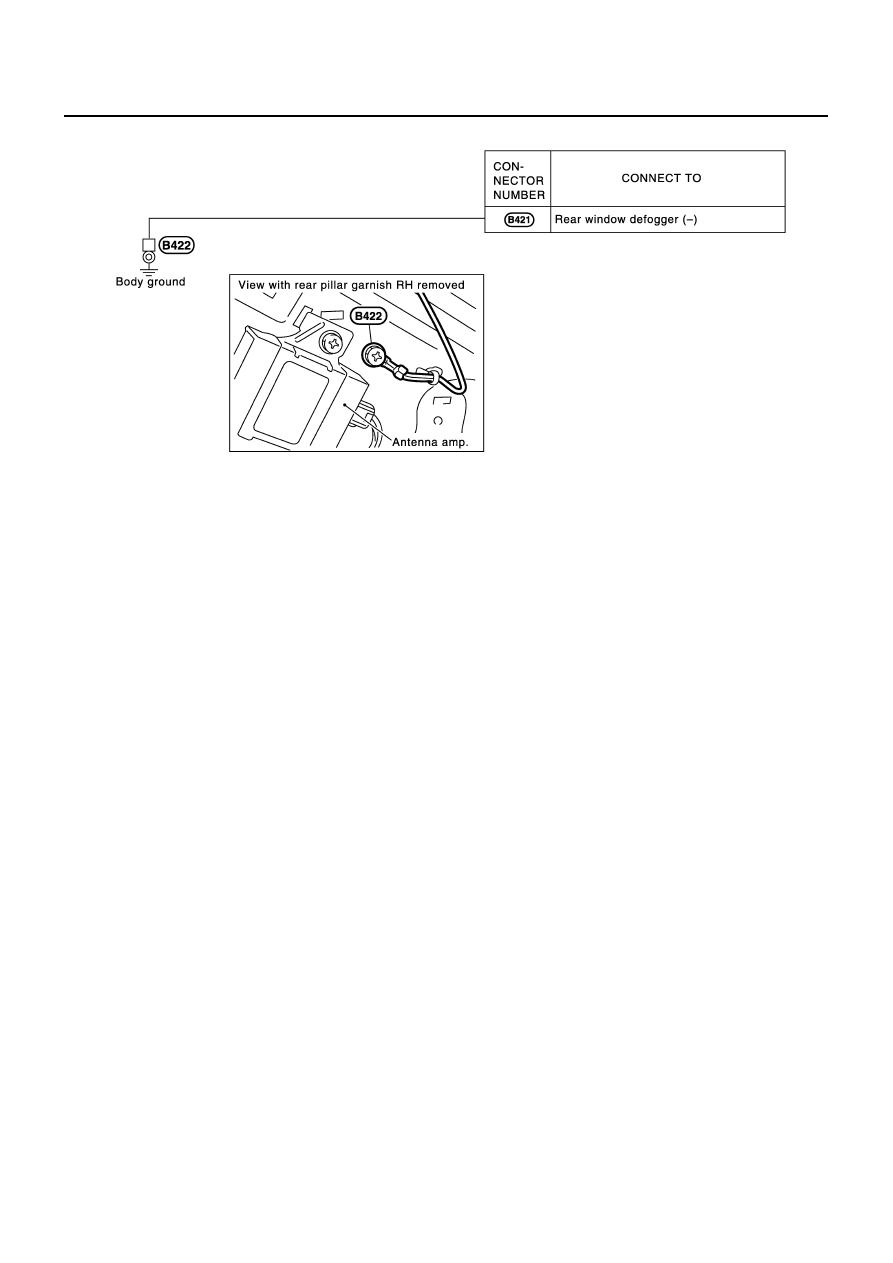

GROUND

CKIM0024E

HARNESS

PG-27

C

D

E

F

G

H

I

J

L

M

A

B

PG

HARNESS

PFP:00011

Harness Layout

EKS000DS

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate
connectors on the drawings:

●

Main Harness

●

Engine Room Harness (Engine Compartment)

●

Engine Control Harness

●

Body Harness and Rear Control Harness

●

Body No.2 Harness

To use the grid reference

1.

Find the desired connector number on the connector list.

2.

Find the grid reference.

3.

On the drawing, find the crossing of the grid reference letter column and number row.

4.

Find the connector number in the crossing zone.

5.

Follow the line (if used) to the connector.

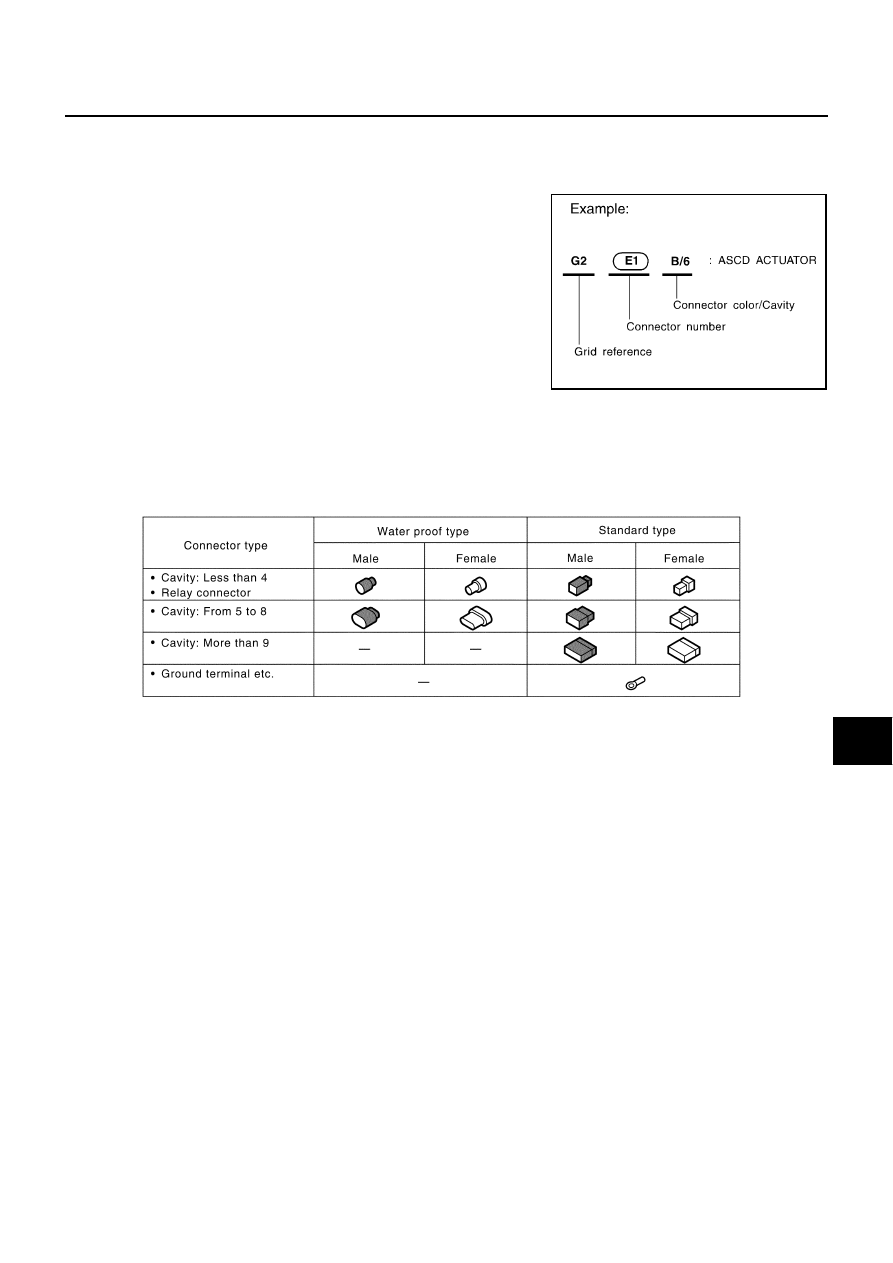

CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.

SEL252V

SKIA0404E

PG-28

HARNESS

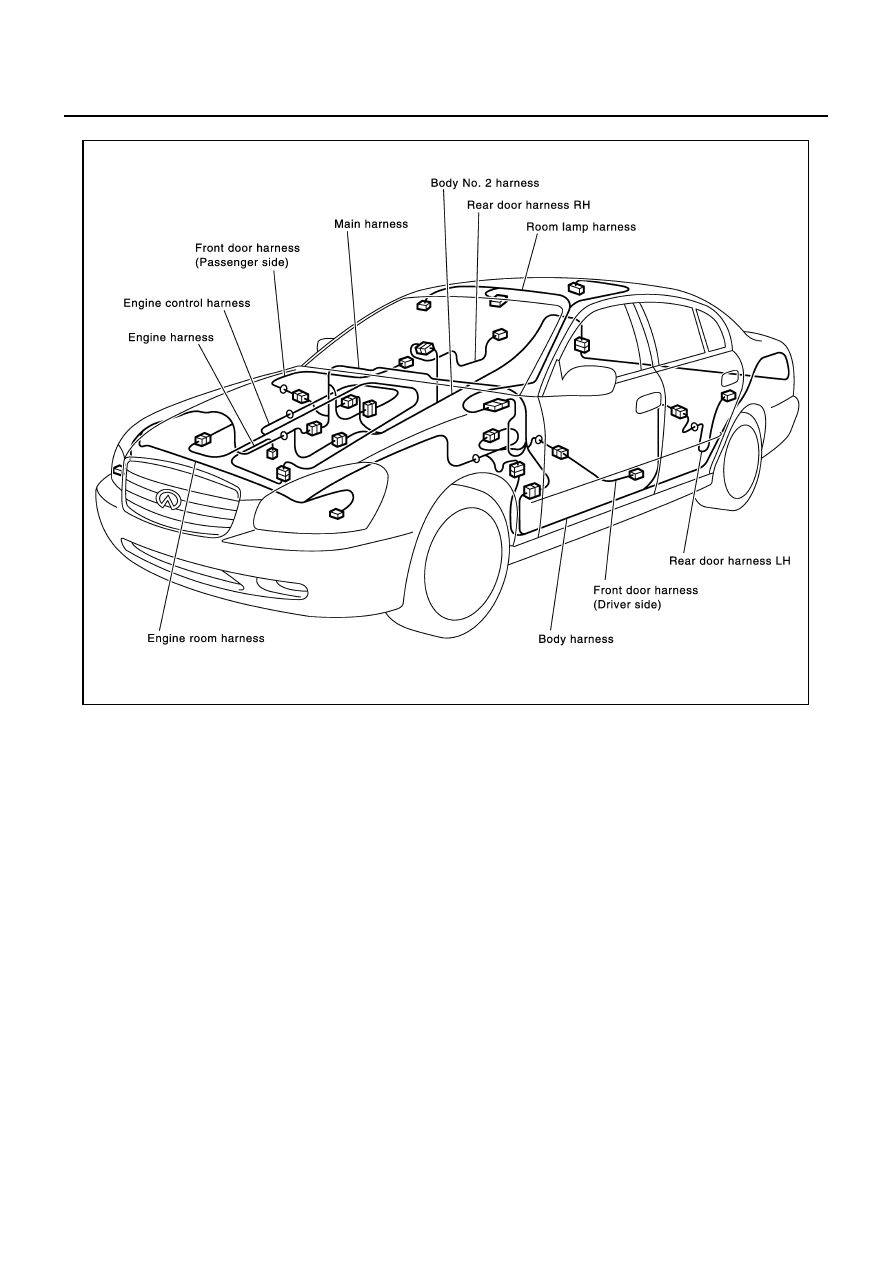

OUTLINE

CKIM0030E
