Infiniti F50. Manual - part 665

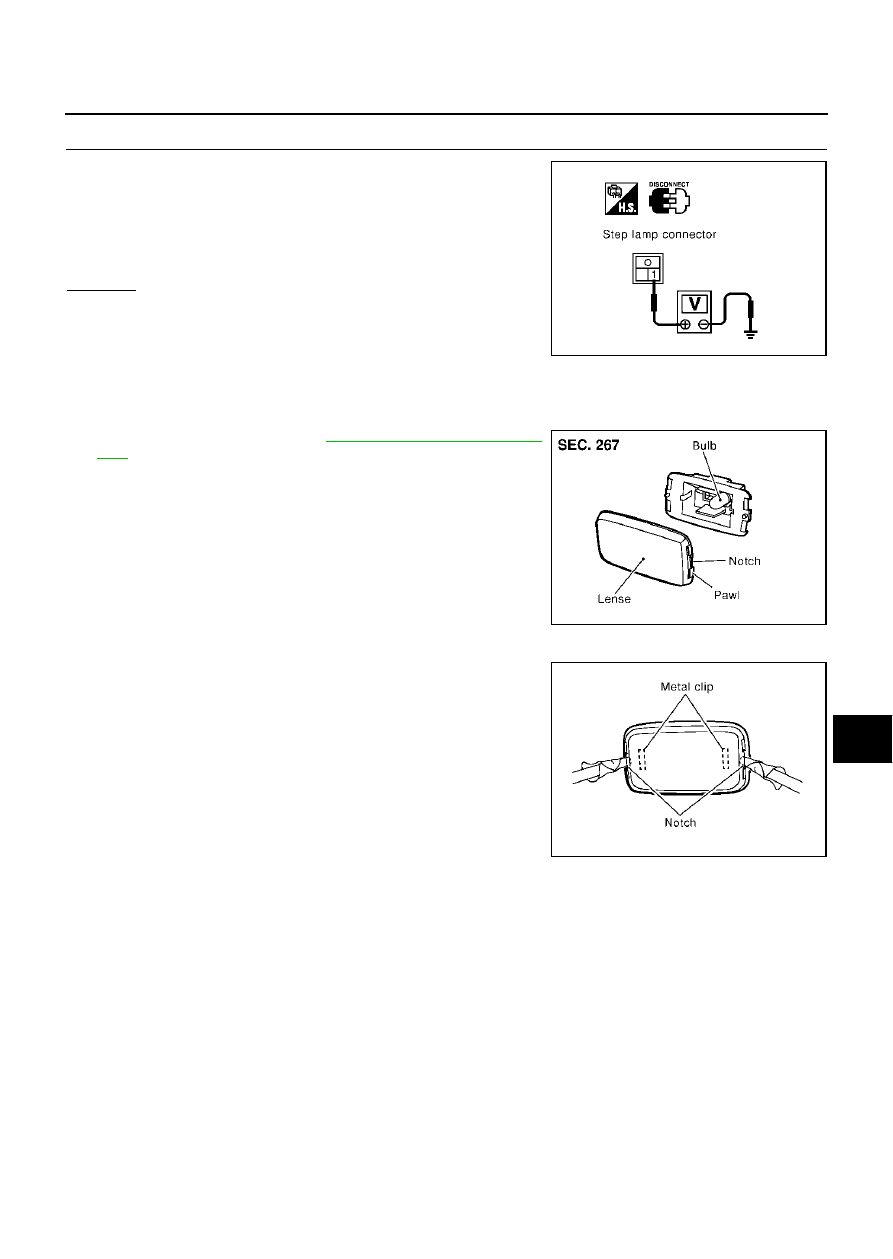

STEP LAMP

LT-127

C

D

E

F

G

H

I

J

L

M

A

B

LT

6.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect step lamp connector.

3.

Check voltage between step lamp connector D10, D40, D60,
D80 terminal 1 (LG) and ground.

OK or NG

OK

>> Check harness for open or short between step lamp and

door control unit.

NG

>> Check the following.

10A fuse [No. 8, located in the fuse block (J/B) No. 1]

Harness for open or short between fuse and step lamp.

Bulb Replacement

EKS00182

1.

Remove the step lamp. Refer to

LT-127, "Removal and Installa-

tion"

  in “Step Lamp”.

2.

Insert a screwdriver in the notch and remove the lens.

3.

Remove the bulb.

Removal and Installation

EKS00183

1.

Using a clip driver or a suitable tool, press and remove the metal
clip of the step lamp.

2.

Disconnect the step lamp connector.

1 (LG) - Body ground

: Battery voltage should exist.

SKIA0475E

Step lamp

: 12V 2.7W

PKIA0075E

PKIA0076E

LT-128

DOOR MIRROR LAMP

DOOR MIRROR LAMP

PFP:96301

System Description

EKS006RU

The door mirror lamp for approx. 15 seconds when door unlocking operation is commanded with remote con-
troller.
It goes off when the driver door is opened during illumination after the door unlocking operation with remote
controller.
Power is supplied at all times

to door mirror lamp terminal 4

through 10A fuse [No. 8, located in the fuse block (J/B)NO.1]

when door unlocking operation is commanded with remote controller.

to BCM terminal 38

through BCM terminal 27 and,

to remote keyless entry receiver terminal 2

DOOR MIRROR LAMP

LT-129

C

D

E

F

G

H

I

J

L

M

A

B

LT

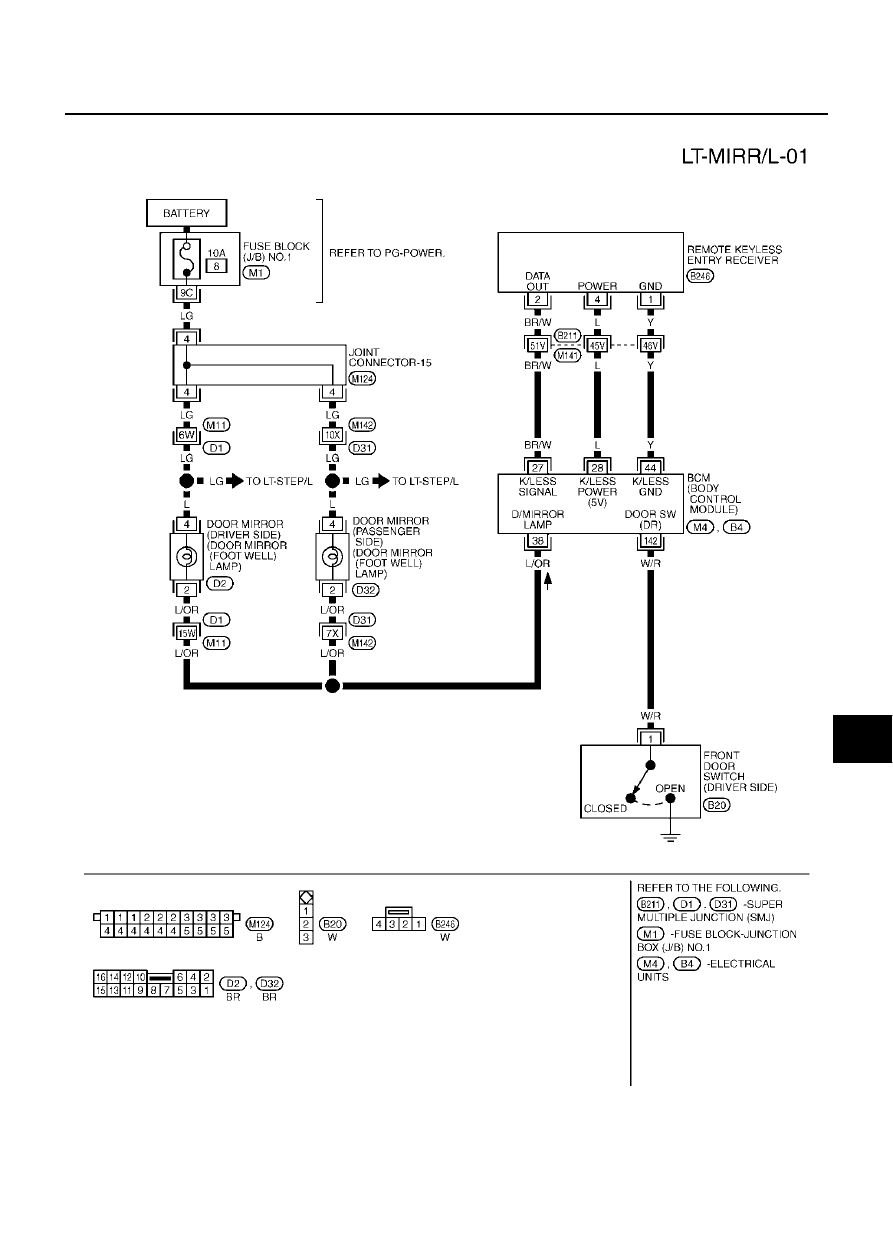

Wiring Diagram — MIRR/L —

EKS006RV

TKWM0350E

LT-130

DOOR MIRROR LAMP

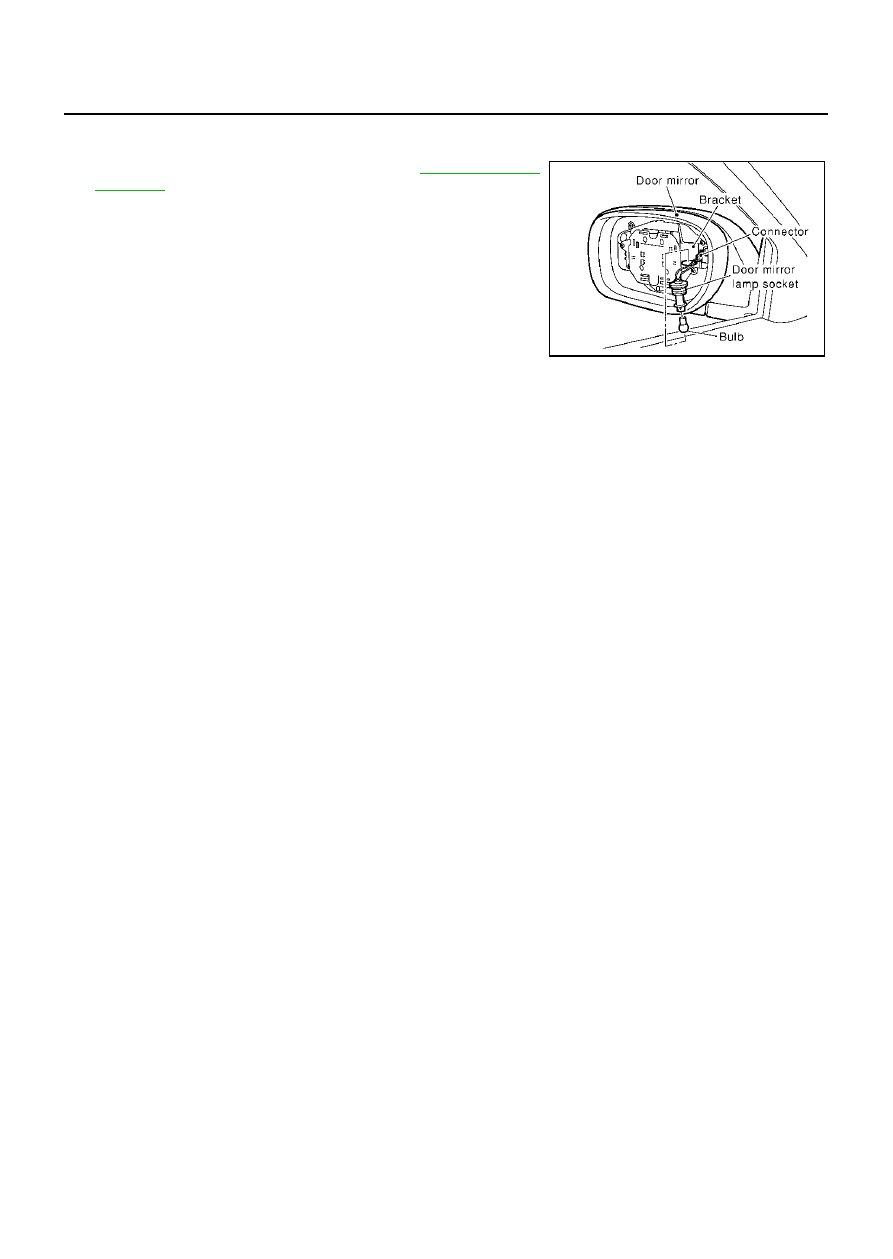

Bulb Replacement

EKS006RW

DOOR MIRROR LAMP

1.

Remove the mirror from door mirror. Refer to

GW-114, "DOOR

MIRROR"

  in “GW” section.

2.

Remove lamp socket.

3.

Remove the bulb from lamp socket.

Door mirror lamp

: 12V 8W

PKIA0084E
