Infiniti F50. Manual - part 653





PARKING, LICENSE PLATE AND TAIL LAMPS

LT-79

C

D

E

F

G

H

I

J

L

M

A

B

LT

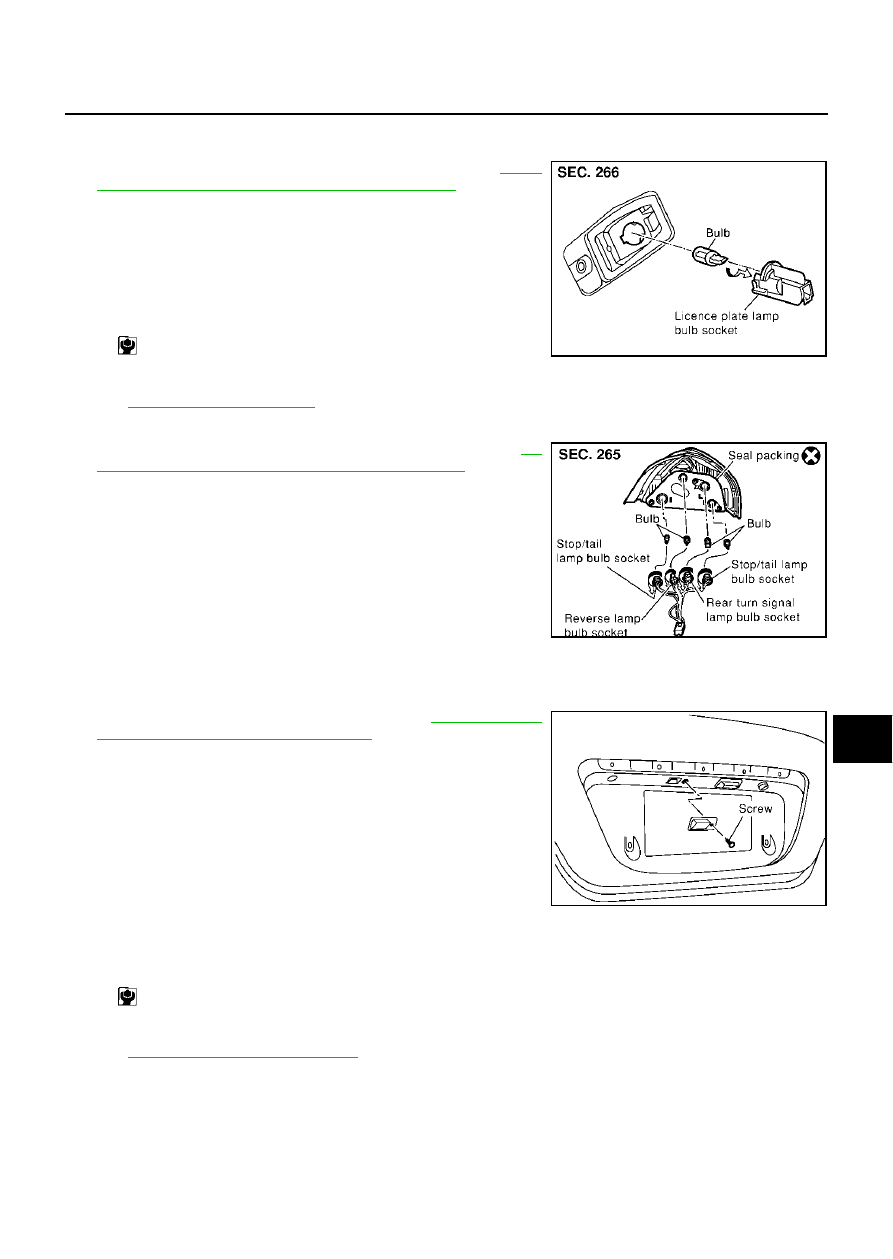

Bulb Replacement

EKS000WE

LICENSE PLATE LAMP

1.

Open the trunk and remove the trunk lid finisher. Refer to

EI-52,

"TRUNK ROOM TRIM & TRUNK LID FINISHER"

  in “EXTE-

RIOR & INTERIOR (EI)” section.

2.

Disconnect the license plate lamp connector.

3.

Turn the bulb socket counterclockwise and unlock it.

4.

Remove the bulb from its socket.

FRONT COMBINATION LAMP

Refer to

LT-32, "Bulb Replacement"

  in “HEADLAMP (FOR USA)”.

REAR COMBINATION LAMP

1.

Open the trunk and remove the trunk side finisher. Refer to

EI-

52, "TRUNK ROOM TRIM & TRUNK LID FINISHER"

  in “EXTE-

RIOR & INTERIOR (EI)” section.

2.

Turn the bulb socket counterclockwise and unlock it.

3.

Remove the bulb.

Removal and Installation

EKS000WI

LICENSE PLATE LAMP
Removal

1.

Remove the license plate finisher. Refer to

EI-52, "TRUNK

ROOM TRIM & TRUNK LID FINISHER"

  in “EXTERIOR & INTE-

RIOR (EI)” section.

2.

Disconnect the license plate lamp connector.

3.

Remove the license plate lamp mounting screw and remove the
license plate lamp from the vehicle.

Installation

Install in the reverse order of removal, taking care of the following points.

FRONT COMBINATION LAMP

Refer to

LT-34, "Removal and Installation"

  in “HEADLAMP (FOR USA)”.

License plate lamp

: 12V 5W

License plate lamp mounting screw:

: 1.86 - 2.94 N·m (0.19 - 0.29kg-m, 17 - 26 in-lb)

PKIA0058E

Stop/Tail lamp (outer·inner side)

: 12V  21/5W

Rear turn signal lamp

: 12V  21W

Buck-up lamp

: 12V  18W

PKIA0060E

PKIA0059E

License plate lamp mounting screw:

: 1.86 - 2.94 N·m (0.19 - 0.29 kg-m, 17 - 26 in-lb)

LT-80

PARKING, LICENSE PLATE AND TAIL LAMPS

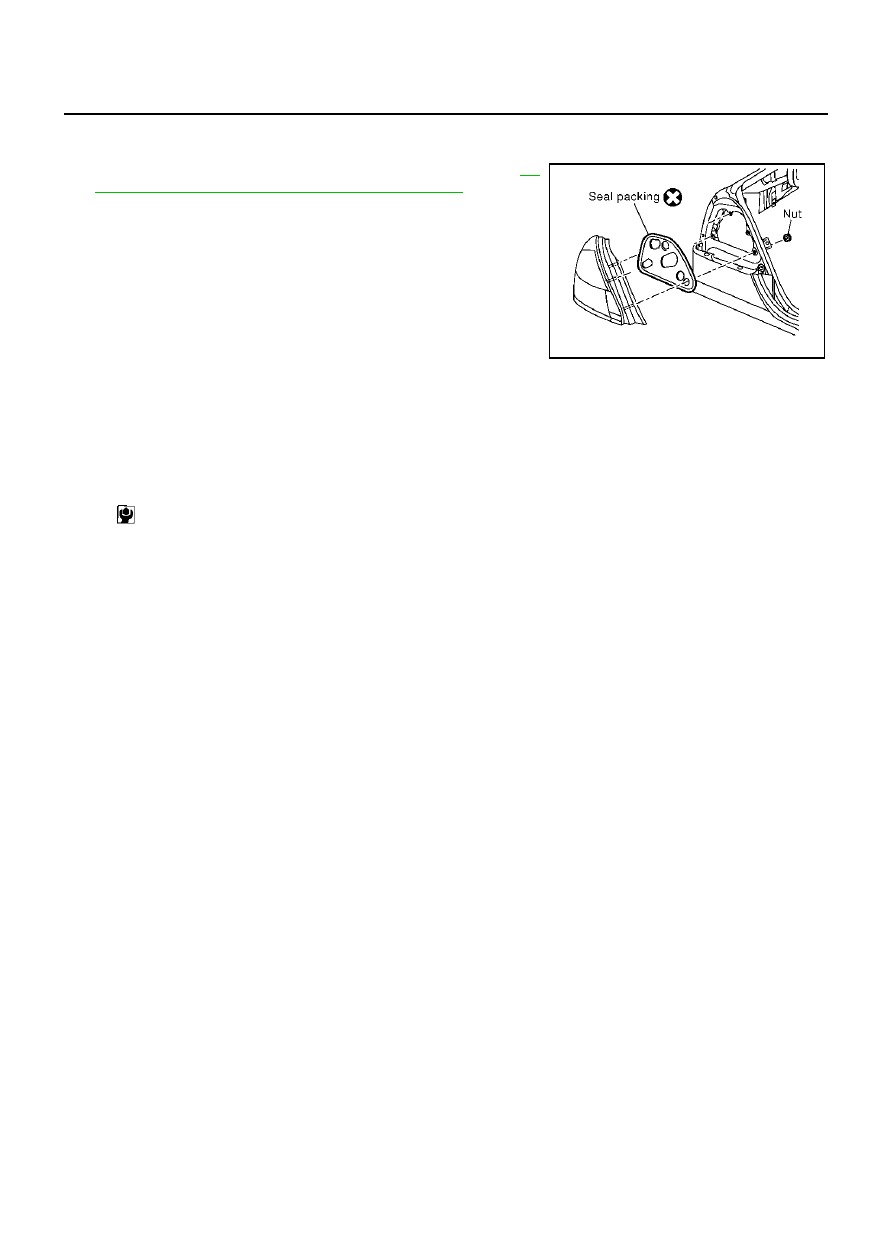

REAR COMBINATION LAMP
Removal

1.

Open the trunk and remove the trunk side finisher. Refer to

EI-

52, "TRUNK ROOM TRIM & TRUNK LID FINISHER"

  in “EXTE-

RIOR & INTERIOR (EI)” section.

2.

Disconnect the rear combination lamp connector.

3.

Remove the rear combination lamp mounting nuts.

4.

Pull the rear combination lamp toward rear of the vehicle and
remove from the vehicle.

5.

Remove the seal packing from the vehicle.

Installation

Install in the reverse order of removal, taking care of the following points.

Install a new seal packing to the rear combination lamp.

CAUTION:

Seal packing cannot be reused.

PKIA0061E

Rear combination lamp mounting nut:

: 2.5 - 3.8 N·m (0.26 - 0.38 kg-m, 23 - 33 in-lb)

INTERIOR ROOM LAMP

LT-81

C

D

E

F

G

H

I

J

L

M

A

B

LT

INTERIOR ROOM LAMP

PFP:26410

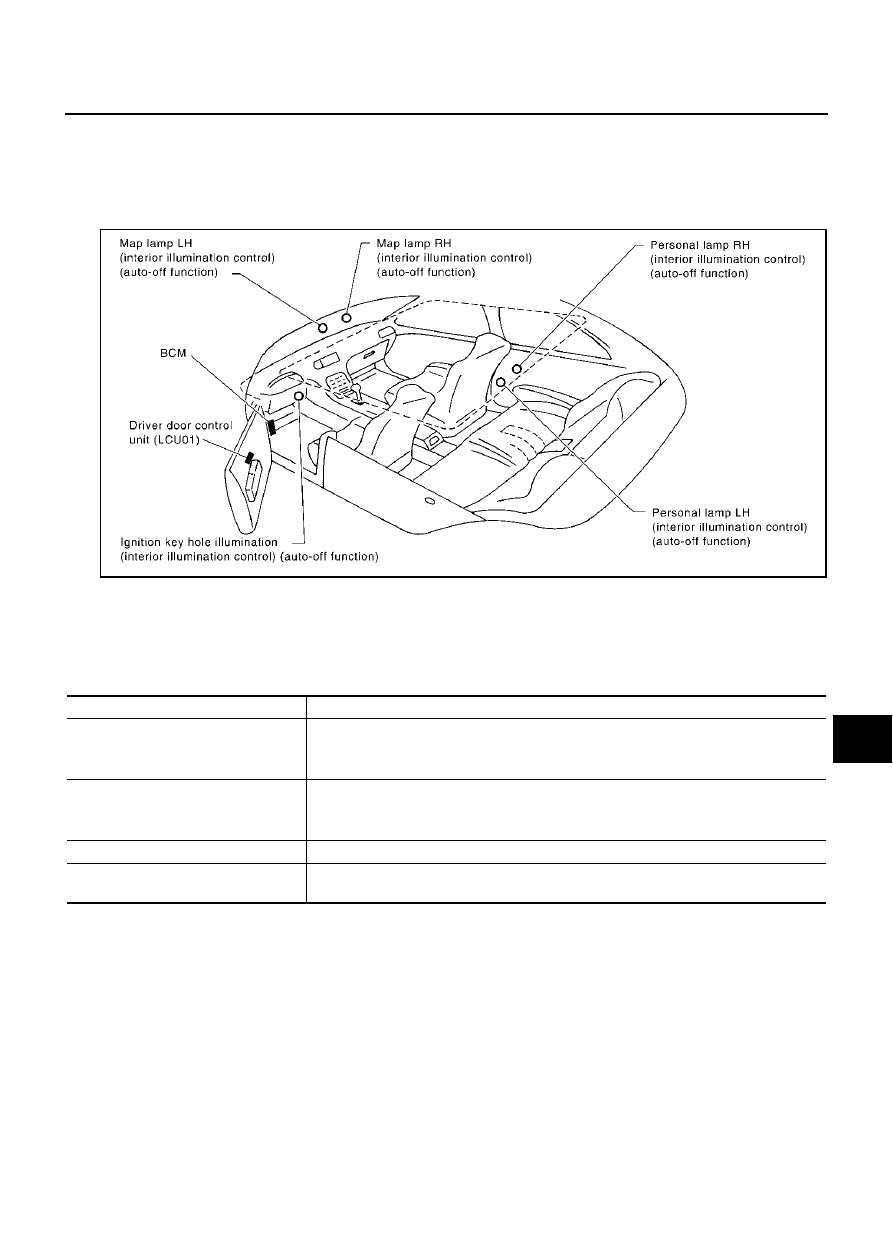

System Description

EKS0017P

OUTLINE

Controls on/off and afterglow time of the map lamp (front personal light), personal lamp (rear personal light),
and ignition key hole illumination.

TIMER FUNCTION

Controls the illumination duration of the lamps and illuminations according to the signals from the door unlock
sensor, front door switch (driver side), ignition switch, and key switch.

The timer operates for approx. 30 seconds.

The timer will be actuated or cancelled by the signals from the following switches.

If a new timer actuation signal is input while the timer is operating, the later input will have priority.

If any lamp switch is operated and a separate actuation signal is input while the timer is operating, the
lamp operation will be prioritized. However, the timer operation will not be renewed or cancelled.

SKIA3770E

Components

Operation

Front door lock actuator (driver side)
(Door unlock sensor)

Timer will be actuated by input of the switch ON (door unlocked) signal when the driver
door switch is OFF (door closed) and the key-in detection switch is OFF (key withdrawn).

Timer will be cancelled by input of the switch OFF (door locked) signal.

Front door switch (driver side)

Timer will be cancelled by input of the switch ON (door open) signal.

Timer will be actuated by input of the switch ON

OFF (door open

closed) signal when

the key-in detection switch is OFF.

Ignition switch

Timer will be cancelled by input of the switch ACC or ON signal.

Key switch and key lock solenoid
(Key switch)

Timer will be actuated by input of the switch ON

OFF (key inserted

withdrawn) signal

when the driver door switch is OFF (door closed).

LT-82

INTERIOR ROOM LAMP

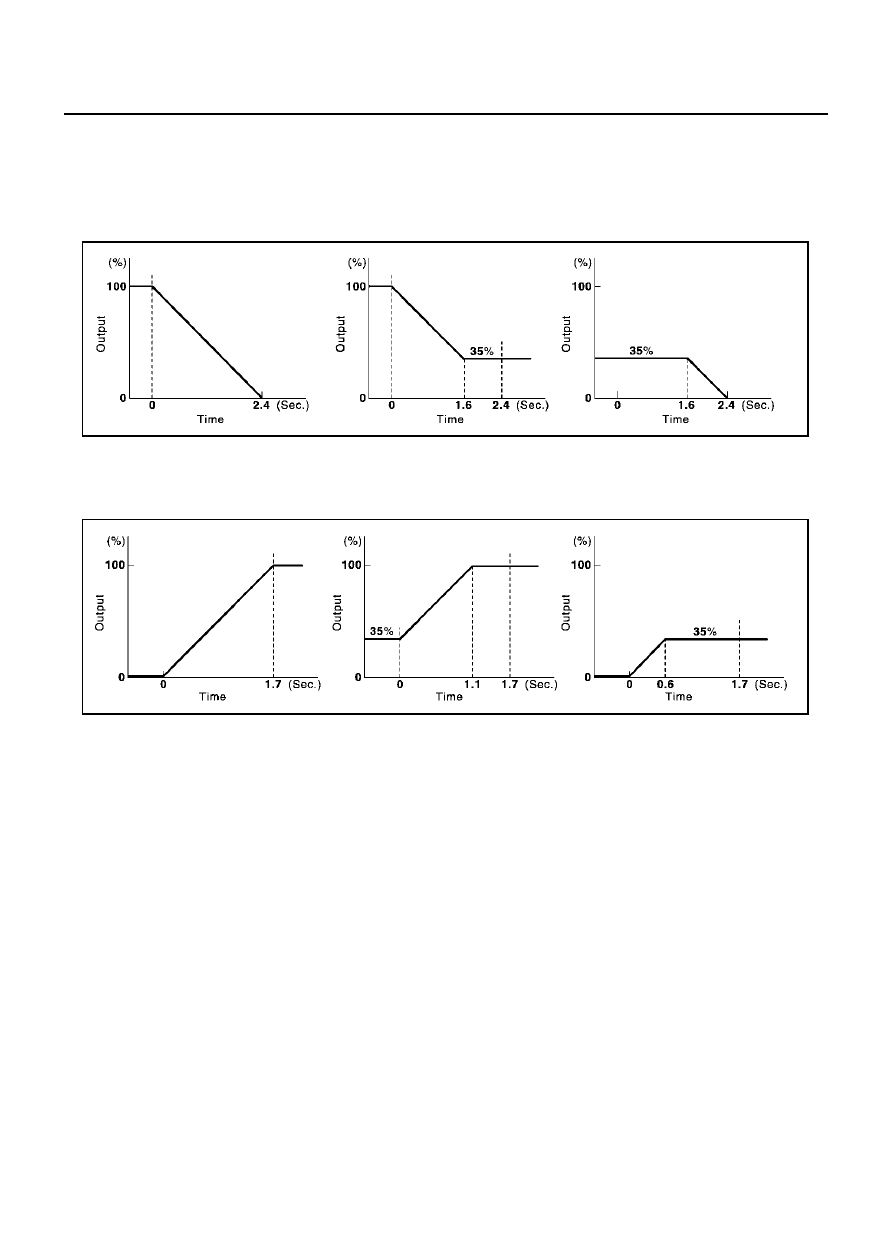

LAMP OUTPUT CONTROL FUNCTION

Controls output of lamps except for the ignition key hole illumination.

In case from full illumination to off, from full illumination to half illumination, and from half illumination to off.
NOTE:
In full illumination, brightness of the lamps is 100%. In half illumination, it is 35% (25% for the personal
lamp).

In case from off to full illumination, from half illumination to full illumination, and from off to half illumination.

NOTE:
In full illumination, brightness of the lamps is 100%. In half illumination, it is 35% (25% for the personal
lamp).

AUTO OFF FUNCTION

When ignition switch is in OFF, and following condition is continued for approximately 30 minutes without the
change, then interior room lamps are automatically turned OFF.

Interior lamp ill switch and personal lamps switch are “AUTO” position, and then door switch of either is
opened.

Interior lamp ill switch is “ON” position.

Personal lamp switch is “FULL” position.

The auto off function is turned OFF when the one of following change is operated, and executes a usual oper-
ation control thereafter.

Ignition switch is turned from OFF to ON.

Each door switch is switched from OFF to ON. (Door closed

 open)

Interior lamp ill switch is switched from OFF to ON.

Personal lamp switch is switched from AUTO to ON.

LIGHTS ON/OFF MODES

Separate signal from each switch and signals of higher output have priority over these modes.

PKIA0175E

PKIA0176E
