CAN SYSTEM (FOR ICC MODELS)

LAN-61

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

Component Inspection

EKS003M9

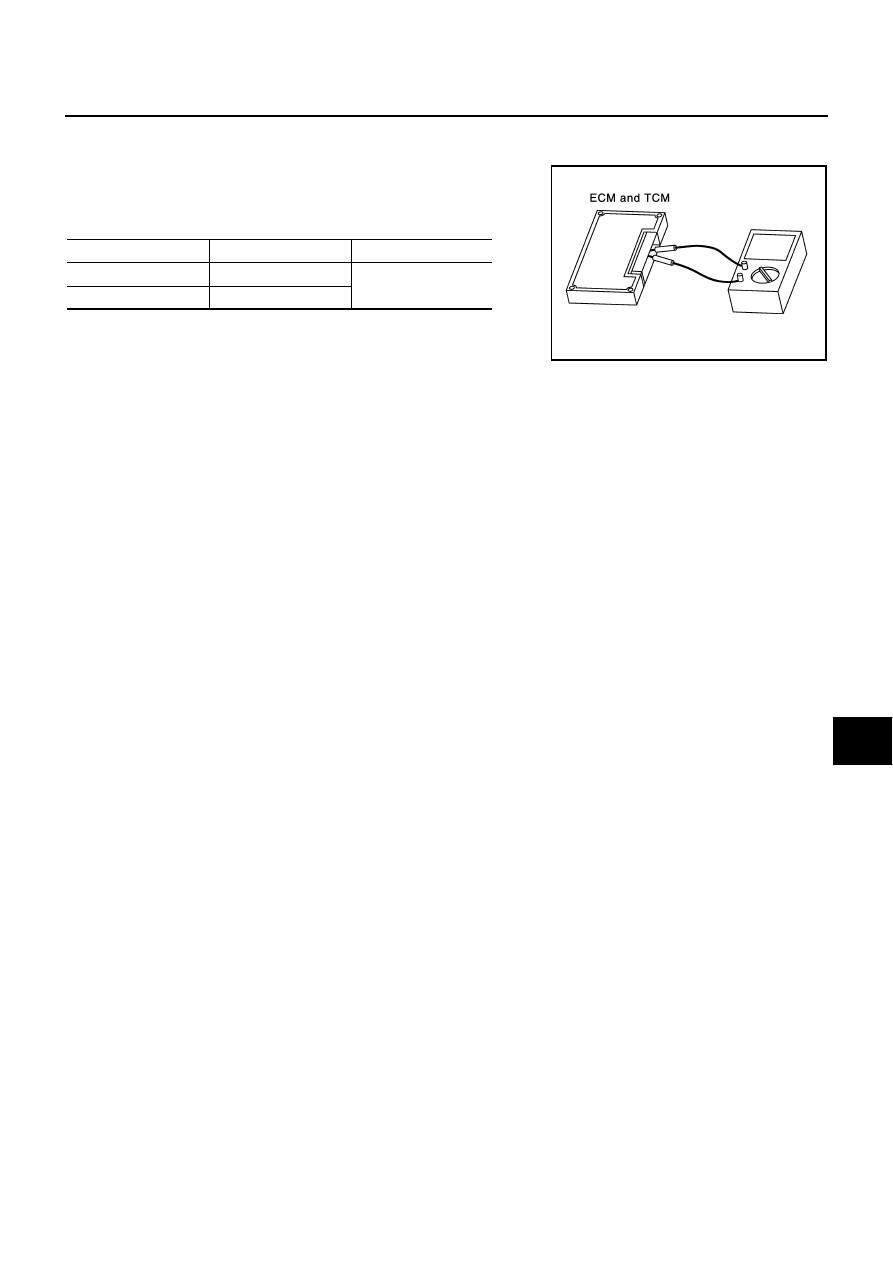

ECM/TCM INTERNAL CIRCUIT INSPECTION

●

Remove ECM and TCM from vehicle.

●

Check resistance between ECM terminals 174 and 171.

●

Check resistance between TCM terminals 6 and 7.

Unit

Terminal

Resistance value (

Ω

)

ECM

174 – 171

Approx. 108 - 132

TCM

6 – 7

PKIA0298E

LAN-62

[CAN]

CAN SYSTEM (FOR ICC MODELS)

LT-1
