Inspect fuel lines, filler cap and tank for improper attachment, leaks,
cracks, damage, loose connections, chafing or deterioration.
If necessary, repair or replace damaged parts.

General Precautions

EBS003GI

WARNING:

When replacing fuel line parts, be sure to observe the following.

●

Put a “CAUTION: INFLAMMABLE” sign in workshop.

●

Be sure to work in a well-ventilated area and furnish workshop with a CO

fire extinguisher.

●

Do not smoke while servicing fuel system. Keep open flames and spark away from work area.

CAUTION:

●

Before removing fuel line parts, carry out the following procedures:

–

a) Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container
in safe area.

–

b) Release fuel pressure from fuel line. Refer to

EC-48, "FUEL PRESSURE RELEASE"

–

c) Disconnect battery ground cable.

●

Always replace O-ring and clamps with new ones.

●

Do not kink or twist tubes when they are being installed.

●

Do not tighten hose clamps excessively to avoid damaging hoses.

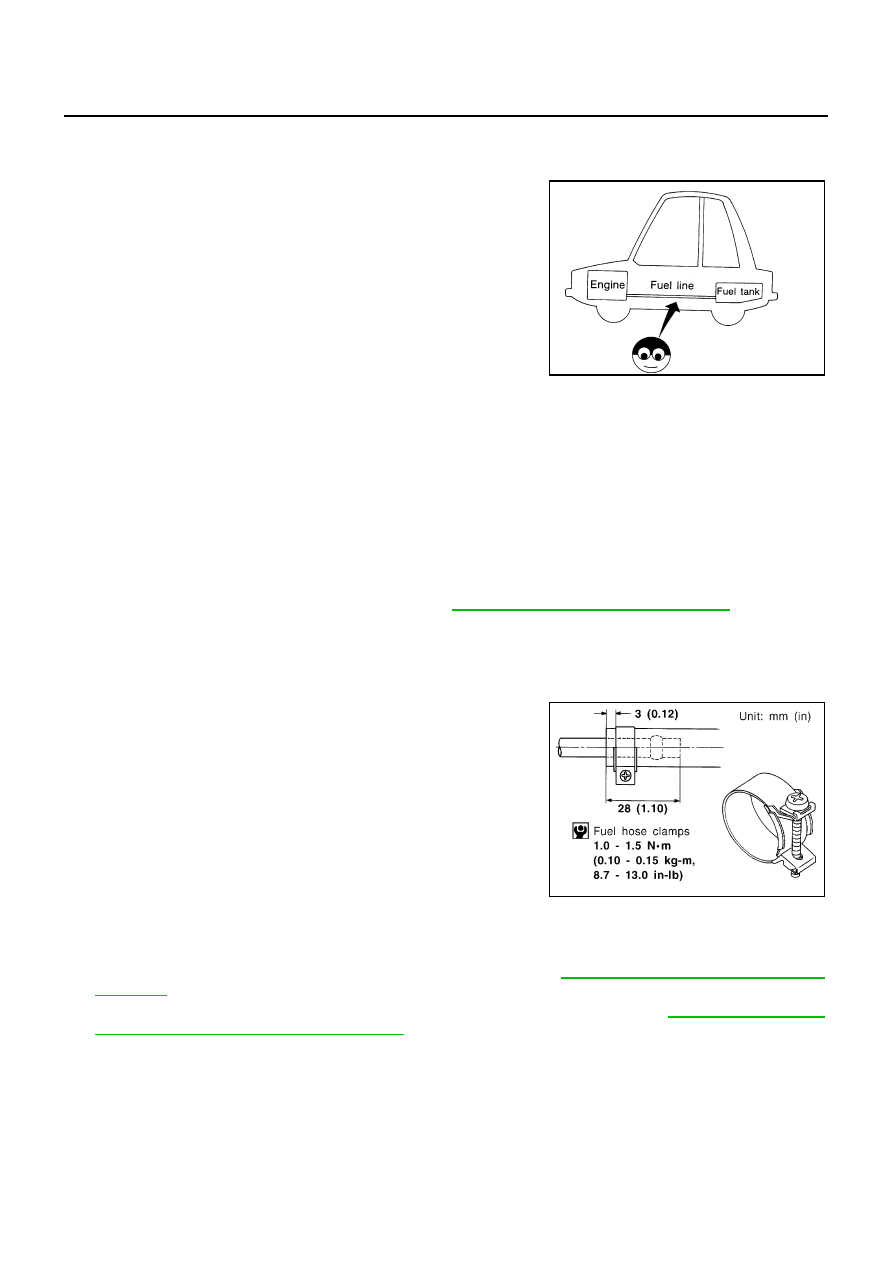

Tighten high-pressure rubber hose clamp so that clamp
end is 3 mm (0.12 in) from hose end.
Tightening torque specifications are the same for all rubber
hose clamps.
Ensure that screw does not contact adjacent parts.

●

After installing tubes, make sure there is no fuel leakage at
connections in the following steps.

–

a) Apply fuel pressure to fuel lines with turning ignition

switch ON (with engine stopped). Then check for fuel
leaks at connections.

–

b) Start the engine and rev it up and check for fuel leaks at

connections.

●

Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used,
the MIL may come on.

●

For servicing “Evaporative Emission System” parts, refer to
