BODY SIDE TRIM

EI-37

C

D

E

F

G

H

J

K

L

M

A

B

EI

BODY SIDE TRIM

PFP:76913

Removal and Installation

EIS000DL

CAUTION:

●

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

●

When removing or installing body side welts, do not allow butyl seal to come in contact with pillar
garnish.

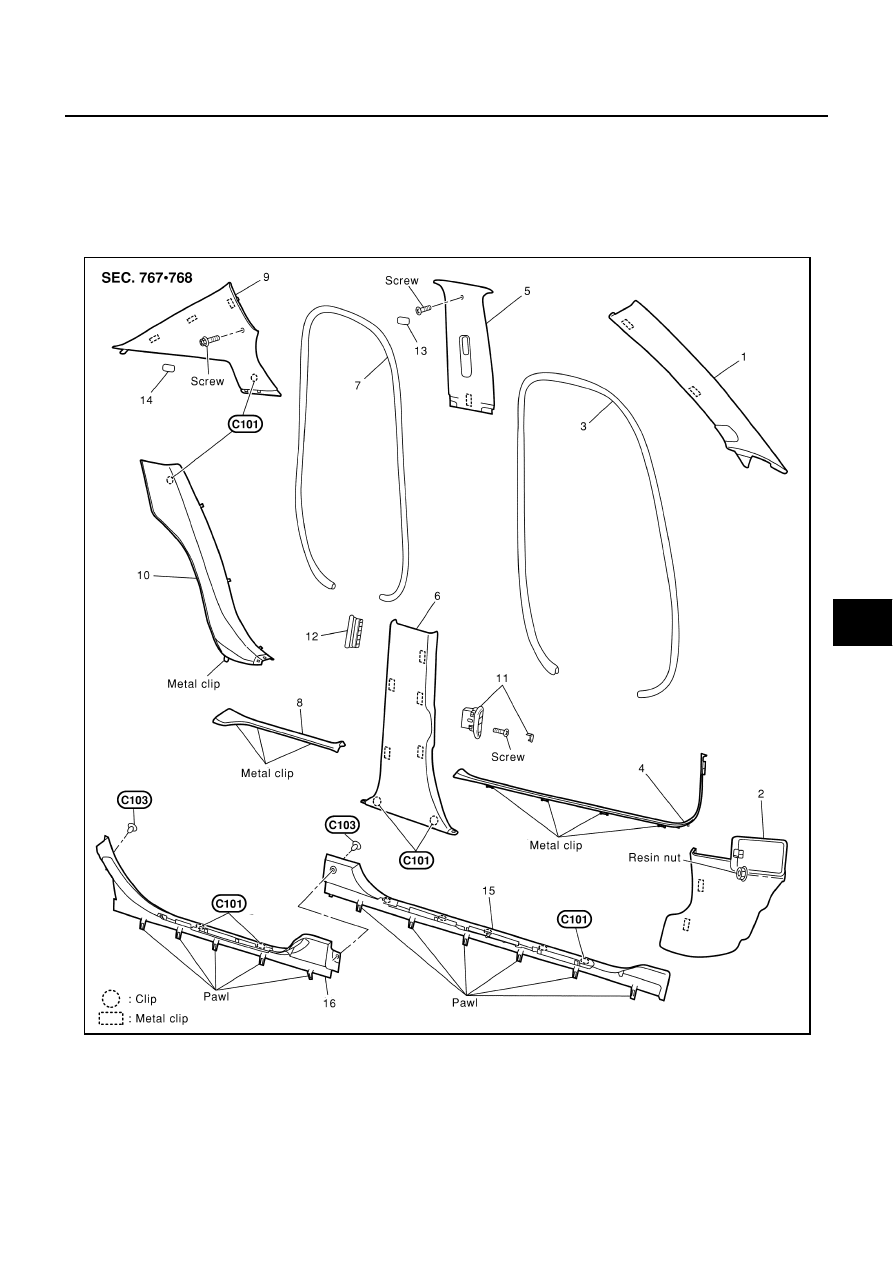

1.

Front pillar garnish

2.

Dash side finisher

3.

Front body side welt

4.

Front kicking plate

5.

Center pillar garnish

6.

Center pillar lower garnish

7.

Rear body side welt

8.

Rear kicking plate

9.

Rear pillar finisher

10.

Rear wheel house garnish

11.

Rear cooler inlet grille

12.

Rear cooler outlet grille

13.

Center pillar upper cap

14.

Rear pillar upper cap

15.

Mudguard finisher (front)

16.

Mudguard finisher (rear)

SIIA0814E

EI-38

BODY SIDE TRIM

CENTER PILLAR LOWER GARNISH
Removal

1.

Remove front and rear kicking plate.

2.

Remove rear cooler inlet grille

Installation

Install in the reverse order of removal.

CENTER PILLAR UPPER GARNISH
Removal

1.

Remove seat belt shoulder anchor. Refer to

SB-3, "Removal and Installation of Front Seat Belt"

 .

2.

Remove front and rear kicking plate.

3.

Remove center pillar lower garnish.

Installation

To install, reverse the removal procedure sequence.

REAR PILLAR FINISHER
Removal

1.

Remove rear seat. Refer to

SE-197, "Removal and Installation"

 .

2.

Remove rear kicking plate.

3.

Remove rear wheel house garnish.

Installation

Install in the reverse order of removal.

DASH SIDE FINISHER
Removal

1.

Remove front kicking plate.

2.

Remove front body side welt.

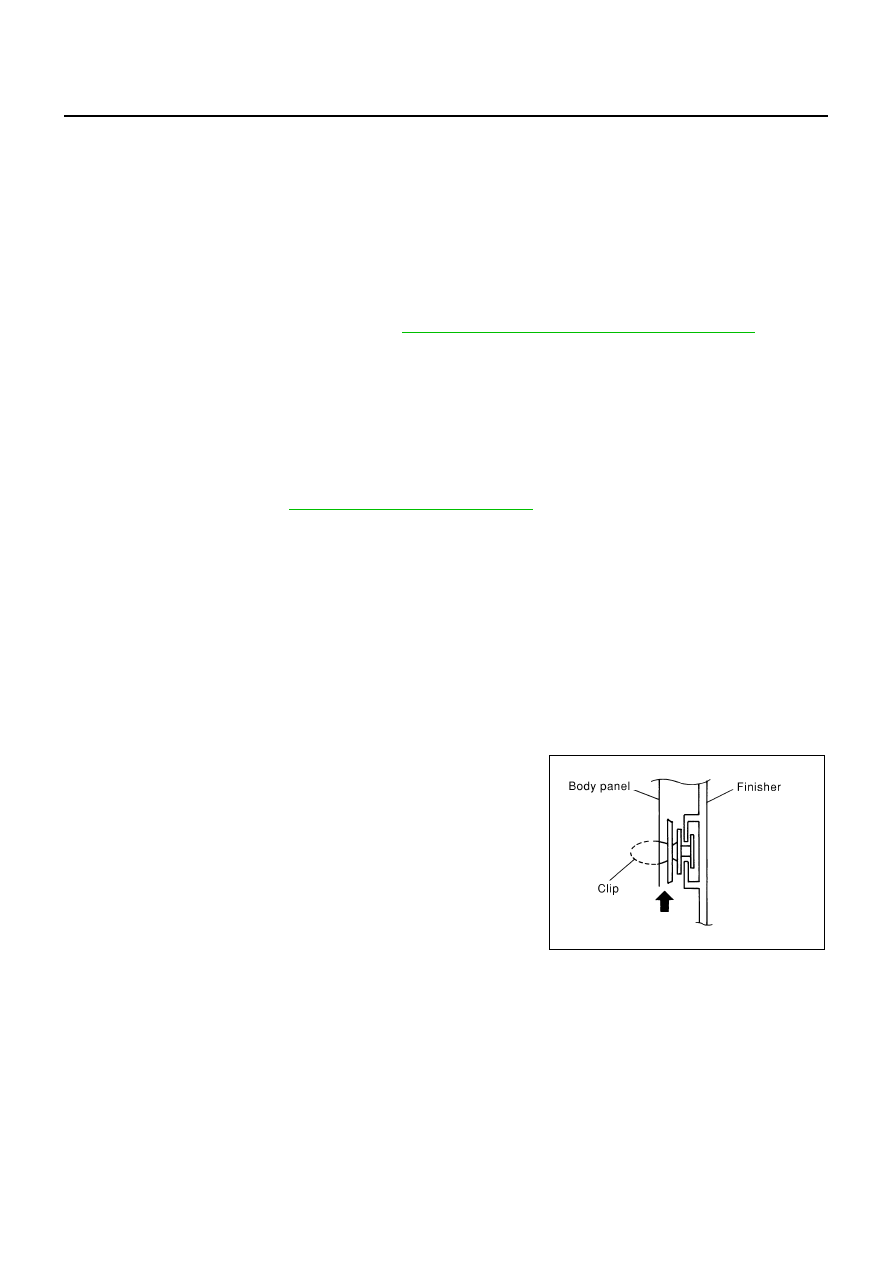

CAUTION:

Insert screw driver rolled with cloth between panel on vehicle
and clips (as indicated with arrow), and disconnect clips.

Installation

Install in the reverse order of removal.

CAUTION:

To install, check if all clips are matched over holes of panel on vehicle, then push on.



SIIA0810E

REAR PARCEL SHELF FINISHER

EI-39

C

D

E

F

G

H

J

K

L

M

A

B

EI

REAR PARCEL SHELF FINISHER

PFP:79910

Removal and Installation

EIS000DM

REMOVAL

1.

Remove rear seat. Refer to

SE-197, "Removal and Installation"

 .

2.

Remove rear seat belt floor anchor bolts. Refer to

SE-197, "Removal and Installation"

 .

3.

Remove rear pillar finisher. Refer to

SE-197, "Removal and Installation"

 .

SIIA0815E

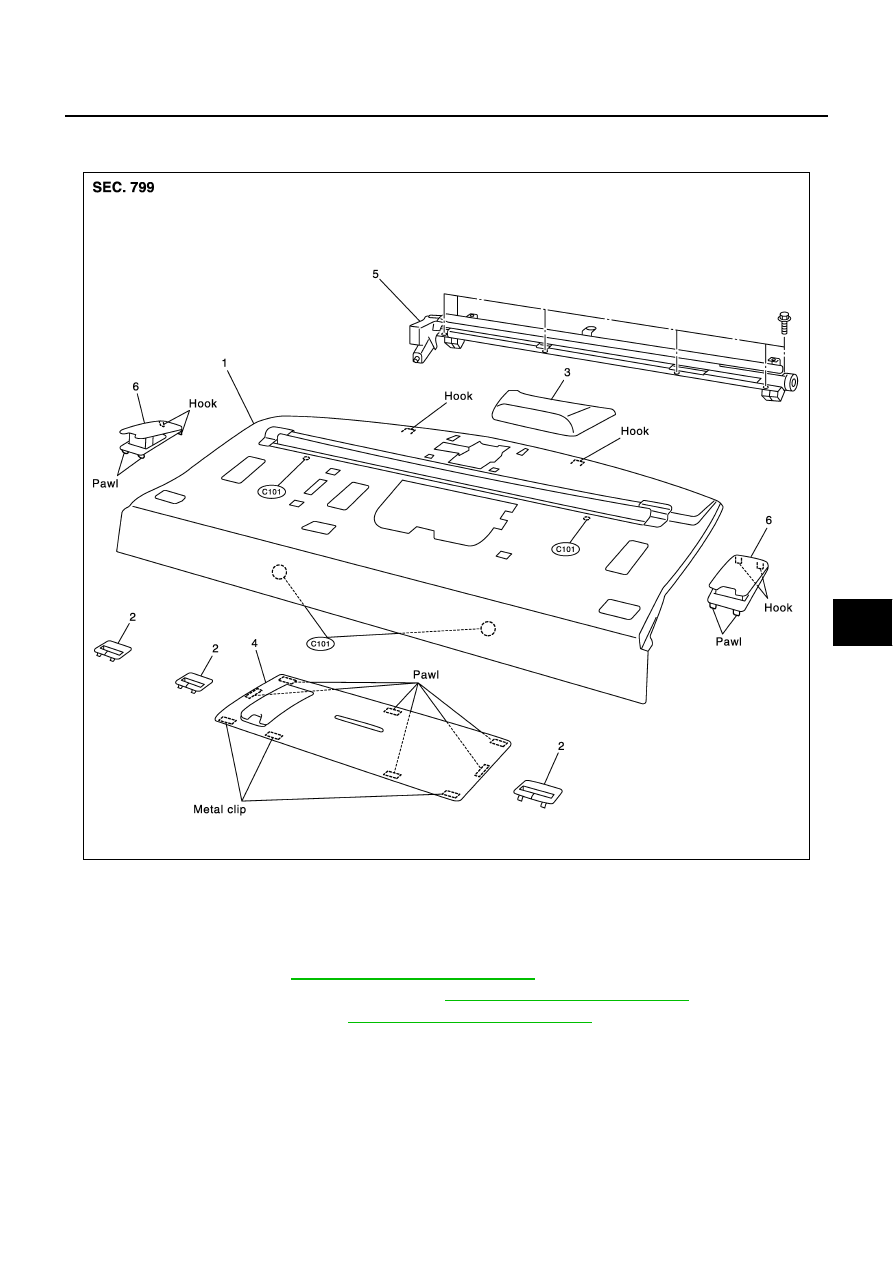

1.

Rear parcel shelf finisher

2.

Seat belt escutcheon

3.

High mounted stop lamp

4.

Woofer grille

5.

Rear sunshade

6.

Top tether strap child restraint
cover

EI-40

REAR PARCEL SHELF FINISHER

4.

Remove high-mounted stop lamp, and disconnect connectors.

5.

Remove woofer grille.

6.

Remove seat belt escutcheon.

7.

Remove clips, and remove rear parcel shelf finisher.

8.

Disconnect rear sunshade connectors, remove screws, and remove rear sunshade.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

●

Confirm hooks of rear parcel shelf finisher are completely inserted into holes on vehicle side.

●

Confirm clips are matched over holes on vehicle side, then push on.

SIIA0820E

SIIA0821E
