REAR VIEW MONITOR

DI-175

C

D

E

F

G

H

I

J

L

M

A

B

DI

5.

Select “confirmation/Adjustment” In this mode, check and
adjustment of each item will become possible.

6.

Select each switch on the “CONFIRMATION/ADJUSTMENT”
screen to display the relevant diagnosis screen.

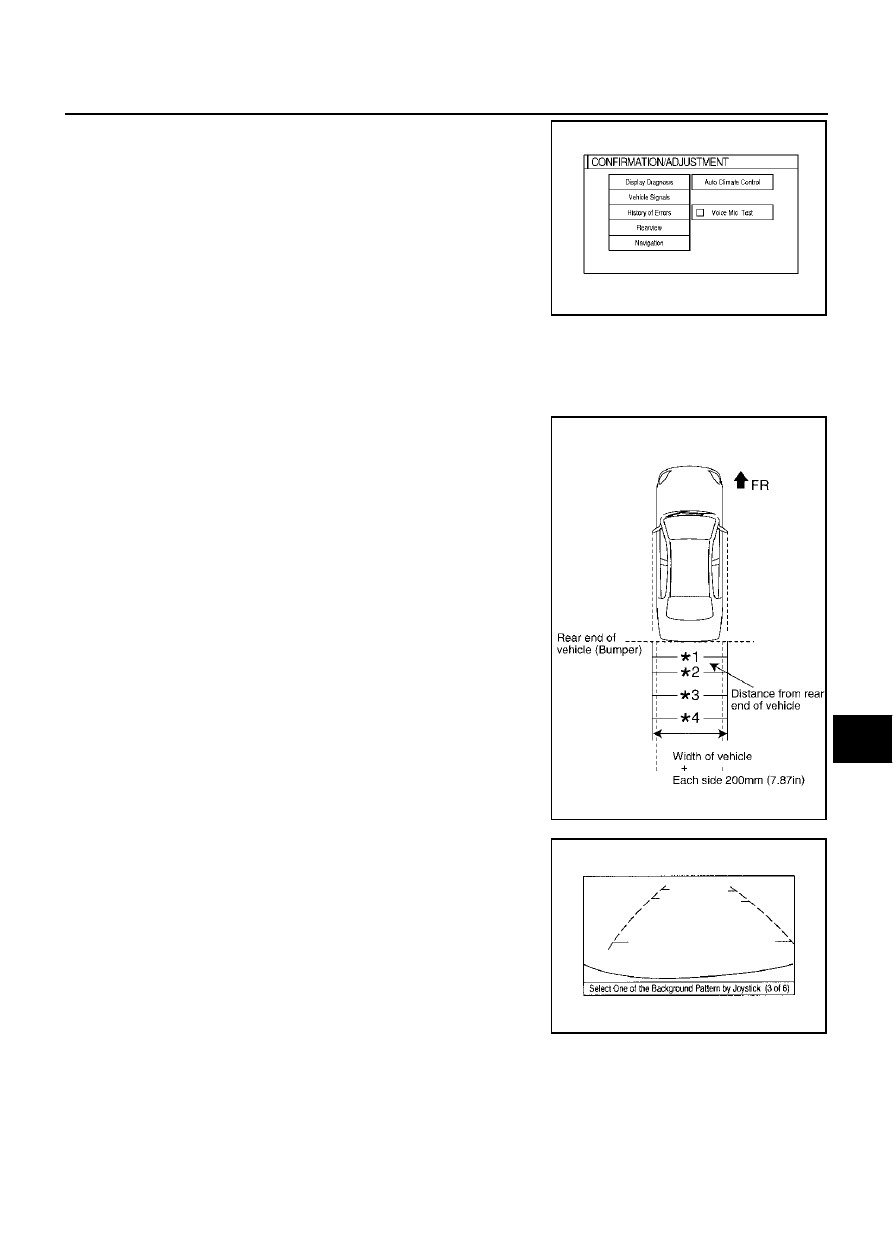

Side Distance Guideline Correction

EKS001FG

This mode is used to modify the side distance guidelines if they are dislocated from the rear view monitor
image, because of variations of body/camera mounting conditions.

Side distance guideline correction procedure
1.

Create a correction line to modify the screen.
Draw lines on the rearward of the vehicle passing through the
following points: 0.2 m (7.87 inch) from both sides of the vehicle,
and

*1: 0.45 m (1.5 feet)

*2: 0.91 m (3.0 feet)

*3: 2.13 m (7.0 feet)

*4: 3.04 m (10 feet)
and from the rear end of the bumper

2.

Select “REARVIEW” in “Confirmation/Adjustment mode”.

3.

Using the joy stick, select the pattern closest to the prepared
correction line among the 6 guideline patterns, then press
“ENTER” button.

SKIA3938E

PKIA0354E

SKIA0584E

DI-176

REAR VIEW MONITOR

4.

Carefully adjust the center of the background vertically and hori-
zontally in the range of 8 - 8. Align it with the prepared line, and
press the “ENTER” button.

5.

The adjustment is completed.

SKIA0585E

REAR VIEW MONITOR

DI-177

C

D

E

F

G

H

I

J

L

M

A

B

DI

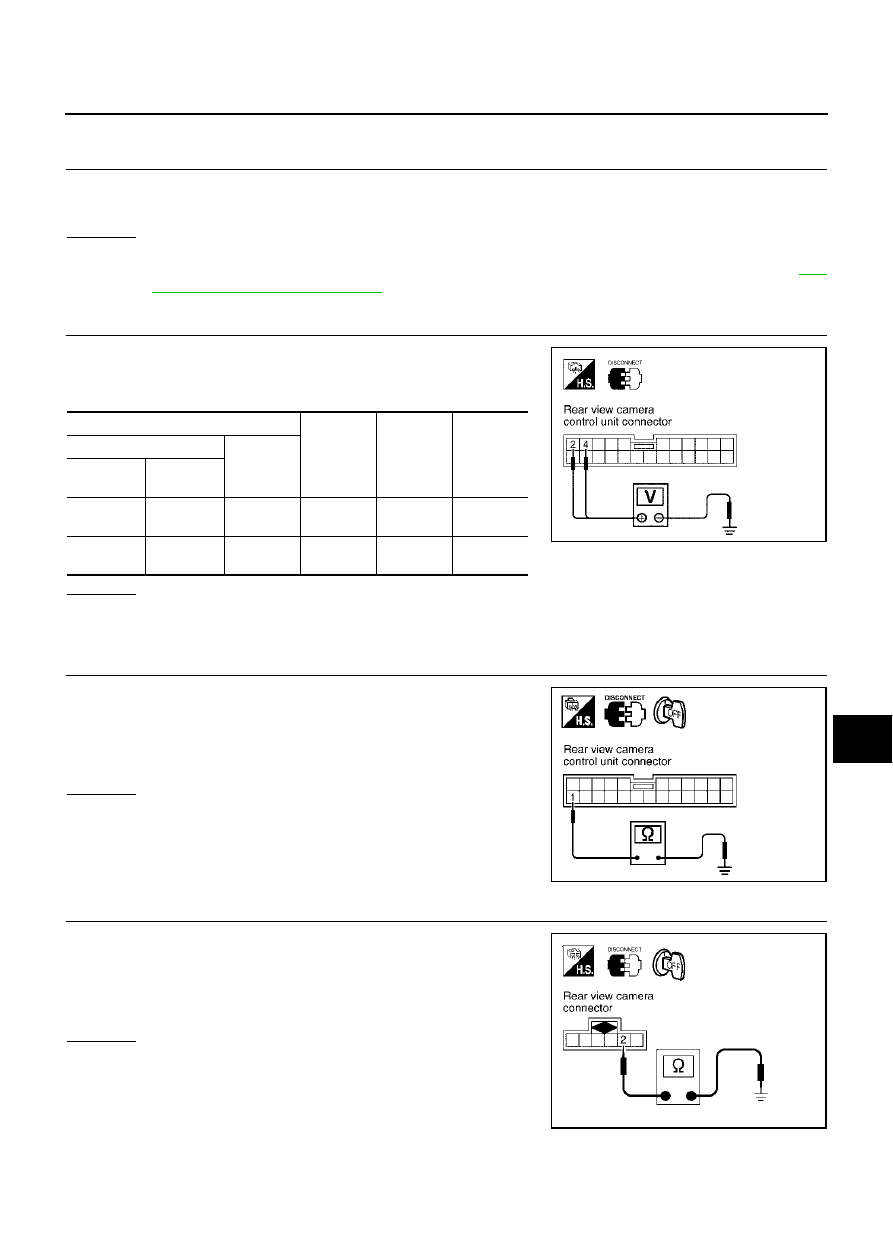

Power Supply and Ground Circuit Check

EKS0012N

1.

CHECK THE FUSES.

Check 15A fuse [No. 52, located in fuse, fusible link and relay block (J/B)].

Check 10A fuse [No. 21, located in fuse block (J/B) No. 1].

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to

PG-

2, "POWER SUPPLY ROUTING"

 .

2.

POWER SUPPLY CIRCUIT CHECK

1.

Disconnect rear view camera control unit connector.

2.

Check voltage between rear view camera control unit and
ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check harness for open or short between rear view camera control unit and fuse.

3.

REARVIEW CAMERA CONTROL UNIT GROUND CIRCUIT CHECK

1.

Turn ignition switch OFF.

2.

Check continuity between rear view camera control unit harness
connector B236 terminal 1 (B) and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair harness or connector.

4.

REARVIEW CAMERA GROUND CIRCUIT CHECK

1.

Disconnect rear view camera connector.

2.

Continuity between rear view camera harness connector B50
terminal 2 (B) and ground.

OK or NG

OK

>> Inspection end.

NG

>> Repair harness or connector.

Terminals

OFF

ACC

ON

(+)

(–)

Connector

Terminal

(Wire color)

B236

2 (SB)

Ground

Battery
voltage

Battery
voltage

Battery
voltage

B236

4 (OR)

Ground

0V

Battery
voltage

Battery
voltage

SKIA0569E

Continuity should exist.

SKIA4148E

Continuity should exist.

SKIA3914E

DI-178

REAR VIEW MONITOR

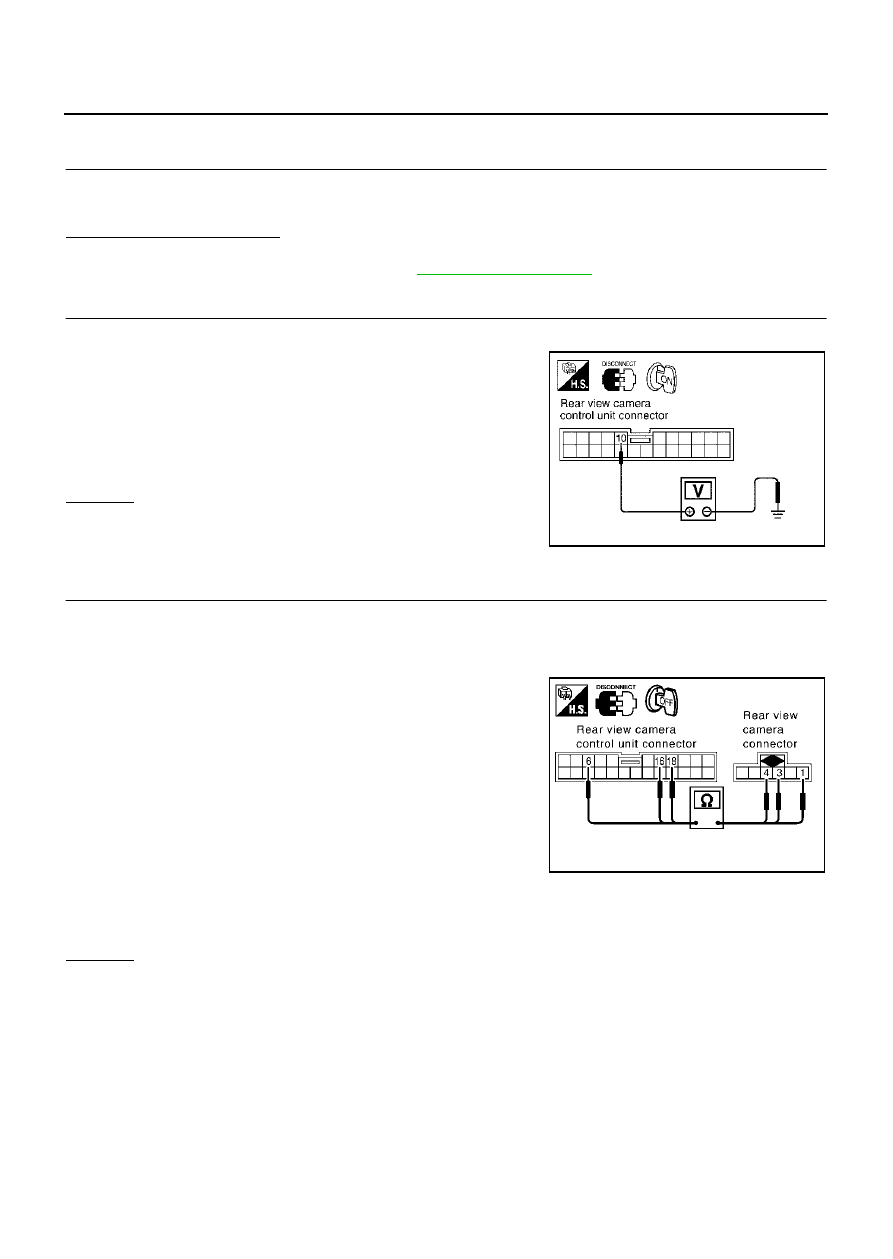

Rear View Is Not Displayed With The A/T Selector Lever In R-position.

EKS0012O

1.

BACK-UP LAMP INSPECTION

1.

Turn ignition switch ON.

2.

Shift A/T selector lever to R-position.

Dose back-up lamp illuminate?

YES

>> GO TO 2.

NO

>> Check back-up lamp system. Refer to

LT-71, "BACK-UP LAMP"

  in LT section.

2.

CHECK REVERSE POSITION INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect rear view camera control unit connector.

3.

Turn ignition switch ON.

4.

Shift the A/T selector lever to R-position.

5.

Check voltage between rear view camera control unit harness
connector B236 terminal 10 (R/B) and ground.

OK or NG

OK

>> GO TO 3.

NG

>> Check harness for open or short between rear view

camera control unit and back-up lamp relay.

3.

CHECK REARVIEW CAMERA OPEN CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect rear view camera control unit connector and rear view camera connector.

3.

Check the following.

Continuity between rear view camera harness connector B50
terminal 1 (R/G) and rear view camera control unit harness con-
nector B236 terminal 6 (R/G).

Continuity between rear view camera harness connector B50
terminal 3 (W) and rear view camera control unit harness con-
nector B236 terminal 18 (Y).

Continuity between rear view camera harness connector B50
terminal 4 (B) and rear view camera control unit harness con-
nector B236 terminal 16 (BR).

OK or NG

OK

>> GO TO 4.

NG

>> Repair harness or connector.

Battery voltage should exist.

SKIA0571E

Continuity should exist.

Continuity should exist.

Continuity should exist.

SKIA3751E
