REMOTE KEYLESS ENTRY SYSTEM

BL-75

C

D

E

F

G

H

J

K

L

M

A

B

BL

Malfunction Code Table

NOTE:

●

For a specific local control unit (LCU), either “PAST COMM DATA” or “PAST NO RESPONSE” may be displayed instead of the
above results. This is caused by the data record, so erase the records.
(The display only shows the incident records, they are not malfunctions caused during the diagnosis. One possible cause is that an
reproducible incident occurred.)

●

Follow the steps below to erase the memory
Perform either disconnect BCM battery power supply or erase memory with CONSULT-II.

●

With the battery connected, if the local control unit (LCU) connector is disconnected and left for approximately 1 minute, the BCM
stores “NO RESPONSE” record.

DATA MONITOR
Remote Keyless Entry Item

Malfunctioning item

Display unit

CONSULT-II IVMS communication diag-

nosis content

Self-diagnosis

trouble code

No.

Malfunctioning system and

reference

COMM DATA

One LCU is dis-
played.

POWER WINDOW  C/U-DR
“COMM DATA”

24

Replace the displayed
LCU.

DOOR MIRROR  C/U-RH
“COMM DATA”

27

DOOR MIRROR  C/U-LH
“COMM DATA”

37

POWER SEAT  C/U-DR
“COMM DATA”

47

Multiple LCUs
are displayed.

BCM
“COMM FAIL1”, “COMM FAIL2”

Displays in
order of 24

→

27

→

37

→

47

→

and cycles

from 24.

Communication system A:
Refer to

BL-79, "COMMU-

NICATION SYSTEM A"

 .

NO
RESPONSE

One LCU is dis-
played.

POWER WINDOW C/U-DR
“NO RESPONSE”

25

Communication system B:
Refer to

BL-79, "COMMU-

NICATION SYSTEM B"

 .

DOOR MIRROR C/U-RH
“NO RESPONSE”

28

DOOR MIRROR C/U-LH
“NO RESPONSE”

38

POWER SEAT C/U-DR
“NO RESPONSE”

48

Multiple LCUs
are displayed.

BCM/HARNESS

Displays in
order of
25

→

28

→

38

→

4

8 and cycles
from 25.

Communication system C:
Refer to

BL-79, "COMMU-

NICATION SYSTEM C"

 .

SLEEP malfunction

One LCU is dis-
played.

POWER WINDOW C/U-DR
“SLEEP”

No self-diagno-
sis function

Replace the displayed
LCU.

DOOR MIRROR C/U-RH
“SLEEP”

DOOR MIRROR C/U-LH
“SLEEP”

POWER SEAT C/U-DR
“SLEEP”

Multiple LCUs
are displayed.

All the above control units are displayed.

No self-diagno-
sis function

Communication system A:
Refer to

BL-79, "COMMU-

NICATION SYSTEM A"

 .

Monitored item

Description

IGN KEY SW

Indicates [ON/OFF] condition of ignition key switch.

IGN ACC SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

BL-76

REMOTE KEYLESS ENTRY SYSTEM

Trunk Lid Opener Item

ACTIVE TEST
Remote Keyless Entry Test Item

Trunk Lid Opener Test Item

WORK SUPPORT
Work Support Item

Hazard and Horn Reminder mode

*: These modes are not supported.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

LOCK SIG-DR

Indicates [ON/OFF] condition of driver door unlock signal from door unlock sensor.

LOCK SIG-AS

Indicates [ON/OFF] condition of passenger door unlock signal from door unlock sensor.

LOCK SIG-RR/RH

Indicates [ON/OFF] condition of rear RH door unlock signal from door unlock sensor.

LOCK SIG-RR/LH

Indicates [ON/OFF] condition of rear LH door unlock signal from door unlock sensor.

LOCK BUTTON

Indicates [ON/OFF] condition of lock signal from electronic key.

UNLOCK BUTTON

Indicates [ON/OFF] condition of unlock signal from electronic key.

PANIC BTN

Indicates [ON/OFF] condition of panic signal from electronic key.

TRUNK BTN-CON

Indicates [ON/OFF] condition of trunk open signal from electronic key.

Monitored item

Description

Monitored item

Description

TRUNK OPNR SW

Indicates [ON/OFF] condition of trunk open signal from trunk open switch.

TEST ITEM

DESCRIPTION

TRUNK OPEN S/V

This test is able to check trunk lid opener actuator operation.
The trunk is unlocked when “ON” on CONSULT-II screen is touched.

HAZARD

This test is able to check hazard reminder operation.
The hazard lamp turns on when “ON” on CONSULT-II screen is touched.

HORN

This test is able to check panic alarm and horn reminder operations.
The horn turns on when “ON” on CONSULT-II screen is touched.

FOOT ILL

This is displayed even when it is not equipped.

TEST ITEM

DESCRIPTION

TRUNK OPEN S/V

This test is able to check trunk lid opener actuator operation.
The trunk is unlocked when “ON” on CONSULT-II screen is touched.

WORK ITEM

DESCRIPTION

KYLS OP CONF SET

Hazard and horn reminder mode can be changed in this mode. (NORMAL or MODE1)

KYLS ID P/W SET

Keyless power window down (open) operation mode can be changed in this mode. (ON or OFF)

REMO CONT ID CONFIR

It can be checked whether electronic key ID code is registered or not in this mode.

REMO CONT ID REG

electronic key ID code can be registered in this mode.

REMO CONT ID ERASER

electronic key ID code can be erased in this mode.

NORMAL

MODE1

MODE2*

MODE3*

MODE4*

MODE5*

Electronic key operation

Lock

Unlock

Lock

Unlock

—

—

—

—

Hazard warning lamp flash

Twice

Once

Twice

–

Horn sound

Once

–

–

–

REMOTE KEYLESS ENTRY SYSTEM

BL-77

C

D

E

F

G

H

J

K

L

M

A

B

BL

On Board Diagnosis

EIS003S6

ON BOARD DIAGNOSTIC RESULTS INDICATOR LAMP

●

Map lamps and step lamps (all seats) act as the indicators for the on board diagnosis.

DIAGNOSIS ITEM

COMMUNICATION DIAGNOSIS

Check the communication between BCM and local control unit (LCU).

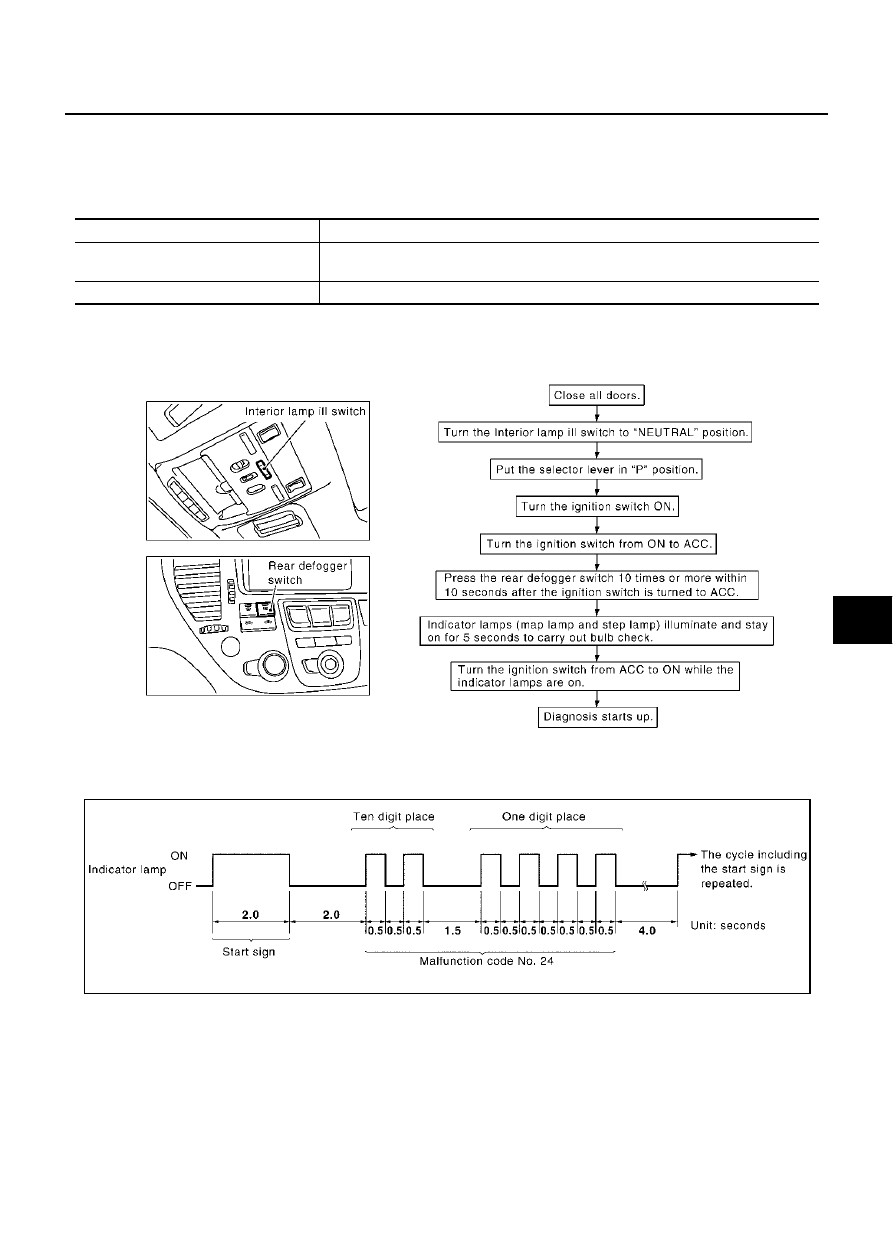

How To Perform Communication Diagnosis

Description

In this mode, a malfunction code is indicated by the number of flashes from the map lamps and step lamps as
shown below:

After indicator lamp turns on for 2 seconds then off for 2 seconds, it flashes [cycling ON (0.5 sec.)/OFF (0.5
sec.)] to indicate a malfunction code of the first digit. Then, 1.5 second after indicator lamp turns off, it again
flashes [cycling ON (0.5 sec.)/OFF (0.5 sec.)] to indicate a malfunction code of the second digit.
For example, the indicator lamp goes on and off for 0.5 seconds twice and after 1.5 seconds, it goes on and off
for 0.5 seconds four times. This indicates malfunction code of driver door control unit communication.

Diagnosis item.

Content

IVMS communication diagnosis

Diagnosing any abnormality or inability of communication between BCM and LCU
(DATA LINE A-3).

Switch monitor

Monitoring conditions of switches connected to BCM, LCU and Door control unit.

PIIA3358E

SIIA0410E

BL-78

REMOTE KEYLESS ENTRY SYSTEM

Malfunction Code Table

NOTE:

●

For a specific local control unit (LCU), either “PAST COMM DATA” or “PAST NO RESPONSE” may be displayed instead of the
above results. This is caused by the data record, so erase the records.
(The display only shows the incident records, they are not malfunctions caused during the diagnosis. One possible cause is that an
reproducible incident occurred.)

●

Follow the steps below to erase the memory
Perform either disconnect BCM battery power supply or erase memory with CONSULT-II.

●

With the battery connected, if the local control unit (LCU) connector is disconnected and left for approximately 1 minute, the BCM
stores “NO RESPONSE” record.

Cancel of Communication Diagnosis

If one of the following conditions is satisfied, the communication diagnosis is cancelled.

●

Turn ignition switch OFF.

●

Drive the vehicle more than 7 km/h (4 MPH).

●

Ten minutes have passed since the diagnosis result indication start without any diagnosis cancel opera-
tion.

Malfunction item

Display unit

CONSULT-II IVMS communication diag-

nosis content

Self-diagnosis

trouble code

No.

Malfunctioning system and

reference

COMM DATA

One LCU is dis-
played.

POWER WINDOW C/U-DR
“COMM DATA”

24

Replace the displayed
LCU.

DOOR MIRROR C/U-RH
“COMM DATA”

27

DOOR MIRROR C/U-LH
“COMM DATA”

37

POWER SEAT C/U-DR
“COMM DATA”

47

Multiple LCUs
are displayed.

BCM
“COMM FAIL1”, “COMM FAIL2”

Displays in
order of 24

→

27

→

37

→

47

→

and cycles

from 24.

Communication system A:
Refer to

BL-79, "COMMU-

NICATION SYSTEM A"

 .

NO
RESPONSE

One LCU is dis-
played.

POWER WINDOW C/U-DR
“NO RESPONSE”

25

Communication system B:
Refer to

BL-79, "COMMU-

NICATION SYSTEM B"

 .

DOOR MIRROR C/U-RH
“NO RESPONSE”

28

DOOR MIRROR C/U-LH
“NO RESPONSE”

38

POWER SEAT C/U-DR
“NO RESPONSE”

48

Multiple LCUs
are displayed.

BCM/HARNESS

Displays in
order of
25

→

28

→

38

→

4

8 and cycles
from 25.

Communication system C:
Refer to

BL-79, "COMMU-

NICATION SYSTEM C"

 .

SLEEP malfunc-
tion

One LCU is dis-
played.

POWER WINDOW C/U-DR “SLEEP”

No self-diagno-
sis function

Replace the displayed
LCU.

DOOR MIRROR C/U-RH
“SLEEP”

DOOR MIRROR C/U-LH
“SLEEP”

POWER SEAT C/U-DR
“SLEEP”

Multiple LCUs
are displayed.

All the above control units are displayed.

No self-diagno-
sis function

Communication system A:
Refer to

BL-79, "COMMU-

NICATION SYSTEM A"

 .
