NAVIGATION SYSTEM

AV-77

On Board Self-Diagnosis Function (without CONSULT-II)

EKS001LU

DESCRIPTION

●

Diagnosis function consists of the self-diagnosis mode performed automatically and the Confirmation/
Adjustment Mode mode operated manually.

●

Self-diagnosis mode checks for connections between the units constituting this system, analyzes each
individual unit at the same time, and displays the results on the LCD screen.

●

Confirmation/Adjustment Mode mode is used to perform trouble diagnosis that require operation and
judgment by an operator (malfunction that cannot be automatically judged by the system), to check/
change the set value, and to display the History of Errors of the navigation system.

DIAGNOSIS ITEM

Mode

Description

Self-diagnosis

●

AV and NAVI control unit diagnosis (DVD-ROM drive will not be diagnosed
when no map DVD-ROM is in it.).

●

Analyzes connection between the AV and NAVI control unit and the GPS
antenna connection between the AV and NAVI control unit and each unit,
and operation of each unit.

Confirmation/
Adjustment Mode

Display diagnosis

Color tone and shading of the screen can be checked by the display of a color
bar and a gray scale.

Vehicle signals

Analyzes the following vehicle signals: Vehicle speed signal, parking brake
signal, light signal, ignition switch signal, and reverse signal.

Auto Climate Control

Turns all A/C screens on display and A/C switch indicator lamp on.

Navigation

Display Longitude
& Latitude

Display the map. Use the joystick to adjust position. Longitude and latitude will
be displayed.

Speed Calibration

Under ordinary conditions, the navigation system distance measuring function
will automatically compensate for minute decreases in wheel and tire diameter
caused by tire wear or low pressure. Speed calibration immediately restores
system accuracy in cases such as when distance calibration is needed
because of the use of tire chains in inclement weather.

Angle adjustment

Corrects difference between actual turning angle of a vehicle and turning
angle of the car mark on the display.

Initialize Location

This mode is for initializing the current location. Use when the vehicle is trans-
ported a long distance on a trailer, etc.

History of Errors

Diagnosis results previously stored in the memory (before turning ignition
switch ON) are displayed in this mode. Time and location when/where the
errors occurred are also displayed.

Rear view camera

Changes position of the aiming line overlapped on the rear view image.

AV-78

NAVIGATION SYSTEM

Self-Diagnosis Mode

EKS001LV

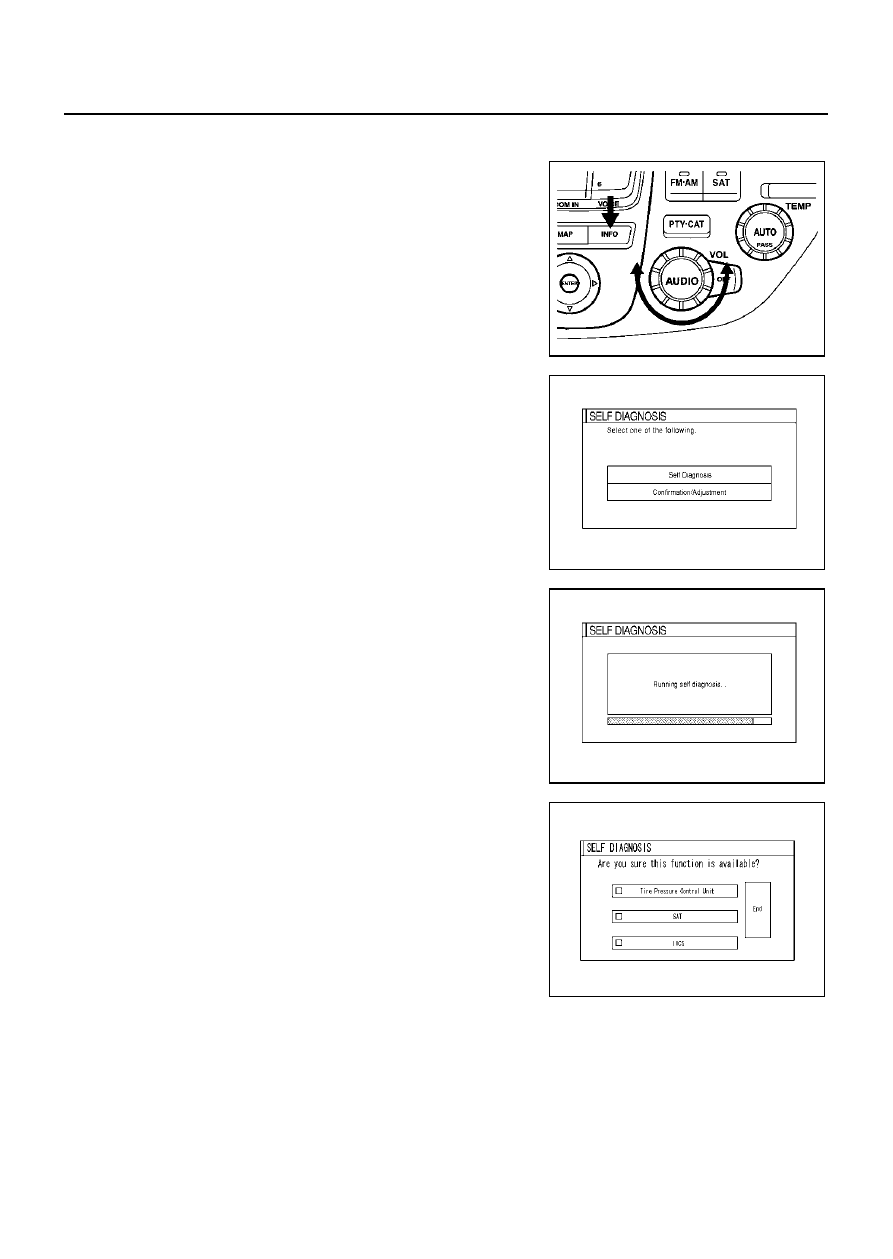

OPERATION PROCEDURE

Start the engine.

Turn the audio system off.

While pressing the “INFO” switch, turn the volume control dial
clockwise or counterclockwise for 30 clicks or more. (When the
self-diagnosis mode is started, a short beep will be heard.)

●

Shifting from current screen to previous screen is performed
by pressing “PREV” switch.

The initial trouble diagnosis screen will be shown, and items
“Self Diagnosis” and “Confirmation/Adjustment” will become
selective.

Perform self-diagnosis by selecting the “Self Diagnosis”.

●

Self-diagnosis subdivision screen will be shown and the oper-
ation enters the self-diagnosis mode.

●

A bar graph shown below the self-diagnosis subdivision
screen indicates progress of the diagnosis.

When the self-diagnosis completes, optional part confirmation
screen will be shown.

●

When connection of an optional part is judged error, a screen
to check if the optional part is actually fitted on the vehicle or
not will be shown. When fitted, select the switch of the part on
the screen and press “END”. Then the “SELF DIAGNOSIS”
screen will be shown.

●

When the optional part is connected normally, the switch for
the part will not appear on the screen.

SKIA3512E

SKIA0381E

SKIA0382E

SKIA3513E

NAVIGATION SYSTEM

AV-79

On the “SELF DIAGNOSIS” screen, each unit name will be col-
ored according to the diagnosis result, as follows.

●

If several malfunctions are present in a unit, color of its switch
on the screen will be either red, yellow, or gray, determined by
the malfunction of the highest priority.

CAUTION:

“Tire Pressure Control Unit” on the screen will be illuminated in yellow when performing self-diag-
nosis with ignition switch in ACC position.

Select a switch on the “SELF DIAGNOSIS” screen and com-
ments for the diagnosis results will be shown.

●

When the switch is green, the following comment will be
shown. “Self-diagnosis was successful. Further diagnosis and
adjustments are recommended. Follow the “confirmation and
adjustments” menu or refer to the service manual.”.

●

When the switch is yellow, the following comment will be
shown. “Connection to the following unit is abnormal. See the
service manual for further details”.

●

When the switch is red, the following comment will be shown.
“Center Control Unit is abnormal”.

●

When the switch is gray, the following comment will be shown. “Self-diagnosis for DVD-ROM DRIVER
of NAVI was not conducted because no DVD-ROM was available.”.

Green

: No malfunctioning.

Yellow

: Cannot be judged by self-diagnosis results.

Red

: Unit is malfunctioning.

Gray

: Diagnosis has not been done.

SKIA3514E

SKIA0385E

AV-80

NAVIGATION SYSTEM

SELF-DIAGNOSIS RESULT
Quick reference table

Select an applicable diagnosis No. in the diagnosis result quick reference table.

Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to

AV-67,

"Wiring Diagram — COMM —"

Turn ignition switch OFF and perform self-diagnosis again.

*: Center Control unit = AV and NAVI control unit

CAUTION:

●

When multifunction switch has an incident, you can not start.

●

Check the following when the self-diagnosis mode can not be used.

–

AV communication line between AV and NAVI control unit and Display, AV communication line
between Display and multifunction switch.

–

multifunction switch power supply and ground circuit

●

When an error is in the AV communication line, it cannot be detected on the screen because self-
diagnosis is inoperative. However, the error can be detected with CONSULT-II.

Screen switch

Diagnosis

No.

Switch

color

Center
control

unit*

Display

Tire pressure

control unit

Audio

unit

CD auto
changer

Audio

amp.

Rearview

camera

control unit

Voice acti-

vated control

module

GPS

antenna

Red

Gray

Yellow

Content .. 176 177 178 179 ..
