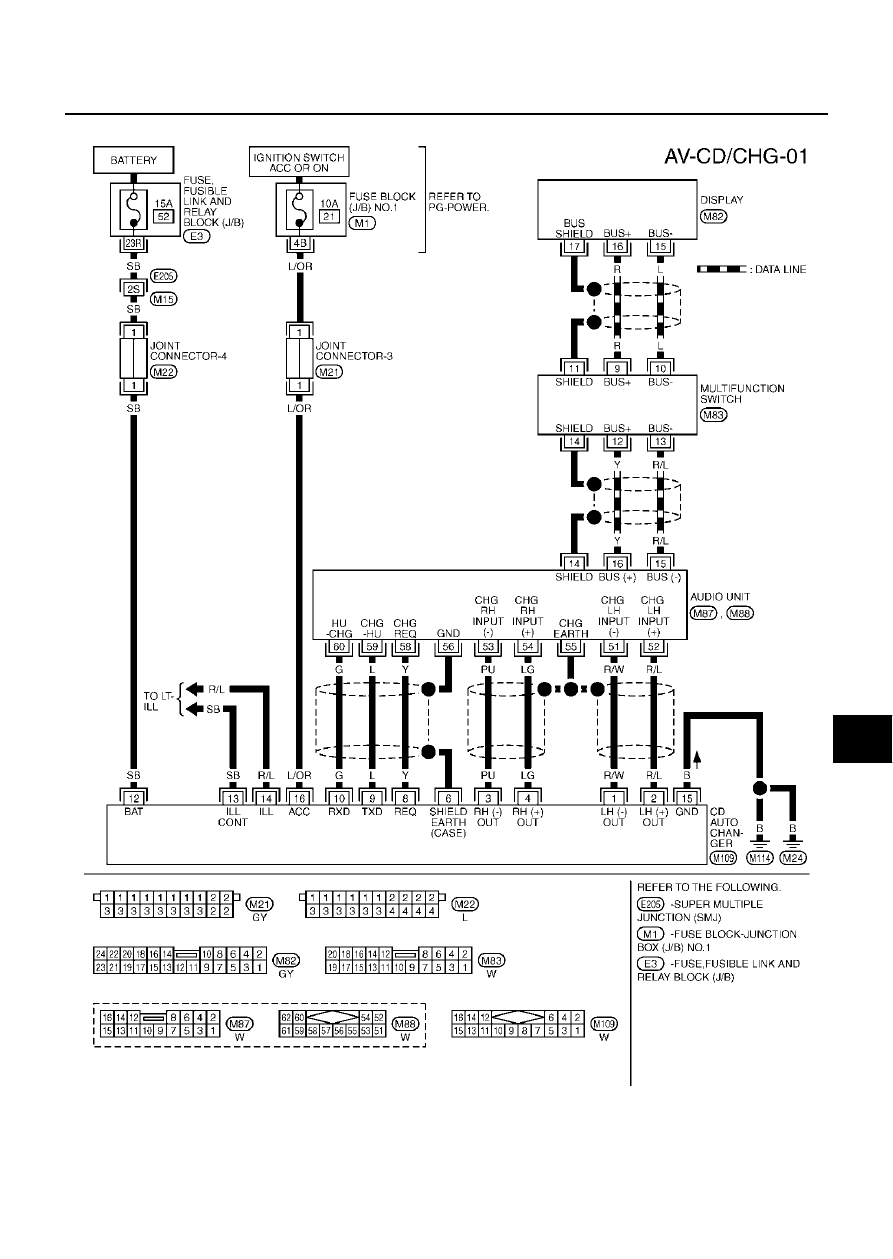

Wiring Diagram —CD AUTO CHANGER—

EKS001RE

TKWM0319E

AV-18

AUDIO

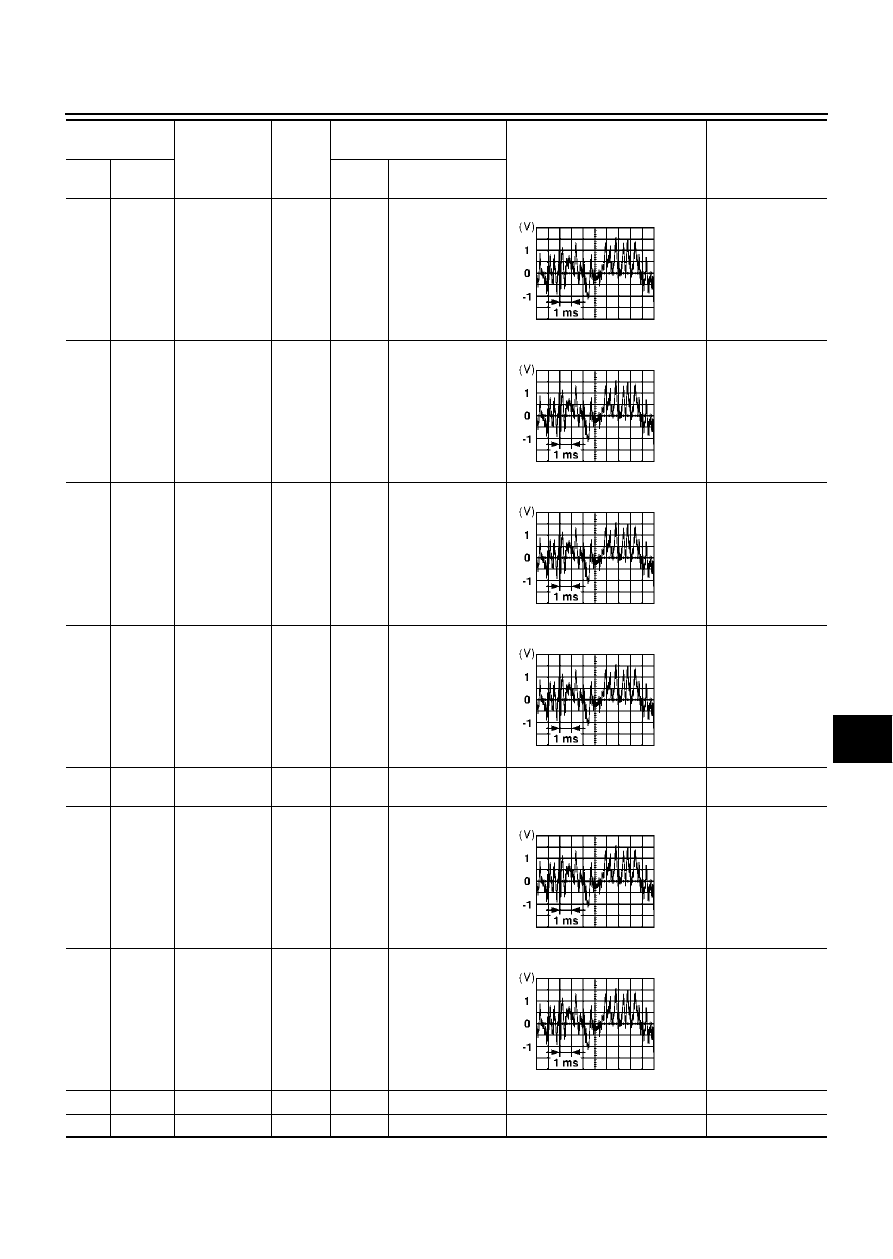

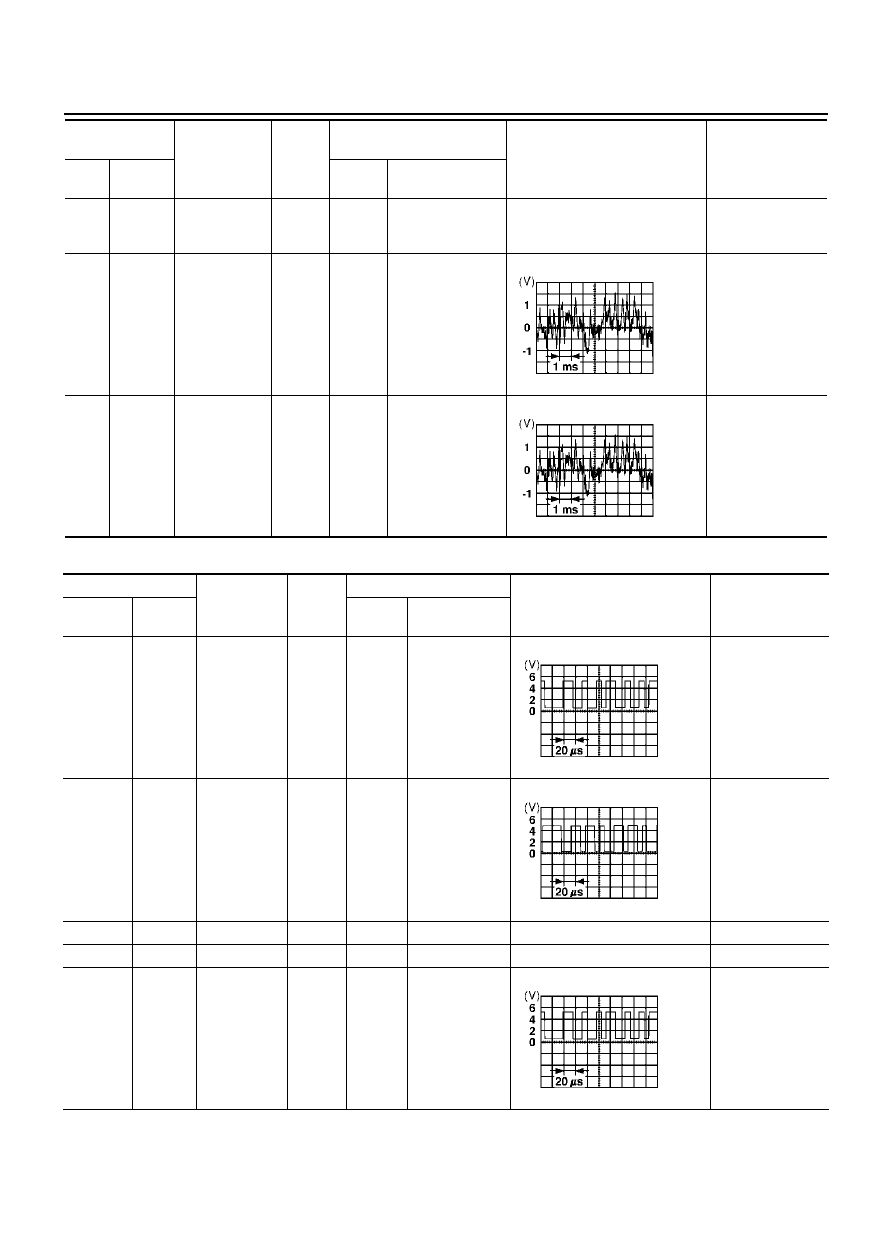

Terminals and Reference Value for BOSE Speaker Amplifier

EKS000XT

Terminal No.

(Wire color)

Item

Signal

input/

output

Condition

Voltage

Example of symp-

tom

+

–

Ignition

switch

Operation

3 (W)

4 (R/L)

Microphone

Input

ON

Microphone test
operate

Audiopilot

TM

 dose

not operate prop-
erly.

5

(LG)

Ground

Communica-
tion signal (+)

Input/

output

ON

-

System does not
work properly.

6

(PU)

Ground

Communica-
tion signal (-)

Input/

output

ON

-

System does not
work properly.

7

-

Shield ground

-

-

-

-

-

11

(L)

Ground

Battery power

Input

OFF

-

Battery voltage

System does not
operate.

13

(P)

29 (L/Y)

Front door
speaker RH
output

Output

ON

Receive radio
broadcast

No sound from
front door speaker
RH.

14

(G)

30

Shield (sound)

-

-

-

-

-

15

-

Shield (sound)

-

-

-

-

-

16

(R/G)

17 (R/W)

Rear door
speaker LH
output

Output

ON

Receive radio
broadcast

No sound from
rear Door speaker
LH.

PKIA2104E

SKIA0175E

SKIA0176E

SKIA0177E

SKIA0177E

AUDIO

AV-19

C

D

E

F

G

H

I

J

L

M

A

B

AV

18

(L/Y)

19 (W/G)

Instrument
speaker LH
output

output

ON

Receive radio
broadcast

No sound from
Instrument
speaker LH.

21

(Y)

20 (L)

Instrument
speaker cen-
ter output

output

ON

Receive radio
broadcast

No sound from
Instrument
speaker center.

23

(G)

22 (R)

Instrument
speaker RH
output

output

ON

Receive radio
broadcast

No sound from
Instrument
speaker RH.

25

(P)

24 (PU)

Rear door
speaker RH
output

Output

ON

Receive radio
broadcast

No sound from
rear door speaker
RH.

27

(B)

Ground

Ground

-

ON

-

Approx.0V

-

28

(BR/

W)

12 (BR)

Woofer output

Output

ON

-

No sound from
Woofer.

30

(R)

14 (G)

Front door
speaker  LH
output

Output

ON

Receive radio
broadcast

No sound from
front door speaker
LH.

31

-

Shield (sound)

-

-

-

-

-

32

-

Shield (Mic)

-

-

-

-

-

Terminal No.

(Wire color)

Item

Signal

input/

output

Condition

Voltage

Example of symp-

tom

+

–

Ignition

switch

Operation

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

SKIA0177E

AV-20

AUDIO

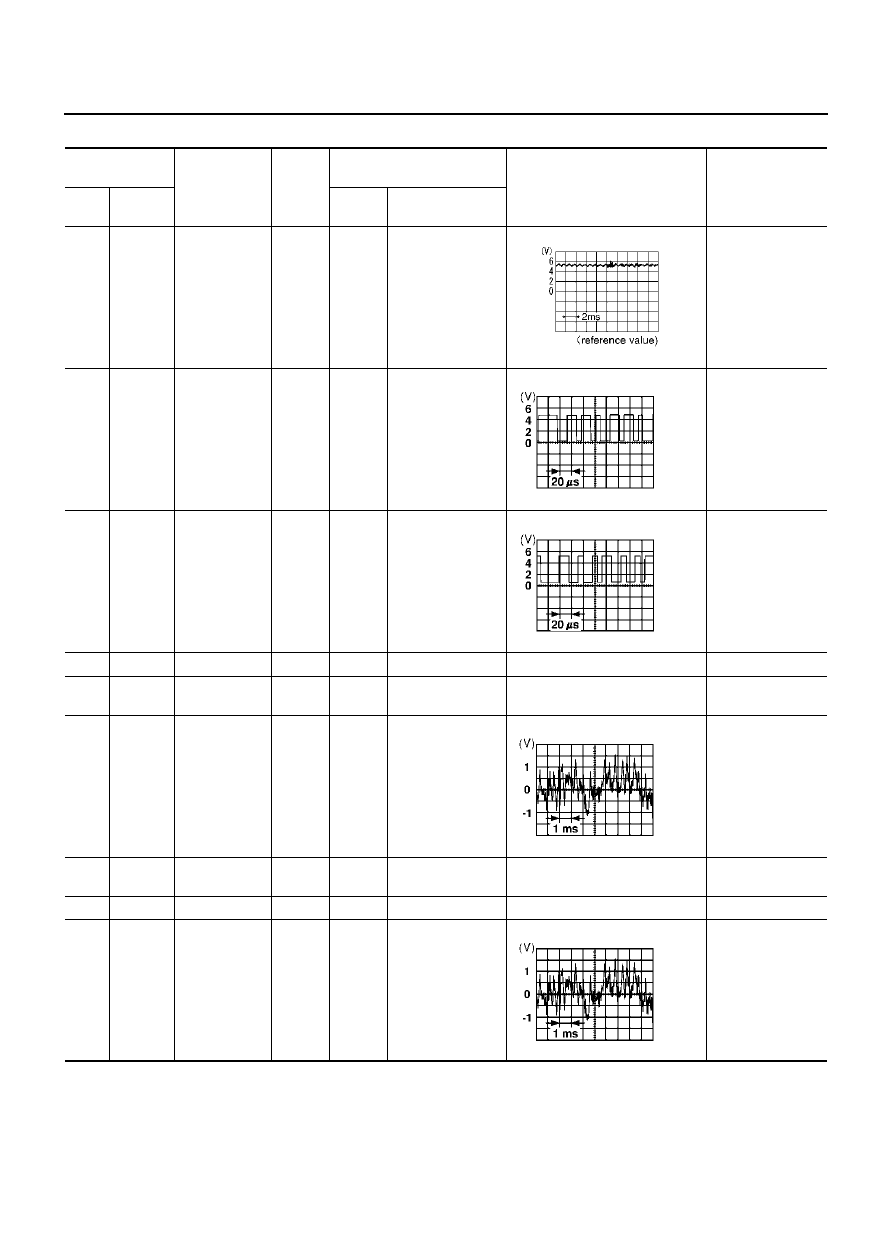

Terminals and Reference Value for Audio Unit

EKS000XU

34

(OR/

L)

Ground

ACC power

Input

ACC

-

Battery voltage

AV functions do not
operate.

40

(BR)

39 (Y)

Audio sound
signal (LH)

Input

ON

Play  cassette
tape.

Audio sound not
heard from LH
speaker.

41

(B)

38 (W)

Audio sound
signal (RH)

Input

ON

Play  cassette
tape.

Audio sound not
heard from RH
speaker.

Terminal No.

(Wire color)

Item

Signal

input/

output

Condition

Voltage

Example of symp-

tom

+

–

Ignition

switch

Operation

SKIA0177E

SKIA0177E

Terminal No.

Item

Signal

input/

output

Condition

Voltage

Example of symp-

tom

+

-

Ignition

switch

Operation

11 (PU)

Ground

Communica-
tion signal (-)

Input/
output

ON

-

System does not
work properly.

12 (LG)

Ground

Communica-
tion signal (+)

Input/
output

ON

-

System does not
work properly.

13

-

Shield ground

-

-

-

-

-

14

-

Shield ground

-

-

-

-

-

15 (R/L)

Ground

Communica-
tion signal (-)

Input/

output

ON

-

System does not
work properly.

SKIA0176E

SKIA0175E
