REPAIR FOR COMPONENT PARTS

AT-329

D

E

F

G

H

I

J

K

L

M

A

B

AT

CAUTION:

If necessary, replace the input clutch assembly.

Front carrier

●

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the front carrier assembly.

Rear internal gear

●

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the rear internal gear assembly.

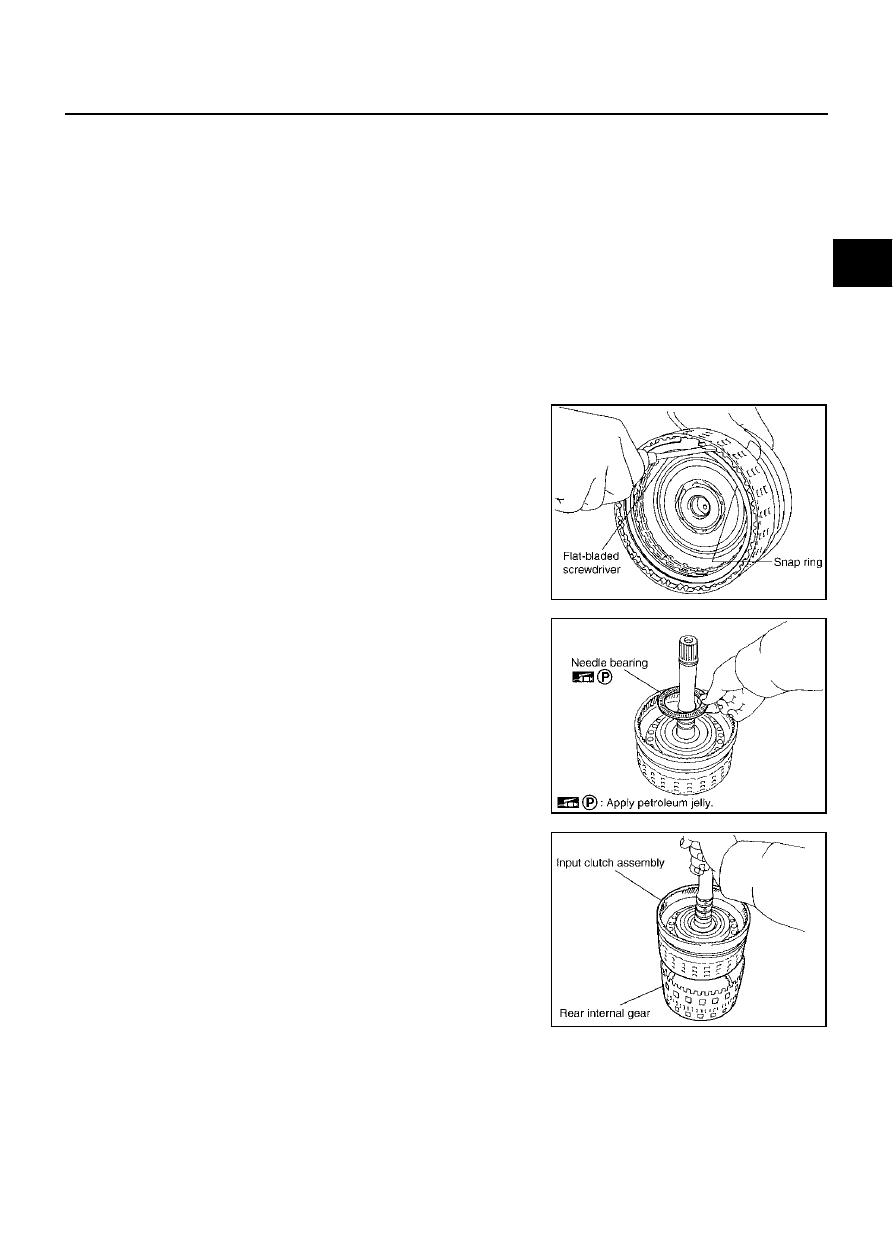

ASSEMBLY

1.

Install input clutch.

a.

Install drive plate, driven plate and retaining plate in input clutch drum.

b.

Using a flat-bladed screwdriver, install snap ring in input clutch
drum.

c.

Install needle bearing in input clutch assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

d.

Install O-ring and seal rings in input clutch assembly.

CAUTION:

●

Do not reuse O-ring and seal rings.

●

Apply ATF to O-ring.

●

Apply petroleum jelly to seal rings.

2.

Install input clutch assembly in rear internal gear.

SCIA2864E

SCIA2853E

SCIA2849E

AT-330

REPAIR FOR COMPONENT PARTS

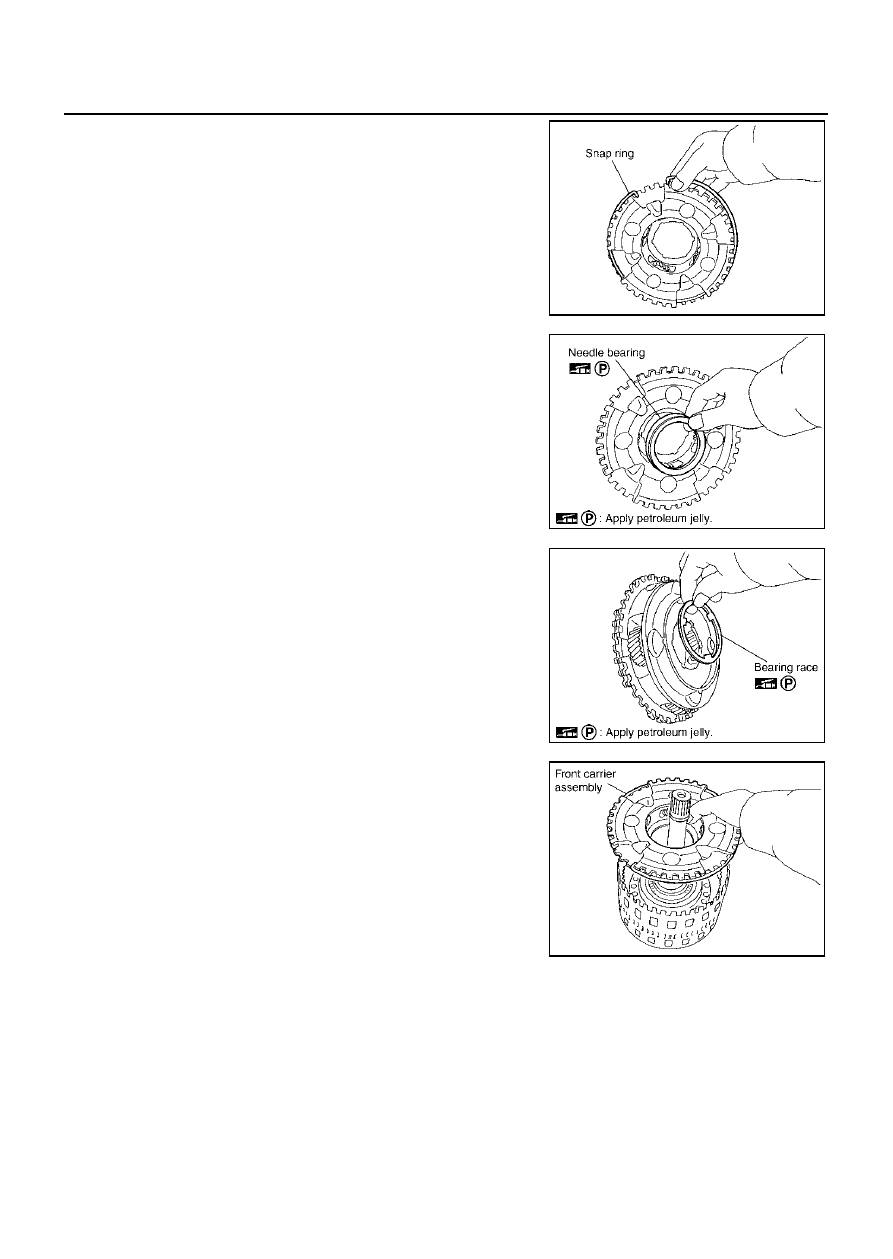

3.

Install front carrier assembly.

a.

Install snap ring in front carrier.

b.

Install needle bearing in front carrier.

CAUTION:

Apply petroleum jelly to needle bearing.

c.

Install bearing race in front carrier.

CAUTION:

Apply petroleum jelly to bearing race.

d.

Install front carrier assembly in input clutch and rear internal
gear.

SCIA2852E

SCIA2848E

SCIA2847E

SCIA2850E

REPAIR FOR COMPONENT PARTS

AT-331

D

E

F

G

H

I

J

K

L

M

A

B

AT

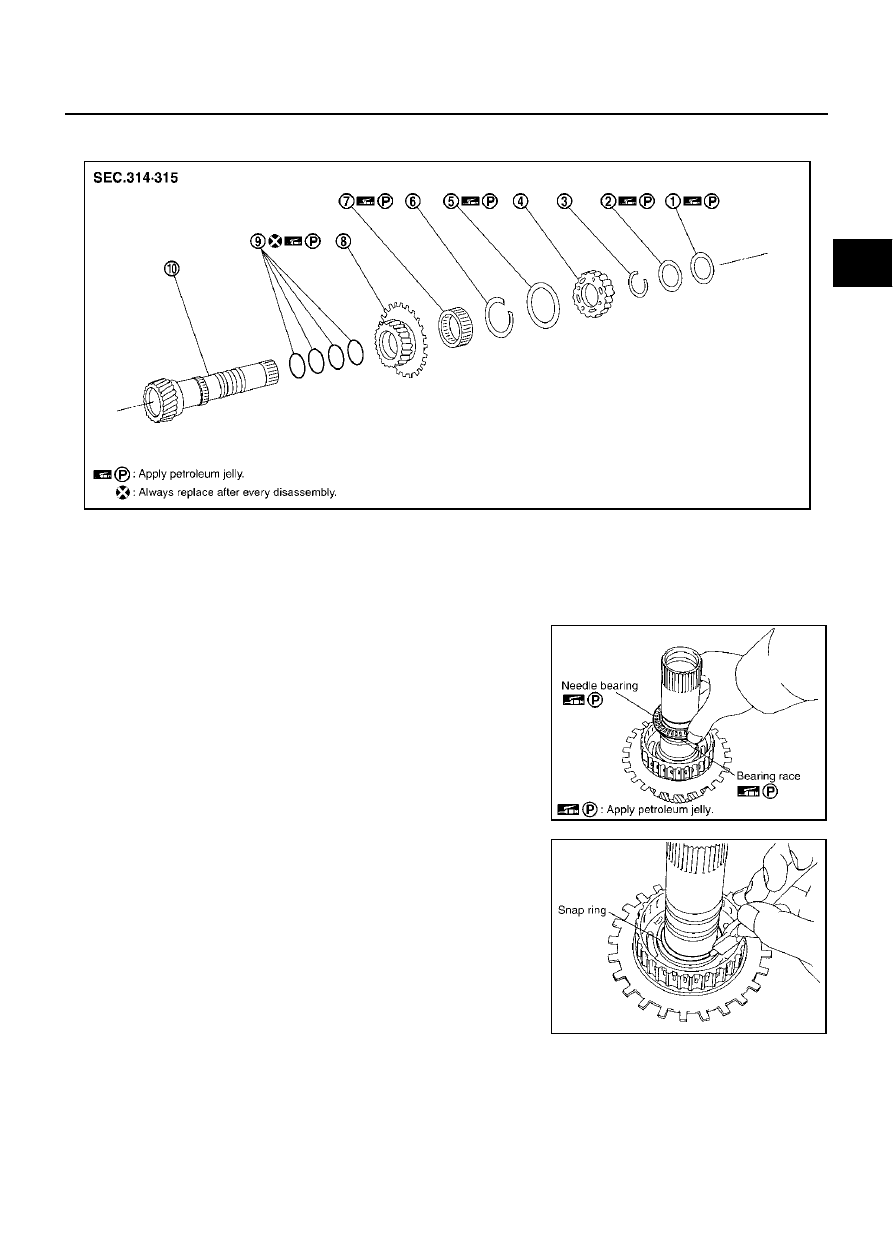

Mid Sun Gear, Rear Sun Gear, High and Low Reverse Clutch Hub

ECS00A0C

COMPONENTS

DISASSEMBLY

1.

Remove needle bearing and bearing race.

2.

Using a snap ring pliers, remove snap ring from high and low
reverse clutch hub.

1.

Needle bearing

2.

Bearing race

3.

Snap ring

4.

High and low reverse clutch hub

5.

Needle bearing

6.

Snap ring

7.

1st one-way clutch

8.

Rear sun gear

9.

Seal ring

10. Mid sun gear

SCIA2851E

SCIA2854E

SCIA2855E

AT-332

REPAIR FOR COMPONENT PARTS

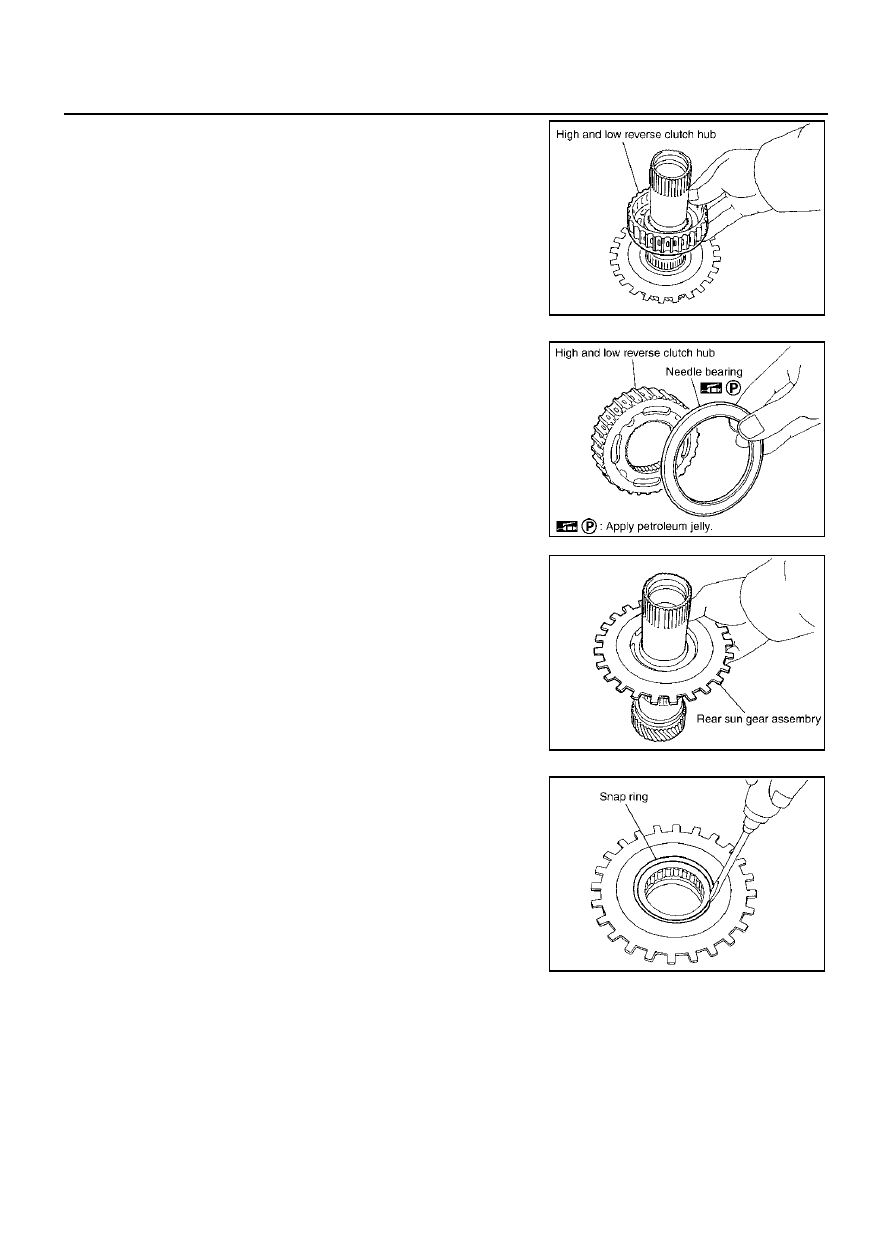

3.

Remove high and low reverse clutch hub from mid sun gear
assembly.

a.

Remove needle bearing from high and low reverse clutch hub.

4.

Remove rear sun gear assembly from mid sun gear assembly.

a.

Using a flat-bladed screwdriver, remove snap ring from rear sun
gear.

SCIA2856E

SCIA2857E

SCIA2858E

SCIA2859E
