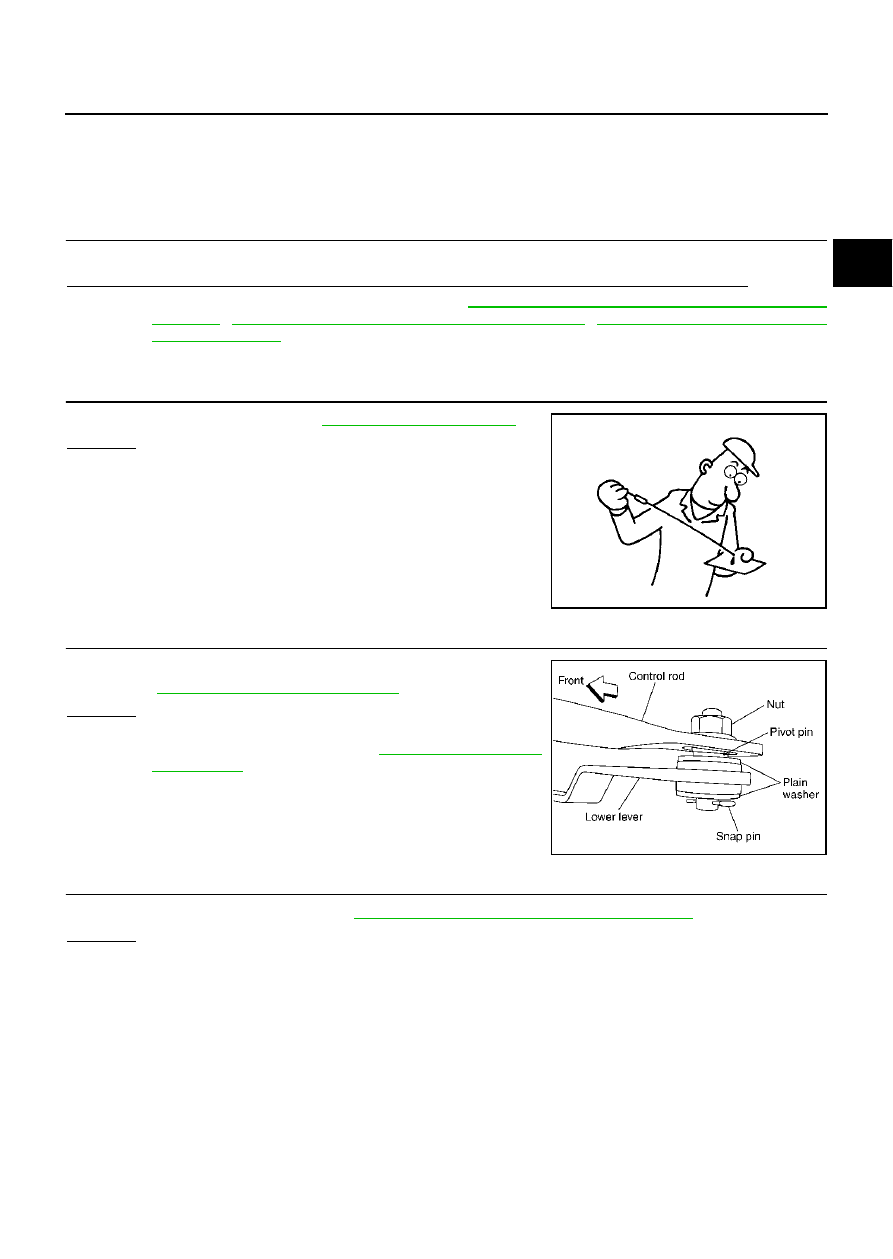

TROUBLE DIAGNOSIS FOR SYMPTOMS

AT-273

D

E

F

G

H

I

J

K

L

M

A

B

AT

A/T Does Not Shift: 4th gear

→

 3rd gear

ECS0089P

SYMPTOM:

When shifted from 4M to 3M position in manual mode, does not downshift from 4th to 3rd gear.

DIAGNOSTIC PROCEDURE

1.

CHECK SELF-DIAGNOSTIC RESULTS

Execute self-diagnosis.
Do the self-diagnostic results indicate PNP switch, ATF pressure switch 1, ATF pressure switch 3?

YES

>> Check the malfunctioning system. Refer to

AT-105, "DTC P0705 PARK/NEUTRAL POSITION

SWITCH"

 ,

AT-219, "DTC P1841 ATF PRESSURE SWITCH 1"

 ,

AT-223, "DTC P1843 ATF PRES-

SURE SWITCH 3"

 .

NO

>> GO TO 2.

2.

CHECK A/T FLUID LEVEL

Check A/T fluid level again. Refer to

AT-14, "Checking A/T Fluid"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Refill ATF.

3.

CHECK CONTROL LINKAGE

Check the control linkage.

●

Refer to

AT-282, "Checking of A/T Position"

 .

OK or NG

OK

>> GO TO 4.

NG

>> Adjust control linkage. Refer to

AT-282, "Adjustment of

A/T Position"

 .

4.

MANUAL MODE SWITCH

Check the manual mode switch. Refer to

AT-215, "DTC P1815 MANUAL MODE SWITCH"

 .

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

SAT638A

SCIA1612E

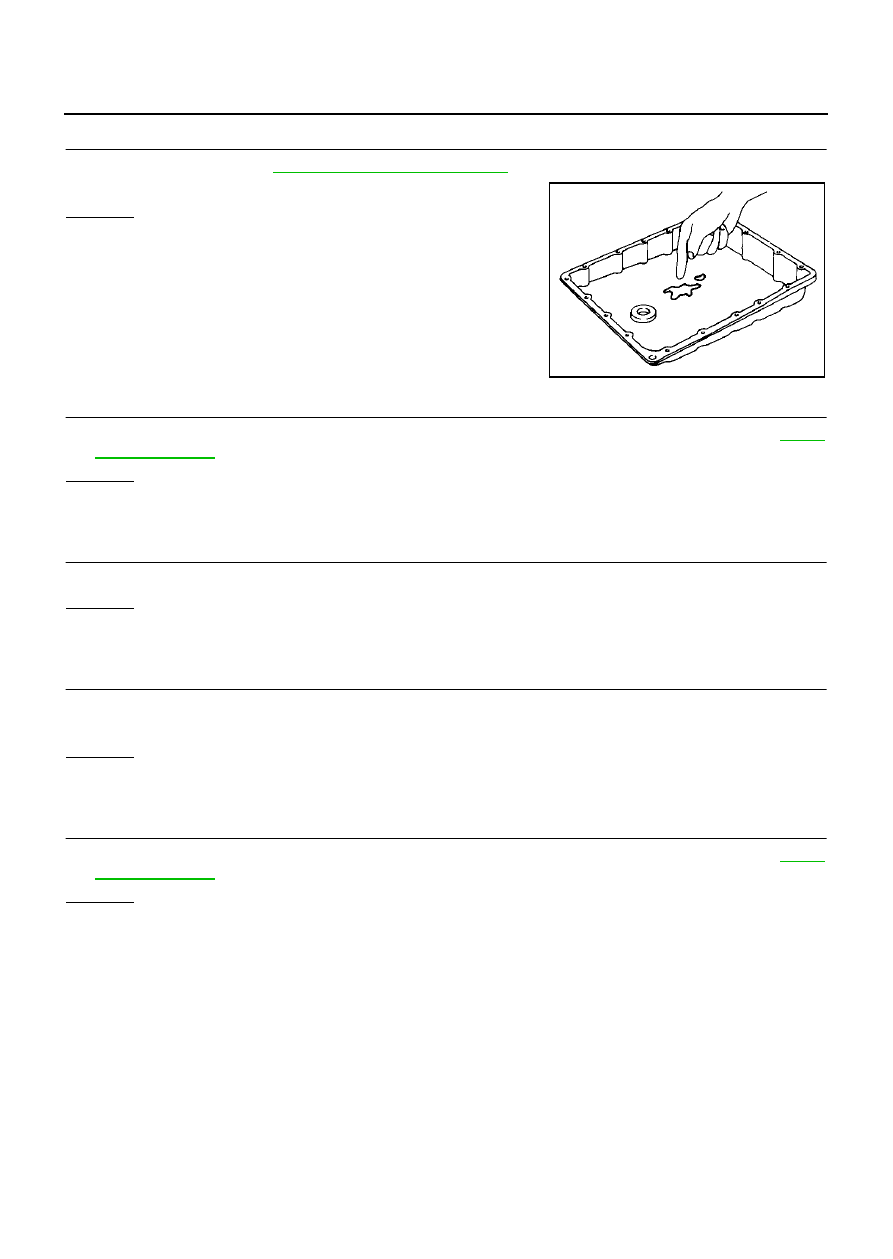

AT-274

TROUBLE DIAGNOSIS FOR SYMPTOMS

5.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

AT-289, "Control Valve Assembly"

 .

2.

Check A/T fluid condition.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 9.

6.

DETECT MALFUNCTIONING ITEM

●

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-60,

"Symptom Chart"

 .

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

7.

CHECK SYMPTOM

Check again.
OK or NG

OK

>> INSPECTION END

NG

>> GO TO 8.

8.

PERFORM TCM INSPECTION

1.

Perform TCM input/output signal inspection.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

9.

DETECT MALFUNCTIONING ITEM

●

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-60,

"Symptom Chart"

 .

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

SAT171B

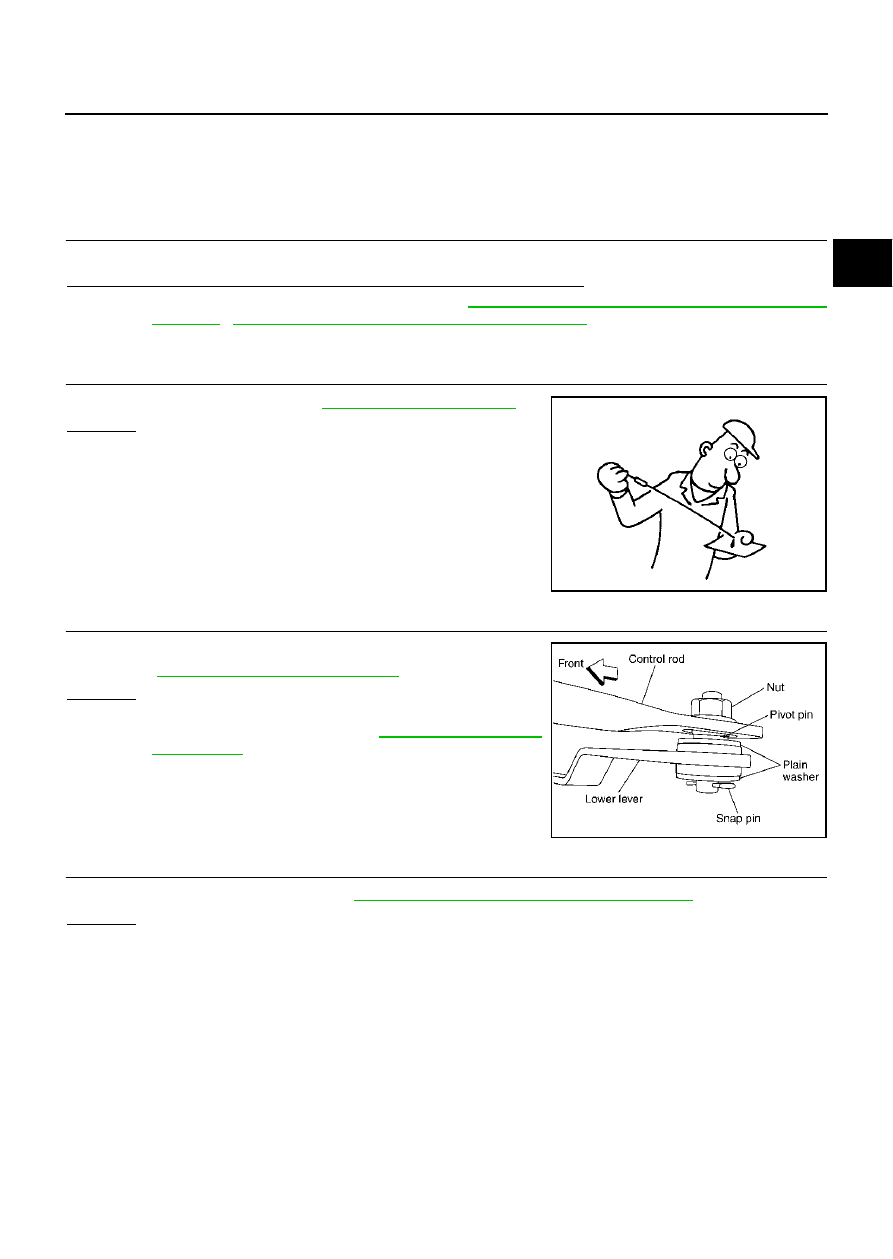

TROUBLE DIAGNOSIS FOR SYMPTOMS

AT-275

D

E

F

G

H

I

J

K

L

M

A

B

AT

A/T Does Not Shift: 3rd gear

→

 2nd gear

ECS0089Q

SYMPTOM:

When shifted from 3M to 2M position in manual mode, does not downshift from 3rd to 2nd gear.

DIAGNOSTIC PROCEDURE

1.

CHECK SELF-DIAGNOSTIC RESULTS

Execute self-diagnosis.
Do the self-diagnostic results indicate PNP switch, ATF pressure switch 6?

YES

>> Check the malfunctioning system. Refer to

AT-105, "DTC P0705 PARK/NEUTRAL POSITION

SWITCH"

 ,

AT-231, "DTC P1846 ATF PRESSURE SWITCH 6"

 .

NO

>> GO TO 2.

2.

CHECK A/T FLUID LEVEL

Check A/T fluid level again. Refer to

AT-14, "Checking A/T Fluid"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Refill ATF.

3.

CHECK CONTROL LINKAGE

Check the control linkage.

●

Refer to

AT-282, "Checking of A/T Position"

 .

OK or NG

OK

>> GO TO 4.

NG

>> Adjust control linkage. Refer to

AT-282, "Adjustment of

A/T Position"

 .

4.

MANUAL MODE SWITCH

Check the manual mode switch. Refer to

AT-215, "DTC P1815 MANUAL MODE SWITCH"

 .

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

SAT638A

SCIA1612E

AT-276

TROUBLE DIAGNOSIS FOR SYMPTOMS

5.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

AT-289, "Control Valve Assembly"

 .

2.

Check A/T fluid condition.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 9.

6.

DETECT MALFUNCTIONING ITEM

●

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-60,

"Symptom Chart"

 .

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

7.

CHECK SYMPTOM

Check again.
OK or NG

OK

>> INSPECTION END

NG

>> GO TO 8.

8.

PERFORM TCM INSPECTION

1.

Perform TCM input/output signal inspection.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

9.

DETECT MALFUNCTIONING ITEM

●

Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to

AT-60,

"Symptom Chart"

 .

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

SAT171B
