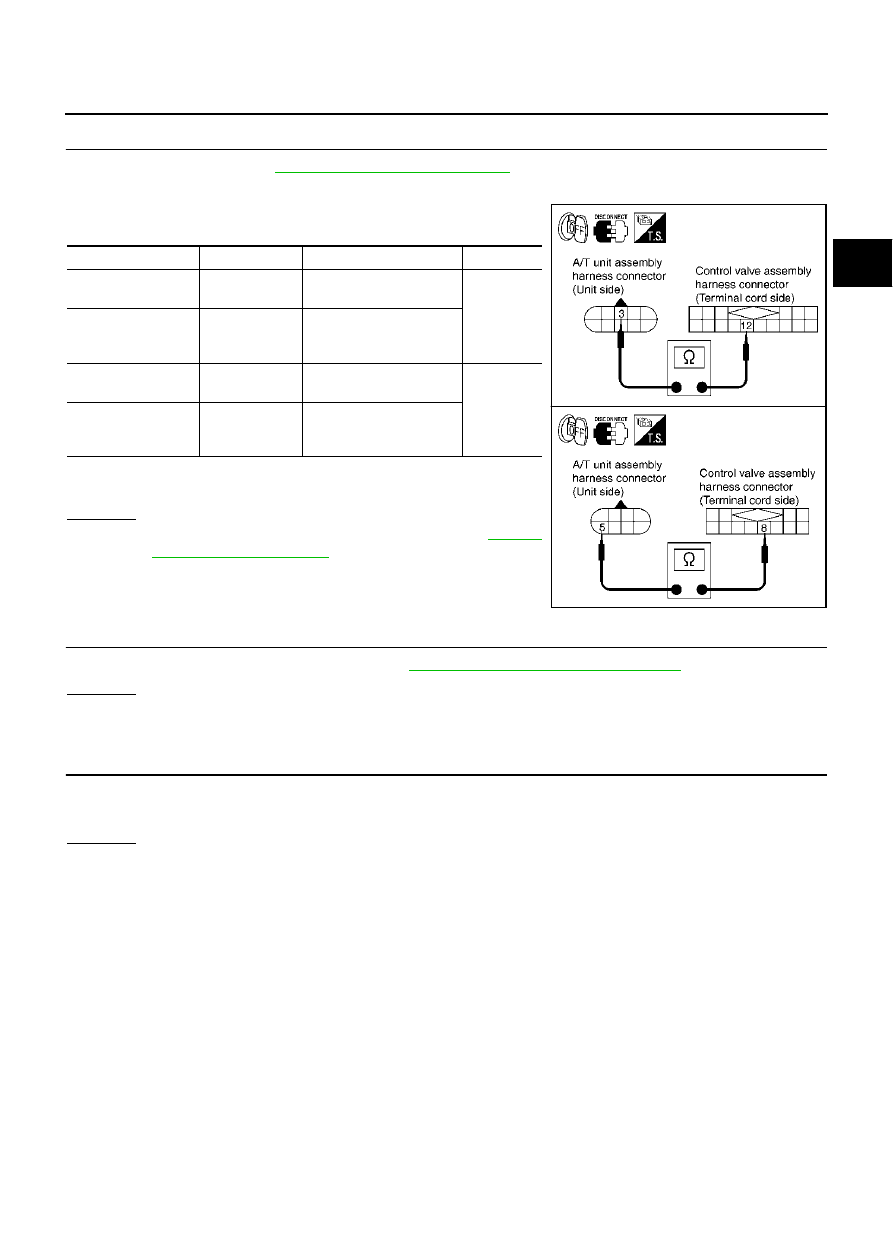

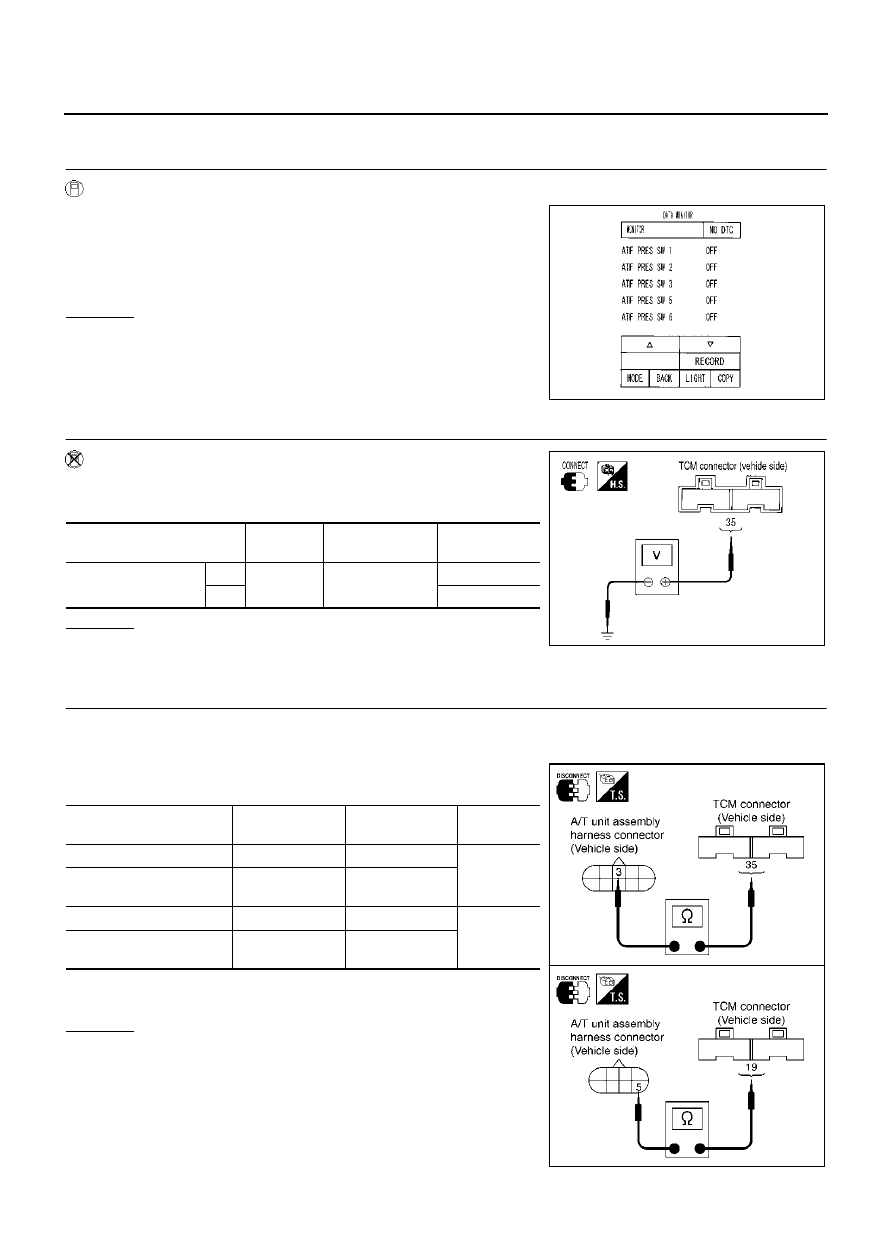

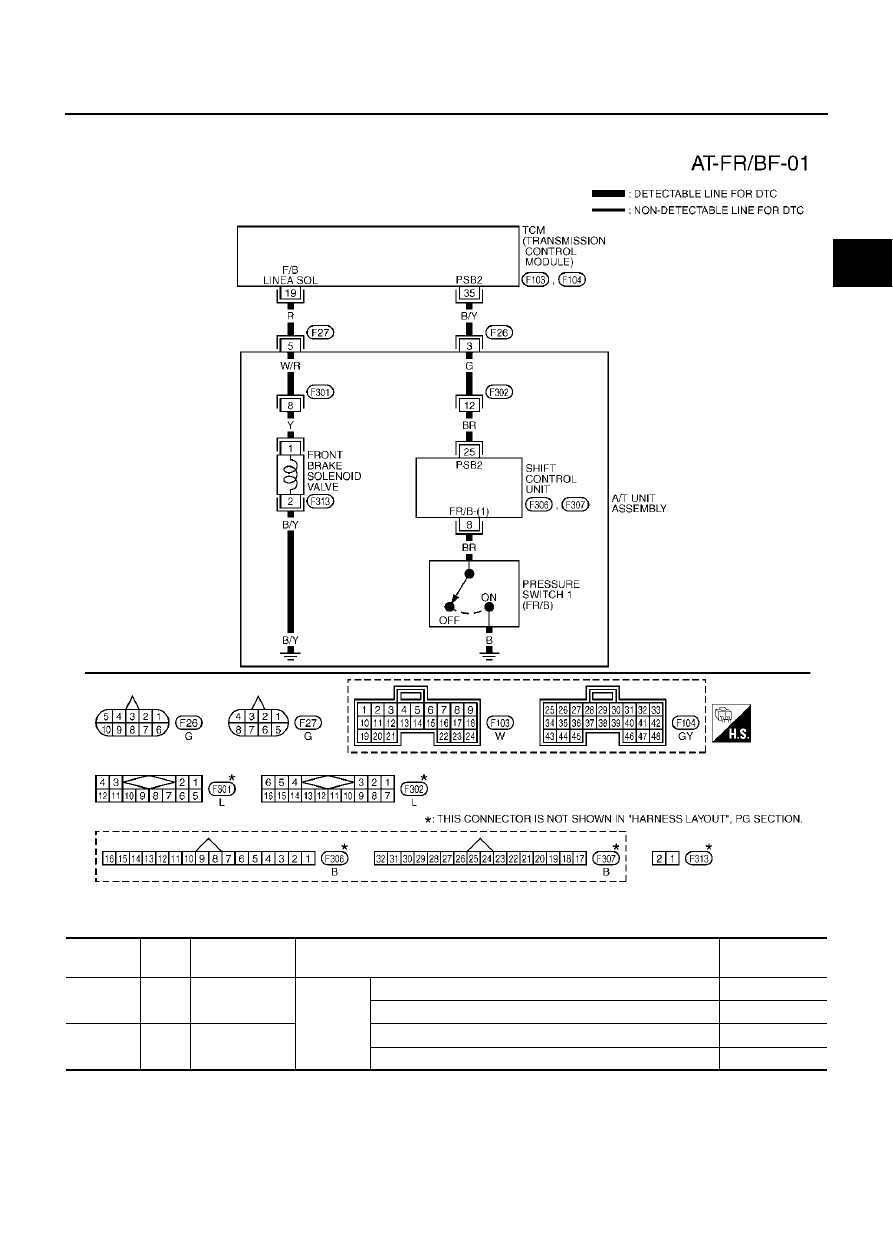

DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION AT-185 D E F G H I J K L M A B AT Wiring Diagram — AT — FR/BF ECS00876 TCM terminal and data are reference value. Measured between each terminal and ground. TCWM0094E Terminal No. Wire color Item Condition Data (Approx.) 19 R Front brake When vehicle When the solenoid valve is operating (other than 4th gear) More than 2V When the solenoid valve is not operating (4th gear) 0V 35 B/Y PSB2 (pres- When front brake solenoid valve “OFF”. Battery voltage When front brake solenoid valve“ ON”. 0V |
