DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-149

D

E

F

G

H

I

J

K

L

M

A

B

AT

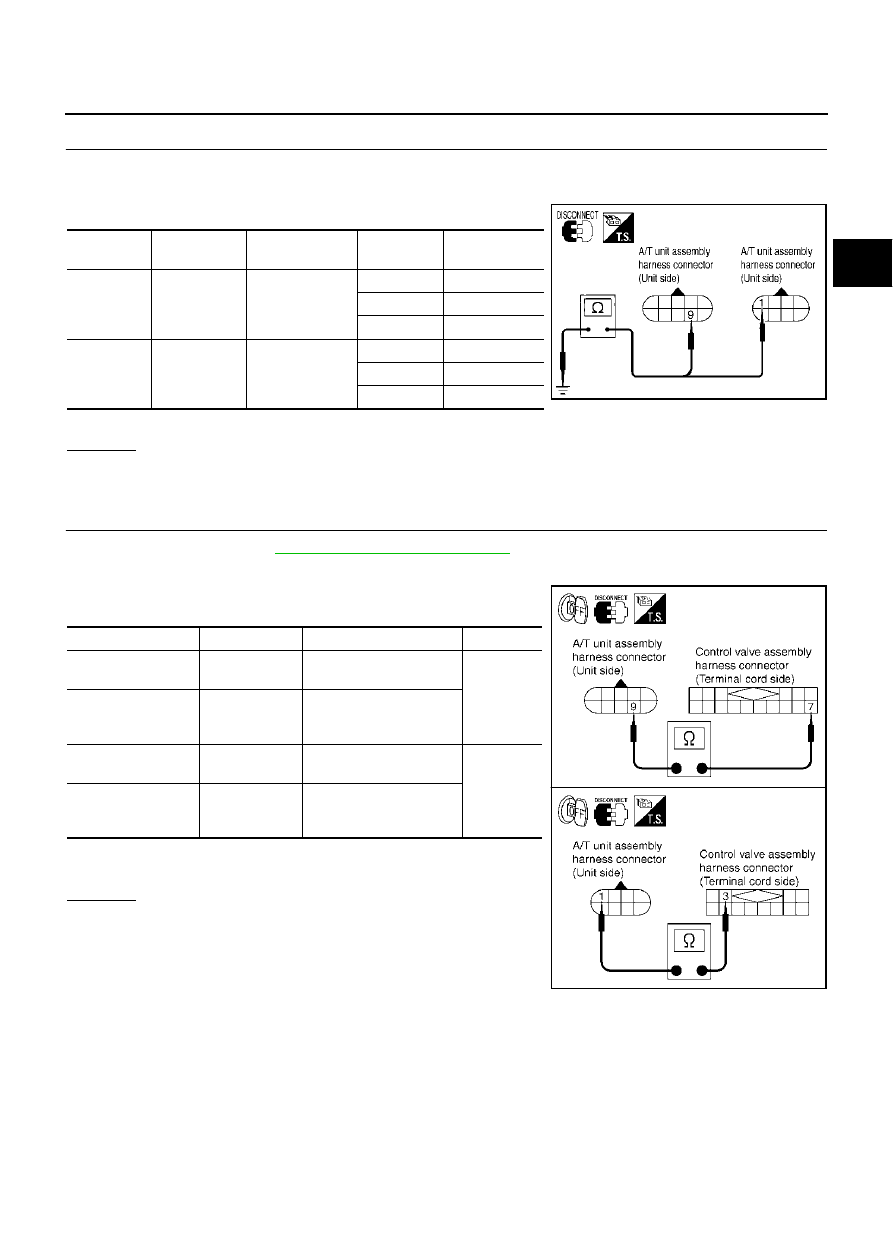

3.

CHECK FLUID TEMPERATURE SENSOR CIRCUIT

1.

Turn ignition switch to “OFF” position.

2.

Disconnect A/T unit assembly harness connector at the transmission right side.

3.

Check the resistance between terminal and ground.

4.

Reinstall any part removed.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 4.

4.

CHECK TERMINAL CORD ASSEMBLY

1.

Remove oil pan. Refer to

AT-289, "Control Valve Assembly"

 .

2.

Disconnect A/T unit assembly harness connector and control valve assembly harness connector.

3.

Check continuity between A/T unit assembly harness connector
and control valve assembly harness connector.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

Name

Connector No.

Terminal No.

(Wire color)

Tempera-

ture

°

C (

°

F)

Resistance

(K

) (Approx.)

Fluid
temperature
sensor 1

F26

9 (B/R) - Ground

0 (32)

15

20 (68)

6.5

80 (176)

0.9

Fluid
temperature
sensor 2

F27

1 (Y/B) - Ground

0 (32)

10

20 (68)

4

80 (176)

0.5

SCIA1856E

Item

Connector No.

Terminal No. (Wire color)

Continuity

A/T unit assembly
harness connector

F26

9 (B/Y)

Yes

Control valve assem-
bly harness connec-
tor

F302

7 (B/Y)

A/T unit assembly
harness connector

F27

1 (P)

Yes

Control valve assem-
bly harness connec-
tor

F301

3 (P)

SCIA3068E

AT-150

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

5.

CHECK HARNESS BETWEEN FLUID TEMPERATURE SENSOR 2 AND CONTROL VALVE ASSEM-

BLY

1.

Disconnect fluid temperature sensor 2 harness connector and control valve assembly harness connector.

2.

Check continuity between fluid temperature sensor 2 harness
connector and control valve assembly harness connector.

OK or NG

OK

>> GO TO 6.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK FLUID TEMPERATURE SENSOR 2

Check fluid temperature sensor 2.

Refer to

AT-151, "Component Inspection"

 .

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

7.

DETECT MALFUNCTIONING ITEM

Check the following items:

Harness for short to ground or short to power or open between TCM and A/T unit assembly harness con-
nector.

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace damaged parts.

8.

CHECK DTC

Perform “DTC Confirmation Procedure”. Refer to

AT-146, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 9.

9.

PERFORM TCM INSPECTION

1.

Perform TCM input/output signal inspection.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Item

Connector No.

Terminal No. (Wire color)

Continuity

Fluid temperature
sensor 2 harness
connector

F305

1 (GY)

Yes

Control valve assem-
bly harness connec-
tor

F301

3 (GY)

SCIA3069E

DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-151

D

E

F

G

H

I

J

K

L

M

A

B

AT

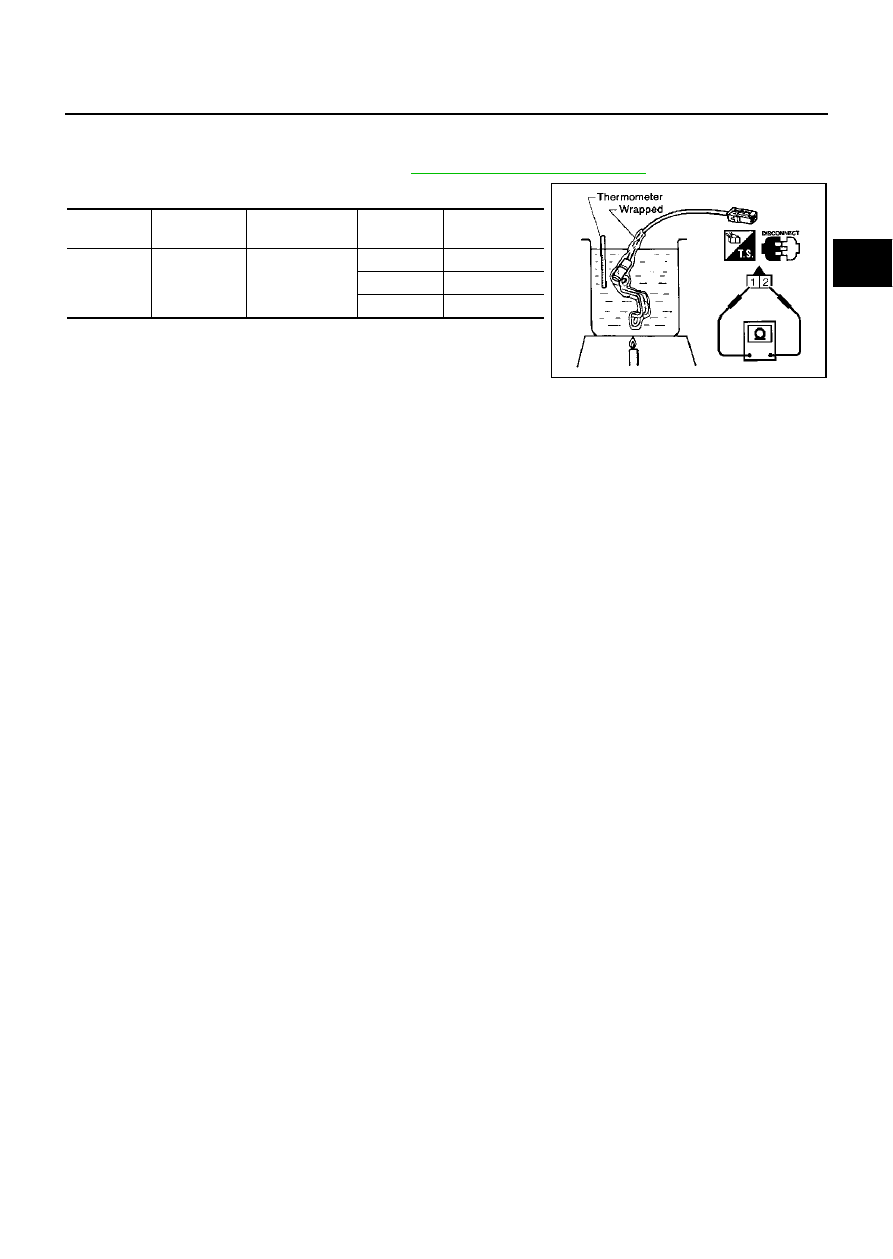

Component Inspection

ECS00A1N

FLUID TEMPERATURE SENSOR 2

1.

Remove fluid temperature sensor 2. Refer to

AT-289, "Control Valve Assembly"

 .

2.

Check resistance between terminal 1 and 2.

Name

Connector No.

Terminal No.

(Wire color)

Tempera-

ture

°

C (

°

F)

Resistance

(K

) (Approx.)

Fluid
temperature
sensor 2

F305

1 (GY) - 2 (B/R)

0 (32)

10

20 (68)

4

80 (176)

0.5

SCIA3070E

AT-152

DTC P1716 TURBINE REVOLUTION SENSOR

DTC P1716 TURBINE REVOLUTION SENSOR

PFP:31935

Description

ECS0085W

The turbine revolution sensor detects input shaft rpm (revolutions per minute). It is located on the input side of
the automatic transmission. Monitors revolution of sensor 1 and sensor 2 for non-standard conditions.

On Board Diagnosis Logic

ECS0085X

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “TURBINE REV S/CIRC” with CONSULT-II or P1716 without CONSULT-II is
detected under the following conditions.

When TCM does not receive the proper voltage signal from the sensor.

When TCM detects an irregularity only at position of 4th gear for turbine revolution sensor 2.

Possible Cause

ECS0085Y

Harness or connectors
(The sensor circuit is open or shorted.)

 Turbine revolution sensor 1, 2

DTC Confirmation Procedure

ECS0085Z

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF”
and wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Turn ignition switch to “ON” position. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 40 km/h (25 MPH) or more
ENGINE SPEED: 1,500 rpm or more
ACCELE POS: 0.5/8 or more
Selector lever: “D” position
Gear position (Turbine revolution sensor 1): 4th or 5th posi-
tion
Gear position (Turbine revolution sensor 2): All position

4.

If DTC is detected, go to

AT-154, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “With CONSULT-II”.

SAT014K
