DTC P0705 PARK/NEUTRAL POSITION SWITCH

AT-105

D

E

F

G

H

I

J

K

L

M

A

B

AT

DTC P0705 PARK/NEUTRAL POSITION SWITCH

PFP:32006

Description

ECS0083X

●

The park/neutral position (PNP) switch includes a transmission position switch.

●

The transmission range switch detects the selector lever position and sends a signal to the TCM.

On Board Diagnosis Logic

ECS0083Y

●

This is an OBD-II self-diagnostic item.

●

Diagnostic trouble code “PNP SW/CIRC” with CONSULT-II or P0705 without CONSULT-II is detected
under the following conditions.

–

When TCM does not receive the correct voltage signal from the PNP switch 1, 2, 3, 4 based on the gear
position.

–

When monitor terminal of PNP switch 3 is disconnected.

–

When no other position but “P” position is detected from “N” positions.

Possible Cause

ECS0083Z

●

Harness or connectors
[The park/neutral position (PNP) switch 1, 2, 3, 4 and TCM circuit is open or shorted.]

●

Park/neutral position (PNP) switch 1, 2, 3, 4

●

Park/neutral position (PNP) switch 3 monitor terminal disconnected

DTC Confirmation Procedure

ECS00840

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF”
and wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Turn ignition switch to “ON” position. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.

3.

Start engine.

4.

Maintain the following conditions for at least 2 consecutive sec-
onds.
THRTL POS SEN: More than 1.2V

5.

If DTC is detected, go to

AT-107, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “With CONSULT-II”.

SAT014K

AT-106

DTC P0705 PARK/NEUTRAL POSITION SWITCH

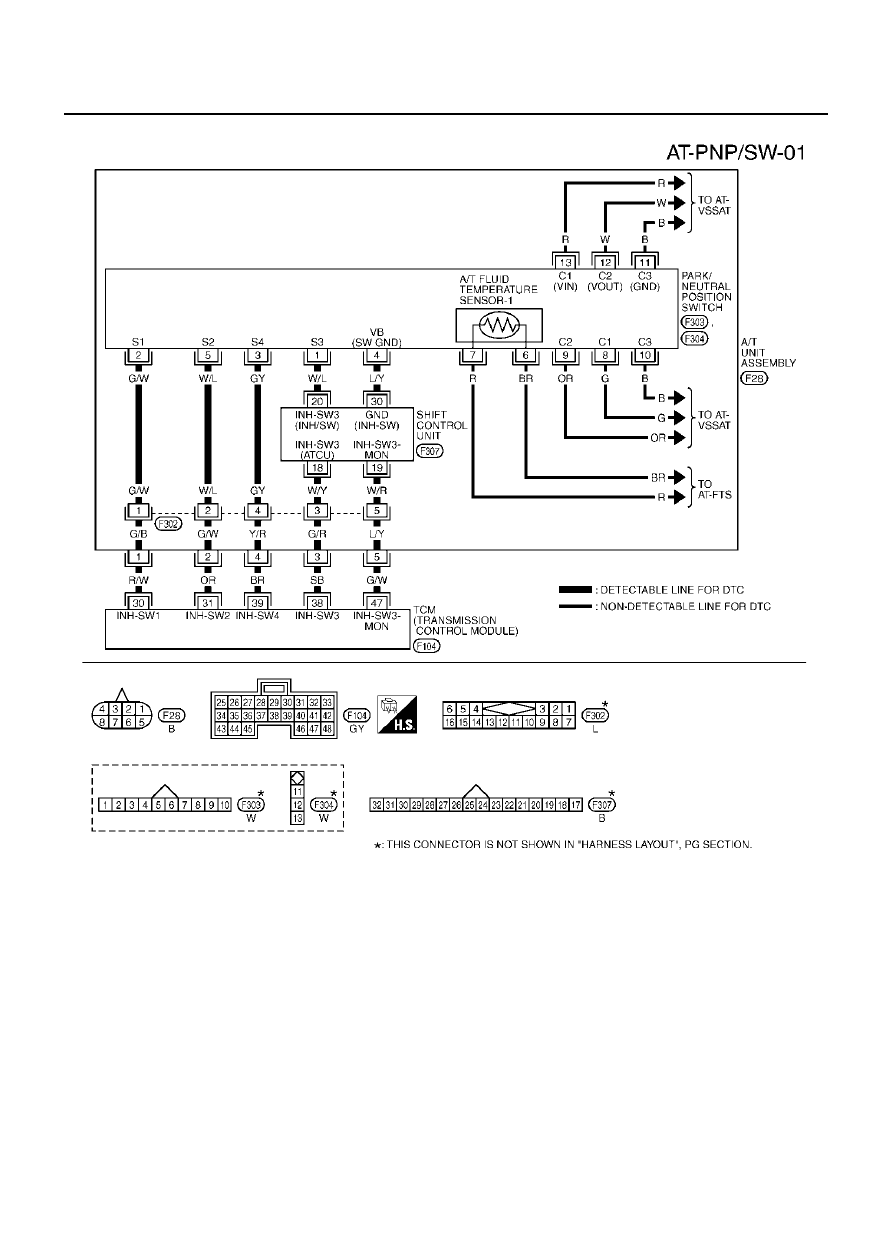

Wiring Diagram — AT — PNP/SW

ECS00841

TCWM0003E

DTC P0705 PARK/NEUTRAL POSITION SWITCH

AT-107

D

E

F

G

H

I

J

K

L

M

A

B

AT

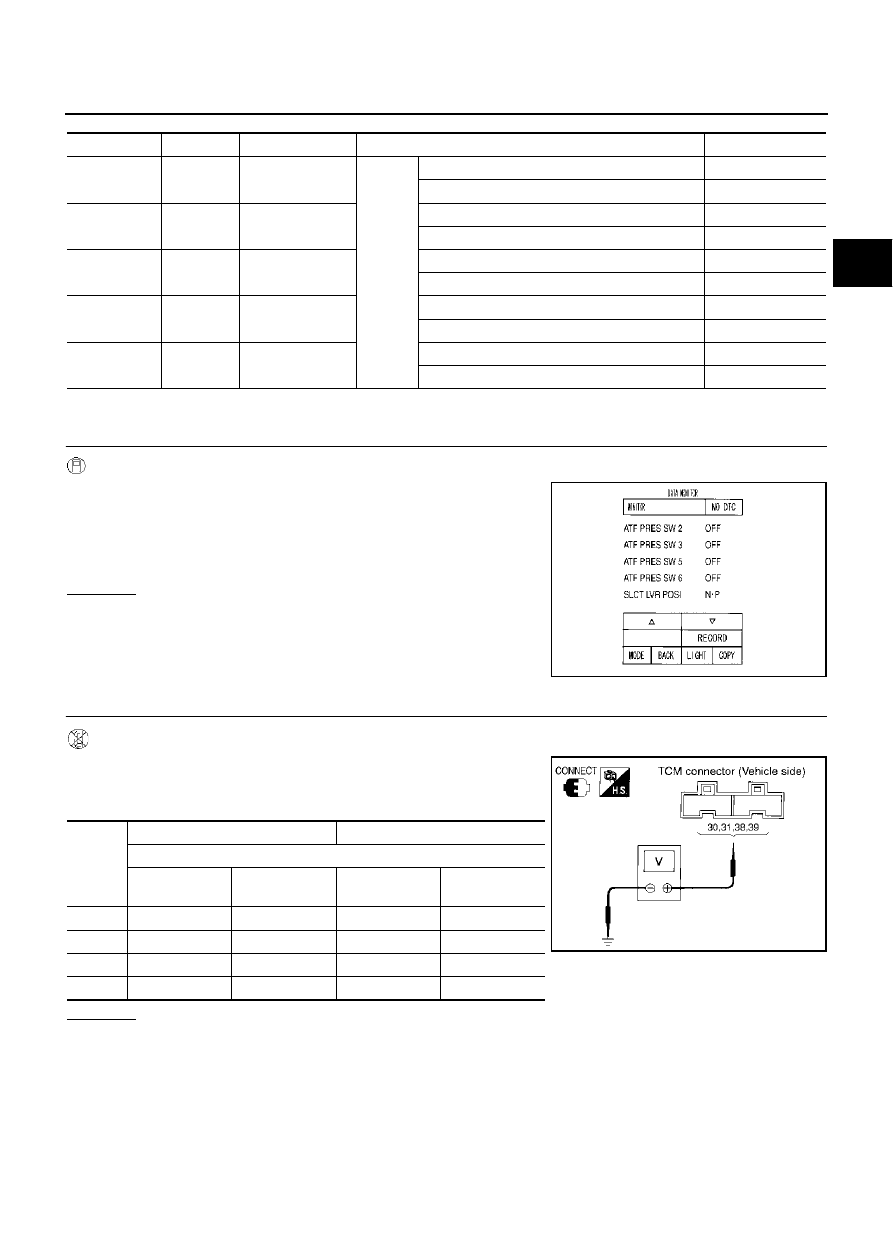

TCM terminals and data are reference value. Measured between each terminal and ground.

Diagnostic Procedure

ECS00842

1.

CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)

 With CONSULT-II

1.

Turn ignition switch to “ON” position. (Do not start engine.)

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.

3.

Read out “N·P”, “R” and “D” position switches moving selector
lever to each position.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

2.

CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)

 Without CONSULT-II

1.

Turn ignition switch to “ON” position. (Do not start engine.)

2.

Selector lever to “P“, “R”, “N”, or “D” position to check the volt-
age between the TCM connector terminals and ground.

OK or NG

OK >> GO

TO

5.

NG

>> GO TO 3.

Terminal   No.

Wire color

Item

Condition

Data (Approx.)

30

R/W

PNP switch 1

IGN ON

Selector lever in “P” position.

Battery voltage

Selector lever in “N” position.

Less than 2.5V

31

OR

PNP switch 2

Selector lever in “P” position.

Battery voltage

Selector lever in “D” position.

Less than 2.5V

38

SB

PNP switch 3

Selector lever in “D” position.

Battery voltage

Selector lever in “R” position.

Less than 2.5V

39

BR

PNP switch 4

Selector lever in “D” position.

Less than 2.5V

Selector lever in “P” position.

Battery voltage

47

G/W

PNP switch 3
(monitor)

Selector lever in “D” position.

Battery voltage

Selector lever in “R” position.

Less than 2.5V

PCIA0034E

Shift

position

Connector No.

F104

Terminal No. (Wire color)

30 (R/W) -

Ground

31 (OR) -

Ground

38 (SB) -

Ground

39 (BR) -

Ground

P

Battery voltage

Battery voltage

–

Battery voltage

R

–

–

Less than 2.5V

–

N

Less than 2.5V

–

–

–

D

–

Less than 2.5V

Battery   voltage

Less than 2.5V

PCIA0035E

AT-108

DTC P0705 PARK/NEUTRAL POSITION SWITCH

3.

DETECT MALFUNCTIONING ITEM

Check the following items.

●

Disconnection or short-circuit in the harness between TCM and A/T unit harness connector.

●

PNP switch. Refer to

AT-109, "Component Inspection"

 .

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

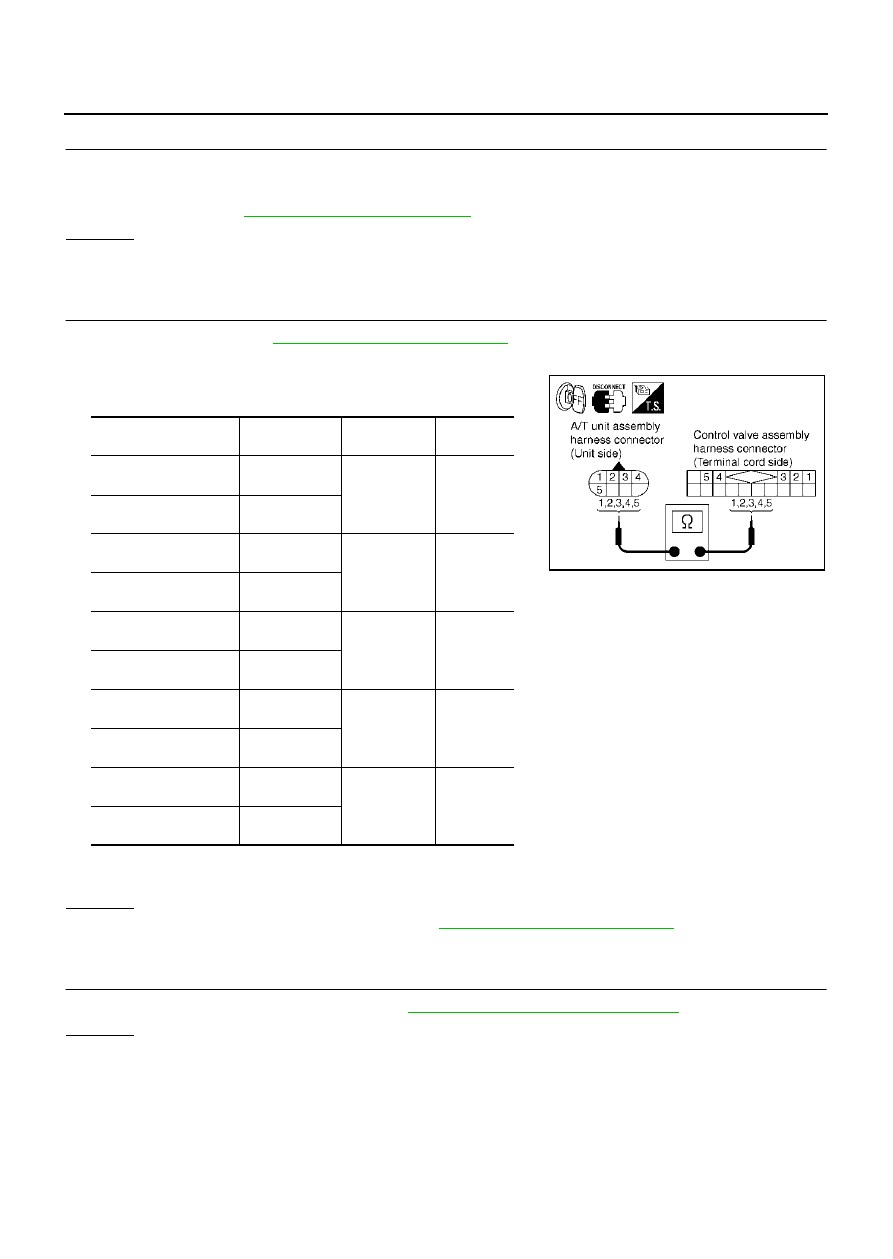

CHECK TERMINAL CORD ASSEMBLY

1.

Remove oil pan. Refer to

AT-289, "Control Valve Assembly"

 .

2.

Disconnect A/T unit assembly harness connector and control valve assembly harness connector.

3.

Check continuity between A/T unit assembly harness connector
and control valve assembly harness connector.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

OK or NG

OK

>> Replace control valve assembly. Refer to

AT-289, "Control Valve Assembly"

 .

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK DTC

Perform “DTC Confirmation Procedure”. Refer to

AT-105, "DTC Confirmation Procedure"

 .

OK or NG

OK >> INSPECTION END
NG

>> GO TO 6.

Item

Connector No.

Terminal No.

(Wire color)

Continuity

A/T unit assembly har-
ness connector

F28

1 (G/B)

Yes

Control valve assembly
harness connector

F302

A/T unit assembly har-
ness connector

F28

2 (G/W)

Yes

Control valve assembly
harness connector

F302

A/T unit assembly har-
ness connector

F28

3 (G/R)

Yes

Control valve assembly
harness connector

F302

A/T unit assembly har-
ness connector

F28

4 (Y/R)

Yes

Control valve assembly
harness connector

F302

A/T unit assembly har-
ness connector

F28

5 (L/Y)

Yes

Control valve assembly
harness connector

F302

SCIA3063E
