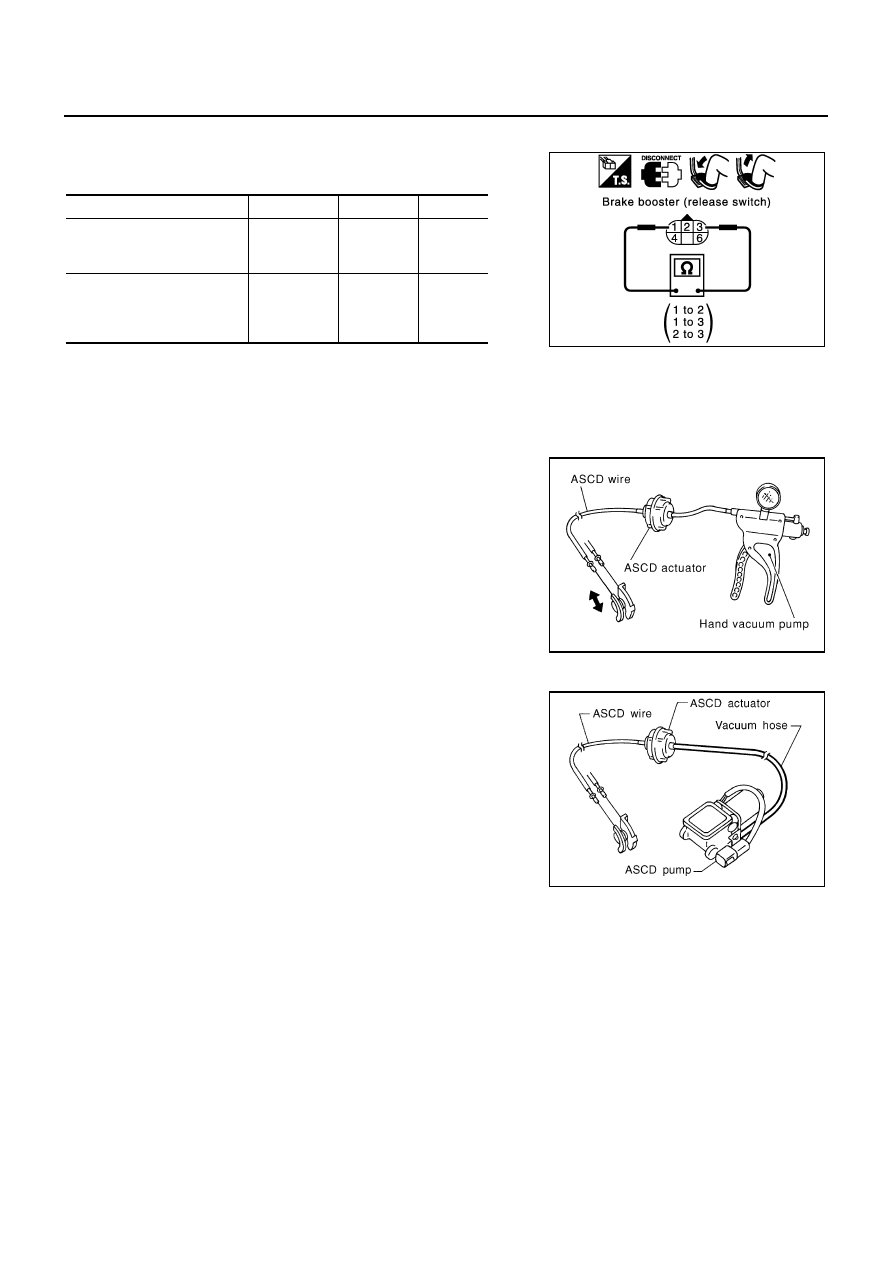

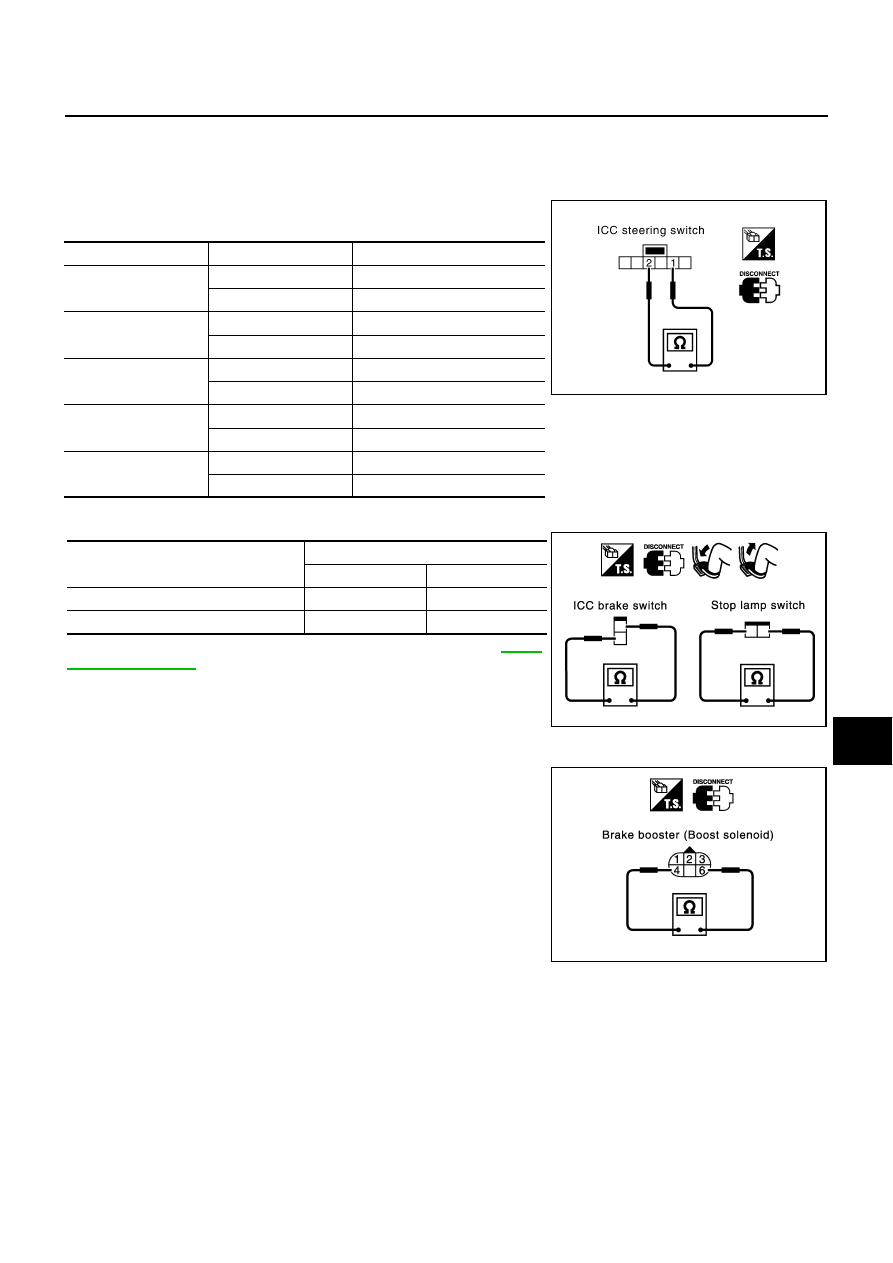

ELECTRICAL COMPONENT INSPECTION ACS-101 [ICC] C D E F G H I J L M A B ACS ELECTRICAL COMPONENT INSPECTION PFP:00000 ICC Steering Switch EKS003RJ 1. Disconnect ICC steering switch. 2. Check resistance between M443 terminals 1 and 2 by depress- ICC Brake Switch and Stop Lamp Switch EKS003QB Check each switch after adjusting brake pedal, refer to . Booster Solenoid EKS003QC Disconnect booster solenoid/release switch connector, and check Switch Condition Resistance [ Ω ] ON/OFF Depressed Approx. 0 Released Approx. 5,456 DISTANCE Depressed Approx. 741 Released Approx. 5,456 ACCELERATE/ Depressed Approx. 2,586 Released Approx. 5,456 COAST/SET Depressed Approx. 1,406 Released Approx. 5,456 CANCEL Depressed Approx. 309 Released Approx. 5,456 PKIA2215E Condition Continuity ICC brake switch Stop lamp switch When brake pedal is depressed No Yes When brake pedal is released Yes No SKIA1254E 4 - 6 :Approx. 1.4 Ω SKIA1255E |
