TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS

ACS-69

[ICC]

C

D

E

F

G

H

I

J

L

M

A

B

ACS

74

LASER BEAM OFF CNTR

×

×

●

Laser beam of ICC sensor is off
the aiming point.

ACS-80

81

POWER SUPPLY VALVE
[HI VOLTAGE]

×

×

●

Power supply relay to vacuum
pump, air valve, and release
valve in ICC unit is stuck closed.

●

Power supply wire to release
valve is shorted to power supply.

ACS-80

82

POWER SUPPLY VALVE
[HI VOLTAGE]

×

×

●

Vacuum pump drive circuit in
ICC unit.

ICC unit

malfunc-

tion

83

POWER SUPPLY VALVE
[LOW VOLTAGE]

×

×

●

Vacuum pump drive circuit in
ICC unit is irregular condition.

●

Vacuum pump control line is
shorted to ground.

ACS-81

84

AIR VALVE
[HI VOLTAGE]

×

×

●

Air valve drive circuit in ICC unit
is irregular condition.

ICC unit

malfunc-

tion

85

AIR VALVE
[LOW VOLTAGE]

×

×

●

Air valve drive circuit in  ICC unit
is irregular condition.

●

Air valve control line is shorted to
ground.

ACS-82

86

RELEASE VALVE
[HI VOLTAGE]

×

×

●

Release valve drive circuit in  ICC
unit is irregular condition.

ICC unit

malfunc-

tion

87

RELEASE VALVE
[LOW VOLTAGE]

×

×

●

Release valve drive circuit in  ICC
unit is irregular condition.

●

Power supply relay to vacuum
pump, air valve, and release
valve in  ICC unit is stuck to OFF.

●

Release valve control line is
shorted.

●

Power supply line to vacuum
pump, air valve, and release
valve is open.

ACS-82

90

STOP LAMP RLY FIX

×

×

●

Normally open terminal of stop
lamp relay is stuck.

ACS-83

92

ECM CIRCUIT

×

×

●

ECM malfunction

●

Throttle position sensor malfunc-
tion

●

ICC unit malfunction

ACS-88

97

AT CIRCUIT

×

×

●

TCM malfunction

ACS-88

98

GEAR POSITION

×

×

●

TCM malfunction

●

AT turbine revolution sensor mal-
function

●

AT vehicle speed sensor mal-
function

ACS-88

102

RADAR STAIN

×

×

●

ICC sensor body window has
contamination.

ACS-89

103

LASER SENSOR FAIL

×

×

●

ICC sensor internal malfunction

ACS-90

104

LASER AIMING INCMP

×

×

●

Laser beam aiming of  ICC sen-
sor is not adjusted.

ACS-90

DTC

No.

CONSULT-II screen terms

ICC system

warning lamp

Fail-safe

Malfunctions detected where...

Refer-

ence
page

ACS-70

[ICC]

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS

DTC 11 CONTROL UNIT

EKS003PA

1.

DIAGNOSTIC CHECK

1.

Are any items other than “DTC 11 CONTROL UNIT” indicated on self-diagnosis display?

Yes or No

Yes

>> Repair or replace applicable item. Erase DTC and perform ICC system running test. Then perform

self-diagnosis of ICC system again.

No

>> Replace ICC unit. Erase  DTC and perform ICC system running test. Then perform self-diagnosis

of ICC system again.

DTC 20 CAN COMM CIRCUIT

EKS003PB

1.

CHECK CAN COMMUNICATION

 With CONSULT-II

1.

Perform self-diagnosis.

2.

Print self-diagnostic result.

3.

Check “CAN DIAG SUPPORT MNTR” on data monitor.

CAN DIAG SUPPORT MNTR

>> After printing monitor items, go to “CAN system”. Refer to

LAN-40, "CAN SYSTEM (FOR ICC

MODELS)"

 .

107

LASER COMM FAIL

×

×

●

CAN data received by  ICC sen-
sor is strange (from ICC unit).

ACS-90

109

LASER HIGH TEMP

×

×

●

Temperature around ICC sensor
is excessively high.

ACS-91

DTC

No.

CONSULT-II screen terms

ICC system

warning lamp

Fail-safe

Malfunctions detected where...

Refer-

ence
page

Normal

Outside the standard (example)

CAN COMM: OK
CAN CIRC1: OK
CAN CIRC2: OK
CAN CIRC3: OK
CAN CIRC4: OK
CAN CIRC5: UNKWN
CAN CIRC6: UNKWN
CAN CIRC7: OK
CAN CIRC8: OK
CAN CIRC9: UNKWN
CAN CIRC10: OK
CAN CIRC11: OK
CAN CIRC12: UNKWN
CAN CIRC13: UNKWN
CAN CIRC14: UNKWN
CAN CIRC15: UNKWN

CAN COMM: OK
CAN CIRC1: UNKWN
CAN CIRC2: UNKWN
CAN CIRC3: UNKWN
CAN CIRC4: UNKWN
CAN CIRC5: UNKWN
CAN CIRC6: UNKWN
CAN CIRC7: UNKWN
CAN CIRC8: UNKWN
CAN CIRC9: UNKWN
CAN CIRC10: UNKWN
CAN CIRC11: UNKWN
CAN CIRC12: UNKWN
CAN CIRC13: UNKWN
CAN CIRC14: UNKWN
CAN CIRC15: UNKWN

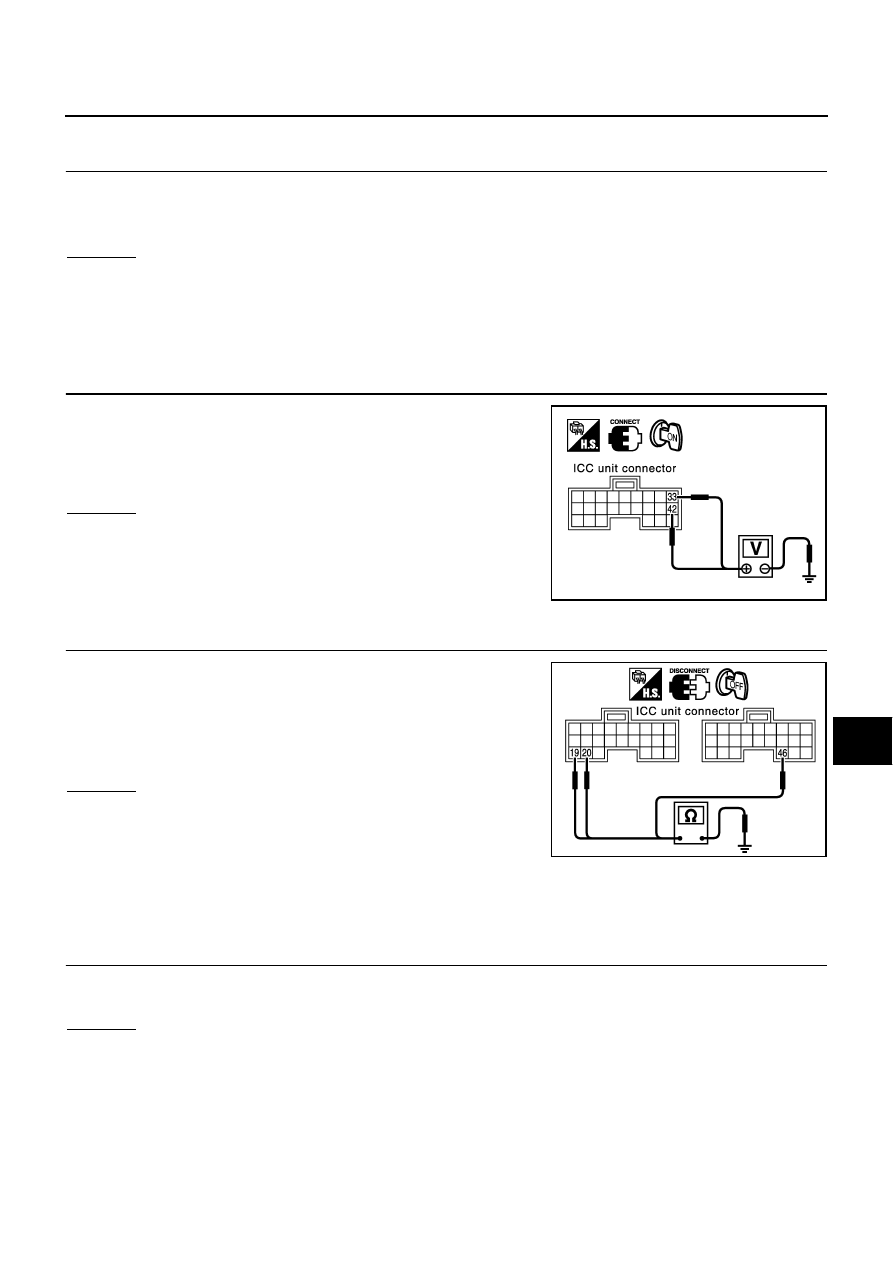

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS

ACS-71

[ICC]

C

D

E

F

G

H

I

J

L

M

A

B

ACS

DTC 31 POWER SUPPLY CIR 1, DTC 34 POWER SUPPLY CIR 2

EKS003PC

1.

CHECK CONNECTOR ICC UNIT

1.

Turn ignition switch OFF.

2.

Disconnect ICC unit connector, and connect it securely again. Then erase DTC. After that perform self-
diagnosis of ICC system again.

OK or NG

OK

>> GO TO 2.

NG

>>

●

Poor connector connection

●

Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter-
minals. If any malfunction is detected, repair applicable part.) After repair, erase DTC, and per-
form ICC running test. Then perform self-diagnosis of ICC system again.

2.

CHECK POWER SUPPLY CIRCUIT FOR ICC UNIT

1.

Turn ignition switch ON.

2.

Check voltage between ICC unit harness connector B244 termi-
nal 33 (W/G), 42 (W/G) and ground.

OK or NG

OK

>> GO TO 3.

NG

>>

●

Repair ICC unit power supply harness.

●

After repair, erase DTC and perform ICC system run-
ning test. Then, perform self-diagnosis of ICC system
again.

3.

CHECK GROUND CIRCUIT FOR ICC UNIT

1.

Turn ignition switch OFF.

2.

Disconnect ICC unit connector.

3.

Check continuity between ICC unit harness connector B243  ter-
minal 19 (B), 20 (B), B244 terminal 46 (B) and ground.

OK or NG

OK

>> After replacing ICC unit, erase DTC, and perform ICC

system running test. Then perform self-diagnosis of ICC
system again.

NG

>>

●

Repair ICC unit ground harness.

●

After repair, erase DTC and perform ICC system running test. Then, perform self-diagnosis of
ICC system again.

DTC 41 VHCL SPEED SE CIRC

EKS003PD

1.

ICC UNIT SELF-DIAGNOSIS CHECK

1.

Perform self-diagnosis. Is “DTC 43 ABS/TCS/VDC CIRC” or “DTC 20 COMM CIRCUIT” indicated in self-
diagnosis item display?

Yes or No

Yes

>> Repair or replace applicable item. Erase DTC and perform ICC system running test. Then perform

self-diagnosis of ICC system again.

No

>> GO TO 2

Battery voltage should exist. (more than 8V)

SKIA1173E

Continuity should exist.

SKIA1174E

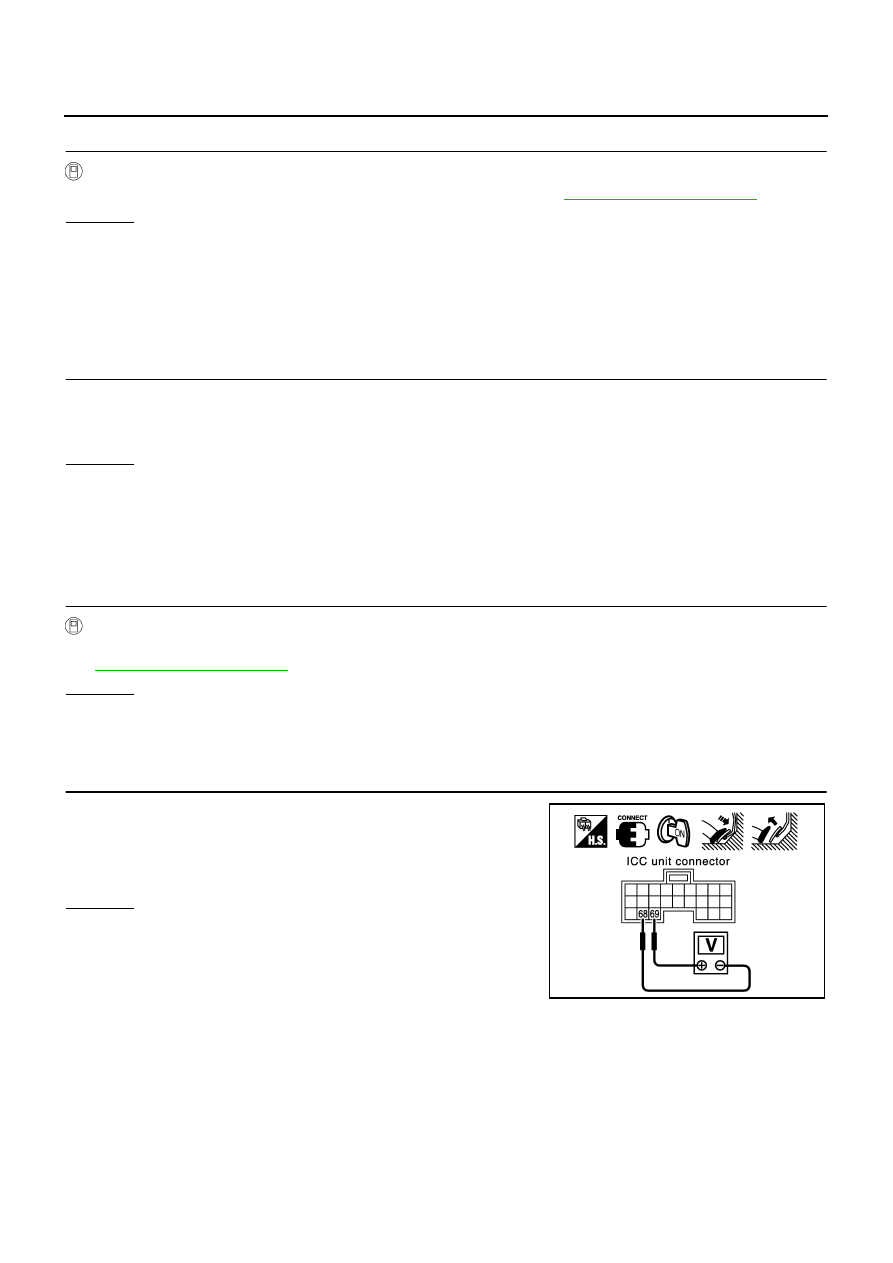

ACS-72

[ICC]

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS

2.

CHECK AT VEHICLE SPEED SENSOR

 With CONSULT-II

●

With data monitor, check “VHCL SPD AT”operate normally.Refer to

ACS-59, "DATA MONITOR"

 .

OK or NG

OK

>> Replace ICC unit. Erase DTC and perform ICC system running test. Then perform self-diagnosis

of ICC system again.

NG

>>

●

Check TCM.

●

After repair, erase DTC and perform ICC system running test. Then, perform self-diagnosis of
ICC system again.

DTC 42 THRTL POS SEN CIRC

EKS005QC

1.

CHECK CONNECTOR FOR ICC UNIT

1.

Turn ignition switch OFF.

2.

Disconnect ICC unit connector, and connect it securely again. Then erase DTC. After that perform self-
diagnosis of ICC system again.

OK or NG

OK

>>

●

Poor connector connection

●

Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter-
minals. If any malfunction is detected, repair applicable part.) After repair, erase DTC, and per-
form ICC system running test. Then perform self-diagnosis of ICC system again.

NG

>> GO TO 2.

2.

CHECK THROTTLE POSITION SENSOR AND IDLE SWITCH

 With CONSULT-II

●

With data monitor, check that  “THRTL SENSOR” and “IDLE SW” switches operate normally. Refer to

ACS-59, "DATA MONITOR"

 .

OK or NG

OK

>> Replace ICC unit. Erase DTC and perform ICC system running test. Then perform self-diagnosis

of ICC system again.

NG

>> GO TO 3.

3.

CHECK THROTTLE POSITION SIGNAL FOR ICC UNIT

●

Check voltage between ICC unit harness connector B245 termi-
nal 69 (R/Y) and 68 (B).

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

Approx 0.5V (Throttle full closed)

Approx 4.0V (Throttle full open)

SKIA1177E
