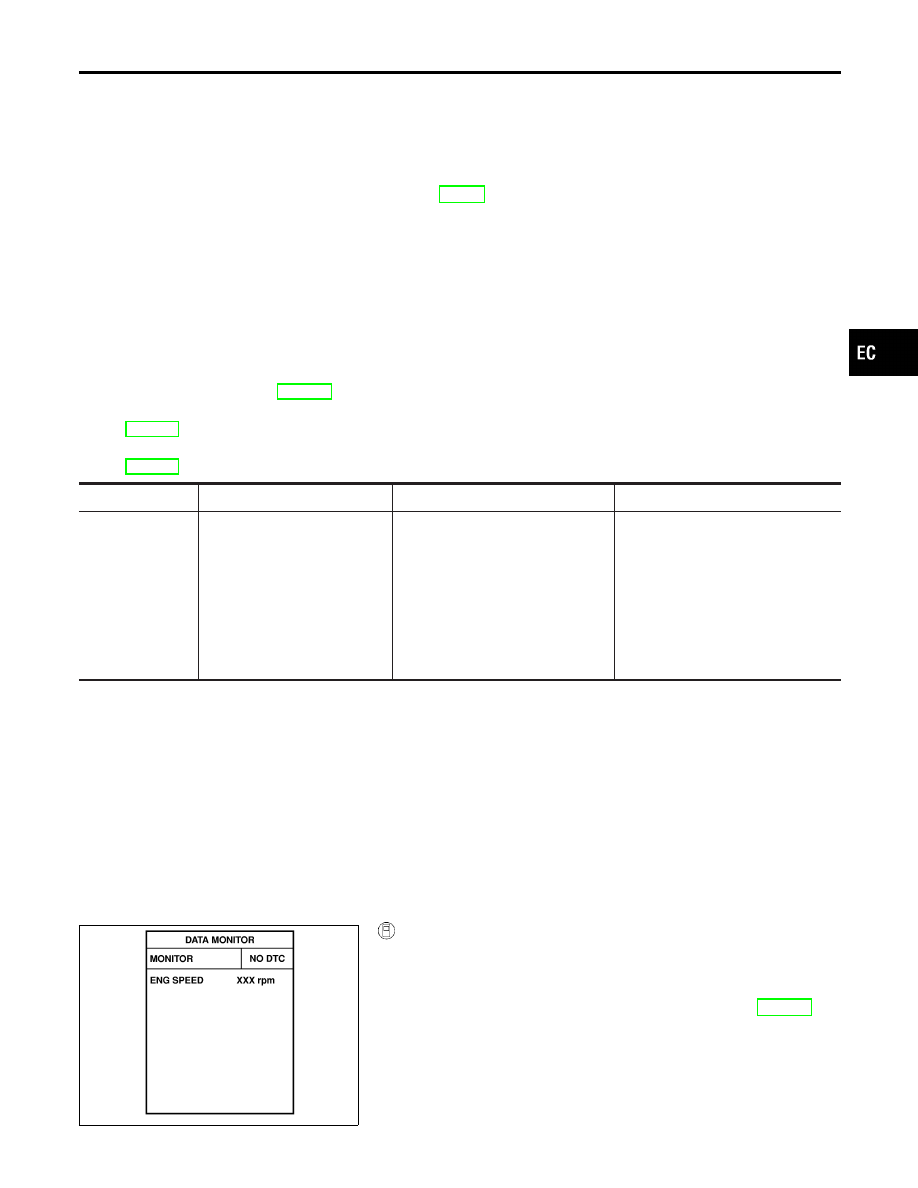

Component Description

NHEC1469

ECM receives vehicle speed signals via two different lines, and
detects vehicle speed for ASCD control.
Vehicle speed signals are input from combination meter and TCM
separately.
Signal from TCM is sent via CAN communication line.
Refer to EC-54 for ASCD functions.

On Board Diagnosis Procedure

NHEC1470

This self-diagnosis has the one trip diagnosis logic.
The MIL will not light up for this self-diagnosis.
NOTE:

I

If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC
U1000, U1001, refer to EC-162.

I

If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500. Refer
to EC-429.

I

If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer
to EC-442.

DTC

Trouble diagnosis name

DTC Detecting Condition

Possible cause

P1574
1574

ASCD vehicle speed sensor

ECM detects a difference values
between two vehicle speed signals if
they are out of the specified range.

I

Harness or connectors
(The CAN communication line is
open or shorted.)

I

Harness or connectors
(The combination meter circuit is
open or shorted.)

I

Combination meter

I

Vehicle speed sensor

I

TCM

I

ECM

DTC Confirmation Procedure

NHEC1471

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted,
always turn ignition switch OFF and wait at least 10 seconds before
conducting the next test.
TESTING CONDITION:
Step 3 may be conducted with the drive wheels lifted in the
shop or by driving the vehicle. If a road test is expected to be
easier, it is unnecessary to lift the vehicle.

SEF058Y

With CONSULT-II

1)

Start engine (TCS switch or VDC switch OFF).

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Drive the vehicle at more than 40 km/h (25 MPH).

4)

If DTC is detected, go to “Diagnostic Procedure”, EC-632.

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1574 ASCD VEHICLE SPEED SENSOR

Component Description

EC-629

With GST

Follow the procedure “With CONSULT-II” above.

DTC P1574 ASCD VEHICLE SPEED SENSOR

DTC Confirmation Procedure (Cont’d)

EC-630

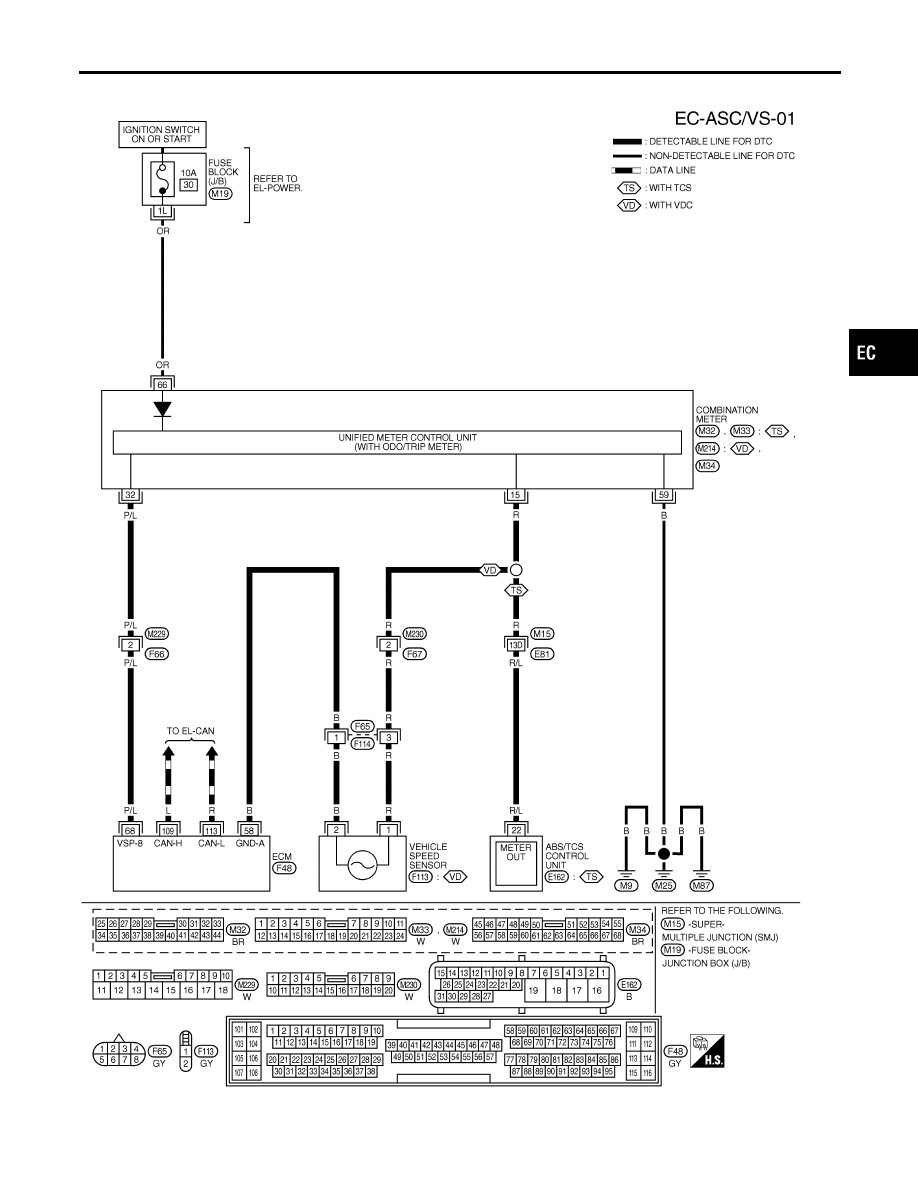

Wiring Diagram

NHEC1229

MEC644E

GI

MA

EM

LC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

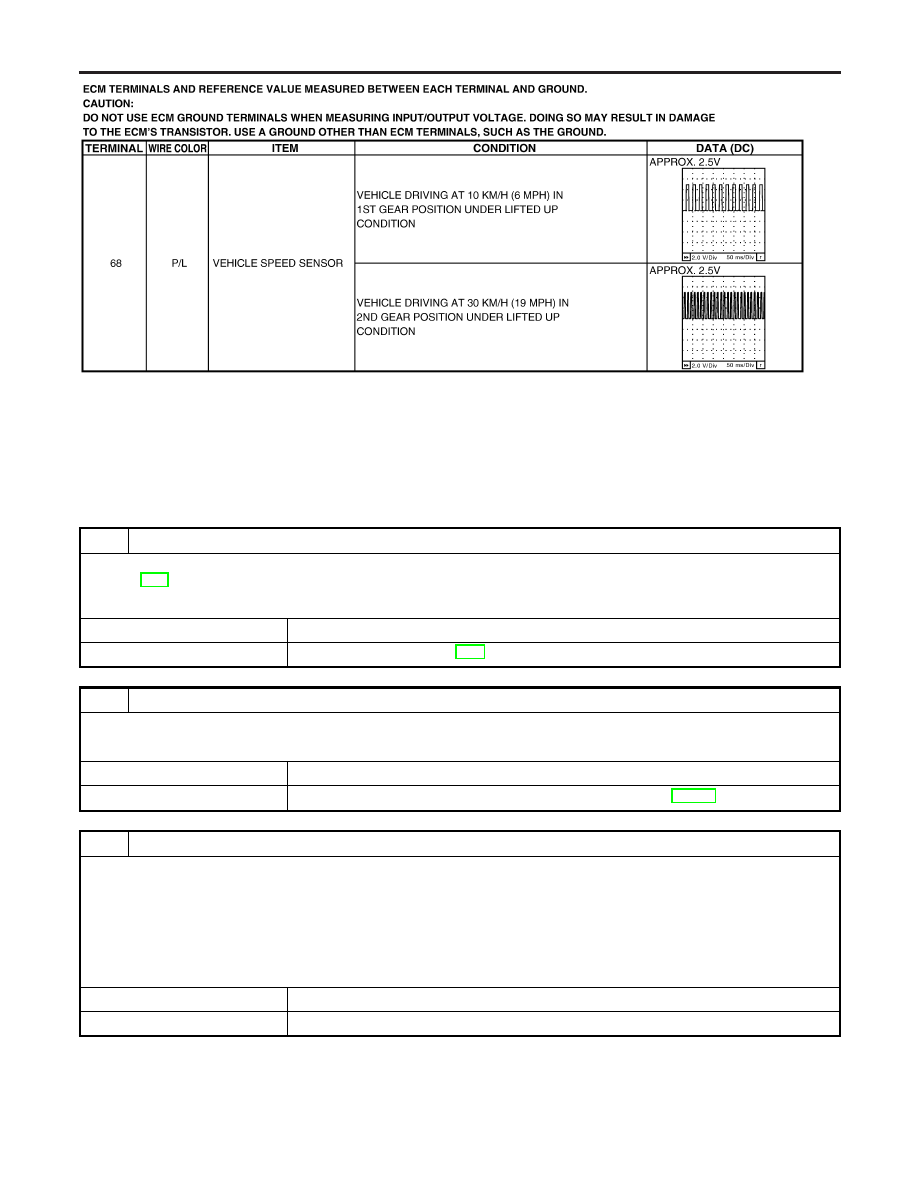

DTC P1574 ASCD VEHICLE SPEED SENSOR

Wiring Diagram

EC-631

SEC045DB

Diagnostic Procedure

NHEC1230

1

CHECK TCM FUNCTION

Check malfunction of the AT system with CONSULT-II or “O/D OFF” indicator.
Refer to AT-5.

OK or NG

OK

©

GO TO 2.

NG

©

Check AT system. Refer to AT-5.

2

CHECK SPEEDOMETER OPERATION

Check if speedometer operates normally.

OK or NG

OK

©

GO TO 3.

NG

©

Check speedometer and vehicle speed sensor circuit. Refer to EL-125.

3

CHECK VEHICLE SPEED SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector and combination meter harness connector.
3. Check harness continuity between ECM terminal 68 and combination meter terminal 32 with CONSULT-II or tester.

Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 4.

DTC P1574 ASCD VEHICLE SPEED SENSOR

Wiring Diagram (Cont’d)

EC-632
