HARNESS LAYOUT

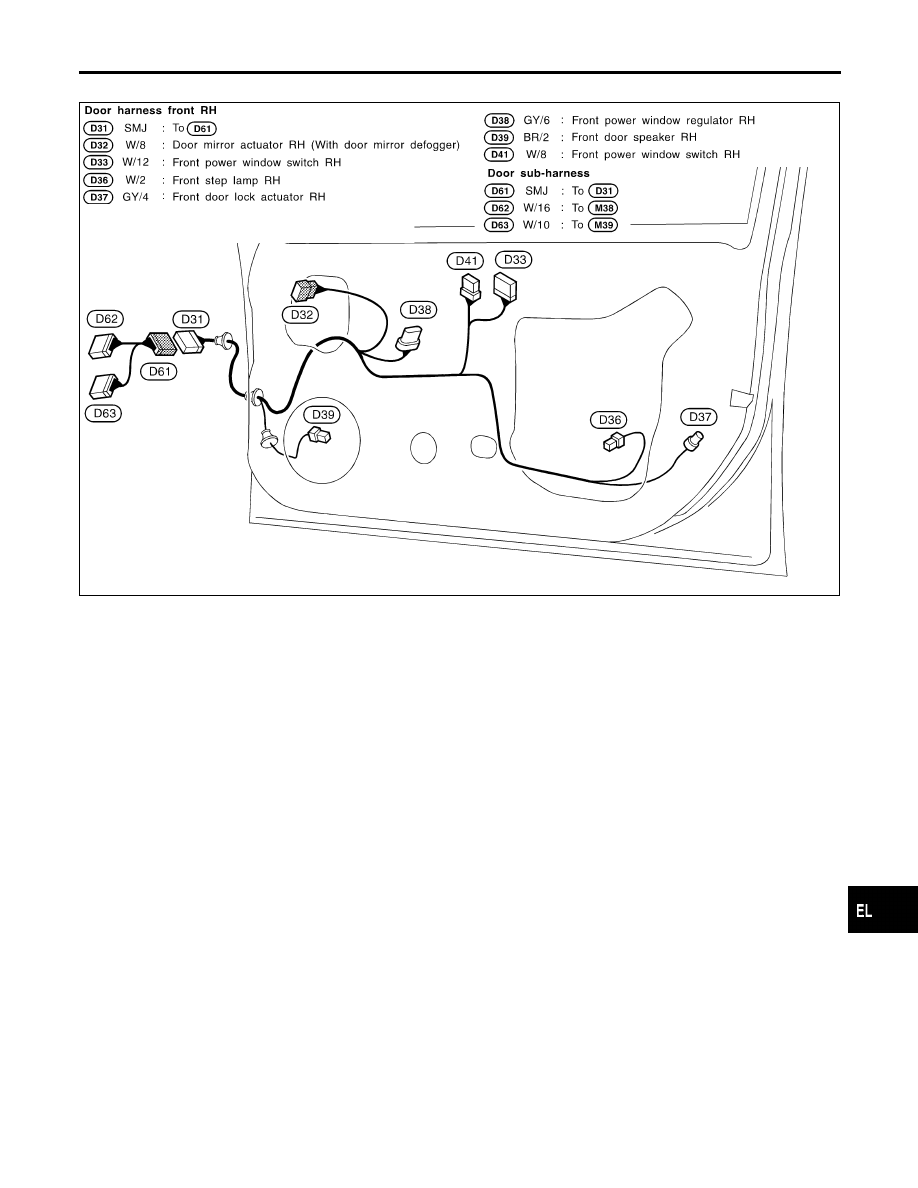

Front Door Harness (Cont’d)

EL-545

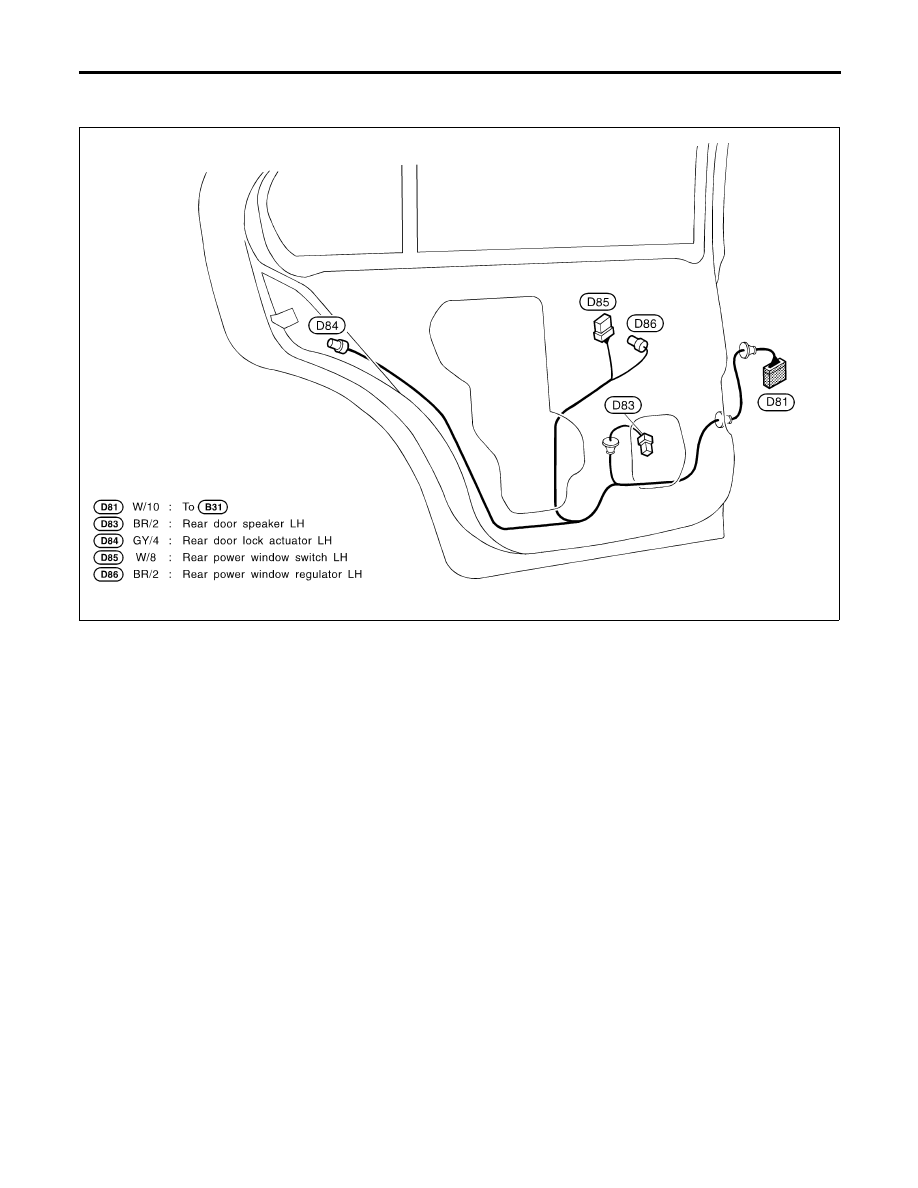

Rear Door Harness

NHEL0143

LH SIDE

NHEL0143S03

MEL641K

HARNESS LAYOUT

Rear Door Harness

EL-546

RH SIDE

NHEL0143S04

MEL643K

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HARNESS LAYOUT

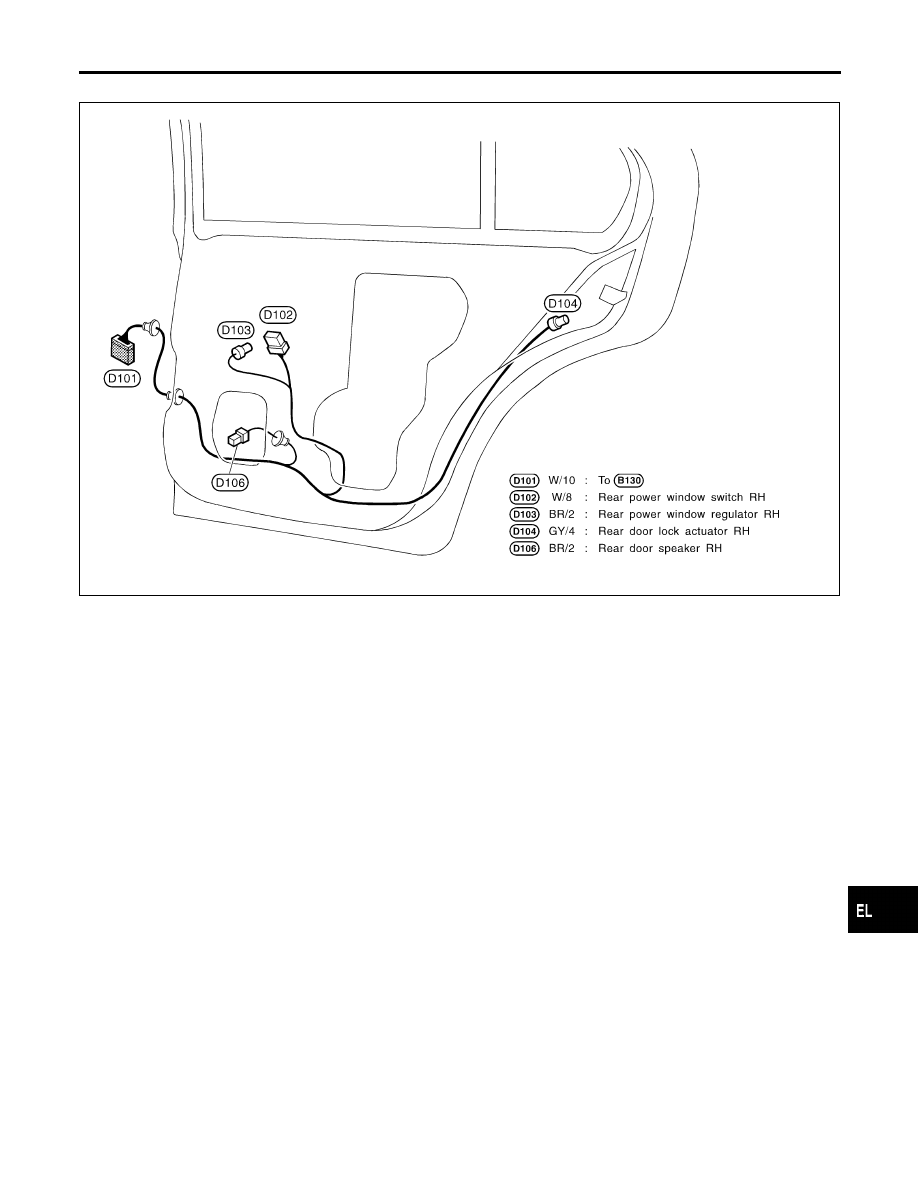

Rear Door Harness (Cont’d)

EL-547

NHEL0144

Headlamp

NHEL0144S03

Item

Wattage (W)

High/Low

60/55 (HB2)

Exterior Lamp

NHEL0144S01

Item

Wattage (W)

Front fog lamp

35 (H3)

Front turn signal lamp

21

Side turn signal lamp

5

Parking lamp

5

Front side marker lamp

3.8

Rear combination lamp

Turn signal

21

Stop/Tail

21/5

Back-up

13

Rear side marker lamp

3.8

License lamp

5

High-mounted stop lamp (without rear spoiler)

21

Interior Lamp

NHEL0144S02

Item

Wattage (W)

Interior room lamp

8

Map lamp

With sunroof

5

Without sunroof

8

Vanity mirror lamp

8

Trunk room lamp

3.4

BULB SPECIFICATIONS

Headlamp

EL-548
