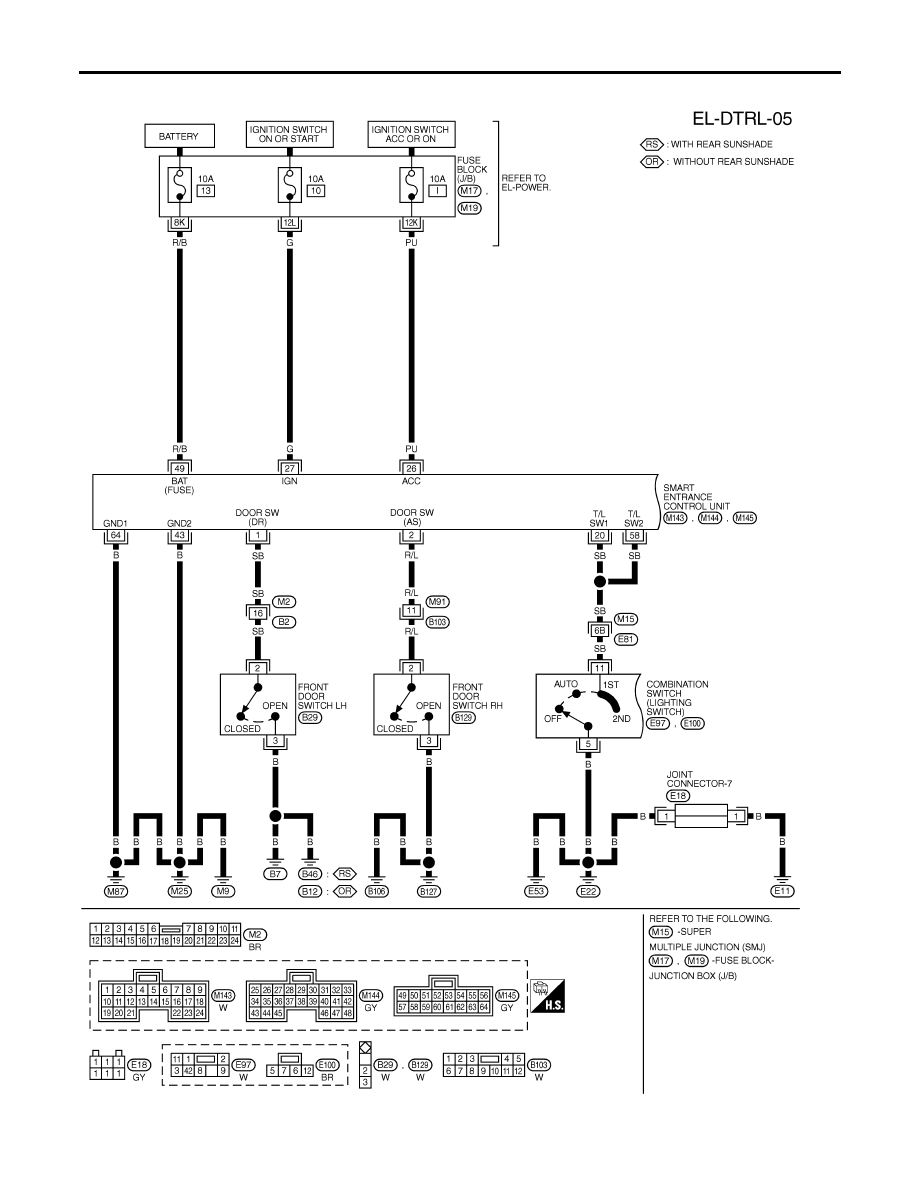

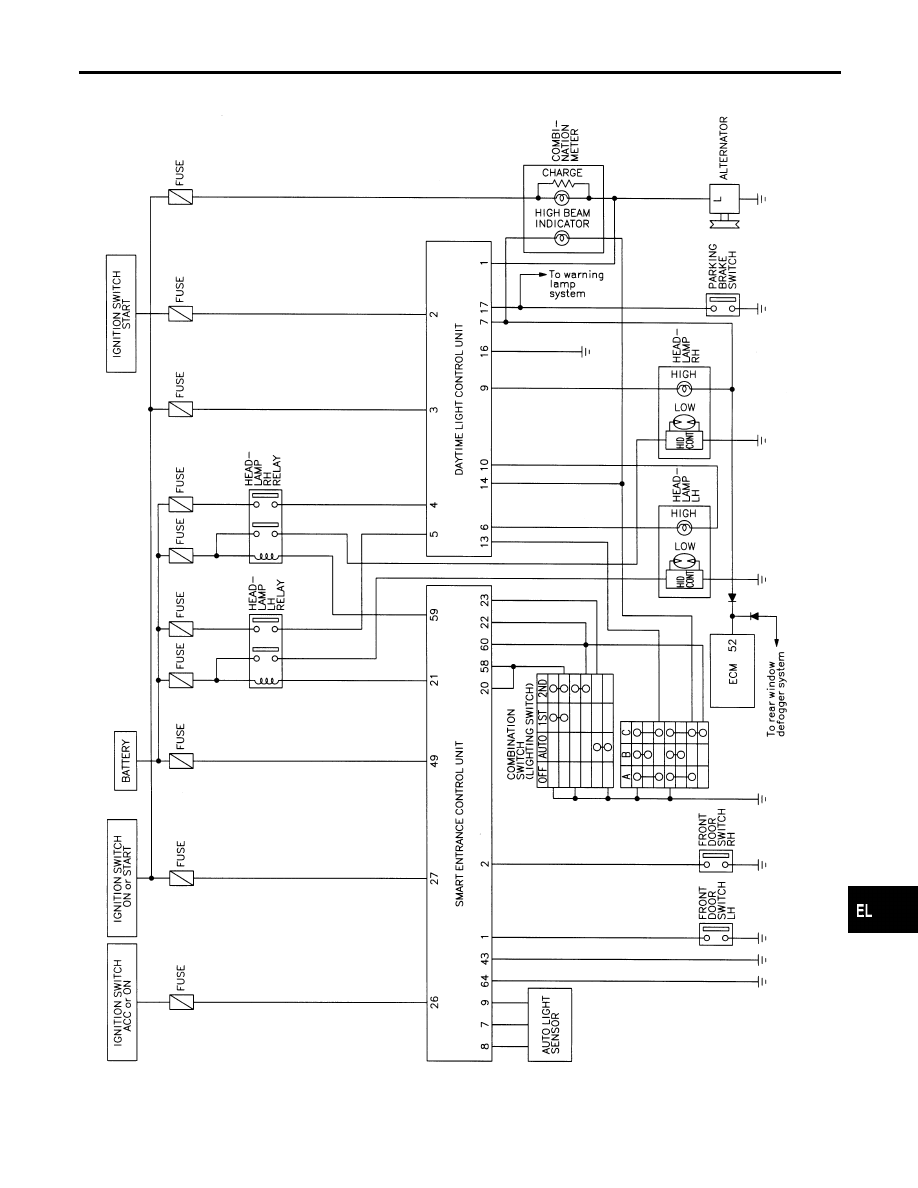

I to headlamp LH relay terminal 2 from smart entrance control unit terminal 21 I through smart entrance control unit terminal 22, and I fom lighting switch terminal 12, and I to headlamp RH relay terminal 2 from smart entrance control unit terminal 59 I through smart entrance control unit terminal 60, and I from lighting switch terminal 12. Headlamp relays (LH and RH) are energized and then power is supplied to headlamps (LH and RH). Low Beam Operation NHEL0262S0103 When the lighting switch is turned to 2ND and LOW (“B”) positions, ground is supplied I to terminal 4 of the headlamp LH I through body grounds E11, E22 and E53. Ground is also supplied I to terminal 4 of the headlamp RH I through body grounds E11, E22 and E53. With power and ground supplied, the low beam headlamps illuminate. High Beam Operation/Flash-to-pass Operation NHEL0262S0104 When the lighting switch is turned to 2ND and HIGH (“A”) or PASS (“C”) positions, ground is supplied I to terminal 2 of LH headlamp I through daytime light control unit terminals 10 and 13, and I through lighting switch terminals 6 and 5 I through body grounds E11, E22 and E53. Ground is also supplied I to terminal 2 of RH headlamp I through daytime light control unit terminals 9 and 14 I to combination meter terminal 27 for the HIGH BEAM indicator I through lighting switch terminals 9 and 8 I through body grounds E11, E22 and E53. With power and ground supplied, the high beam headlamps and HIGH BEAM indicator illuminate. BATTERY SAVER CONTROL NHEL0262S02 Headlamps will remain on for a short while after the ignition switch is turned ON (or START) from OFF (or I to smart entrance control unit terminals 20 and 58 from lighting switch terminal 11, and then I to headlamp LH and RH relays terminal 2 from headlamp battery saver control unit terminals 21 and 59 I through smart entrance control unit terminals 22 and 60, and I through lighting switch terminal 12. Then headlamps illuminate again. AUTO LIGHT OPERATION NHEL0262S03 For auto light operation, refer to “HEADLAMP” (EL-35). DAYTIME LIGHT OPERATION NHEL0262S04 With the engine running, the lighting switch in the OFF or 1ST position and parking brake released, power is I through daytime light control unit terminal 7 I to terminal 1 of RH headlamp I through terminal 2 of RH headlamp GI MA EM LC EC FE AT AX SU BR ST RS BT HA SC IDX HEADLAMP (FOR CANADA) — XENON TYPE — System Description (Cont’d) EL-73 |
