SQUEAK AND RATTLE TROUBLE DIAGNOSES

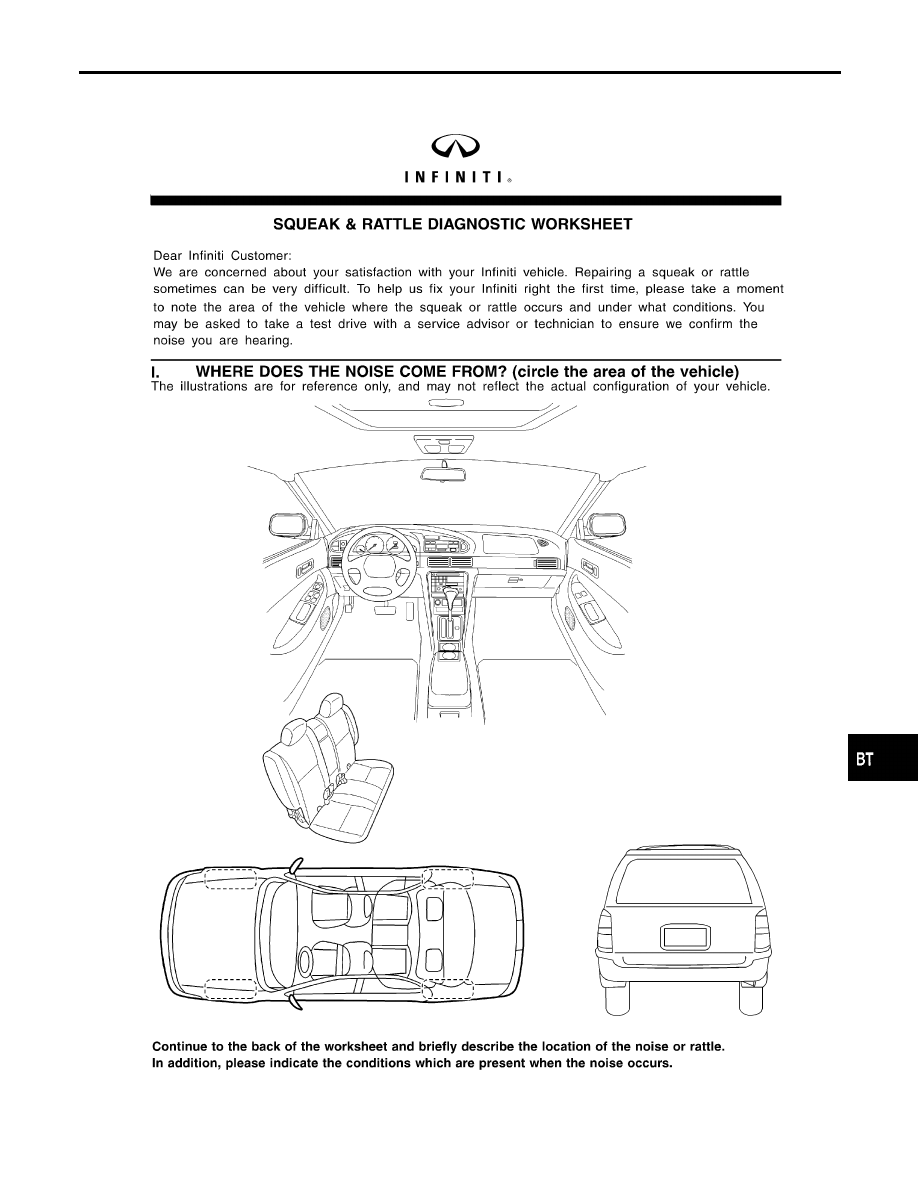

Diagnostic Worksheet

BT-9

SBT844

SQUEAK AND RATTLE TROUBLE DIAGNOSES

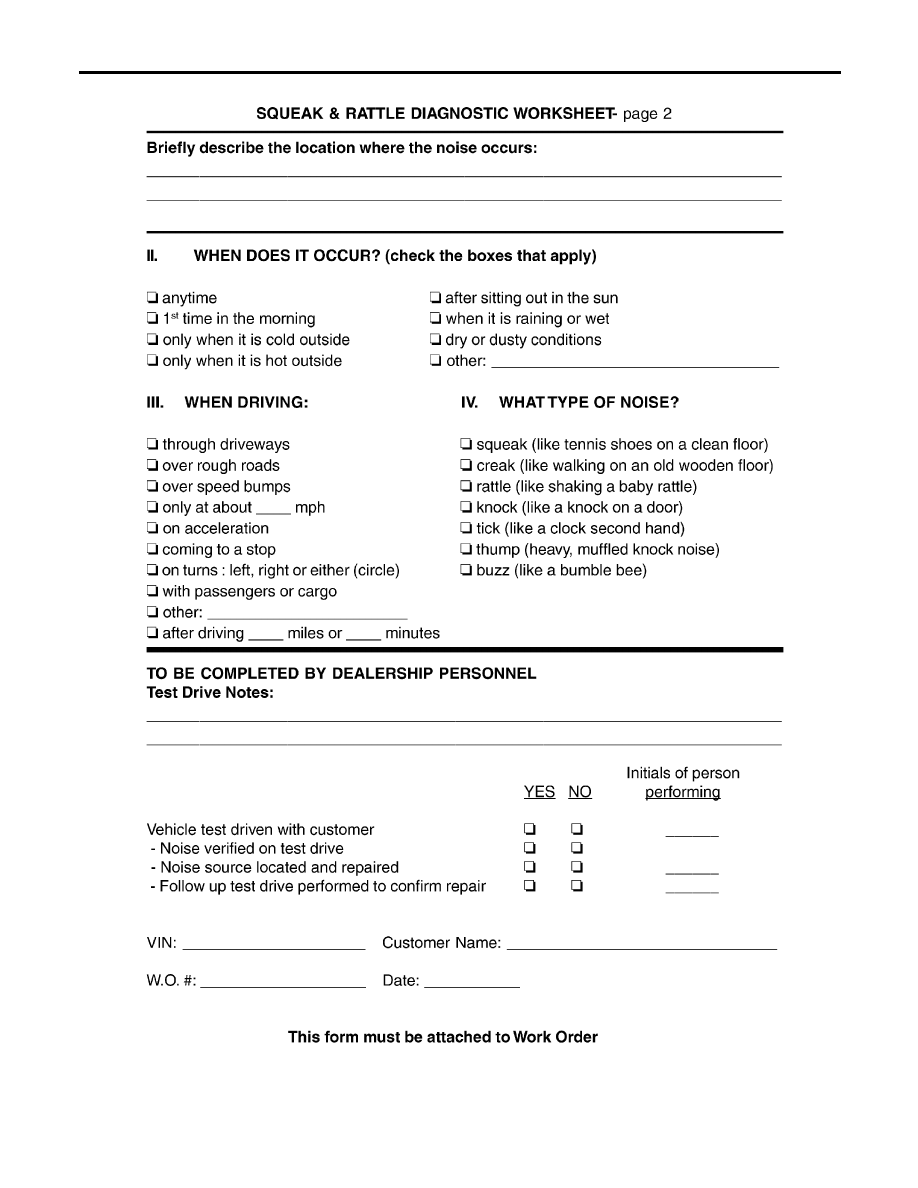

Diagnostic Worksheet (Cont’d)

BT-10

Description

NHBT0003

I

Clips and fasteners in BT section correspond to the following numbers and symbols.

I

Replace any clips and/or fasteners which are damaged during removal or installation.

Symbol No.

Shapes

Removal & Installation

C101

SBF302H

SBF367BA

C103

SBT095

SBF423H

C205

MBT080A

SBF638CA

C206

MBF519B

MBF520B

CE103

SBF104B

SBF147B
