BODY ALIGNMENT

17

Panel Parts Matching Marks

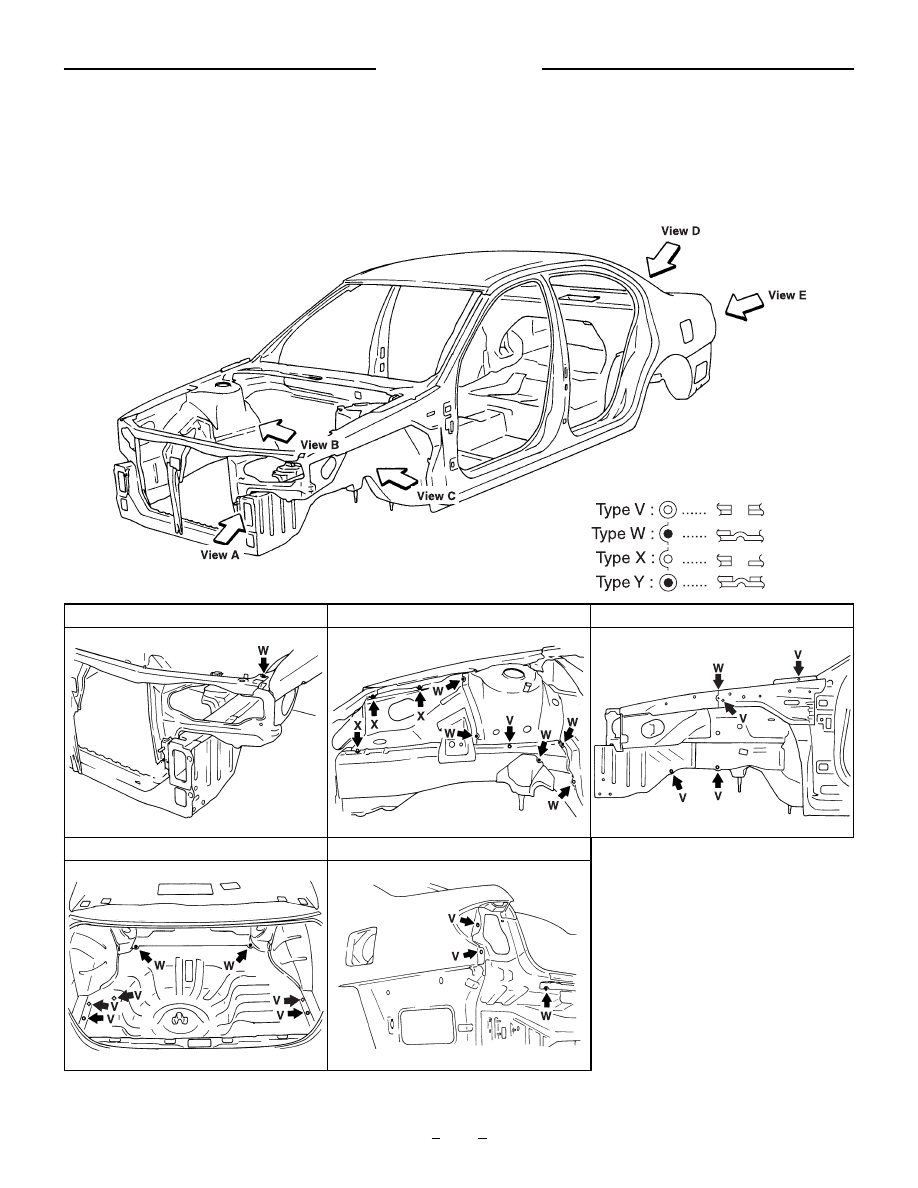

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts damaged by an

accident which might affect the vehicle structure (members, pillars, etc.), more accurate and effective repair will be possible

by using these marks together with body alignment specifications.

View A

View C

View D

View B

View E

BODY ALIGNMENT

18

Description

All dimensions indicated in the figures are actual.

When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make

sure there is no free play.

When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

Measurements should be taken at the center of the mounting holes.

An asterisk (

*

) following the value at the measuring point indicates that the measuring point on the other side is

symmetrically the same value.

The coordinates of the measurement points are the distances measured from the standard line of “X”, “Y” and “Z”.

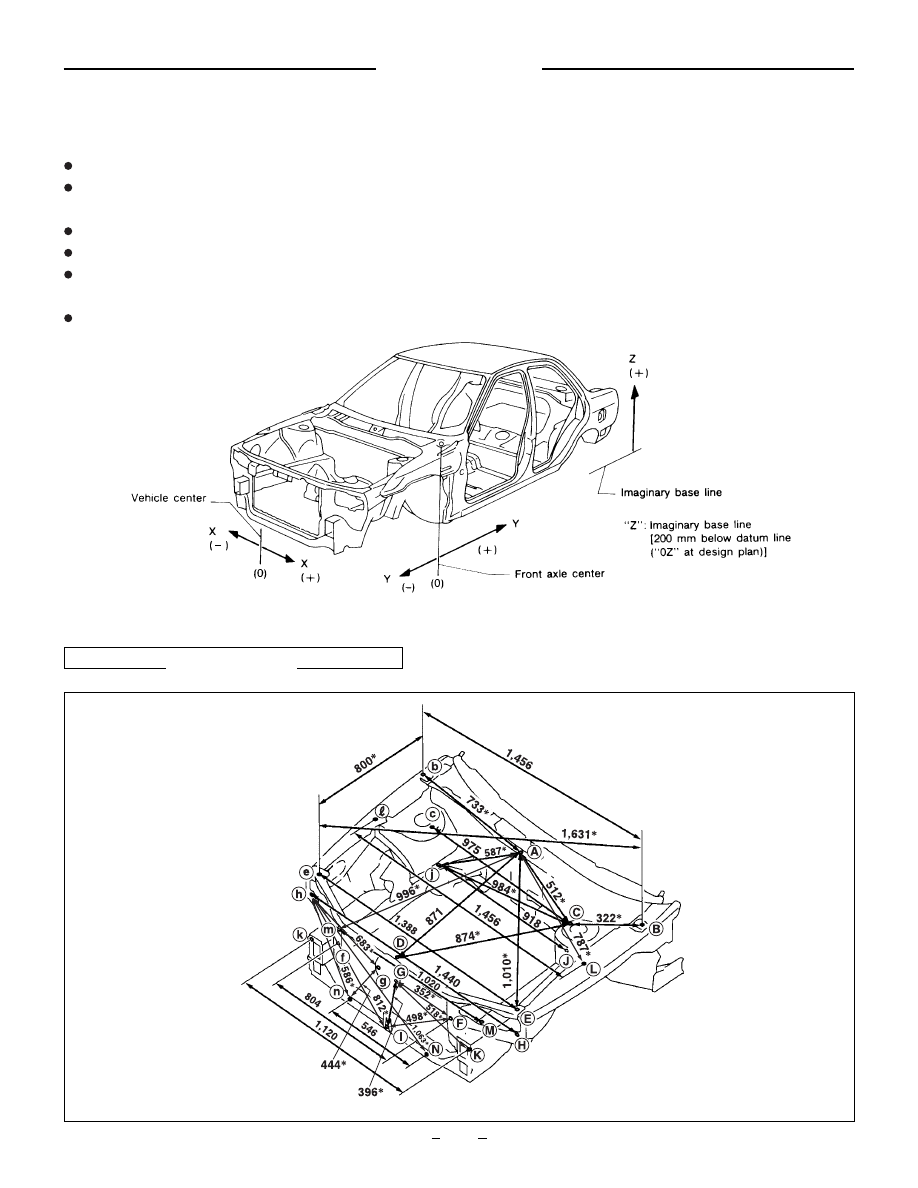

Engine Compartment

Unit: mm

MEASUREMENT

BODY ALIGNMENT

19

Engine Compartment (Cont’d)

Unit: mm

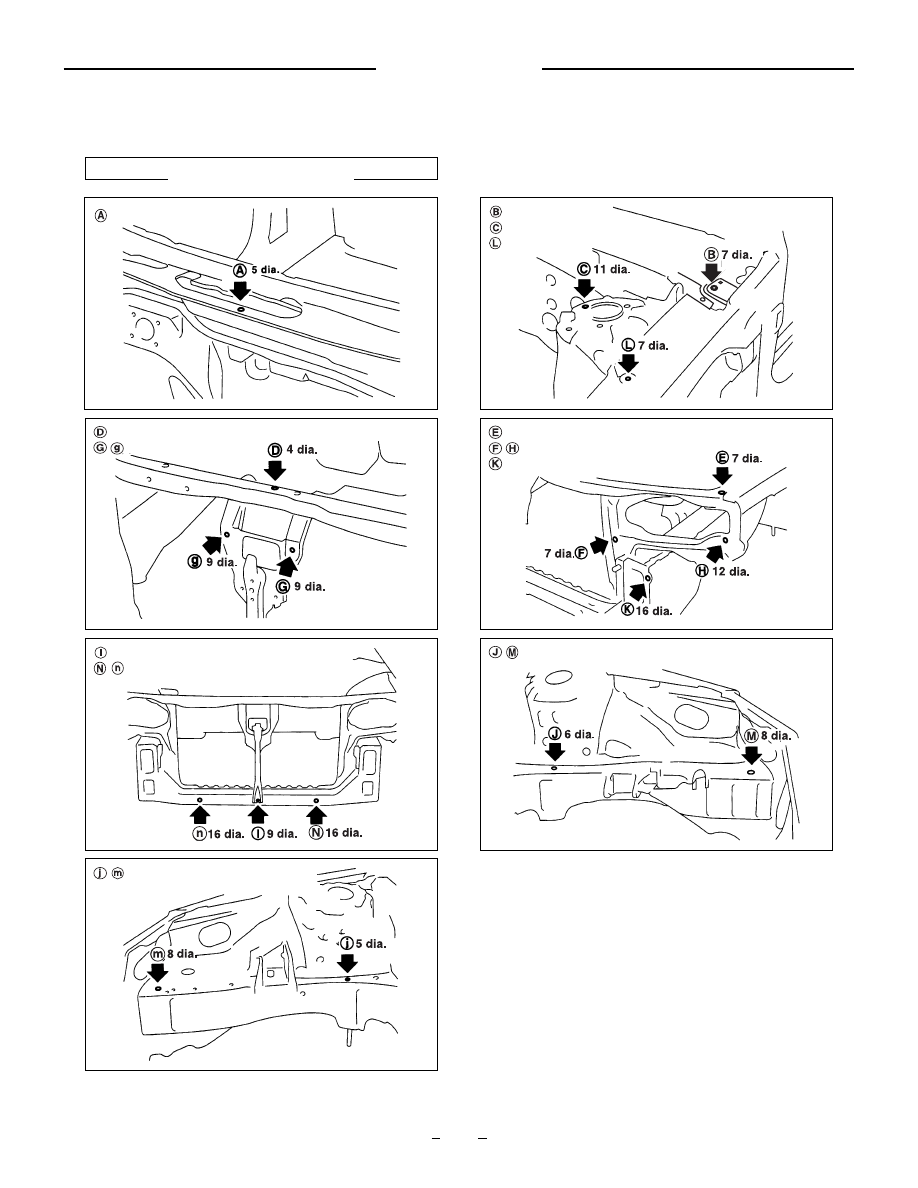

: Center cowl  top

: Side cowl top
: Strut tower
: Hoodledge

: Upper radiator core support

,

: Hood lock stay

: Upper radiator core support

,

: Side radiator core support

: Front side member

: Hood lock stay

,

: Lower radiator core support

,

: Front side member LH side

MEASUREMENT POINTS

,

: Front side member RH side

BODY ALIGNMENT

20

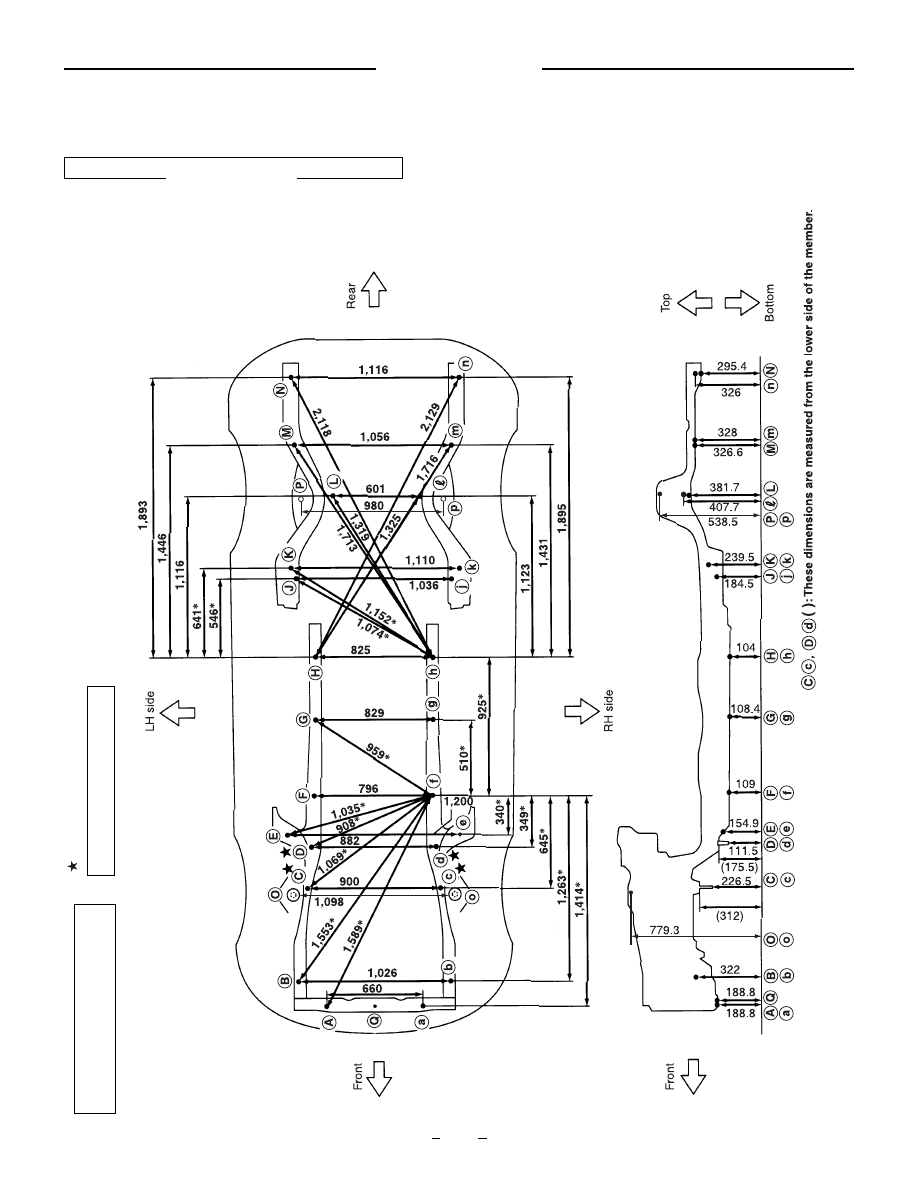

Underbody

Unit: mm

All dimensions indicated in this

figure are actual.

As vie

w

ed from underside

.

Figures marked with a

*

 indicate symmetricall

y identical

dimensions on both right and left hand sides of the vehic

le

.

: Bolt head

MEASUREMENT
