Infiniti I30 (A33). Manual - part 130





5

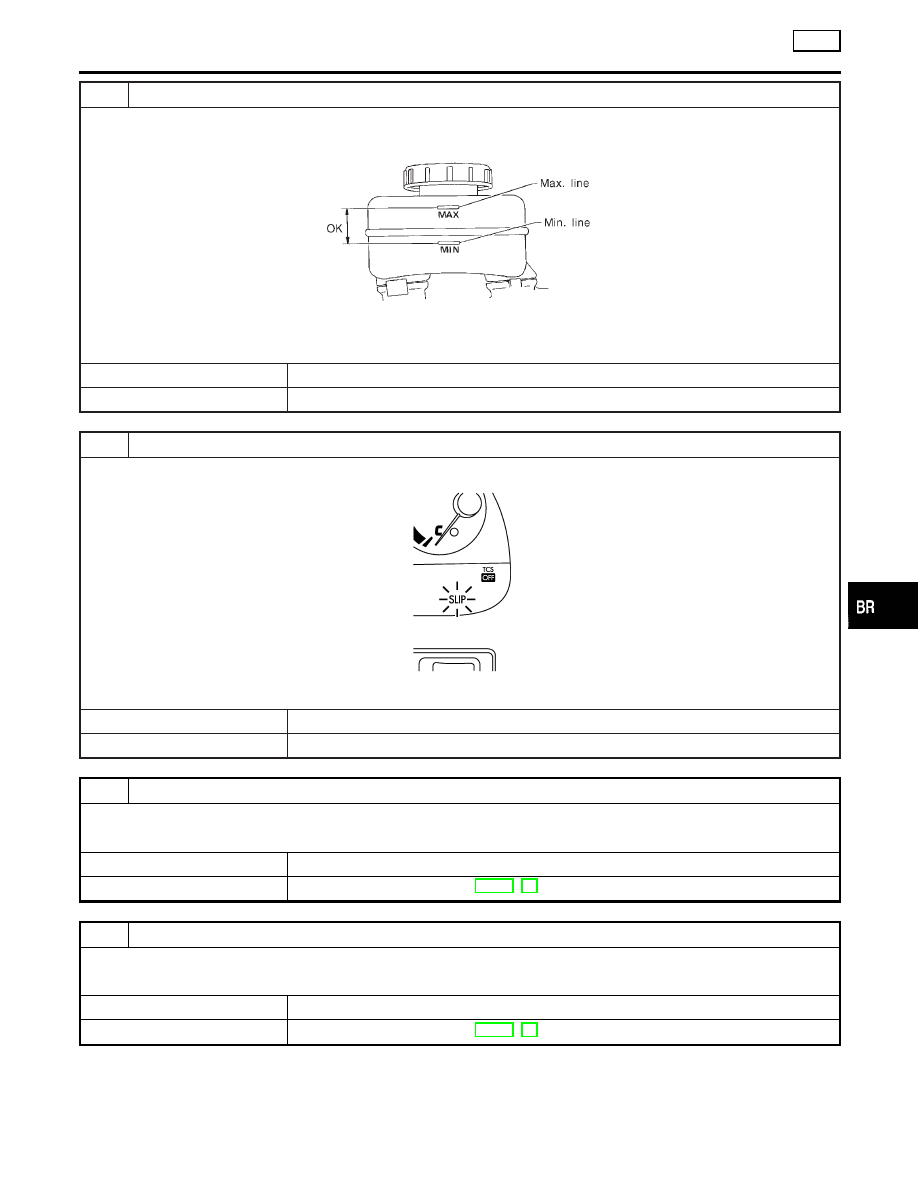

RECHECK BRAKE FLUID LEVEL

Check brake fluid level in reservoir tank again.

SBR451D

Is brake fluid filled between MAX and MIN lines on reservoir tank and/or has brake fluid been contaminated?

Yes

©

GO TO 6.

No

©

Fill up brake fluid.

6

CHECK WARNING LAMP ACTIVATION

Check warning lamp activation.

SBR655E

Does warning lamp turn on when ignition switch is turned “ON”?

Yes

©

GO TO 7.

No

©

Check fuse, warning lamp bulb and warning lamp circuit.

7

CHECK WARNING LAMP DEACTIVATION

Check warning lamp for deactivation after engine is started.

Does warning lamp turn off when engine is started?

Yes

©

GO TO 8.

No

©

Go to Self-diagnosis. Refer to BR-91, 94.

8

DRIVE VEHICLE

Drive vehicle at speeds over 30 km/h (19 MPH) for at least one minute.

Does warning lamp remain off after vehicle has been driven at 30 km/h (19 MPH) for at least one minute?

Yes

©

END

No

©

Go to Self-diagnosis. Refer to BR-91, 94.

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — BASIC INSPECTION

TCS

Preliminary Check (Cont’d)

BR-103

SBR792D

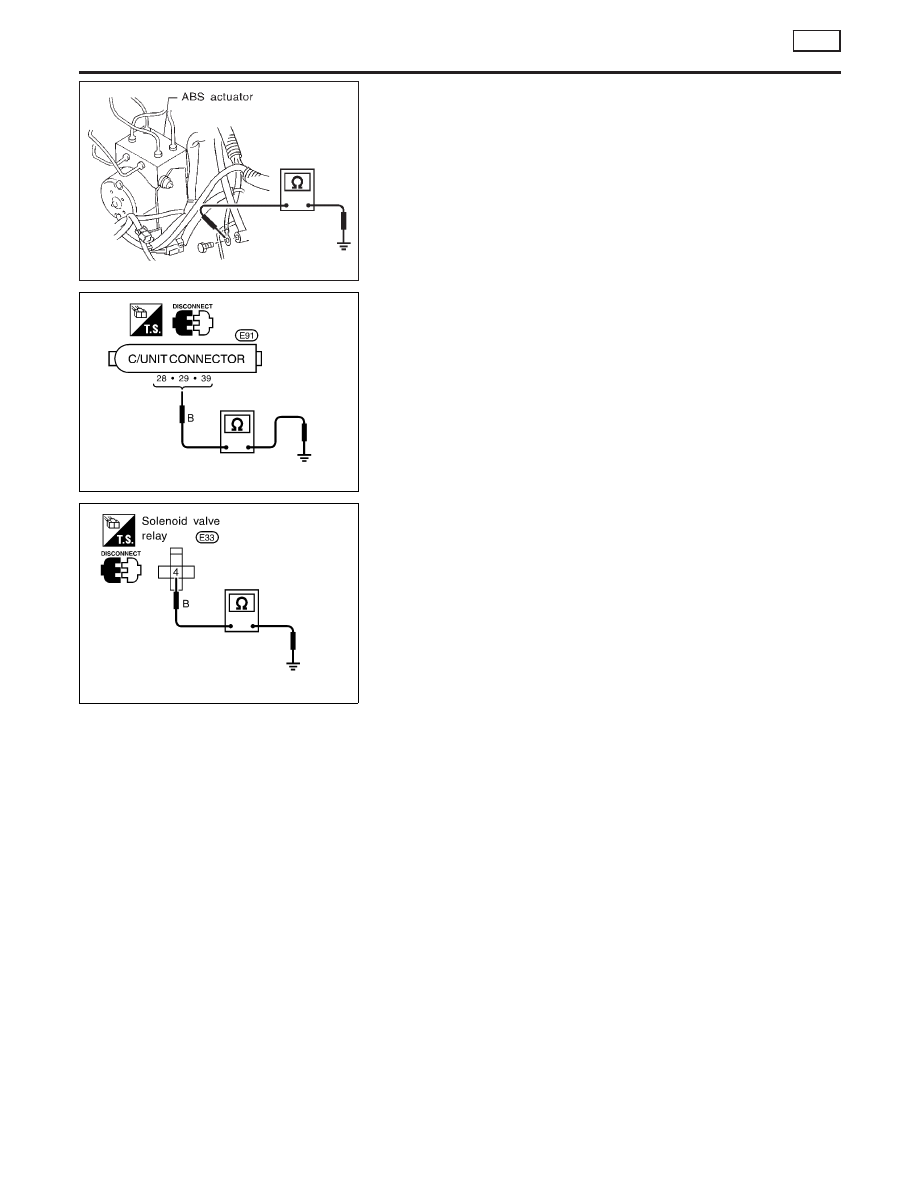

Ground Circuit Check

NHBR0061

ACTUATOR MOTOR GROUND

NHBR0061S01

I

Check resistance between actuator motor ground terminal and
body ground.

Resistance: 0

SBR714DF

CONTROL UNIT GROUND

NHBR0061S02

I

Check resistance between the terminals and ground.

Resistance: 0

SBR764DI

ABS SOLENOID VALVE RELAY GROUND

NHBR0061S03

I

Check resistance between solenoid valve relay terminal 4 and
ground.

Resistance: 0

TROUBLE DIAGNOSIS — BASIC INSPECTION

TCS

Ground Circuit Check

BR-104

Malfunction Code/Symptom Chart

NHBR0062

Code No.

(No. of SLIP indicator flashes)

Malfunctioning part

Warn-

ing

lamp

Indicator

Fail-
safe

Refer-

ence

Page

ABS

TCS
OFF

SLIP

12

Self-diagnosis could not detect any malfunctions

OFF

OFF

OFF

21

Front right sensor (open-circuit)

ON

ON

ON

X

BR-107

22

Front right sensor (short-circuit)*2

ON

ON

ON

X

BR-107

25

Front left sensor (open-circuit)

ON

ON

ON

X

BR-107

26

Front left sensor (short-circuit)*2

ON

ON

ON

X

BR-107

31

Rear right sensor (open-circuit)

ON

ON

ON

X

BR-107

32

Rear right sensor (short-circuit)*2

ON

ON

ON

X

BR-107

35

Rear left sensor (open-circuit)

ON

ON

ON

X

BR-107

36

Rear left sensor (short-circuit)*2

ON

ON

ON

X

BR-107

41

Actuator front right outlet solenoid valve

ON

ON

ON

X

BR-110

42

Actuator front right inlet solenoid valve

ON

ON

ON

X

BR-110

45

Actuator front left outlet solenoid valve

ON

ON

ON

X

BR-110

46

Actuator front left inlet solenoid valve

ON

ON

ON

X

BR-110

51

Actuator rear right outlet solenoid valve

ON

ON

ON

X

BR-110

52

Actuator rear right inlet solenoid valve

ON

ON

ON

X

BR-110

55

Actuator rear left outlet solenoid valve

ON

ON

ON

X

BR-110

56

Actuator rear left inlet solenoid valve

ON

ON

ON

X

BR-110

57

Power supply (Low or high voltage)*3

ON

ON

OFF

—*1

BR-126

61

Actuator motor or motor relay*4

ON

ON

ON

X

BR-120

63

Solenoid valve relay

ON

ON

ON

X

BR-114

71

Control unit

ON

ON

ON*5

X

BR-128

98

LAN communication system failure

OFF

ON

ON

X

BR-133

81

Engine speed signal

OFF

ON

ON

X

BR-129

96

LAN is monitoring

OFF

ON

ON

X

BR-131

87

Engine parts are under fail-safe condition

OFF

ON

ON

X

BR-129

92

LAN communication start procedures are incomplete

OFF

ON

ON

X

BR-132

94

Continued reception after LAN communication starts

OFF

ON

ON

X

BR-135

85

ECM determines the ABS/TCS control unit is mal-
functioning.

OFF

ON

ON

X

BR-131

ABS works frequently.

BR-136

Unexpected pedal action

BR-136

Long stopping distance

BR-137

ABS does not work.

BR-138

Pedal vibration and noise

BR-139

GI

MA

EM

LC

EC

FE

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

TCS

Malfunction Code/Symptom Chart

BR-105

Code No.

(No. of SLIP indicator flashes)

Malfunctioning part

Warn-

ing

lamp

Indicator

Fail-
safe

Refer-

ence

Page

ABS

TCS
OFF

SLIP

SLIP indicator stays on when
engine is running

Control unit power supply circuit
Warning lamp bulb circuit
Control unit or control unit connector
Solenoid valve relay stuck
Power supply for solenoid valve relay coil

ON

ON

ON

X*6

SLIP indicator does not come
on when engine is running

Fuse, warning lamp bulb or warning lamp circuit
Control unit

ON

ON

ON

X

Poor acceleration

TCM is the cause of the symptom.

OFF

OFF

OFF

BR-154

X: Available

—: Not available

*1: Fail-safe operation does not activate. A signal from control unit suspends TCS and ABS control operation. Brakes operate conven-
tionally. After specified power supply voltage resumes, TCS OFF indicator and ABS warning lamp go out, allowing for TCS and ABS
control operation.
*2: If a wheel or wheels spin on bad or slippery road surfaces for a period of approximately 10 to 80 seconds, the ABS warning lamp
and the TCS OFF indicator lamp light. But this is not a malfunction. When the ignition switch is turned “ON” after a shorted wheel sen-
sor circuit has been repaired, the ABS warning lamp and the TCS OFF indicator lamp light. Drive the vehicle at about 30 km/h (19 MPH)
to ensure these lamps go out within 1 minute.
*3: When the BATTERY VOLTAGE [ABNORMAL] code No. appears on the display, it does not indicate a malfunction related to the
ABS/TCS control unit. Do not replace the ABS/TCS control unit even if the code No. appears.
*4: The BATTERY VOLTAGE [ABNORMAL] code No. can sometimes appear when the ABS motor ground circuit is loose or discon-
nected. When it does, always check the ground circuit for improper installation.
*5: Only the SLIP indicator lamp goes out depending on the type of ECM malfunction.
*6: If failure occurs in self-diagnostic check terminal (terminal No. 4 of data link connector) circuit and/or TCS operation (SLIP indica-
tor) circuit, fail-safe operation will not activate.

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION

TCS

Malfunction Code/Symptom Chart (Cont’d)

BR-106
