POWER SUPPLY ROUTING CIRCUIT

PG-31

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA0883GB

PG-32

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

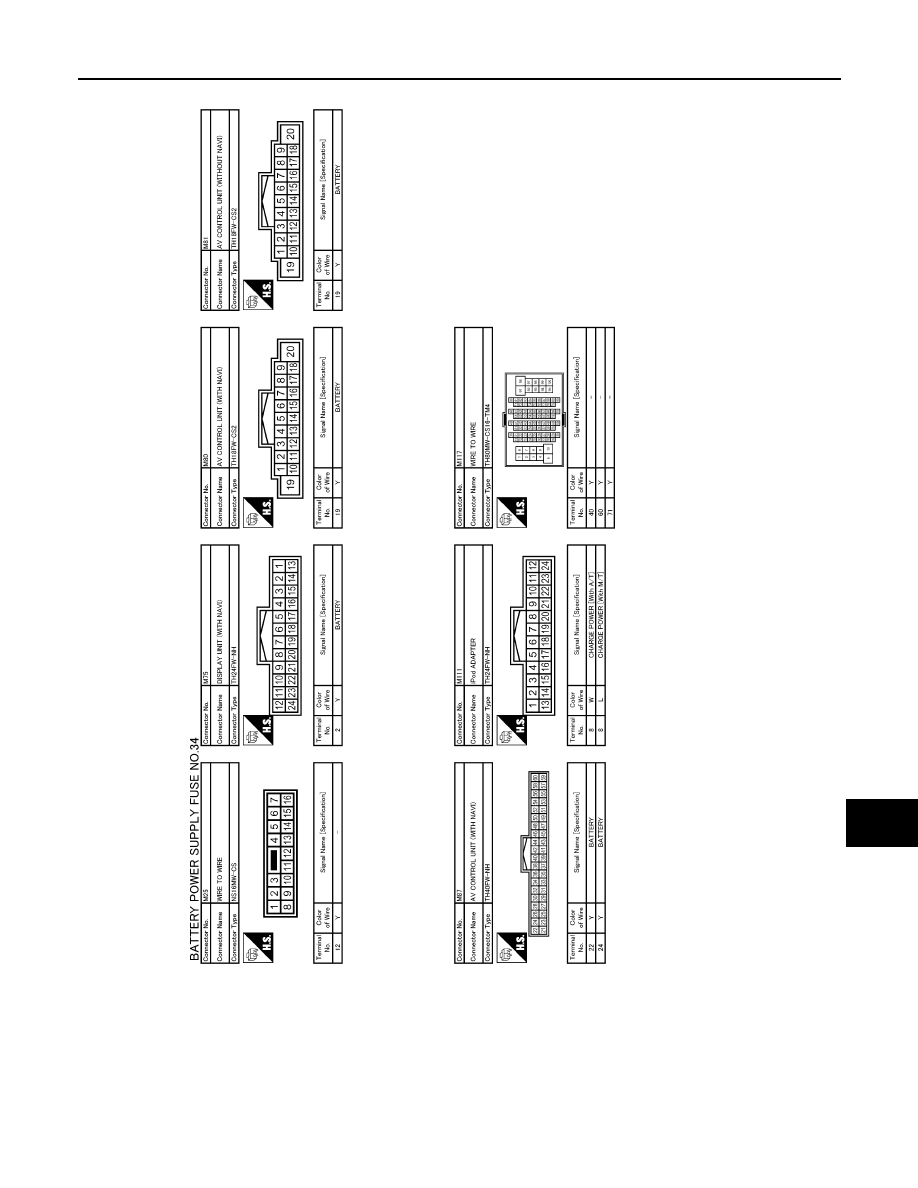

POWER SUPPLY ROUTING CIRCUIT

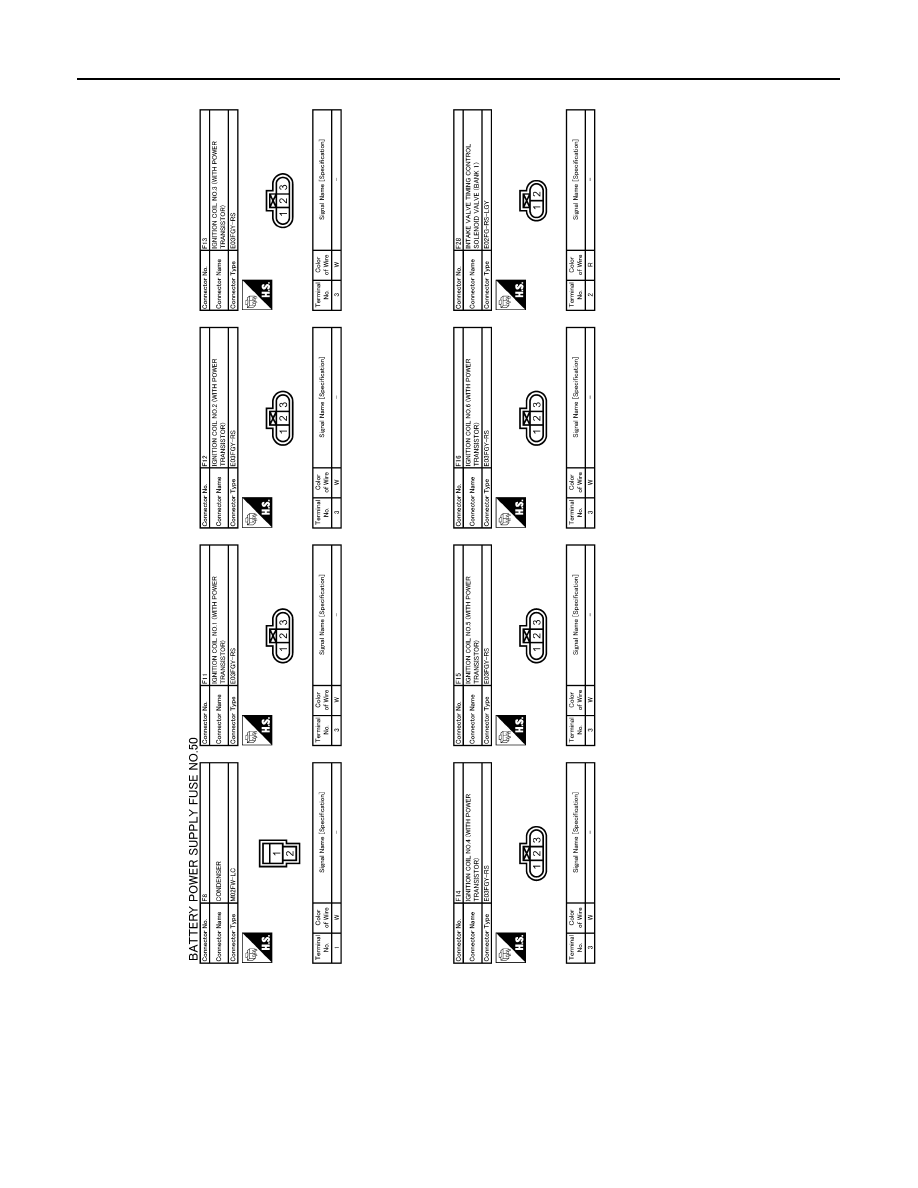

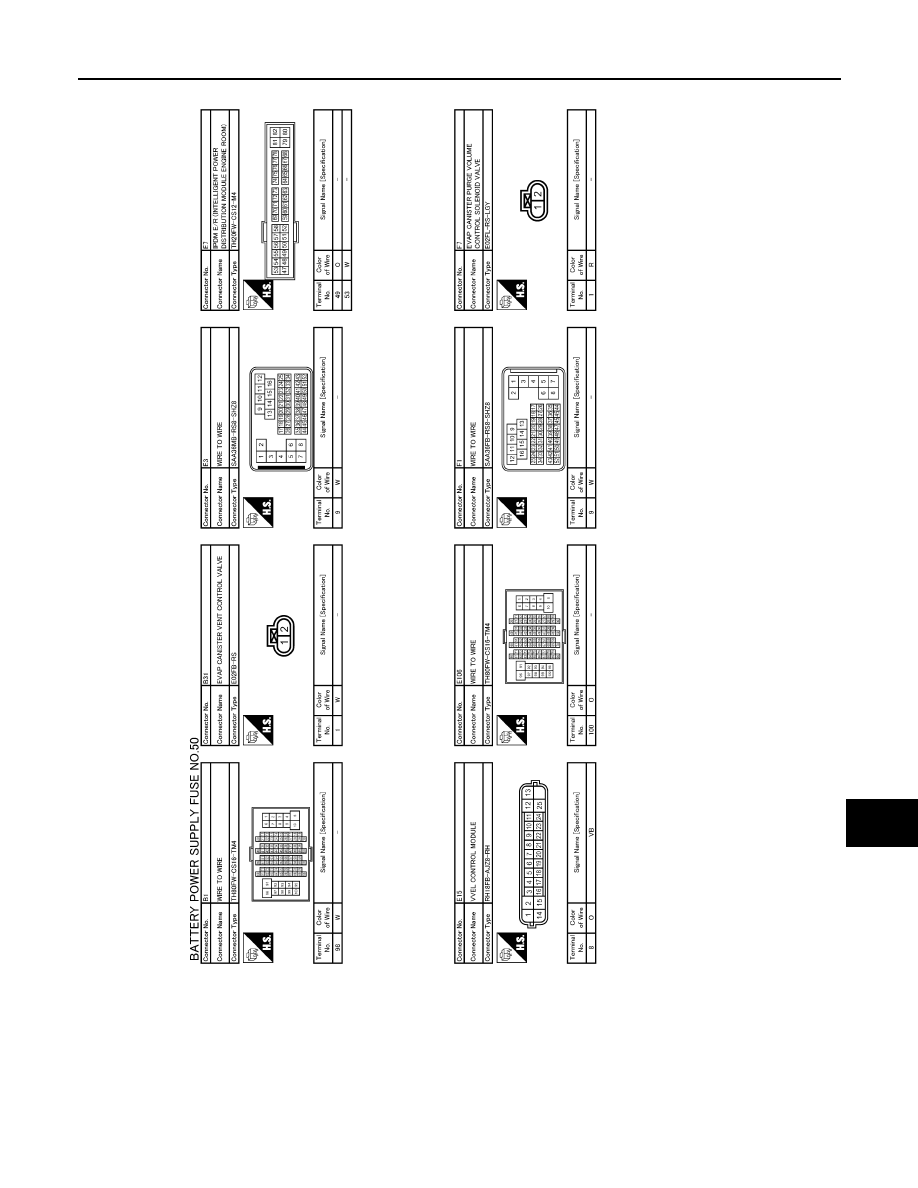

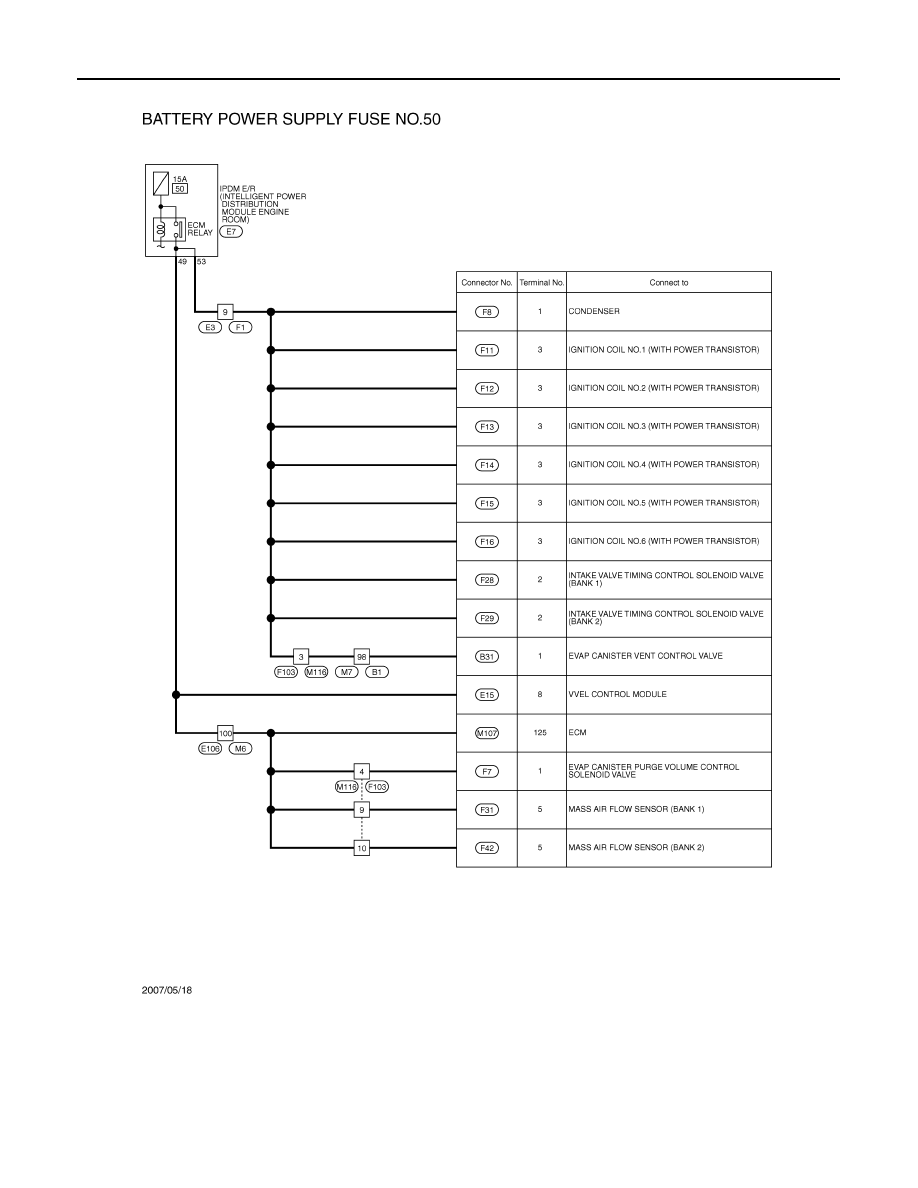

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 50 -

INFOID:0000000001841342

JCMWA0884GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-33

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA0885GB

PG-34

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWA0886GB
