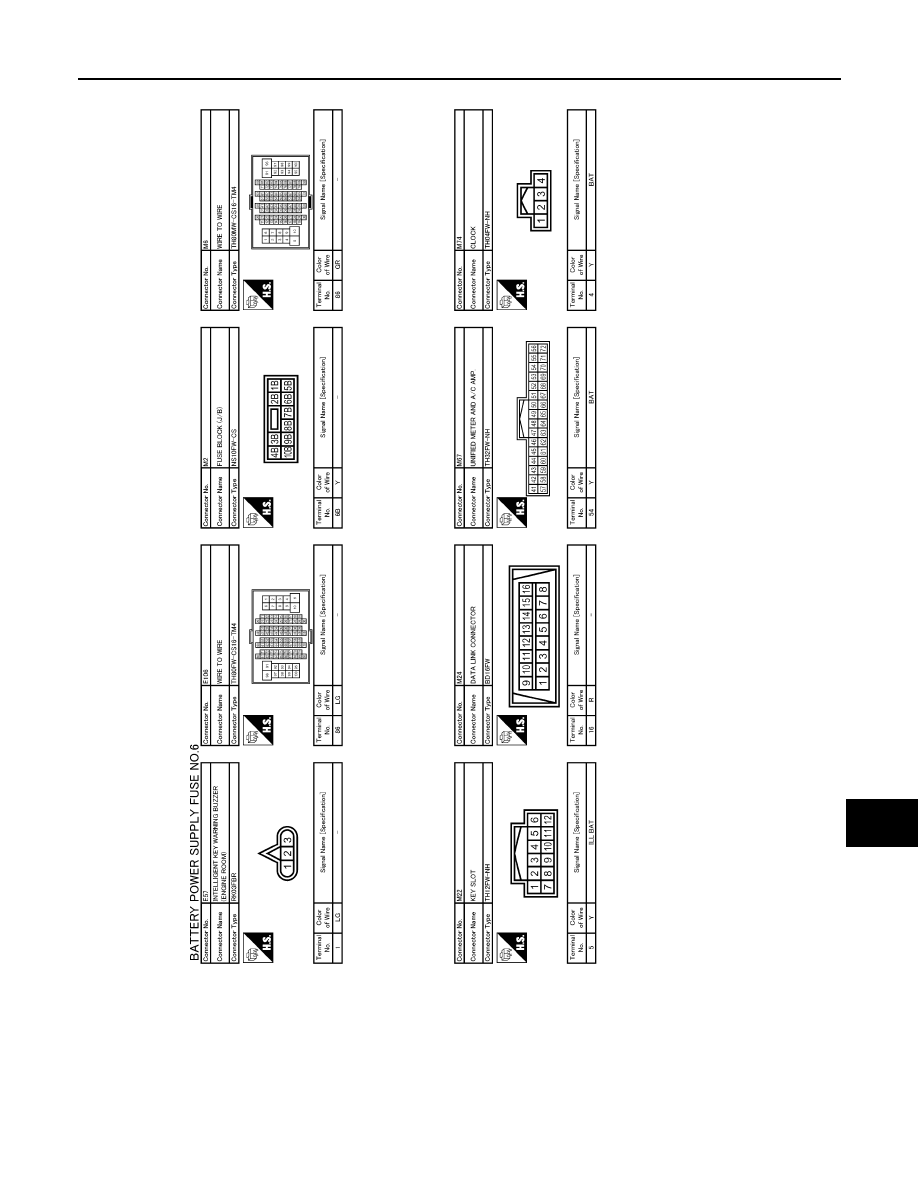

POWER SUPPLY ROUTING CIRCUIT

PG-19

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA0872GB

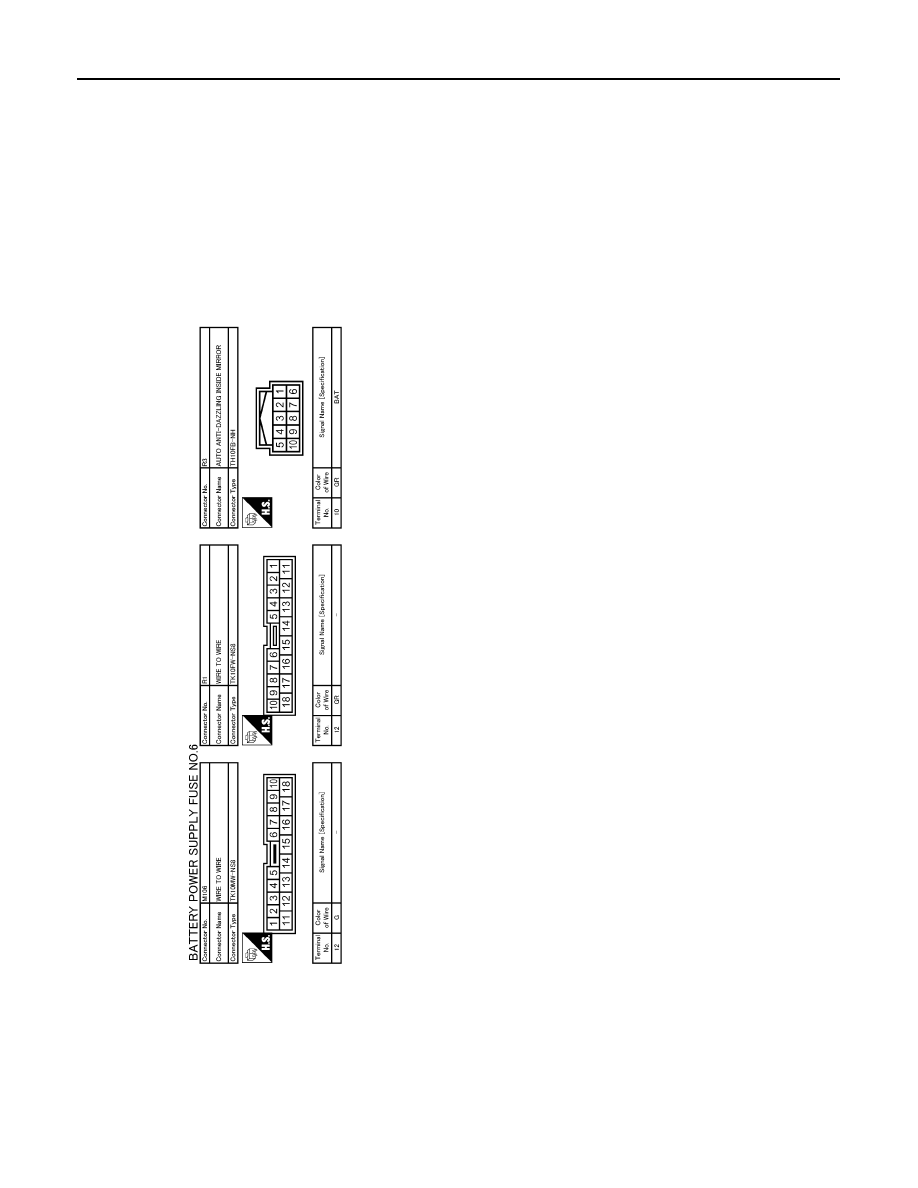

PG-20

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWA0873GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-21

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

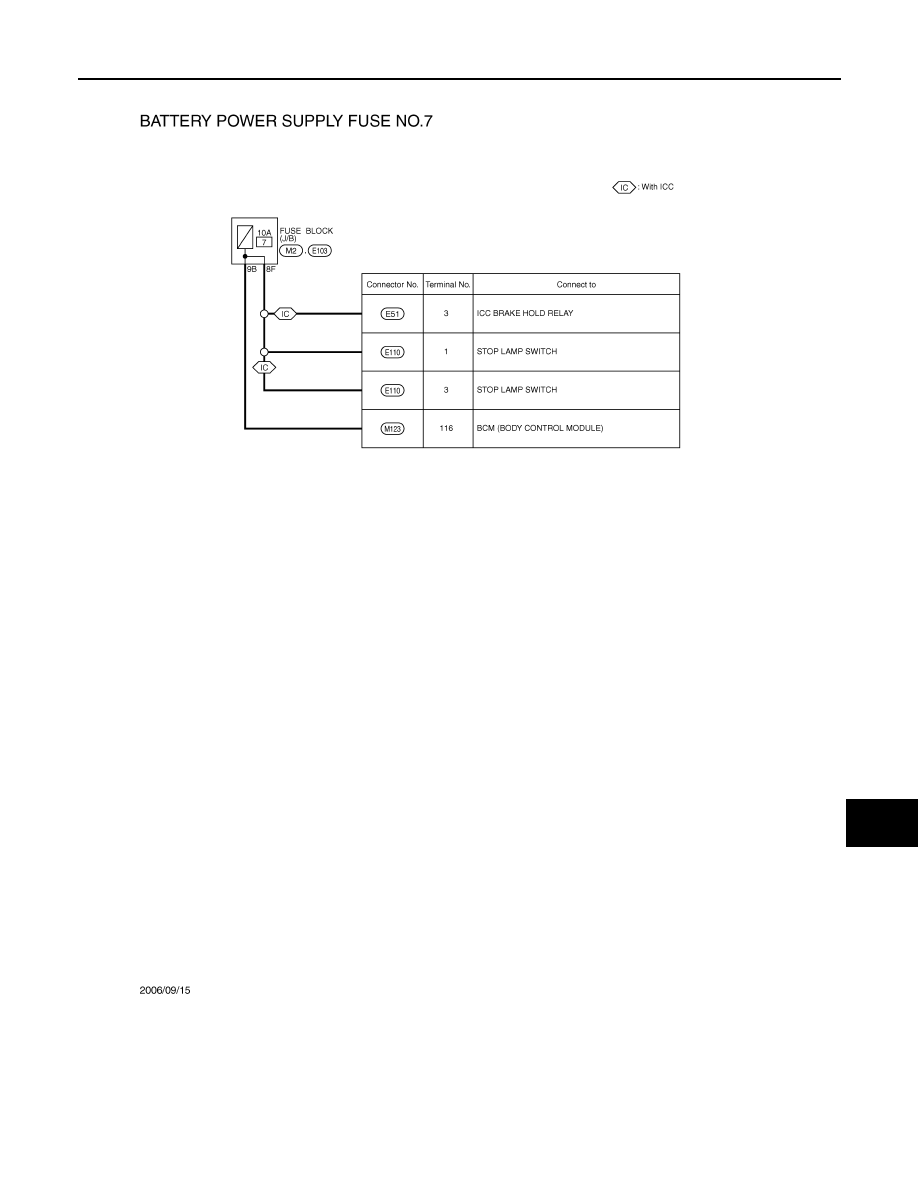

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 7 -

INFOID:0000000001841338

JCMWA0052GB

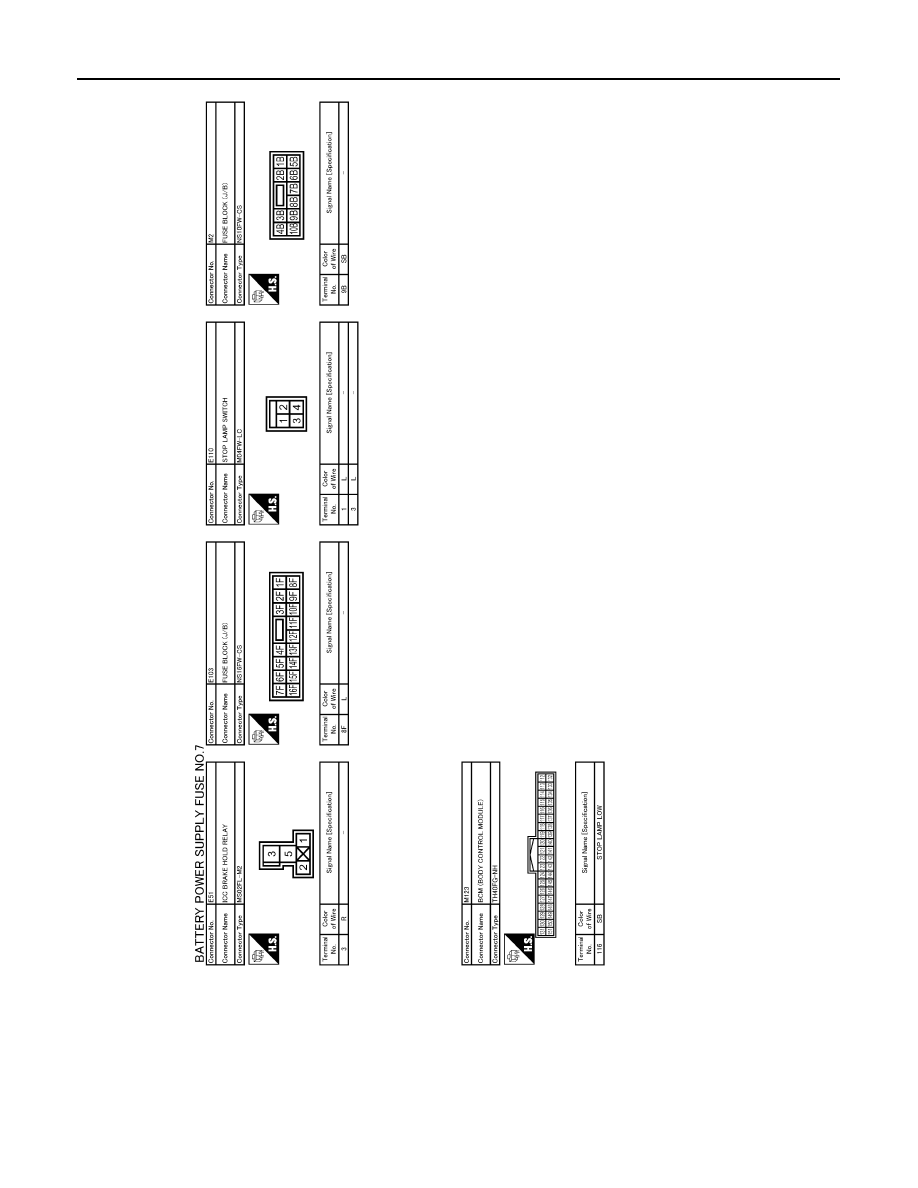

PG-22

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

JCMWA0874GB
