BCM (BODY CONTROL MODULE)
PCS-97
< ECU DIAGNOSIS >

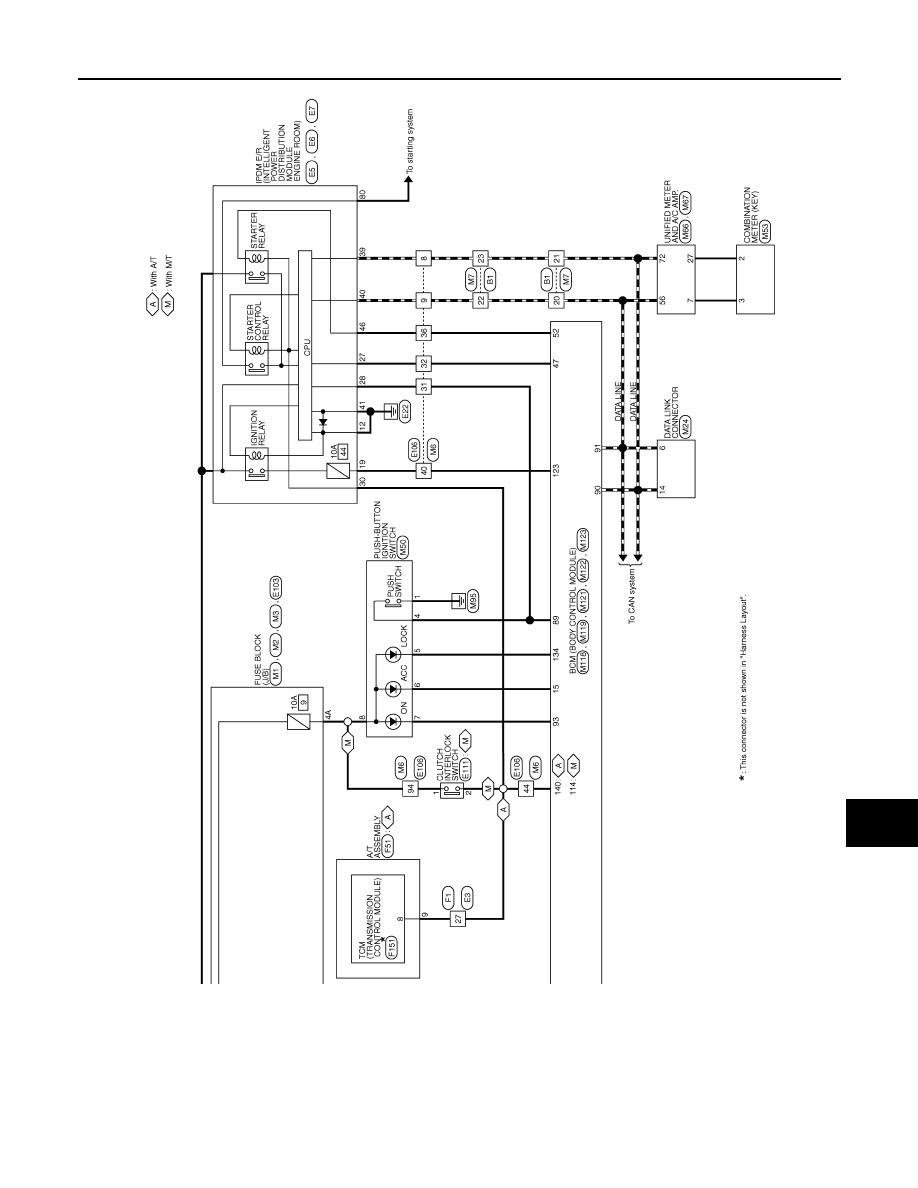

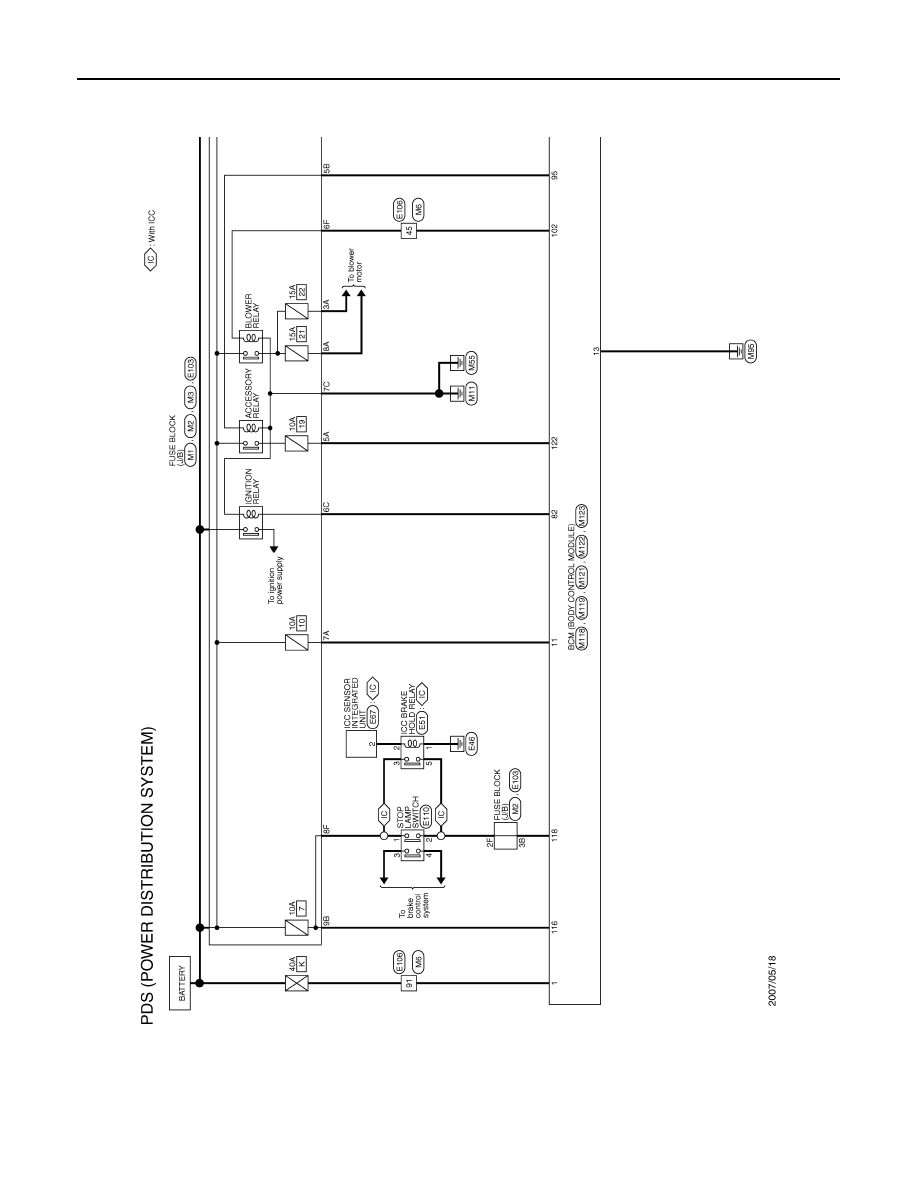

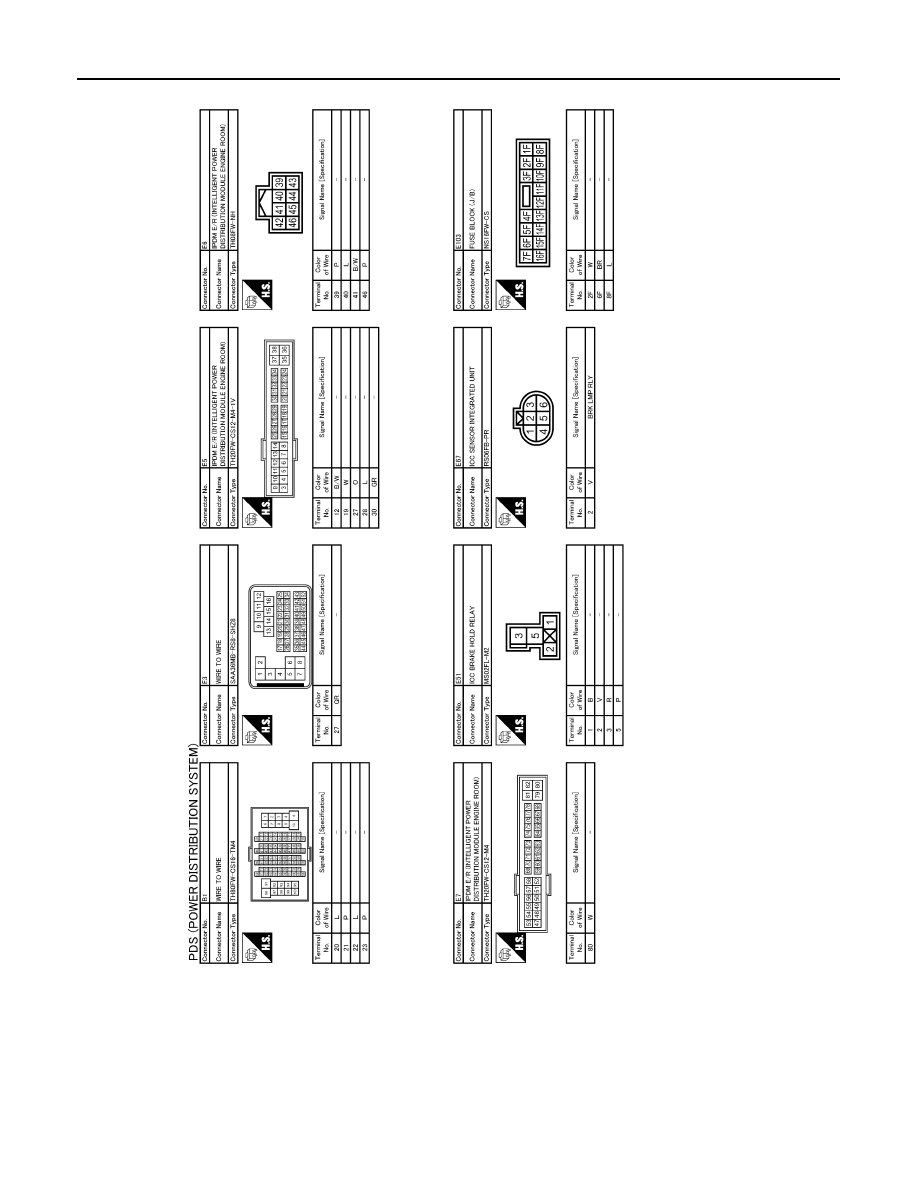

[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L
B
A
O
P
N
144
(G)
Ground
Combination switch
OUTPUT 2
Output
Combination
switch
All switch OFF
(Wiper intermittent dial 4)
0 V
Front washer switch ON
(Wiper intermittent dial 4)
10.7 V
Any of the conditions below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 5
• Wiper intermittent dial 6
145
(L)
Ground
Combination switch
OUTPUT 3
Output
Combination
switch
(Wiper intermit-
tent dial 4)
All switch OFF
0 V
Front wiper switch INT
10.7 V
Front wiper switch LO
Lighting switch AUTO
146
(SB)
Ground
Combination switch
OUTPUT 4
Output
Combination
switch
(Wiper intermit-
tent dial 4)
All switch OFF
0 V
Front fog lamp switch ON
10.7 V
Lighting switch 2ND
Lighting switch PASS
Turn signal switch LH
149
(W)
Ground
Tire pressure warn-
ing check switch
Input
—
5 V
150
(R)
Ground
Driver door switch
Input
Driver door
switch
OFF (When driver door
closes)
11.8 V
ON (When driver door
opens)
0 V
151
(G)
Ground
Rear window defog-
ger relay
Output
Rear window de-
fogger
Active
0 V
Not activated
Battery voltage

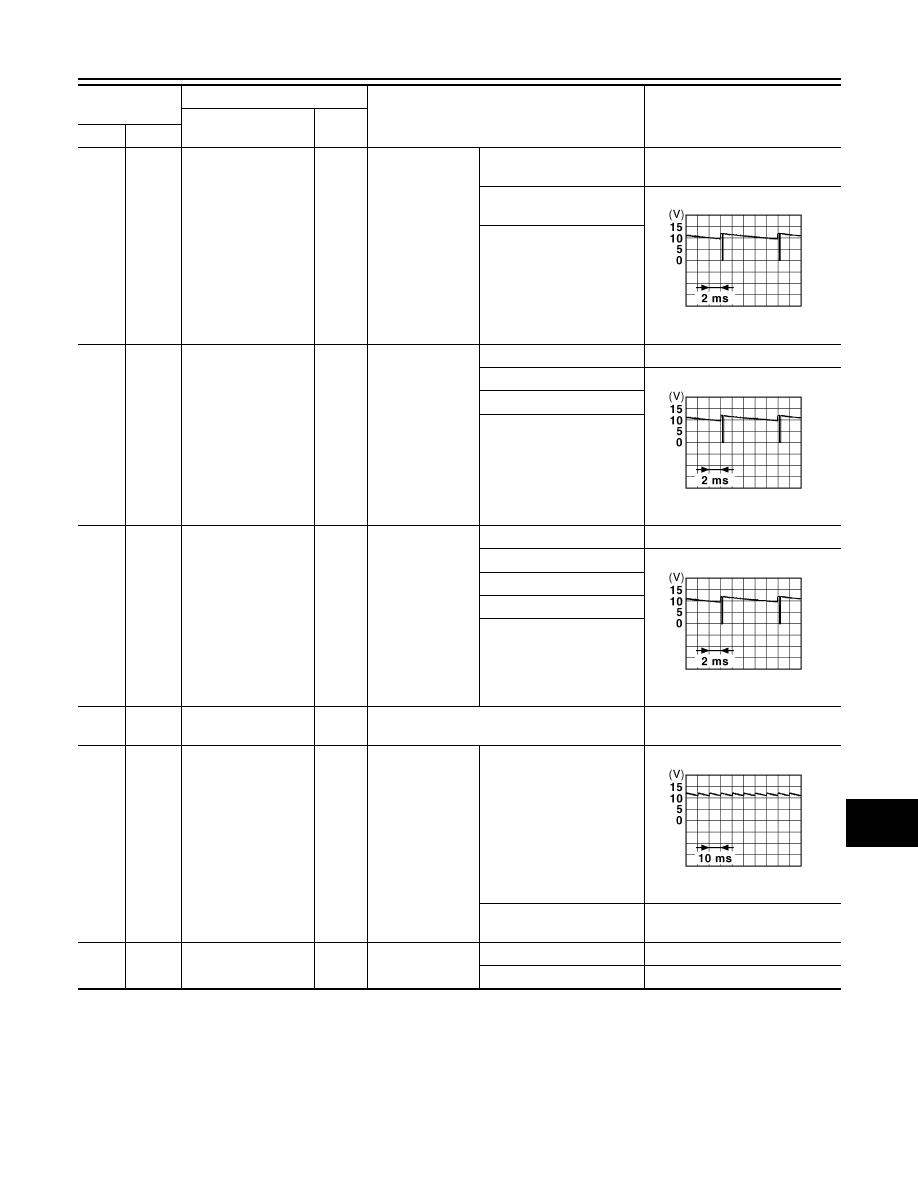

Terminal No.
(Wire color)
Description
Condition
Value
(Approx.)
Signal name
Input/
Output
+
–
JPMIA0033GB
JPMIA0034GB
JPMIA0035GB
JPMIA0011GB
