Infiniti G37 Coupe. Manual - part 966

PCS

PRECAUTIONS

PCS-33

< PRECAUTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Procedure without Cowl Top Cover

INFOID:0000000001910524

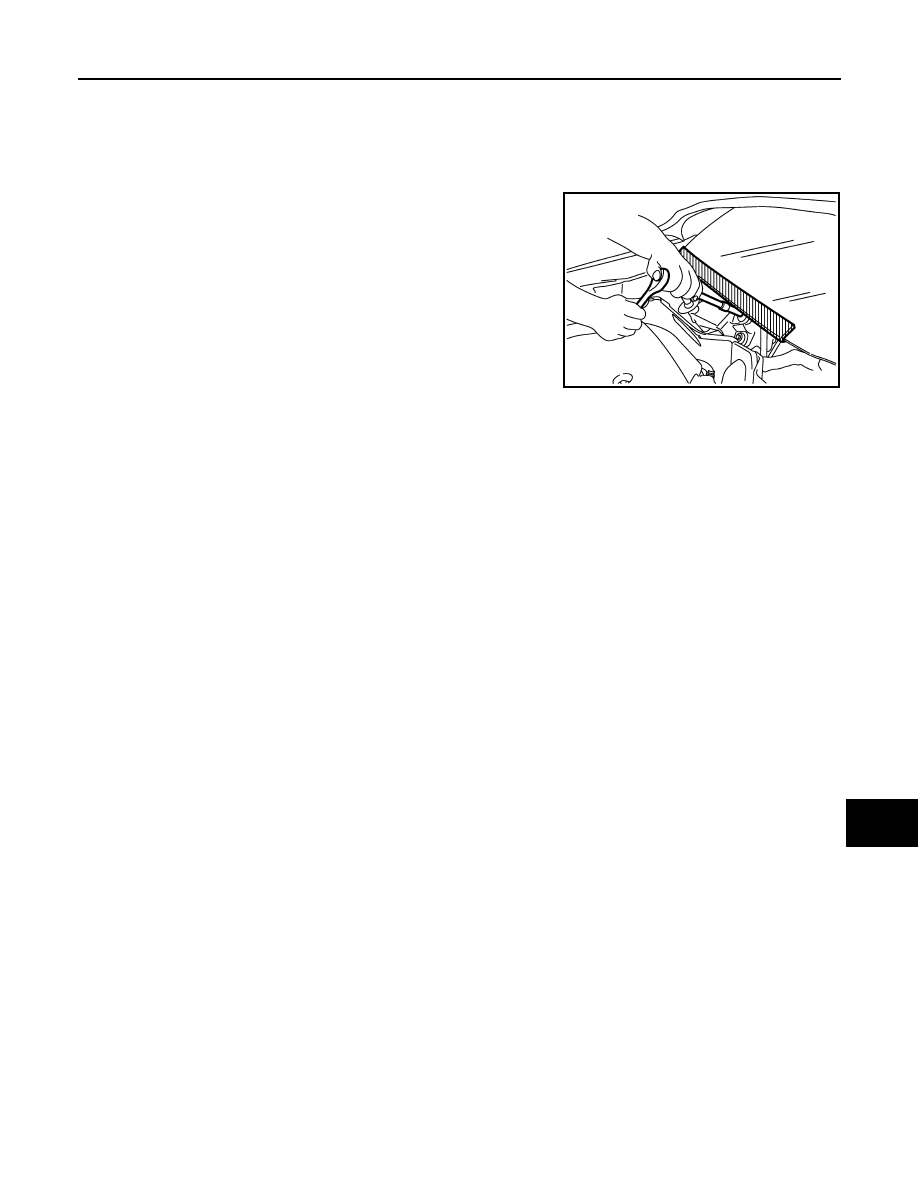

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Precaution for Battery Service

INFOID:0000000001910521

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

PIIB3706J

PCS-34

< ON-VEHICLE REPAIR >

[IPDM E/R]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

ON-VEHICLE REPAIR

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

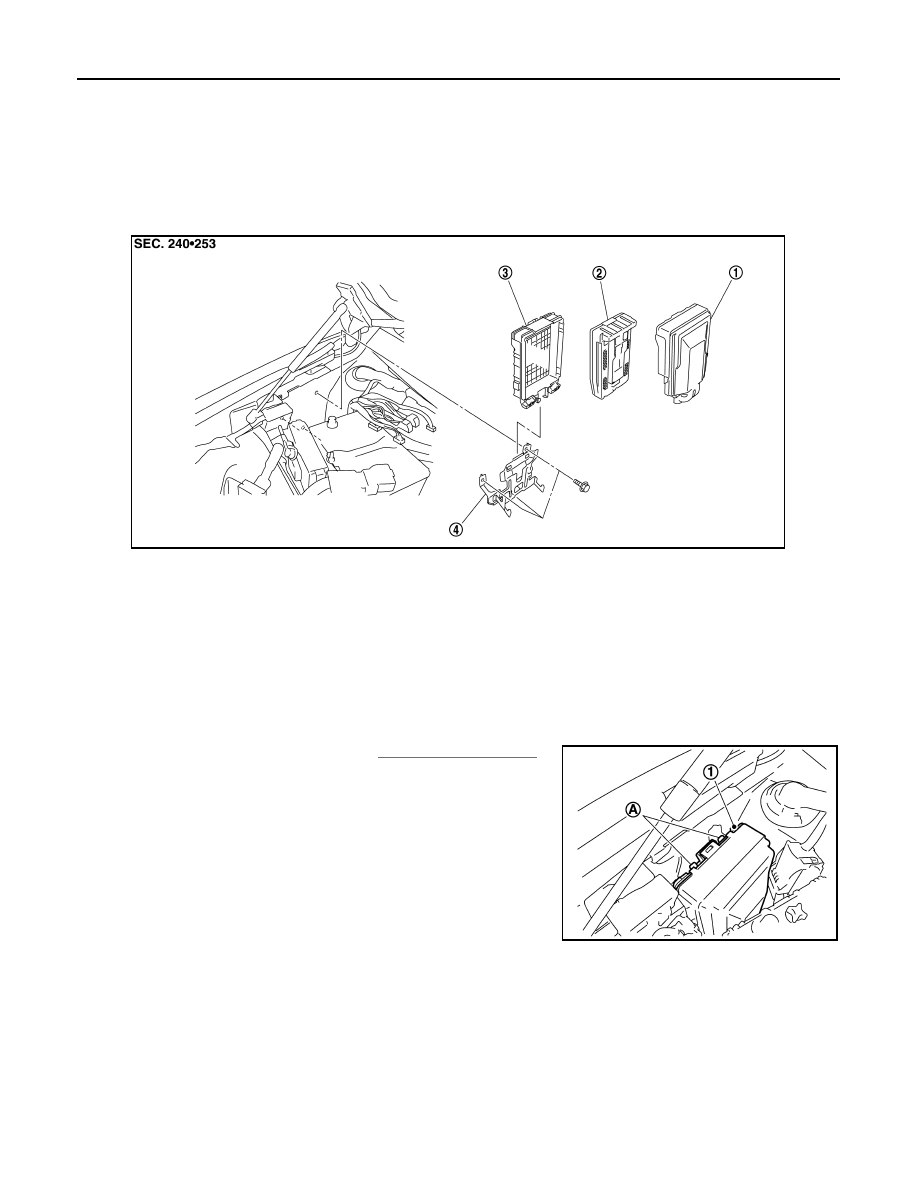

Exploded View

INFOID:0000000001605884

Removal and Installation

INFOID:0000000001605885

CAUTION:

IPDM E/R integrated relays are not serviceable parts, and must not be removed from the unit.

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove cowl top cover (RH). Refer to

IP-11, "Exploded View"

.

3.

Pull up the IPDM E/R assembly while pressing the pawl (A) on
the back of the IPDM E/R cover B (1).

1.

IPDM E/R cover A

2.

IPDM E/R

3.

IPDM E/R cover B

4.

Bracket

JPMIA0058ZZ

JPMIA0059ZZ

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-35

< ON-VEHICLE REPAIR >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

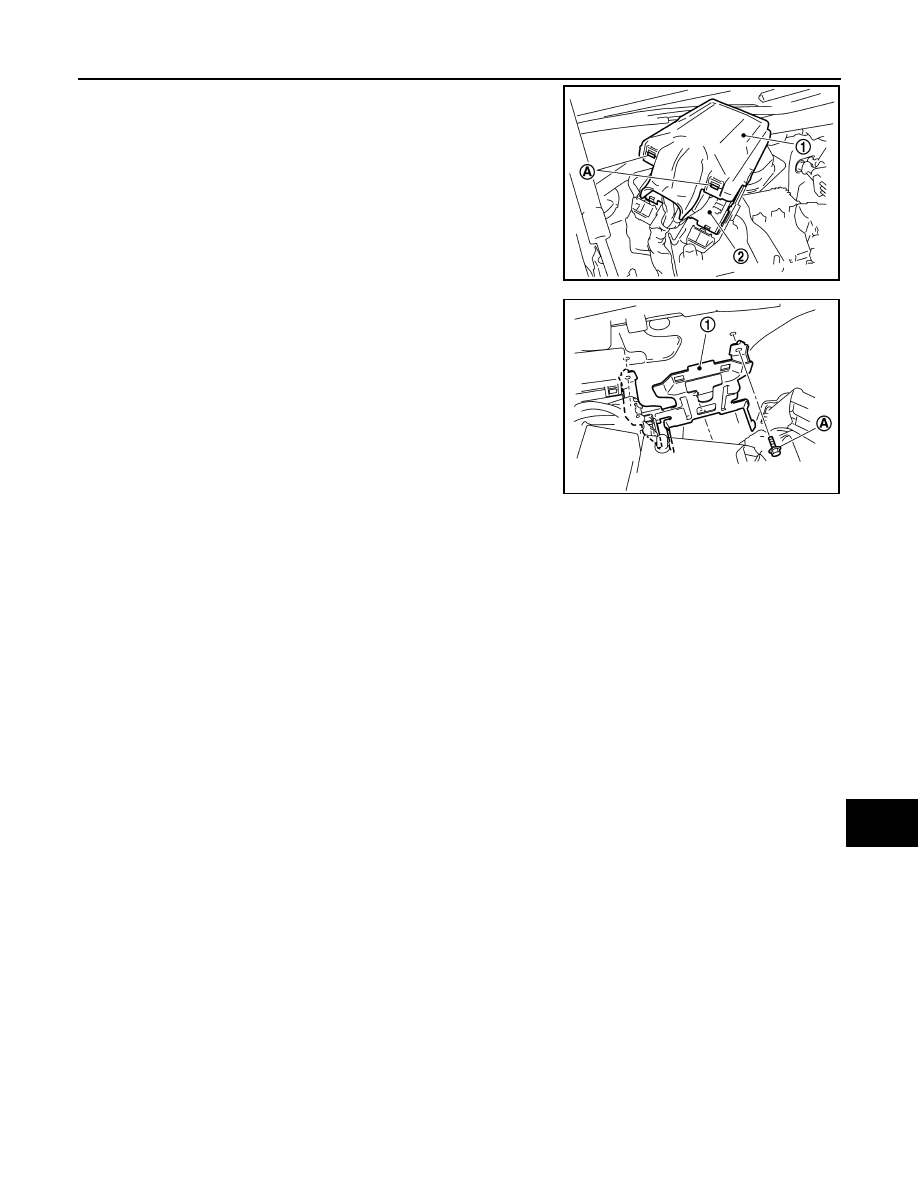

4.

Remove the IPDM E/R cover A while pressing the pawl (A) at
the lower end of the IPDM E/R cover A (1).

5.

Disconnect the harness connector and remove IPDM E/R (2).

6.

Remove the bolt (A) and remove the bracket (1) from the vehi-
cle.

INSTALLATION

Install in the reverse order of removal.

JPMIA0060ZZ

JPMIA0061ZZ

PCS-36

< BASIC INSPECTION >

[POWER DISTRIBUTION SYSTEM]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

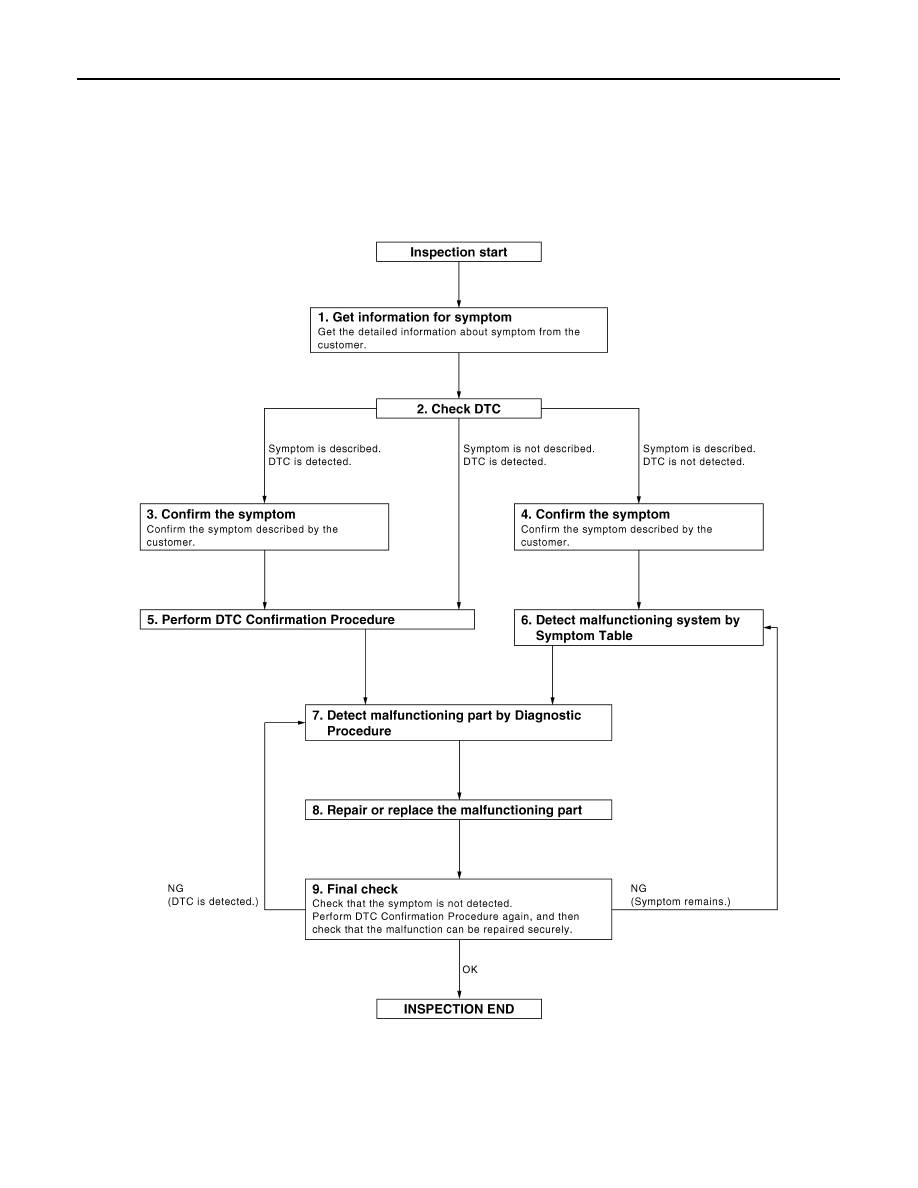

Work Flow

INFOID:0000000001911569

OVERALL SEQUENCE

DETAILED FLOW

JMKIA0676GB
