Infiniti G37 Coupe. Manual - part 919





MWI-22

< FUNCTION DIAGNOSIS >

METER SYSTEM

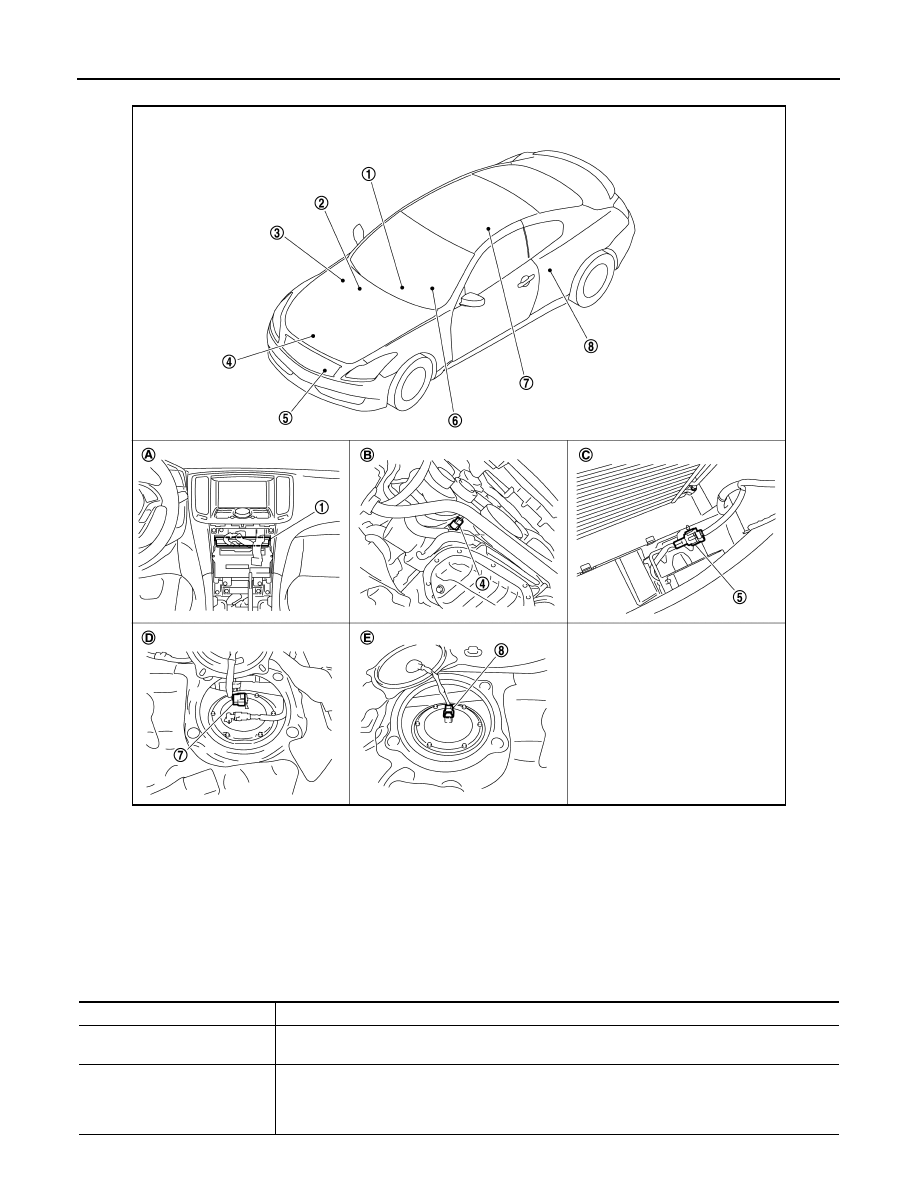

SHIFT POSITION INDICATOR : Component Parts Location

INFOID:0000000001672054

SHIFT POSITION INDICATOR : Component Description

INFOID:0000000001606629

JPNIA0501ZZ

1.

Unified meter and A/C amp.

2.

BCM

3.

IPDM E/R

4.

Oil pressure switch

5.

Ambient sensor

6.

Combination meter

7.

Fuel level sensor unit and fuel pump
(main)

8.

Fuel level sensor unit (sub)

A.

Behind cluster lid C

B.

Oil pan (upper) RH side

C.

Condenser (front)

D.

Rear seat (lower right)

E.

Rear seat (lower left)

Unit

Description

Combination meter

Displays the shift position on the information display with shift position signal and manual mode in-
dicator signal received from unified meter and A/C amp.

Unified meter and A/C amp.

• Transmits the signals from the A/T device and paddle shifter to TCM with CAN communication

line.

• Transmits shift position signal and manual mode indicator signal received from TMC with CAN

communication line to the combination meter by means of communication line.

MWI

METER SYSTEM

MWI-23

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WARNING LAMPS/INDICATOR LAMPS

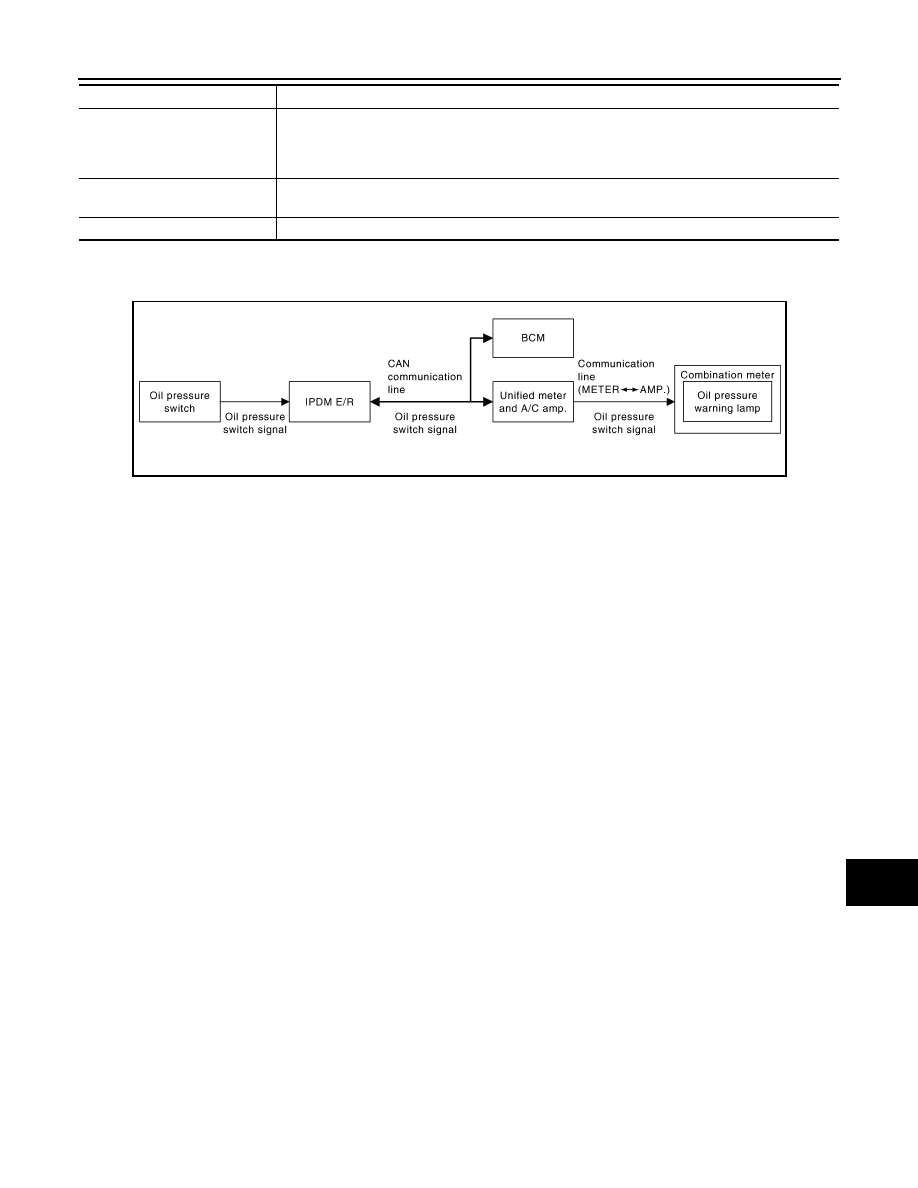

WARNING LAMPS/INDICATOR LAMPS : System Diagram

INFOID:0000000001606630

WARNING LAMPS/INDICATOR LAMPS : System Description

INFOID:0000000001606631

OIL PRESSURE WARNING LAMP

• IPDM E/R inputs oil pressure switch signal from oil pressure switch, and transmits the signal to unified meter

and A/C amp. through BCM with CAN communication line.

• Unified meter and A/C amp. transmits oil pressure switch signal to combination meter with communication

line.

• Let the combination meter turn oil pressure warning lamp ON with received oil pressure switch signal.

A/T device

Transmits the following signals to the unified meter and A/C amp.

• Manual mode signal

• Not manual mode signal

• Manual mode shift up signal

• Manual mode shift down signal

Paddle shifter

Transmits the paddle shifter up signal and paddle shifter down signal to the unified meter and A/C
amp.

TCM

Transmits shift position signal and manual mode indicator signal to the unified meter and A/C amp.

Unit

Description

JSNIA0163GB

MWI-24

< FUNCTION DIAGNOSIS >

METER SYSTEM

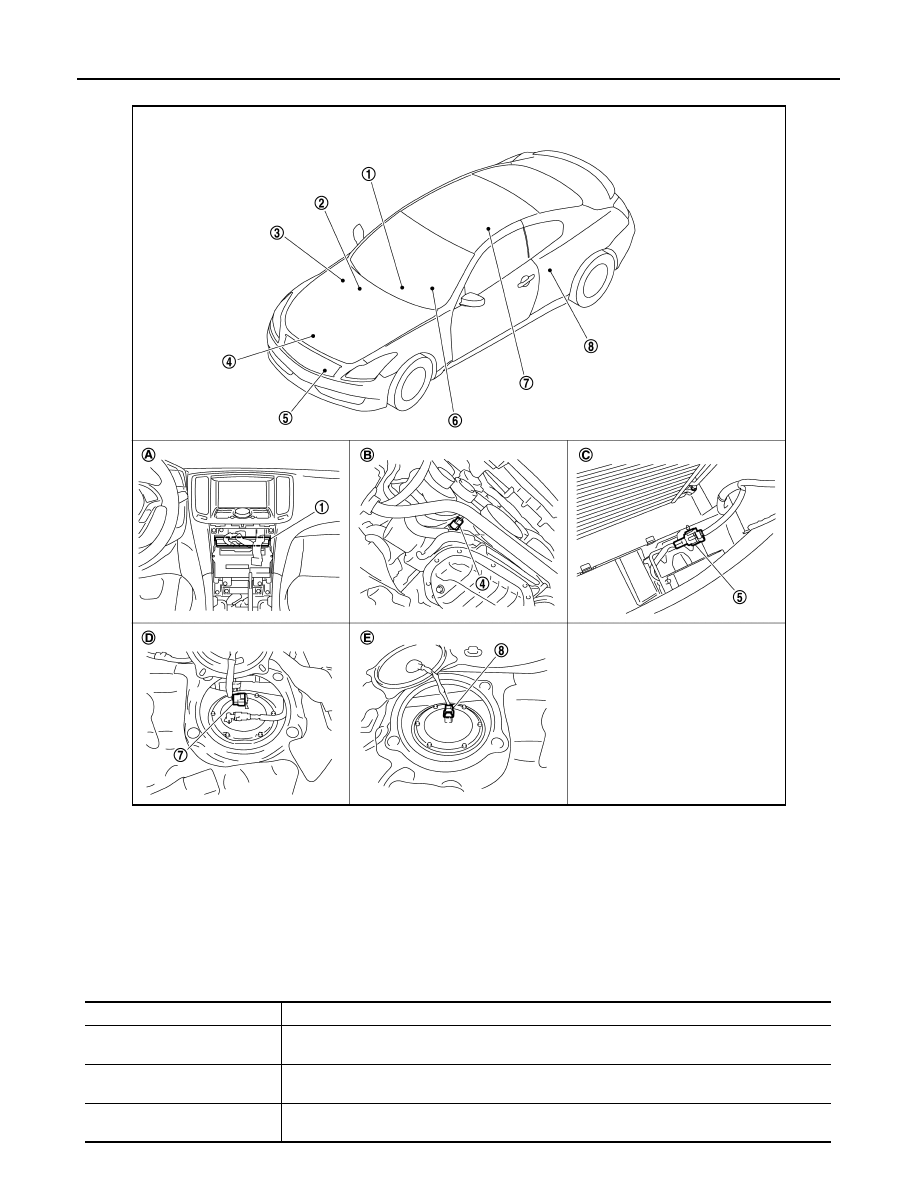

WARNING LAMPS/INDICATOR LAMPS : Component Parts Location

INFOID:0000000001672055

WARNING LAMPS/INDICATOR LAMPS : Component Description

INFOID:0000000001606633

JPNIA0501ZZ

1.

Unified meter and A/C amp.

2.

BCM

3.

IPDM E/R

4.

Oil pressure switch

5.

Ambient sensor

6.

Combination meter

7.

Fuel level sensor unit and fuel pump
(main)

8.

Fuel level sensor unit (sub)

A.

Behind cluster lid C

B.

Oil pan (upper) RH side

C.

Condenser (front)

D.

Rear seat (lower right)

E.

Rear seat (lower left)

Unit

Description

Combination meter

Turns the oil pressure warning lamp ON/OFF according to the oil pressure switch signal received
from the unified meter and A/C amp. by means of communication line.

Unified meter and A/C amp.

Transmits the oil pressure switch signal received from the IPDM E/R with BCM to the combination
meter by means of communication line.

IPDM E/R

IPDM E/R reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure
switch signal to the unified meter and A/C amp. via BCM with the CAN communication line.

MWI

METER SYSTEM

MWI-25

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER ILLUMINATION CONTROL

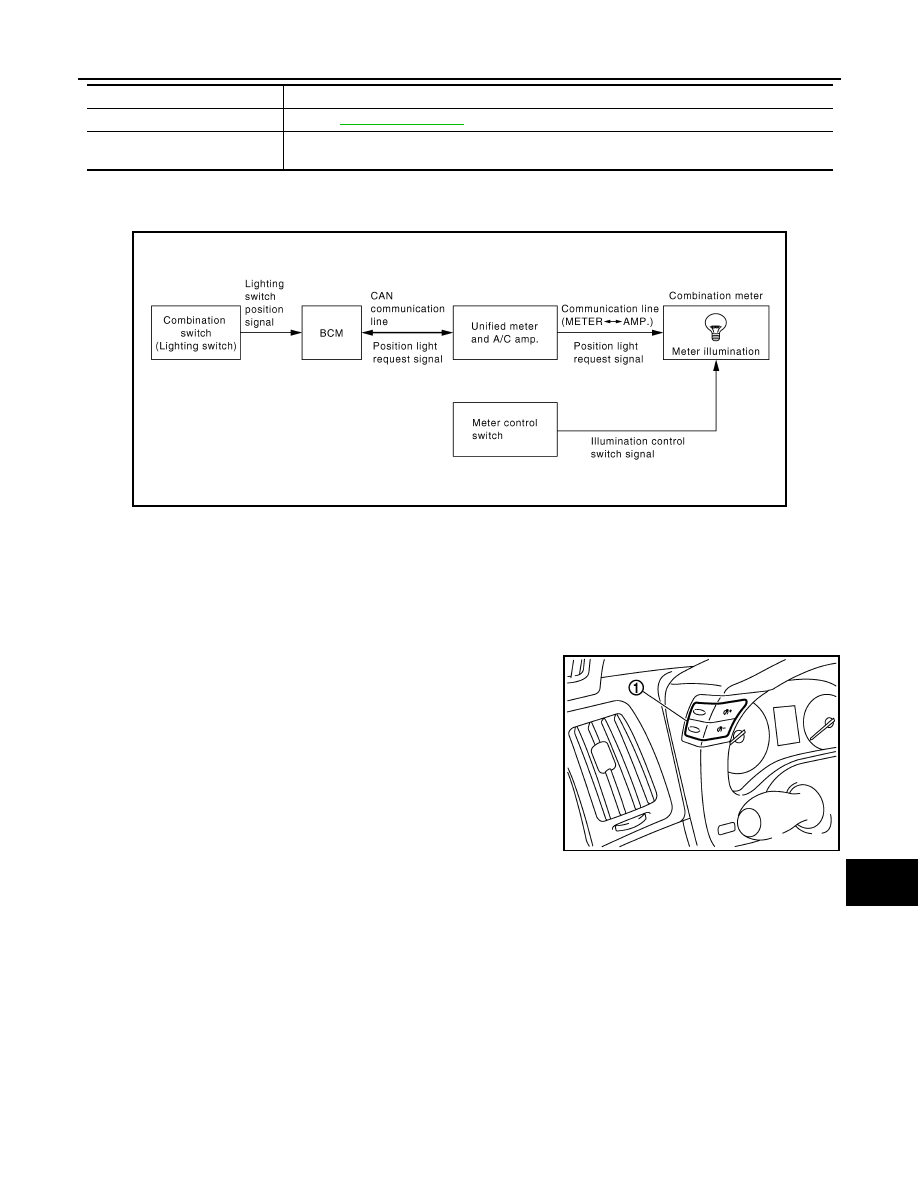

METER ILLUMINATION CONTROL : System Diagram

INFOID:0000000001606634

METER ILLUMINATION CONTROL : System Description

INFOID:0000000001606635

SYSTEM DESCRIPTION

The combination meter controls the meter illumination by the illumination control switch signal from the meter
control switch and the position light request signal transmitted by BCM with unified meter and A/C amp.

Daytime Mode

Meter illumination is adjusted to 5 steps by illumination control switch
(1) in daytime mode.

Nighttime Mode

• Combination meter is transferred to nighttime mode with position light request signal from BCM with CAN

communication line.

• Meter illumination is adjusted to 22 steps by illumination control switch in nighttime.

Oil pressure switch

Refer to

MWI-59, "Description"

.

BCM

Transmits the oil pressure switch signal received from IPDM E/R via CAN communication to the
unified meter and A/C amp. via CAN communication line.

Unit

Description

JSNIA0615GB

JSNIA0026GB
