GLASS MIRROR : Disassembly and Assembly
INFOID:0000000001831181
DISASSEMBLY
1.
Remove the pawls and disassemble the base cover.
2.
Place the glass mirror upward.
3.
Put a strip of protective tape (B) on housing assembly.
4.

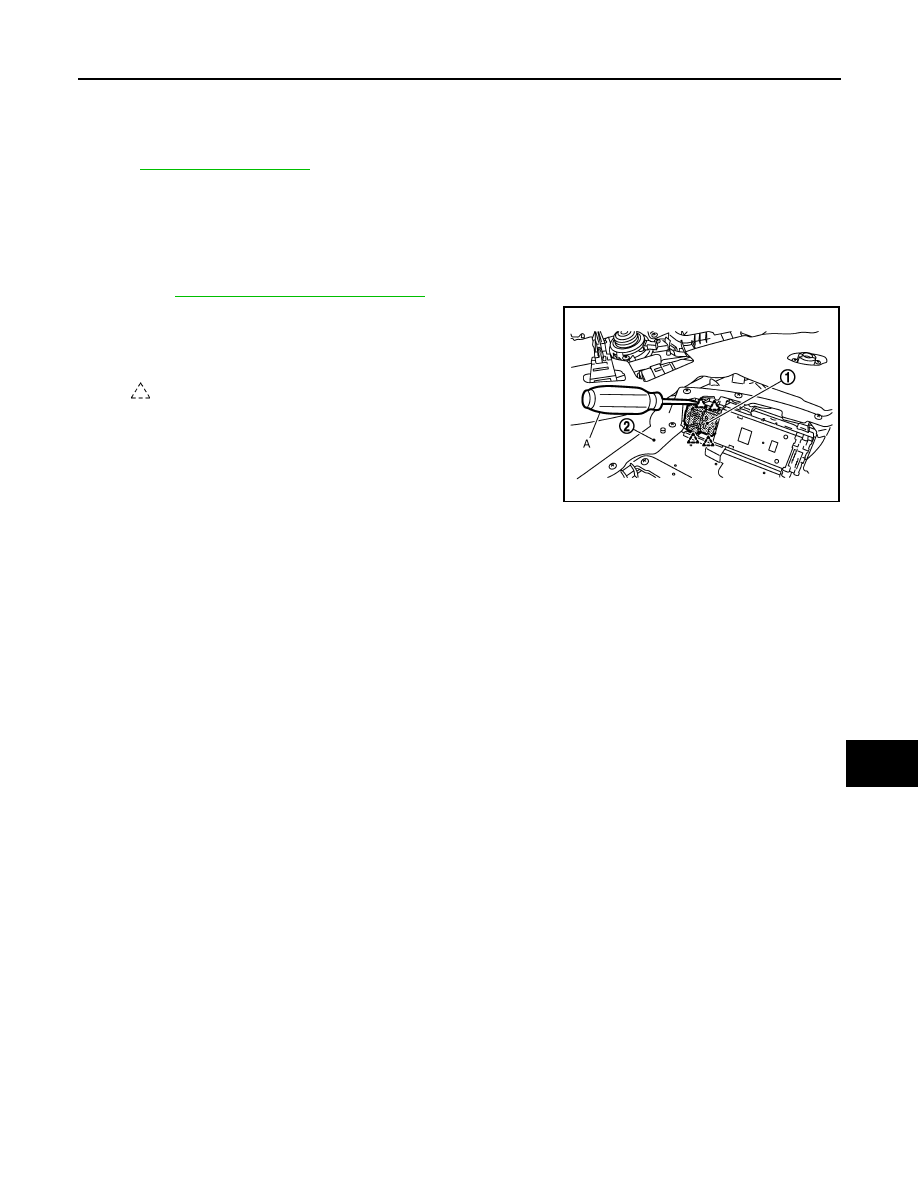

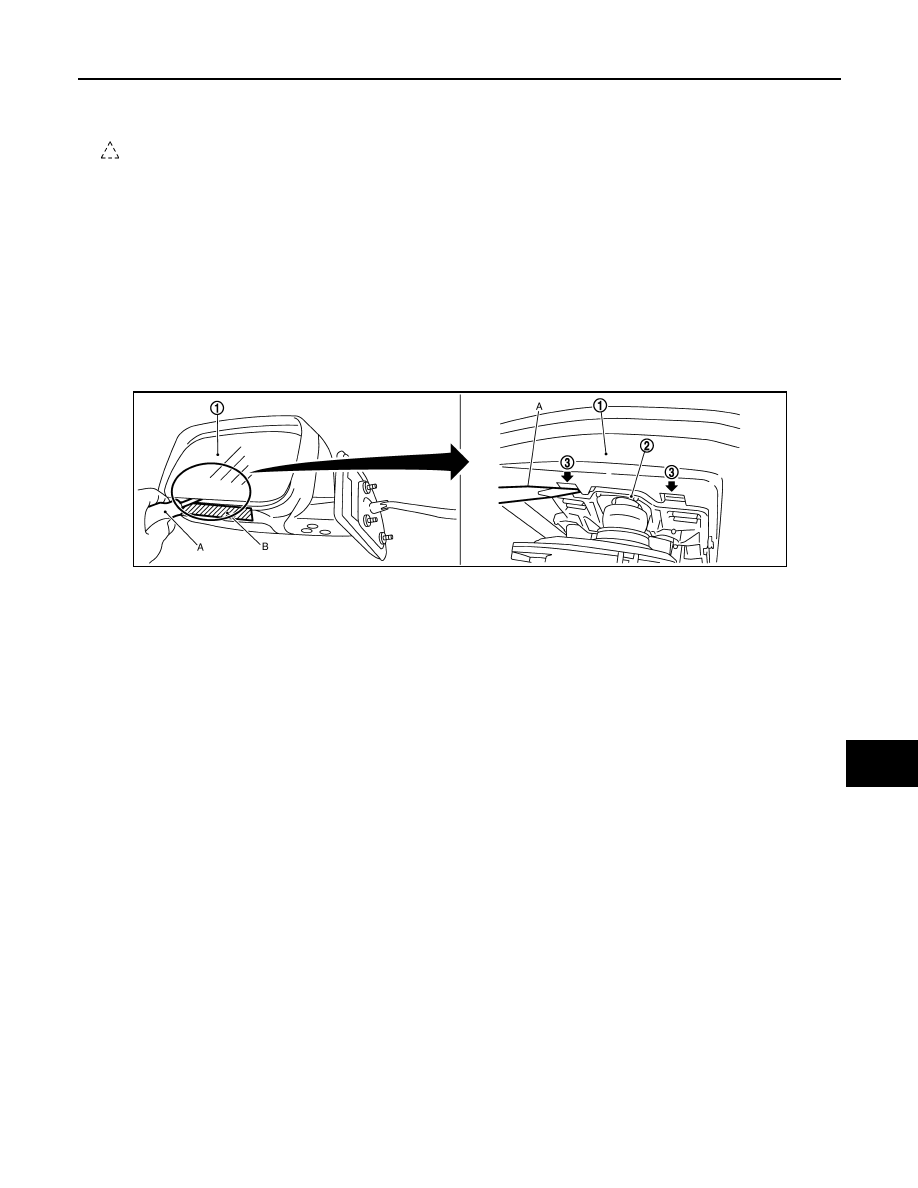

As shown in the figure, insert a small slotted screwdriver (A) into the recess between glass mirror (1) and
actuator (2). Push up two pawls (3) to remove glass mirror lower half side.
NOTE:
• When pushing up pawls do not attempt to use one recess only. Be sure to push up with both recesses.
• Insert screwdriver into recesses, and push up while rotating (twisting) to make work easier.
5.
Remove two terminals of mirror heater attachment.
6.
Lightly lift up lower side of glass mirror, and detach two pawls of upper side as if pulling it out. Disassem-
ble glass mirror from actuator.
NOTE:
Be certain not to allow grease on sealing agent in center of mirror or back side of glass mirror.
ASSEMBLY
Assemble in the reverse order of disassemble.
CAUTION:
After installation, visually check that pawls are securely engaged.
DOOR MIRROR COVER

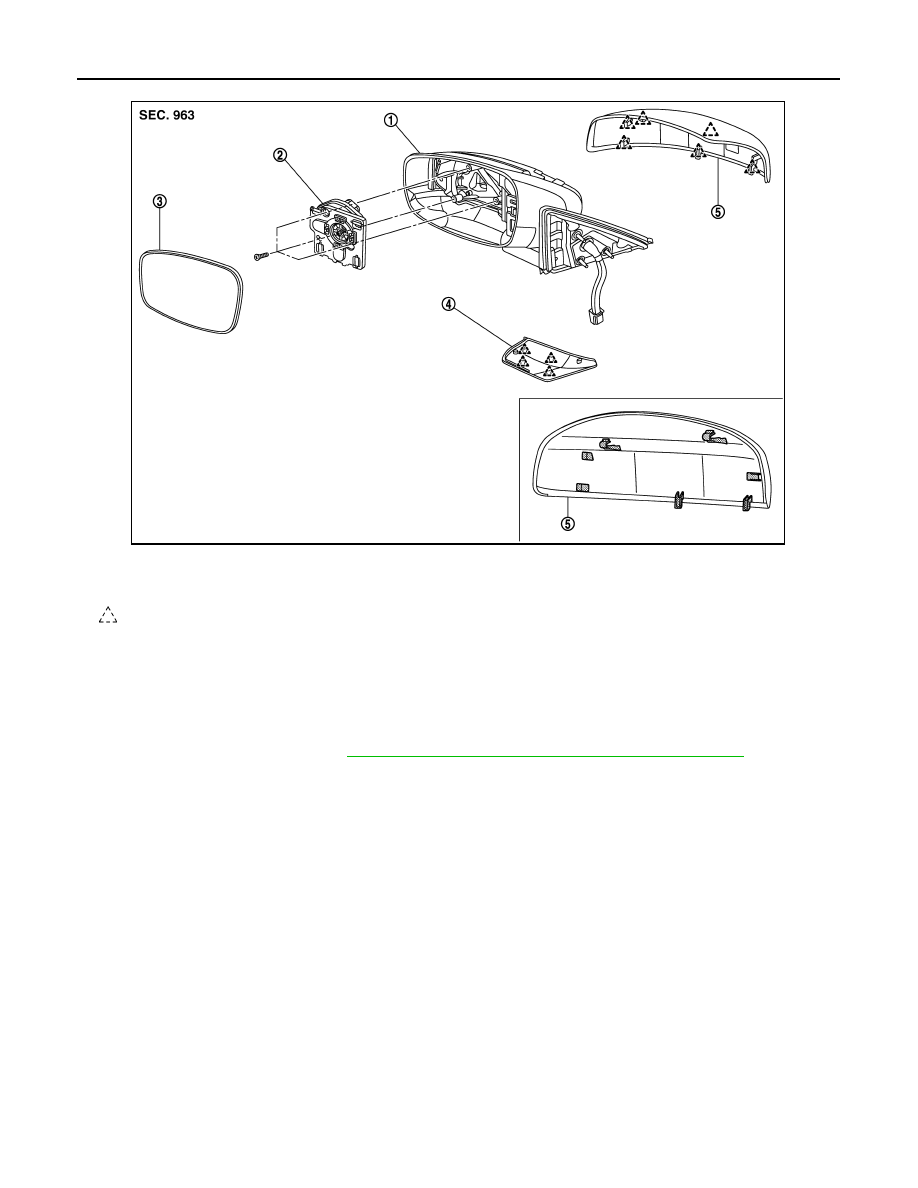

DOOR MIRROR COVER : Exploded View
INFOID:0000000001831192
DISASSEMBLY
1.
Mirror assembly
2.
Door mirror actuator
3.
Glass mirror
4.
Base cover
5.
Door mirror cover
: Pawl
JMLIA0056ZZ
