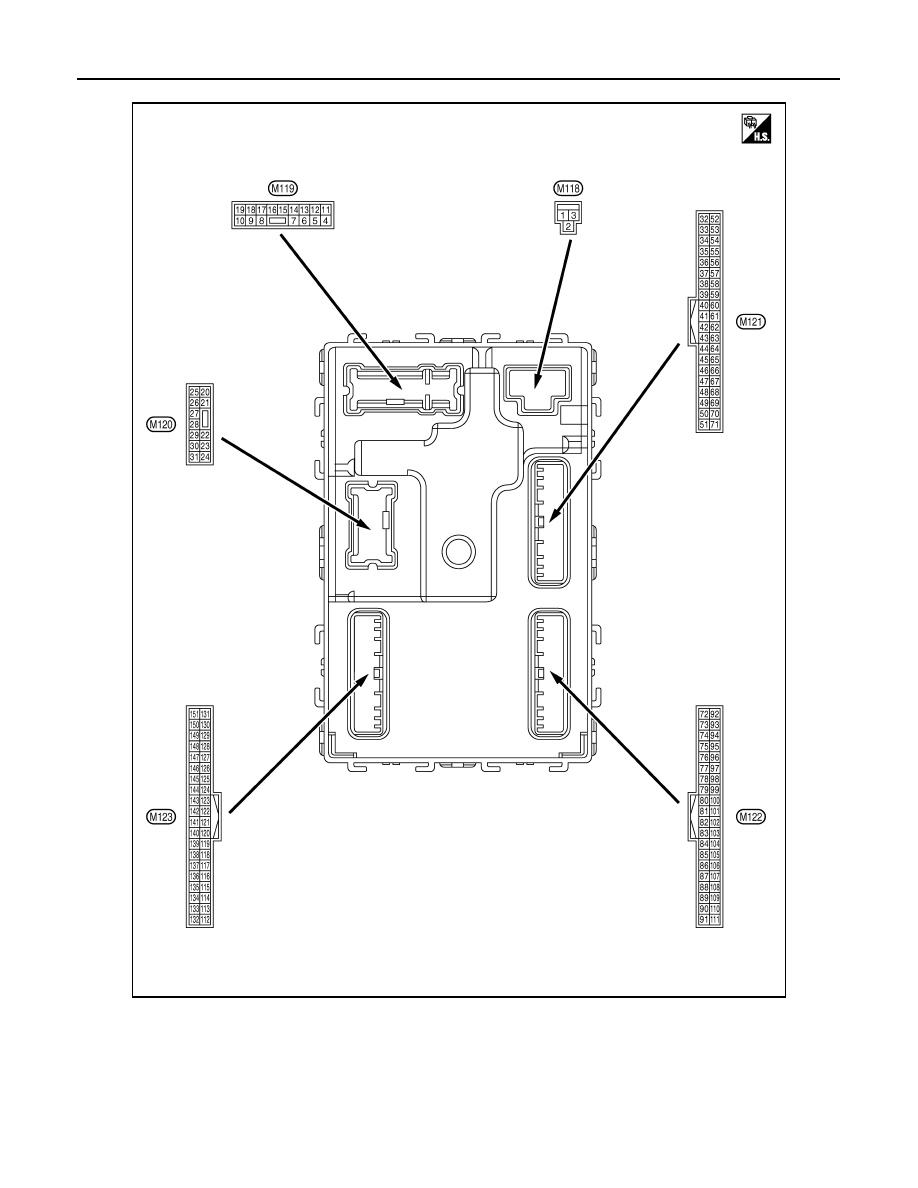

INL-50 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) VEH SPEED 1 While driving Equivalent to speedometer reading VEH SPEED 2 While driving Equivalent to speedometer reading DR DOOR STATE Driver door is locked LOCK Wait with selective UNLOCK operation (5 seconds) READY Driver door is unlocked UNLK AR DOOR STATE Passenger door is locked LOCK Wait with selective UNLOCK operation (5 seconds) READY Passenger door is unlocked UNLK ID OK FLAG Ignition switch in ACC or ON position Reset Ignition switch in OFF position Set PRMT ENG STRT The engine start is prohibited Reset The engine start is permitted Set PRMT RKE STRT NOTE: Reset KEY SW -SLOT Intelligent Key is not inserted into key slot Off Intelligent Key is inserted into key slot On RKE OPE COUN1 During the operation of Intelligent Key Operation frequency of Intelligent Key RKE OPE COUN2 NOTE: — CONFRM ID ALL The key ID that the key slot receives does not accord with any key Yet The key ID that the key slot receives accords with any key ID regis- DONE CONFIRM ID4 The key ID that the key slot receives does not accord with the fourth Yet The key ID that the key slot receives accords with the fourth key ID DONE CONFIRM ID3 The key ID that the key slot receives does not accord with the third Yet The key ID that the key slot receives accords with the third key ID DONE CONFIRM ID2 The key ID that the key slot receives does not accord with the sec- Yet The key ID that the key slot receives accords with the second key DONE CONFIRM ID1 The key ID that the key slot receives does not accord with the first Yet The key ID that the key slot receives accords with the first key ID DONE TP 4 The ID of fourth Intelligent Key is not registered to BCM Yet The ID of fourth Intelligent Key is registered to BCM DONE TP 3 The ID of third Intelligent Key is not registered to BCM Yet The ID of third Intelligent Key is registered to BCM DONE TP 2 The ID of second Intelligent Key is not registered to BCM Yet The ID of second Intelligent Key is registered to BCM DONE TP 1 The ID of first Intelligent Key is not registered to BCM Yet The ID of first Intelligent Key is registered to BCM DONE Monitor Item Condition Value/Status |
