CONSULT-III/GST CHECKING SYSTEM
GI-47
< BASIC INSPECTION >
C
D
E
F
G
H
I
J
K
L
M
B
GI
N
O
P
x: Applicable
*1 : If GST application is equipped, functions in accordance with SAE J1979 and ISO 15031-5 can be used.

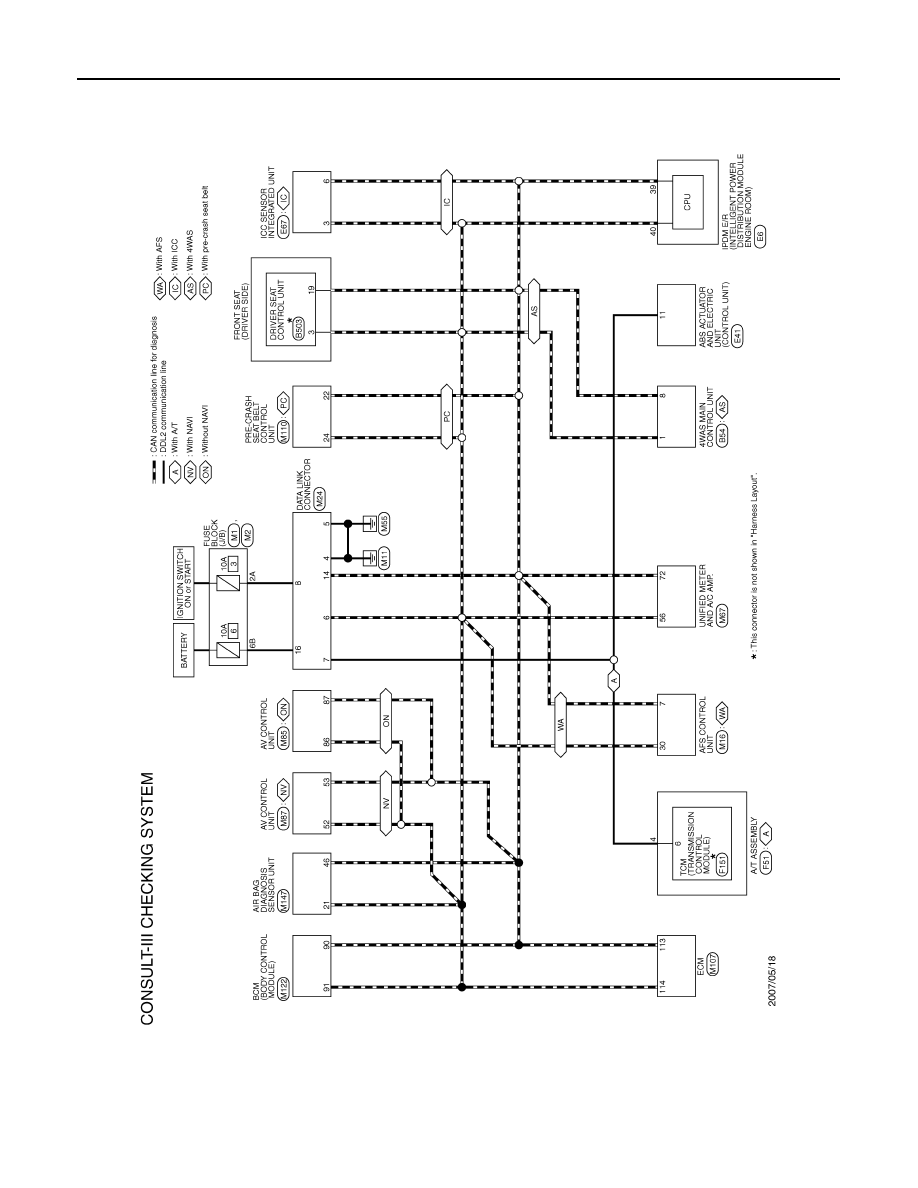

CONSULT-III/GST Data Link Connector (DLC) Circuit
INFOID:0000000001679209
INSPECTION PROCEDURE
If the CONSULT-III/GST cannot diagnose the system properly, check the following items.
NOTE:
The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A
short in a DDL circuit connected to a control unit in one system may affect CONSULT-III access to other sys-
tems.
If the GST cannot operate properly, check the circuit based on the information of SAE J1962 and ISO 15031-
3.
Function test
This mode can show results of self-diagnosis
of ECU with either 'OK' or 'NG'. For engines,
more practical tests regarding sensors/
switches and/or actuators are available.
x
-
x
-
-
-
x
-
-
-
-
-
-
-
Configration
Function to READ/WRITE vehicle configura-
tion on BCM.
-
-
-
-
x
-
-
-
-
-
-
-
-
-
AV COMM moni-
tor
The condition of AV communication can be In-
dicated.
-
-
-
-
-
-
-
-
-
-
-
-
x
-
Diagnostic test
mode
Function
ENGINE
TRANSMISSION
AIR BAG
METER/M
&
A
BCM
AUT
O
DRIV
E POS.
ABS (Includi
ng
VDC)
IP
DM E/
R
ICC
4W
AS(F
R
ONT)
4W
AS(MA
IN)/RAS/HI
C
A
S
ADAP
T
IVE LIGHT
MUL
T
I A
V
PRE CRASH SE
A
T
BEL
T
Symptom
Check item
CONSULT-III/GST cannot ac-
cess any system.
• CONSULT-III/GST DLC power supply circuit (Terminal 8 and 16) and ground circuit (Terminal 4 and
5)
CONSULT-III cannot access in-
dividual system. (Other sys-
tems can be accessed.)
• Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wiring
diagram for each system.)
• Open or short circuit between the system and CONSULT-III DLC (For detailed circuit, refer to wiring
diagram for each system.)
• Open or short circuit CAN communication line. Refer to
