FSU-18

< ON-VEHICLE REPAIR >

UPPER LINK

- If it is outside the specified range, replace upper link assembly.

INSPECTION AFTER INSTALLATION

• Check wheel alignment. Refer to

FSU-25, "Wheel Alignment"

.

• Adjust neutral position of steering angle sensor after checking wheel alignment. Refer to

BRC-8, "ADJUST-

MENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

Standard

Axial end play

: Refer to

FSU-25, "Ball

Joint"

.

FRONT STABILIZER

FSU-19

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

FRONT STABILIZER

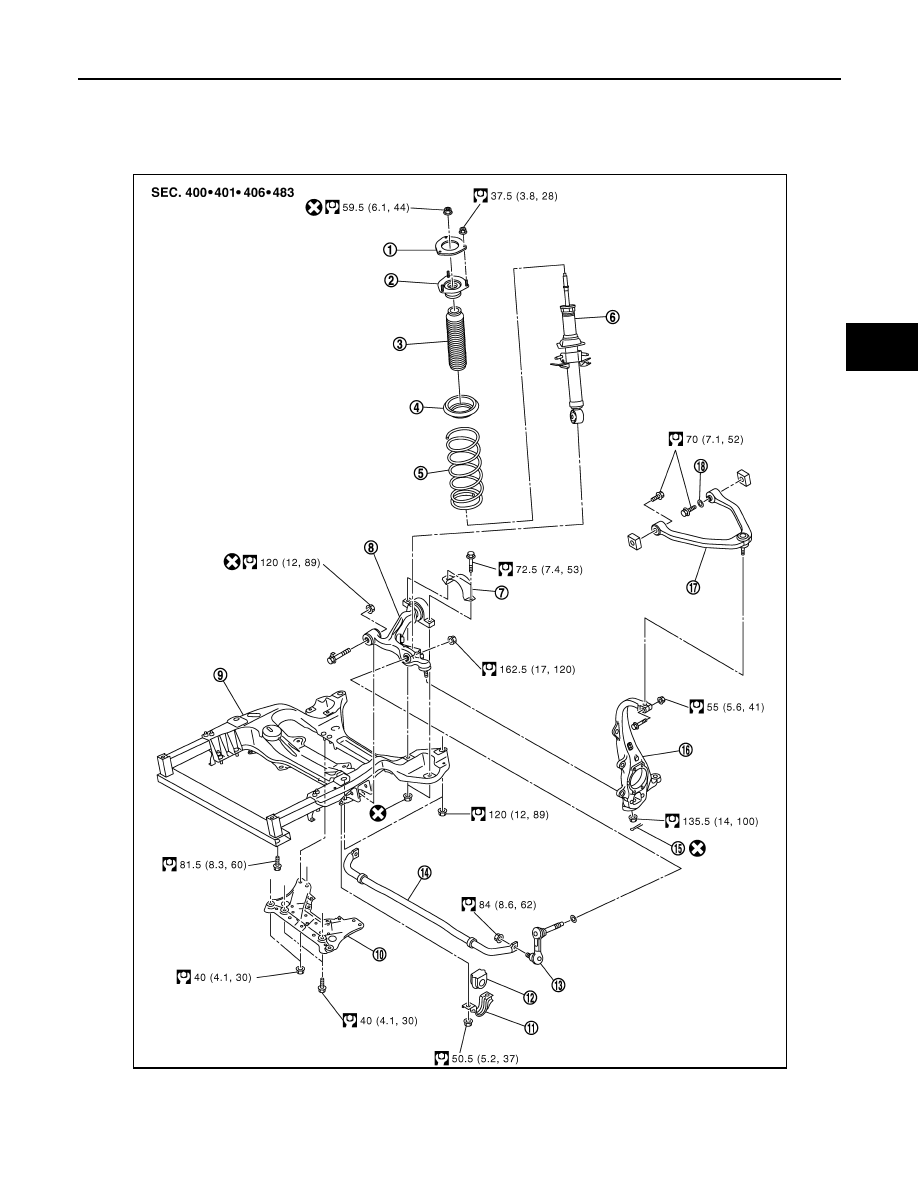

Exploded View

INFOID:0000000001666577

1.

Mounting seal

2.

Shock absorber mounting bracket

3.

Bound bumper

4.

Rubber seat

5.

Coil spring

6.

Shock absorber

7.

Insulator

8.

Transverse link

9.

Front suspension member

JPEIA0053GB

FSU-20

< ON-VEHICLE REPAIR >

FRONT STABILIZER

Removal and Installation

INFOID:0000000001666563

REMOVAL

1.

Remove tires with power tool.

2.

Remove under cover with power tool.

3.

Remove the mounting nut on the lower side of stabilizer connecting rod with power tool, and then remove
stabilizer connecting rod from stabilizer bar.

4.

Remove the mounting nuts of stabilizer clamp, and then remove stabilizer clamp and stabilizer bushing.

5.

Remove stabilizer bar.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000001666564

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp for deformation, cracks
or damage. Replace it if a malfunction is detected.

10. Suspension member stay

11. Stabilizer clamp

12. Stabilizer bushing

13. Stabilizer connecting rod

14. Stabilizer bar

15. Cotter pin

16. Steering knuckle

17. Upper link

18. Stopper rubber

Refer to

GI-4, "Components"

 for symbols in the figure.

FRONT SUSPENSION MEMBER

FSU-21

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

FRONT SUSPENSION MEMBER

Exploded View

INFOID:0000000001666578

1.

Mounting seal

2.

Shock absorber mounting bracket

3.

Bound bumper

4.

Rubber seat

5.

Coil spring

6.

Shock absorber

7.

Insulator

8.

Transverse link

9.

Front suspension member

JPEIA0053GB
