EXT-42

< ON-VEHICLE REPAIR >

REAR SPOILER

2.

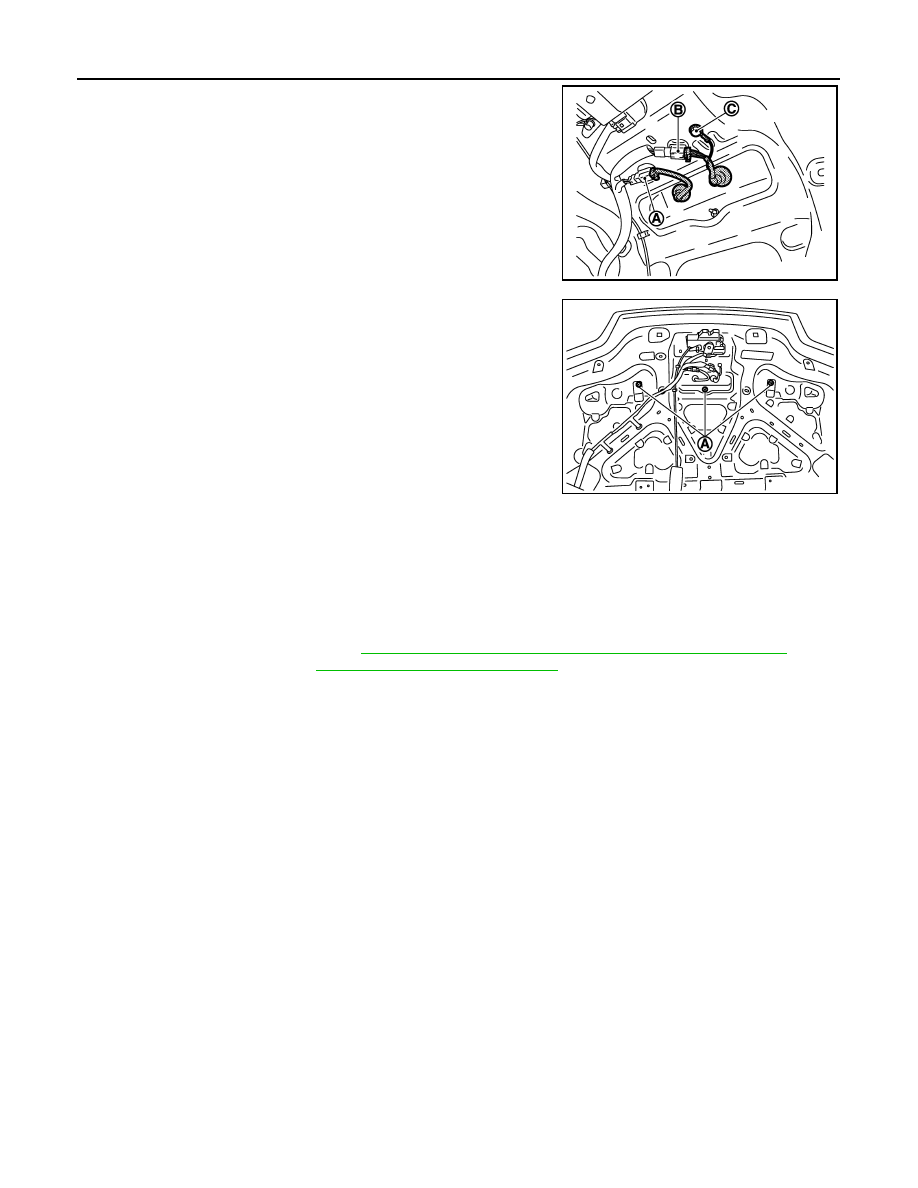

Disconnect harness connector (A) of high-mounted stop lamp.

3.

Disconnect harness connector (B) of rear view camera.

4.

Remove bolt (C).

5.

Remove rear spoiler mounting nuts (A).

6.

Release rear spoiler connection between trunk lid panel and rear spoiler, using a remover tool, and take
off double-faced adhesive tape.

7.

Disengage rear spoiler mounting clip, and then disconnect grommets of high-mounted stop lamp harness
and rear view camera harness.

8.

Remove rear spoiler.

9.

Remove following parts after removing rear spoiler.
• High-mounted stop lamp. Refer to

EXL-202, "WITH REAR SPOILER : Removal and Installation"

.

• Rear view camera. Refer to

AV-630, "Removal and Installation"

.

• Rear spoiler clip and grommet.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Be careful not to damage the body.
• Do not let air between contact surfaces when installing.
• To secure contact, do not wash vehicle within 24 hours after installation.

JMKIA1261ZZ

JMKIA1260ZZ

FAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

FAX

A

B

FAX

N

O

P

CONTENTS

FRONT AXLE

SYMPTOM DIAGNOSIS  ...............................

2

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

2

NVH Troubleshooting Chart  ......................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tool  ..........................................

3

ON-VEHICLE MAINTENANCE .....................

4

FRONT WHEEL HUB AND KNUCKLE  ..............

4

Inspection ..................................................................

4

ON-VEHICLE REPAIR ..................................

5

FRONT WHEEL HUB AND KNUCKLE  .............

5

Exploded View ..........................................................

5

Removal and Installation  ..........................................

5

Inspection .................................................................

6

SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................

7

SERVICE DATA AND SPECIFICATIONS
(SDS) ..................................................................

7

Wheel Bearing  ..........................................................

7

FAX-2

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000001666518

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

F

AX-5

—

F

AX-4

NVH in

F

AX

and FS

U sections

NVH in WT

section

NVH in WT

section

NVH in R

A

X

section.

NVH in BR

section

NVH in ST

section

Possible cause and SUSPECTED PARTS

Im

p

rop

er i

n

s

ta

lla

tio

n

,

lo

os

en

es

s

P

a

rt

s interference

W

he

el be

arin

g da

ma

ge

F

R

ONT

 AXLE AND FRONT S

U

SPENSION

TI

RE

ROAD W

H

EEL

DRIV

E SHAFT

BR

AK

E

S

T

EERING

Symptom

FRONT AXLE

Noise

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

Judder

×

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

PREPARATION

FAX-3

< PREPARATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

PREPARATION

PREPARATION

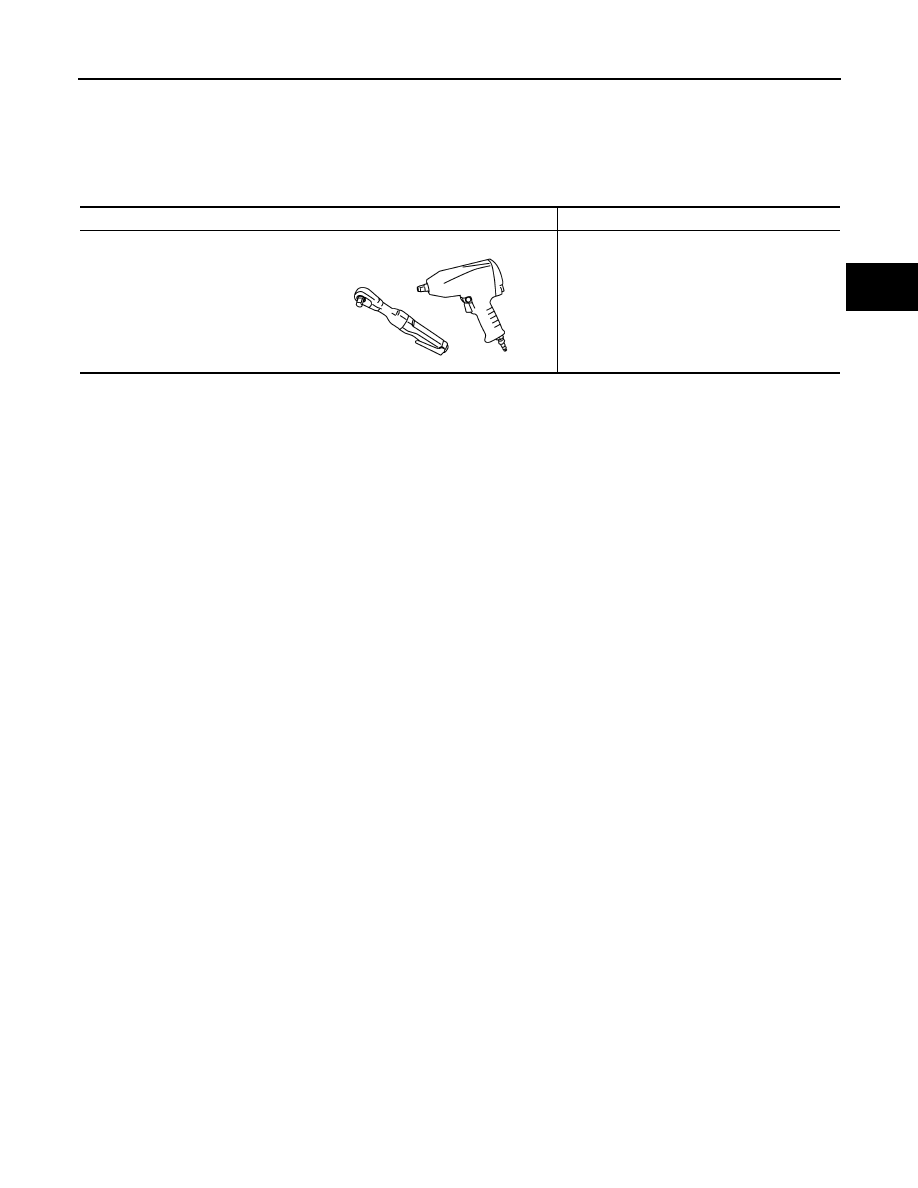

Commercial Service Tool

INFOID:0000000001666519

Tool name

Description

Power tool

Looseing bolts and nuts

PBIC0190E
