Infiniti G37 Coupe. Manual - part 703





EXT-26

< ON-VEHICLE REPAIR >

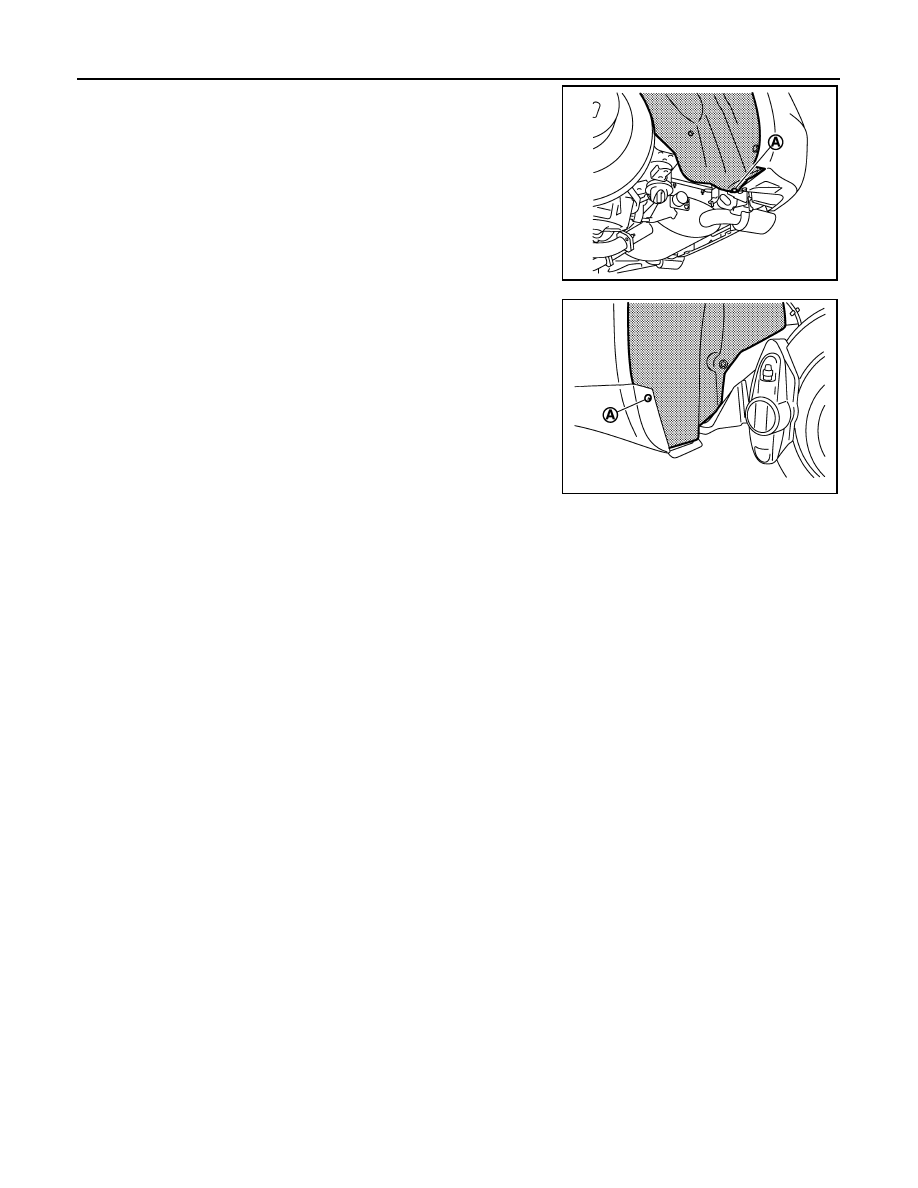

FENDER PROTECTOR

1.

Remove bolt (A) of rear wheel house protector rear end.

2.

Remove screw (A) of rear wheel house protector located center
mud guard.

3.

Remove rear wheel house protector mounting nuts and then remove rear wheel house protector.

INSTALLATION

Install in the reverse order of removal.

JMKIA1239ZZ

JMKIA1240ZZ

CENTER MUD GUARD

EXT-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

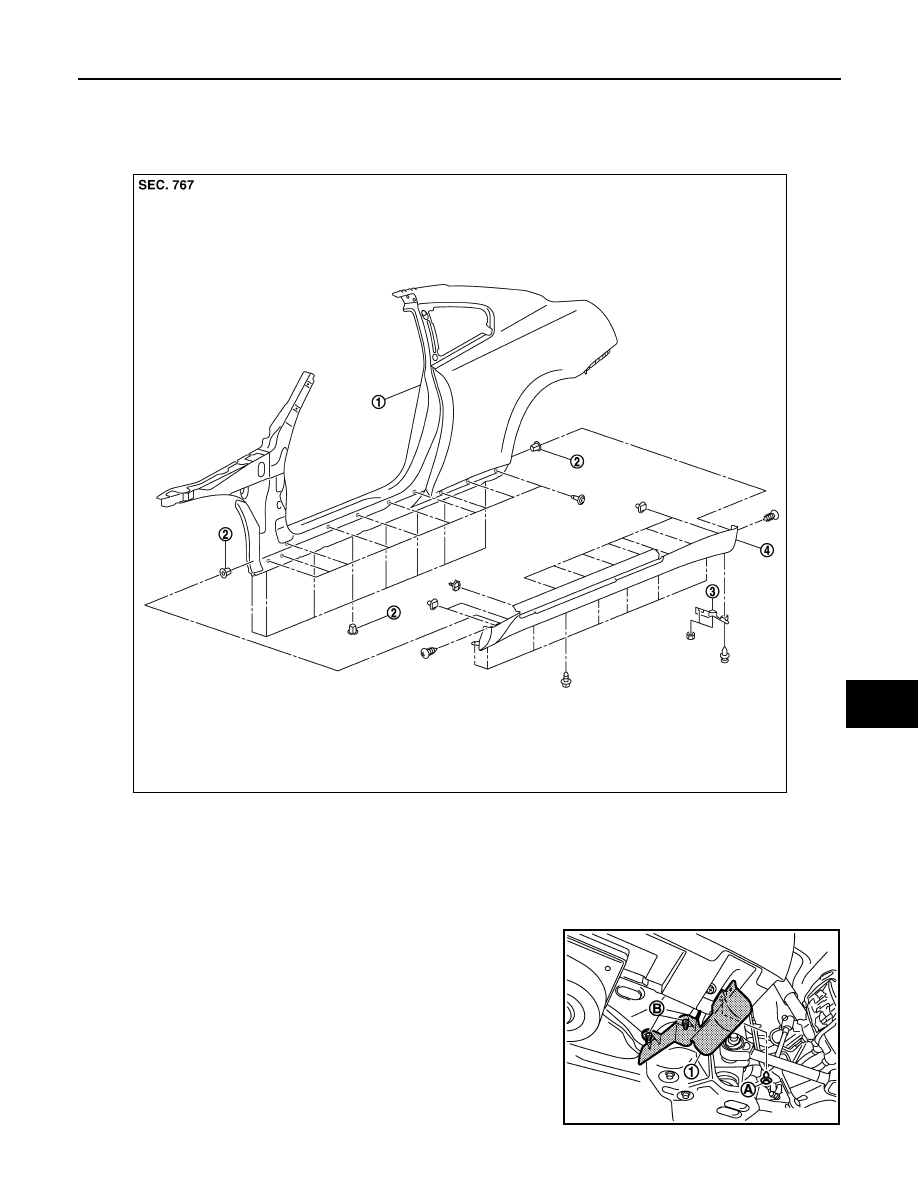

CENTER MUD GUARD

Exploded View

INFOID:0000000001677486

Removal and Installation

INFOID:0000000001677487

REMOVAL

1.

Remove wind deflector mounting clip (A) and nuts (B), and then
remove wind deflector (1).

1.

Body side outer

2.

Grommet

3.

Wind deflector

4.

Center mud guard

JMKIA1241ZZ

JMKIA1242ZZ

EXT-28

< ON-VEHICLE REPAIR >

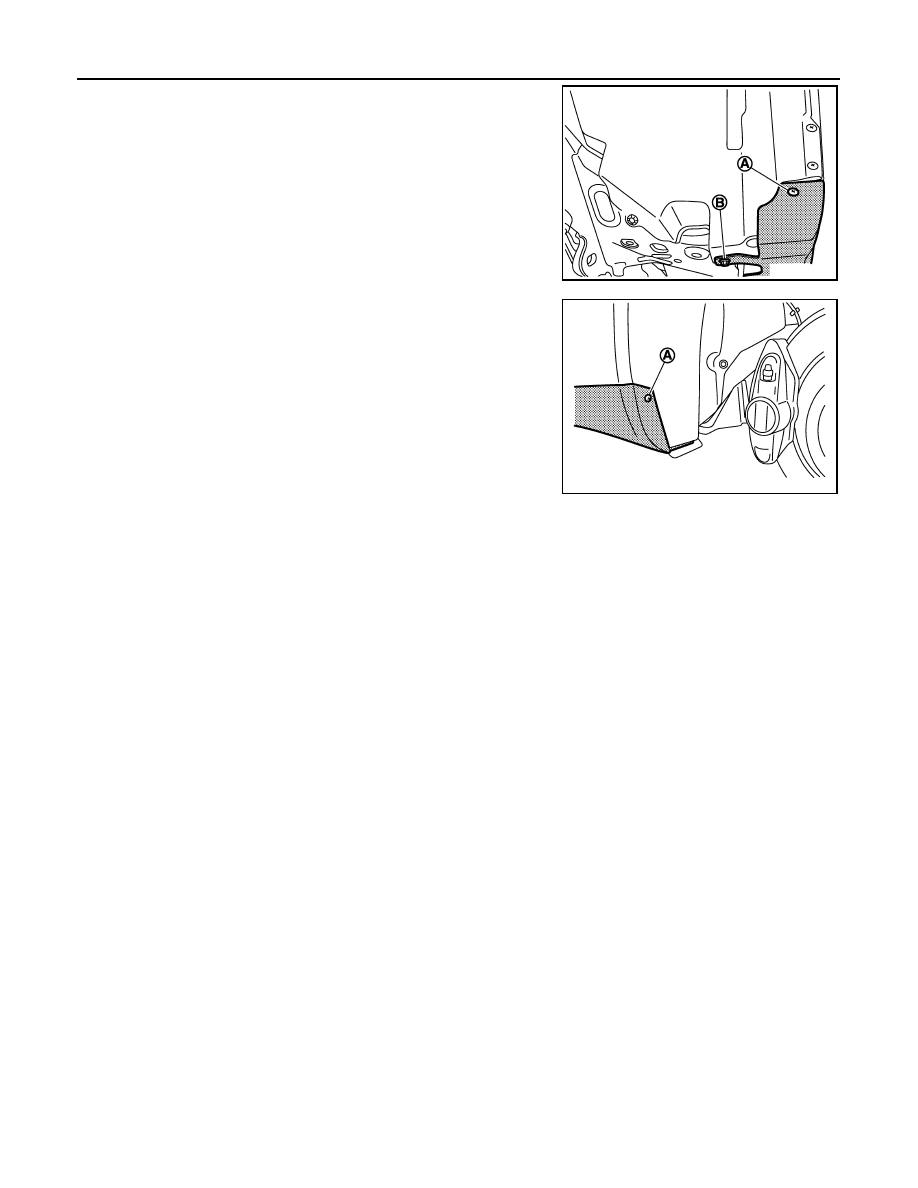

CENTER MUD GUARD

2.

Remove screw (A) and bolt (B) of center mud guard front end.

3.

Remove screw (A) of center mud guard rear end.

4.

Remove screws of center mud guard underside.

5.

Fully open front door and rear door.

6.

Remove clips from back of center mud guard using remover tool.

7.

Remove center mud guard from body side.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing center mud guard, make sure that clips are securely fitted in panel holes on body, and
then press them in.

JMKIA0111GB

JMKIA1243ZZ

FLOOR SIDE FAIRING

EXT-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

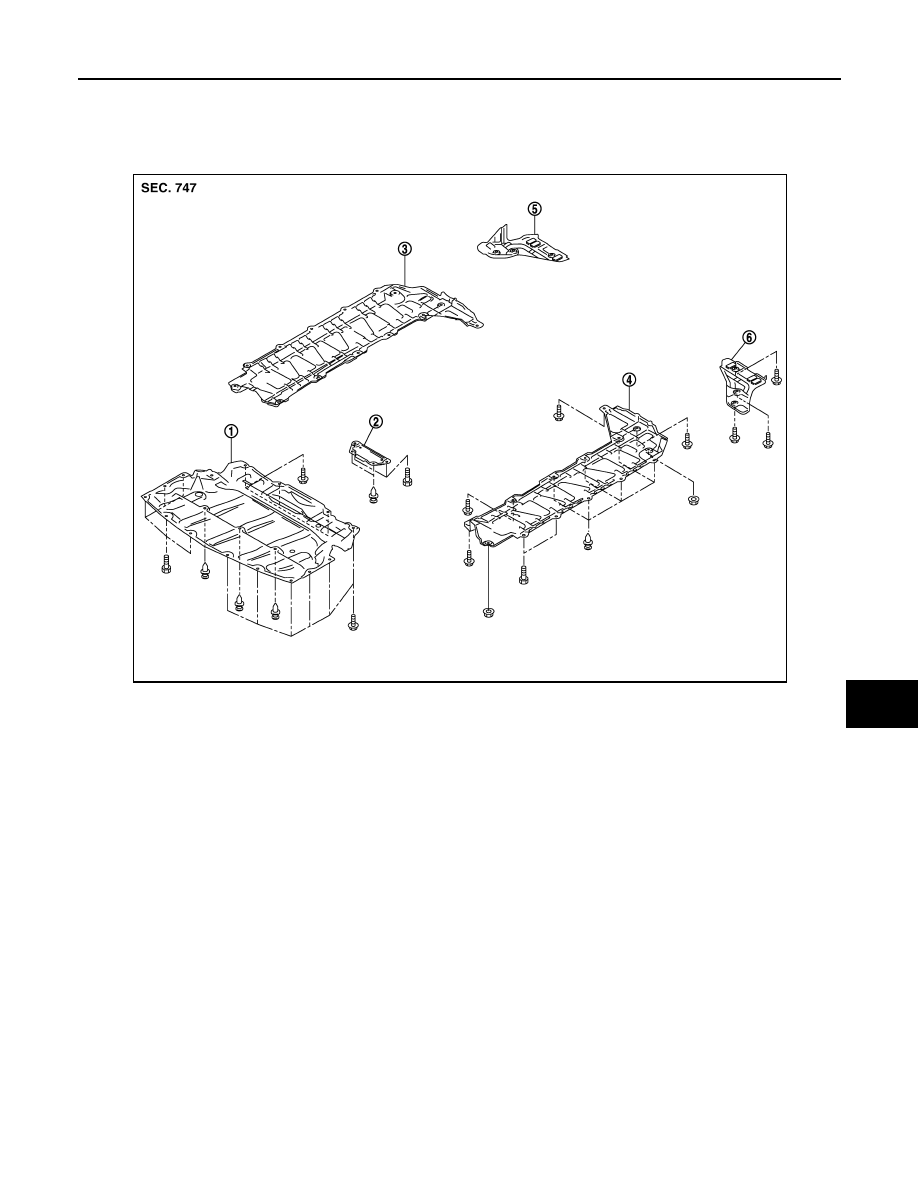

FLOOR SIDE FAIRING

Exploded View

INFOID:0000000001677488

Removal and Installation

INFOID:0000000001677489

REMOVAL

ENGINE LOWER COVER

1.

Remove engine lower cover mounting clips.

2.

Remove engine lower cover mounting bolts with power tool.

3.

Remove engine lower cover.

FRONT UNDER COVER

1.

Remove front under cover mounting clips.

2.

Remove front under cover mounting bolts with power tool.

3.

Remove front under cover.

FLOOR UNDER COVER (LH/RH)

1.

Remove floor under cover mounting clips.

2.

Remove floor under cover mounting bolts and nuts with power tool.

3.

Remove floor under cover.

REAR UNDER COVER (LH/RH)

1.

Remove rear under cover mounting bolts.

1.

Engine lower cover

2.

Front under cover

3.

Floor under cover RH

4.

Floor under cover LH

5.

Rear under cover RH

6.

Rear under cover LH

JMKIA1244ZZ
