EXT-10

< PRECAUTION >

PRECAUTIONS

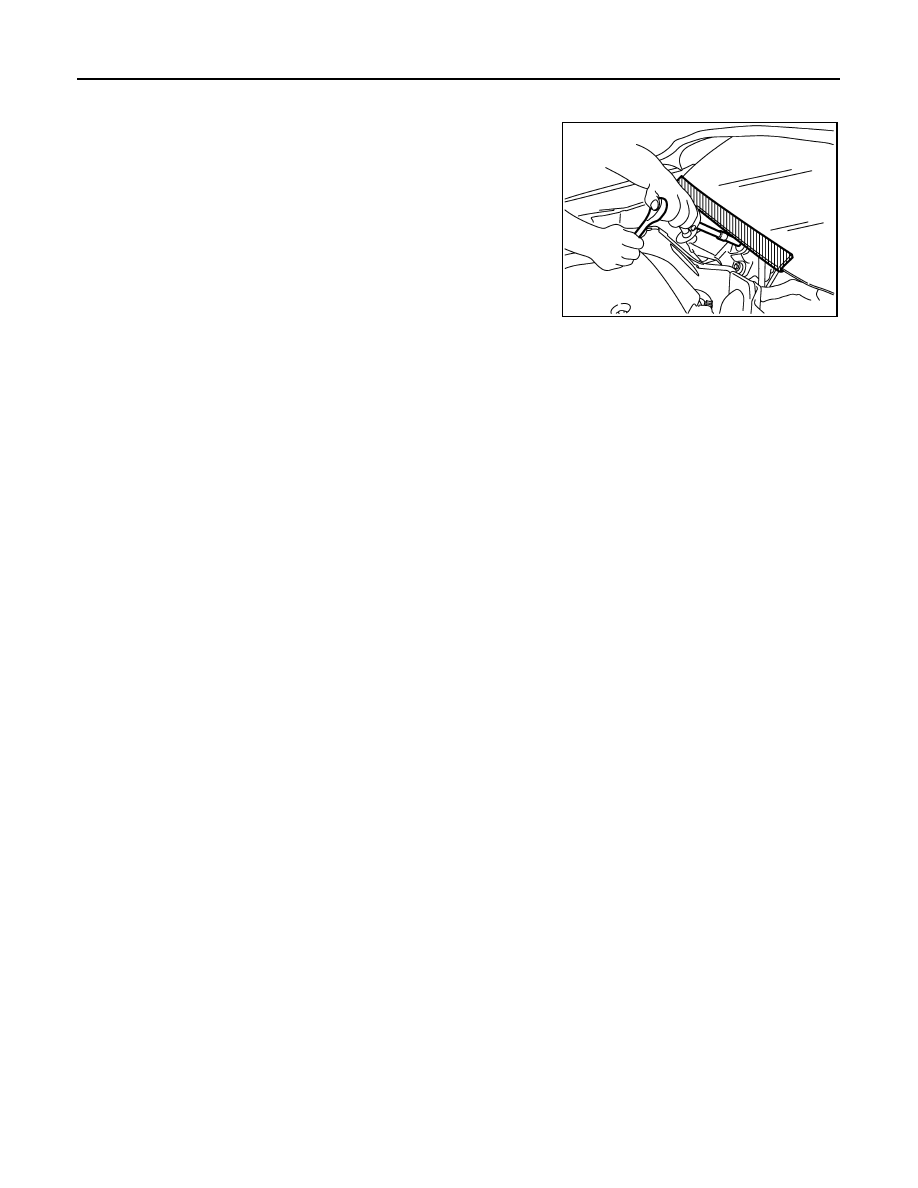

Precaution for Procedure without Cowl Top Cover

INFOID:0000000001722830

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Precaution for Work

INFOID:0000000001677473

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operation.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

PIIB3706J

PREPARATION

EXT-11

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

PREPARATION

PREPARATION

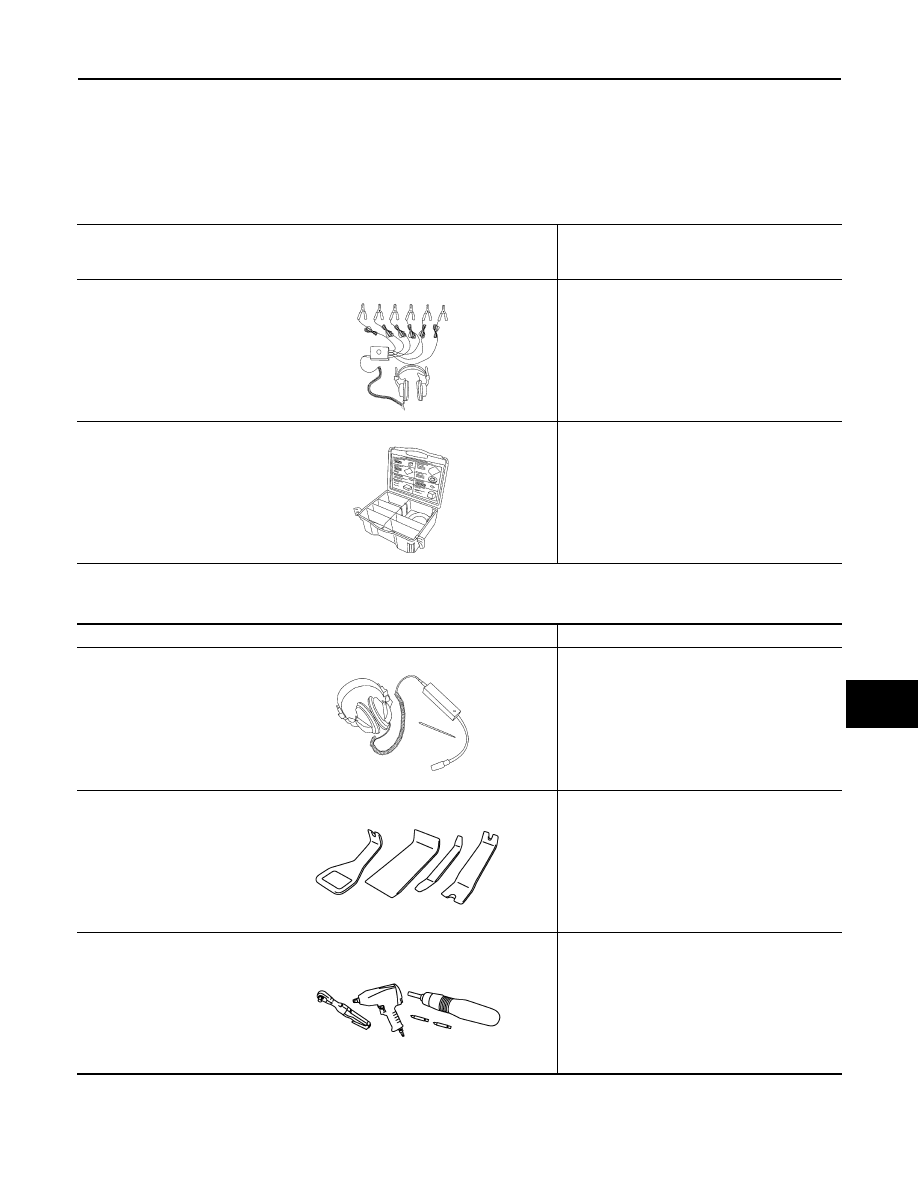

Special Service Tools

INFOID:0000000001677474

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000001677475

Tool number
(Kent-Moore No.)
Tool name

Description

(J-39570)
Chassis ear

Location the noise

(J-43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove clips, pawls, metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E

EXT-12

< ON-VEHICLE REPAIR >

FRONT BUMPER

ON-VEHICLE REPAIR

FRONT BUMPER

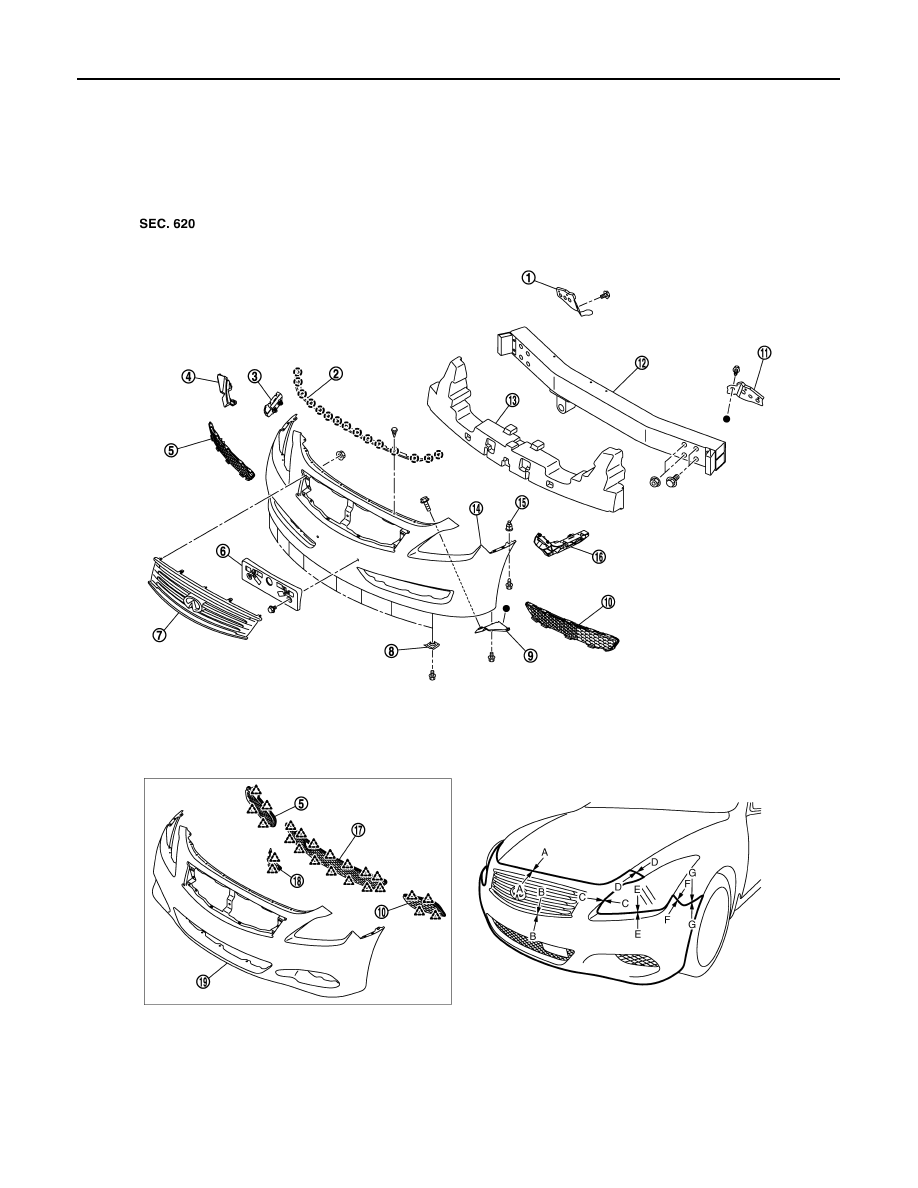

Exploded View

INFOID:0000000001677476

1.

Bumper bracket RH

2.

Hood seal assembly (front)

3.

Bumper side bracket RH

4.

Bumper side stiffener RH

5.

Bumper finisher RH

6.

License plate bracket

7.

Front grille

8.

J-nut

9.

Bumper side stiffener LH

10. Bumper finisher LH

11.

Bumper bracket LH

12. Bumper reinforcement

13. Energy absorber

14.

Bumper fascia assembly (normal)

15. Grommet

JMKIA1225ZZ

FRONT BUMPER

EXT-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

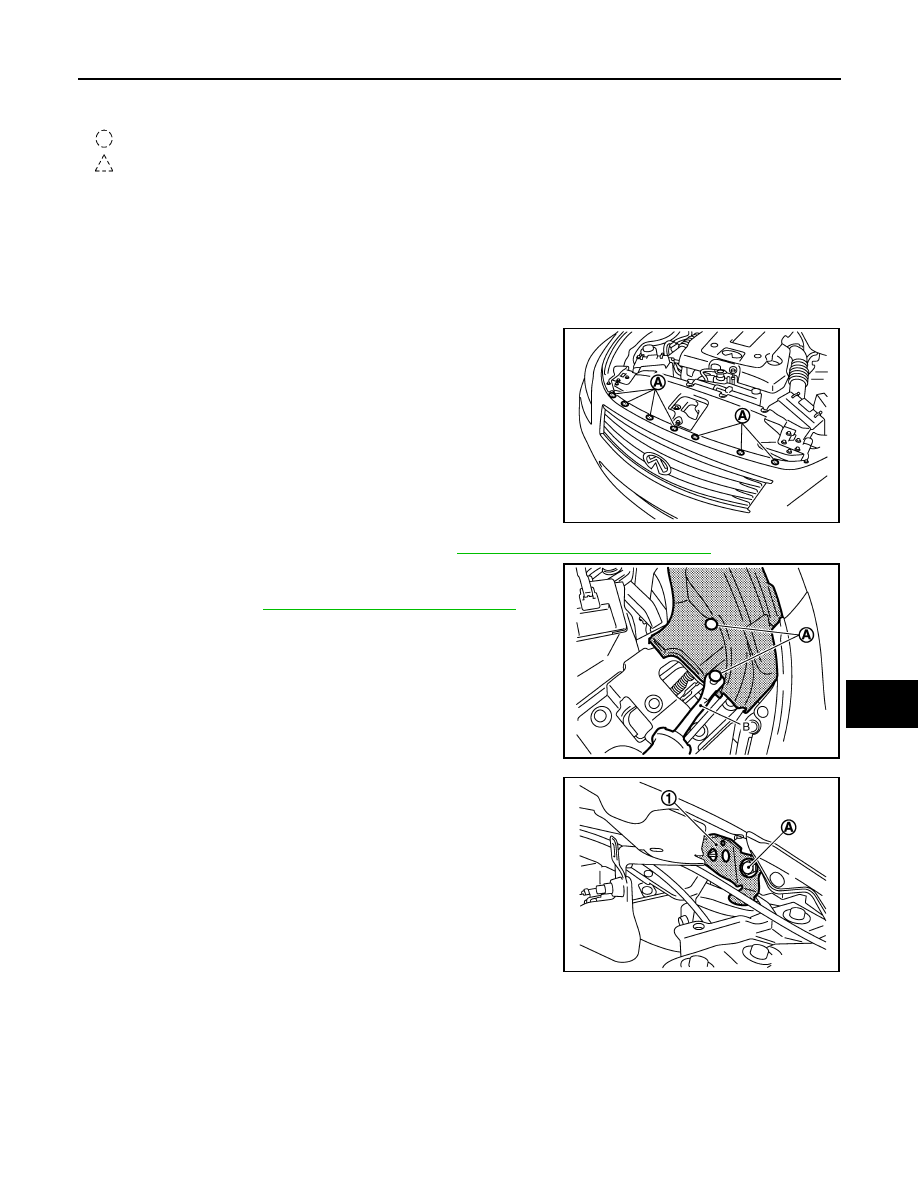

Removal and Installation

INFOID:0000000001677477

REMOVAL

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.
1.

Fully open hood assembly.

2.

Remove clips (A) of front bumper fascia upper side.

3.

Remove radiator core support ornament. Refer to

DLK-214, "Removal and Installation"

.

4.

Remove clips (A) of hood seal assembly (side) LH/RH with
remover tool (B), and then remove hood seal assembly located
front portion. Refer to

DLK-217, "Removal and Installation"

.

5.

Remove bolts (A), and then remove bumper bracket (1).

16. Bumper side bracket LH

17.

Bumper finisher (center)

18. Bumper bracket cover

19. Bumper fascia assembly (sports)

: Clip

: Pawl

JMKIA1226ZZ

JMKIA1227ZZ

JMKIA1228ZZ
