P1572 ICC BRAKE SWITCH

EC-441

< COMPONENT DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

22.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection (ICC Brake Switch)

INFOID:0000000001734262

1.

CHECK ICC BRAKE SWITCH-I

1.

Turn ignition switch OFF.

2.

Disconnect ICC brake switch harness connector.

3.

Check the continuity between ICC brake switch terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK ICC BRAKE SWITCH-II

1.

Adjust ICC brake switch installation. Refer to

BR-7, "Inspection and Adjustment"

.

2.

Check the continuity between ICC brake switch terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace ICC brake switch.

Component Inspection (ICC Clutch Switch)

INFOID:0000000001734263

1.

CHECK ICC CLUTCH SWITCH-I

1.

Turn ignition switch OFF.

2.

Disconnect ICC clutch switch harness connector.

3.

Check the continuity between ICC clutch switch terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK ICC CLUTCH SWITCH-II

1.

Adjust ICC clutch switch installation. Refer to

CL-5, "Inspection and Adjustment"

.

2.

Check the continuity between ICC clutch switch terminals under the following conditions.

Is the inspection result normal?

Terminals

Condition

Continuity

1 and 2

Brake pedal

Fully released

Existed

Slightly depressed

Not existed

Terminals

Condition

Continuity

1 and 2

Brake pedal

Fully released

Existed

Slightly depressed

Not existed

Terminals

Condition

Continuity

1 and 2

Clutch pedal

Fully released

Existed

Slightly depressed

Not existed

Terminals

Condition

Continuity

1 and 2

Clutch pedal

Fully released

Existed

Slightly depressed

Not existed

EC-442

< COMPONENT DIAGNOSIS >

[VQ37VHR]

P1572 ICC BRAKE SWITCH

YES

>> INSPECTION END

NO

>> Replace ICC clutch switch.

Component Inspection (Stop Lamp Switch)

INFOID:0000000001911037

1.

CHECK STOP LAMP SWITCH-I

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check the continuity between stop lamp switch terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK STOP LAMP SWITCH-II

1.

Adjust stop lamp switch installation. Refer to

BR-7, "Inspection and Adjustment"

.

2.

Check the continuity between stop lamp switch terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace stop lamp switch.

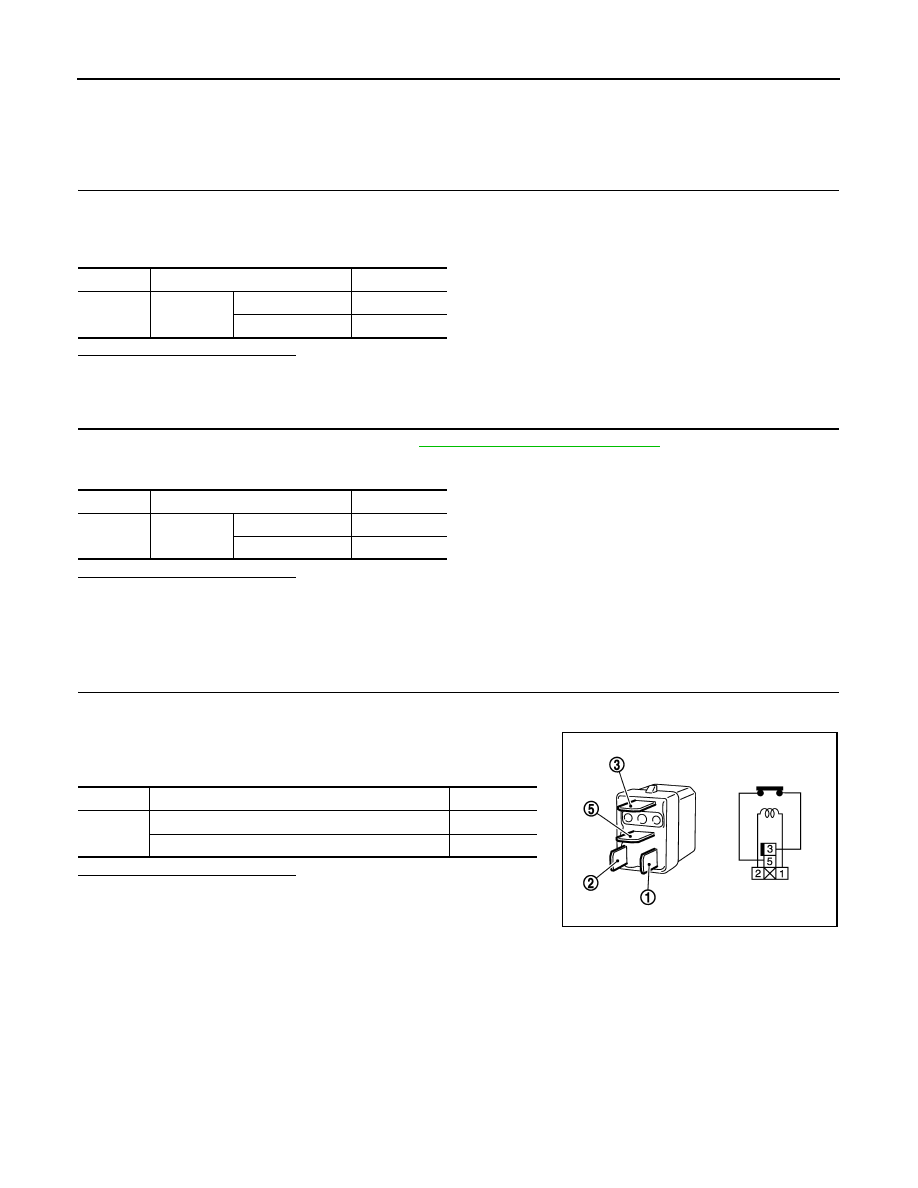

Component Inspection (ICC Brake Hold Relay)

INFOID:0000000001734265

1.

CHECK ICC BRAKE HOLD RELAY

1.

Turn ignition switch OFF.

2.

Remove ICC brake hold relay.

3.

Check the continuity between ICC brake hold relay terminals
under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace ICC brake hold relay

Terminals

Condition

Continuity

1 and 2

Brake pedal

Fully released

Not existed

Slightly depressed

Existed

Terminals

Condition

Continuity

1 and 2

Brake pedal

Fully released

Not existed

Slightly depressed

Existed

Terminals

Condition

Continuity

3 and 5

12V direct current supply between terminals 1 and 2

Existed

No current supply

Not existed

JMBIA0848ZZ

P1574 ASCD VEHICLE SPEED SENSOR

EC-443

< COMPONENT DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1574 ASCD VEHICLE SPEED SENSOR

Description

INFOID:0000000001734266

The ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from “unified
meter and A/C amp.”, and the other is from TCM (Transmission control module). The ECM uses these signals
for ASCD control. Refer to

EC-62, "System Description"

 for ASCD functions.

DTC Logic

INFOID:0000000001734267

DTC DETECTION LOGIC

NOTE:
• If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC U1000,

U1001. Refer to

EC-146, "DTC Logic"

.

• If DTC P1574 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer

to

EC-147, "DTC Logic"

.

• If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500. Refer

to

EC-337, "DTC Logic"

.

• If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer

to

EC-356, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine (VDC switch OFF).

2.

Drive the vehicle at more than 40 km/h (25 MPH).

CAUTION:

Always drive vehicle at a safe speed.
NOTE:
This procedure may be conducted with the drive wheels lifted in the shop or by driving the vehicle.
If a road test is expected to be easier, it is unnecessary to lift the vehicle.

3.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-443, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001734268

1.

CHECK DTC WITH TCM

Check DTC with TCM. Refer to

TM-111, "Diagnosis Description"

.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

P1574

ASCD vehicle speed
sensor

ECM detects a difference between two vehicle
speed signals is out of the specified range.

• Harness or connectors

(The CAN communication line is open or
shorted.)

• Unified meter and A/C amp.
• ABS actuator and electric unit (control unit)
• Wheel sensor
• TCM
• ECM

EC-444

< COMPONENT DIAGNOSIS >

[VQ37VHR]

P1574 ASCD VEHICLE SPEED SENSOR

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Perform trouble shooting relevant to DTC indicated.

2.

CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”

Refer to

BRC-26, "CONSULT-III Function"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace.

3.

CHECK DTC WITH “UNIFIED METER AND A/C AMP.”

Refer to

MWI-37, "CONSULT-III Function (METER/M&A)"

.

>> INSPECTION END
