P1236, P2118 THROTTLE CONTROL MOTOR

EC-397

< COMPONENT DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace.

3.

CHECK THROTTLE CONTROL MOTOR

Refer to

EC-397, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness or connectors.

5.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace malfunctioning electric throttle control actuator.

2.

Go to

EC-398, "Special Repair Requirement"

.

>> INSPECTION END

Component Inspection

INFOID:0000000001911020

1.

CHECK THROTTLE CONTROL MOTOR

1.

Turn ignition switch OFF.

2.

Disconnect electric throttle control actuator harness connector.

3.

Check resistance between electric throttle control actuator terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace malfunctioning electric throttle control actuator.

2.

Go to

EC-398, "Special Repair Requirement"

.

DTC

Electric throttle control actuator

ECM

Continuity

Bank

Connector

Terminal

Connector

Terminal

P1236

2

F27

5

F102

49

Existed

50

Not existed

6

49

Not existed

50

Existed

P2118

1

F6

1

F101

2

Existed

4

Not  existed

2

2

Not  existed

4

Existed

Electric throttle control actuator

Resistance

Bank

Terminals

1

1 and 2

Approx. 1 - 15

Ω

 [at 25

°

C (77

°

F)]

2

5 and 6

EC-398

< COMPONENT DIAGNOSIS >

[VQ37VHR]

P1236, P2118 THROTTLE CONTROL MOTOR

>> INSPECTION END

Special Repair Requirement

INFOID:0000000001910850

1.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-18, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

>> GO TO 2.

2.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-19, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

>> END

P1238, P2119 ELECTRIC THROTTLE CONTROL ACTUATOR

EC-399

< COMPONENT DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1238, P2119 ELECTRIC THROTTLE CONTROL ACTUATOR

Description

INFOID:0000000001734211

Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. The ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the throttle control motor to make the throttle valve opening
angle properly in response to driving condition.

DTC Logic

INFOID:0000000001734212

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A AND B

1.

Turn ignition switch ON and wait at least 1 second.

2.

Shift selector lever to D position (A/T) or 1st position (M/T) and wait at least 3 seconds.

3.

Shift selector lever to P position (A/T) or Neutral position (M/T).

4.

Turn ignition switch OFF and wait at least 10 seconds.

5.

Turn ignition switch ON and wait at least 1 second.

6.

Shift selector lever to D position (A/T) or 1st position (M/T) and wait at least 3 seconds.

7.

Shift selector lever to P position (A/T) or Neutral position (M/T).

8.

Turn ignition switch OFF, wait at least 10 seconds, and then turn ON.

9.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-400, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION C

1.

Turn ignition switch ON and wait at least 1 second.

2.

Shift selector lever to D position (A/T) or 1st position (M/T) and wait at least 3 seconds.

3.

Shift selector lever to P position (A/T) or Neutral position (M/T).

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1238

Electric throttle control
actuator (bank 2)

A)

Electric throttle control actuator does not func-
tion properly due to the return spring malfunc-
tion.

• Electric throttle control actuator

B)

Throttle valve opening angle in fail-safe mode is
not in specified range.

C)

ECM detect the throttle valve is stuck open.

P2119

Electric throttle control
actuator (bank 1)

A)

Electric throttle control actuator does not func-
tion properly due to the return spring malfunc-
tion.

B)

Throttle valve opening angle in fail-safe mode is
not in specified range.

C)

ECM detect the throttle valve is stuck open.

EC-400

< COMPONENT DIAGNOSIS >

[VQ37VHR]

P1238, P2119 ELECTRIC THROTTLE CONTROL ACTUATOR

4.

Start engine and let it idle for 3 seconds.

5.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-400, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001911019

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Turn ignition switch OFF.

2.

Remove the intake air duct.

3.

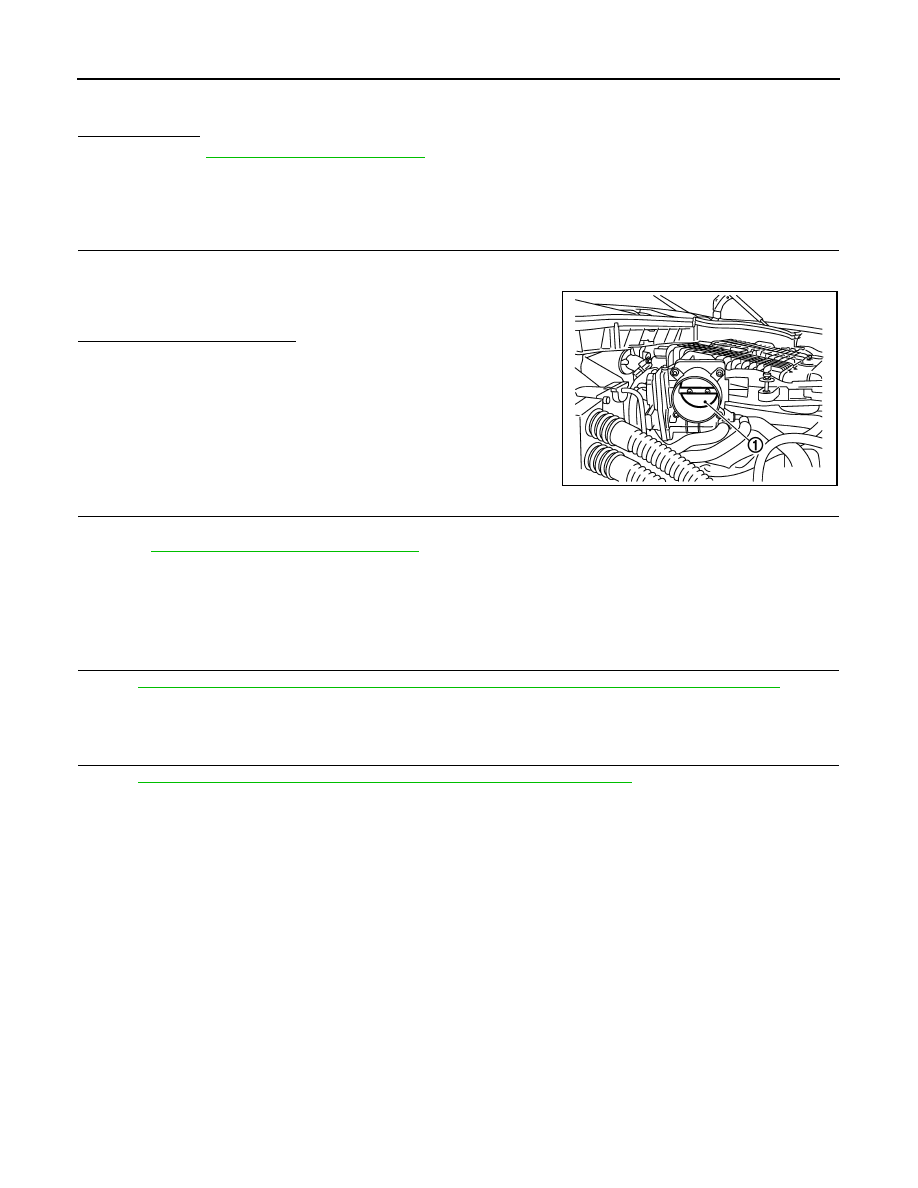

Check if foreign matter is caught between the throttle valve (1)
and the housing.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace malfunctioning electric throttle control actuator.

2.

Go to

EC-400, "Special Repair Requirement"

.

>> INSPECTION END

Special Repair Requirement

INFOID:0000000001910851

1.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-18, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

>> GO TO 2.

2.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-19, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

>> END
