P0132, P0152 A/F SENSOR 1

EC-205

< COMPONENT DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

With GST

Follow the procedure “With CONSULT-III” above.

Is the indication constantly approx. 5V?

YES

>> Go to

EC-205, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT-III

1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Restart engine.

5.

Drive and accelerate vehicle to more than 40 km/h (25 MPH) within 20 seconds after restarting engine.

CAUTION:

Always drive vehicle at a safe speed.

6.

Maintain the following conditions for about 20 consecutive seconds.

NOTE:
• Keep the accelerator pedal as steady as possible during the cruising.
• If this procedure is not completed within 1 minute after restarting engine at step 1, return to step

1.

7.

Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT-III” above.

Is 1st trip DTC is detected?

YES

>> Go to

EC-205, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001734041

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection M95. Refer to Ground Inspection in

GI-41, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

1.

Disconnect A/F sensor 1 harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between A/F sensor 1 harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

ENG SPEED

1,000 - 3,200 rpm

VHCL SPEED SE

More than 40 km/h (25 mph)

B/FUEL SCHDL

1.5 - 9.0 msec

Selector lever

Suitable position

DTC

A/F sensor 1

Ground

Voltage

Bank

Connector

Terminal

P0132

1

F3

4

Ground

Battery voltage

P0152

2

F20

4

EC-206

< COMPONENT DIAGNOSIS >

[VQ37VHR]

P0132, P0152 A/F SENSOR 1

Check the following.
• Harness connectors E3, F1
• IPDM E/R harness connector E7
• 15A fuse (No. 46)
• Harness for open or short between A/F sensor 1 and fuse

>> Repair or replace harness or connectors.

4.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between A/F sensor 1 harness connector and ECM harness connector.

4.

Check the continuity between A/F sensor 1 harness connector or ECM harness connector and ground.

5.

Also check harness for short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK INTERMITTENT INCIDENT

Perform

GI-38, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace.

6.

REPLACE AIR FUEL RATIO (A/F) SENSOR 1

Replace malfunctioning air fuel ratio (A/F) sensor 1.

CAUTION:

• Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a

hard surface such as a concrete floor; use a new one.

• Before installing new A/F sensor, clean exhaust system threads using Oxygen Sensor Thread

Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.

>> INSPECTION END

DTC

A/F sensor 1

ECM

Continuity

Bank

Connector

Terminal

Connector

Terminal

P0132

1

F3

1

F102

57

Existed

2

61

P0152

2

F20

1

65

2

66

DTC

A/F sensor 1

ECM

Ground

Continuity

Bank

Connector

Terminal

Connector

Terminal

P0132

1

F3

1

F102

57

Ground

Not existed

2

61

P0152

2

F20

1

65

2

66

P0133, P0153 A/F SENSOR 1

EC-207

< COMPONENT DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0133, P0153 A/F SENSOR 1

Description

INFOID:0000000001910855

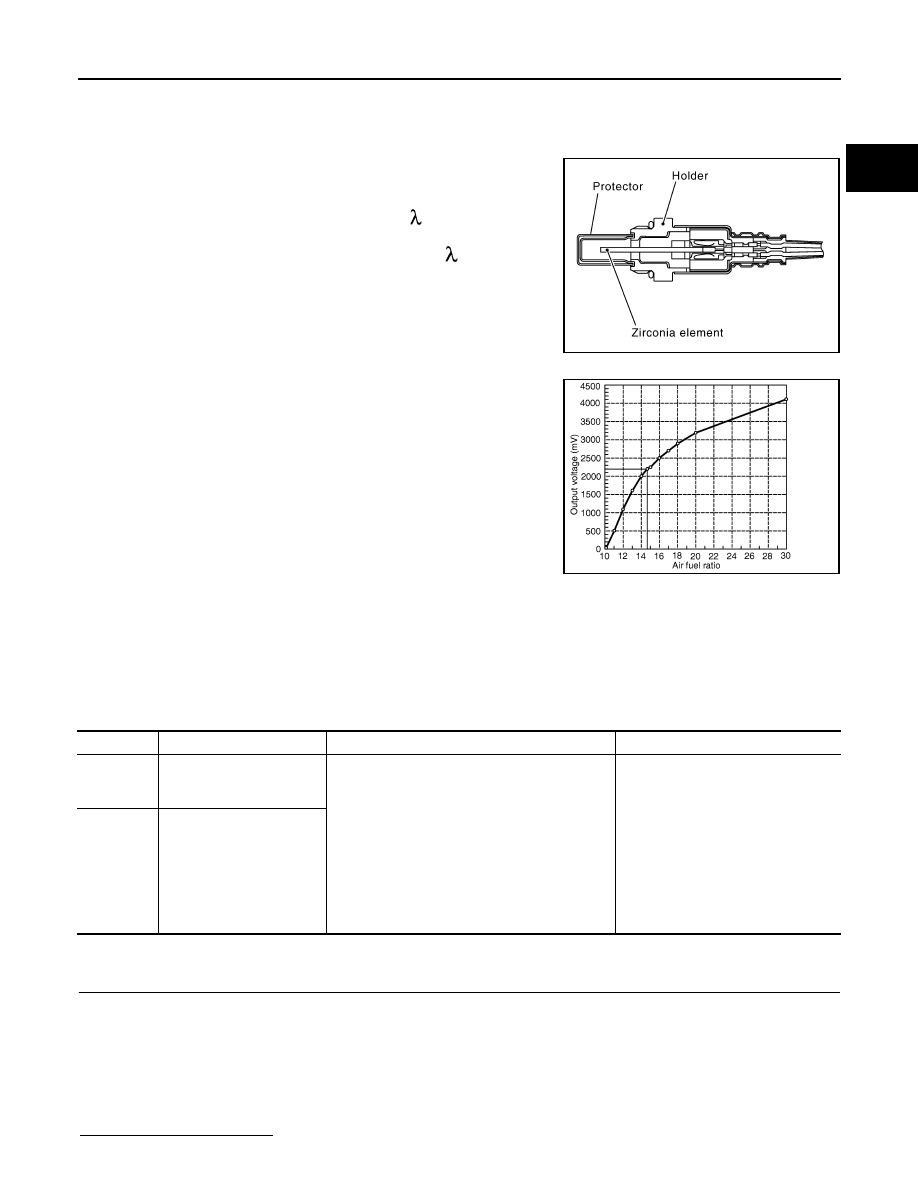

The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is composed an elec-
trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement   = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide   range.
The exhaust gas components diffuse through the diffusion layer at
the sensor cell. An electrode layer is applied voltage, and this current
relative oxygen density in lean. Also this current relative hydrocar-
bon density in rich.

Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In addition, a heater is integrated in the
sensor to ensure the required operating temperature of about 800

°

C

(1,472

°

F).

DTC Logic

INFOID:0000000001734043

DTC DETECTION LOGIC

To judge the malfunction of A/F sensor 1, this diagnosis measures response time of the A/F signal computed
by ECM from the A/F sensor 1 signal. The time is compensated by engine operating (speed and load), fuel
feedback control constant, and the A/F sensor 1 temperature index. Judgment is based on whether the com-
pensated time (the A/F signal cycling time index) is inordinately long or not.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-
ing the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.

Do you have CONSULT-III?

JMBIA0112GB

PBIB3354E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible Cause

P0133

Air fuel ratio (A/F) sensor 1
(bank 1) circuit slow re-
sponse

• The response of the A/F signal computed by

ECM from A/F sensor 1 signal takes more than
the specified time.

• Harness or connectors

(The A/F sensor 1 circuit is open or
shorted.)

• A/F sensor 1
• A/F sensor 1 heater
• Fuel pressure
• Fuel injector
• Intake air leaks
• Exhaust gas leaks
• PCV
• Mass air flow sensor

P0153

Air fuel ratio (A/F) sensor 1
(bank 2) circuit slow re-
sponse

EC-208

< COMPONENT DIAGNOSIS >

[VQ37VHR]

P0133, P0153 A/F SENSOR 1

YES

>> GO TO 2.

NO

>> GO TO 5.

2.

PERFORM DTC CONFIRMATION PROCEDURE-I

With CONSULT-III

1.

Start engine and warm it up to normal operating temperature.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON.

4.

Turn ignition switch OFF and wait at least 10 seconds.

5.

Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1minute under no load.

6.

Let engine idle for 1 minute.

7.

Select “A/F SEN1(B1) P1278/P1279” (for DTC P0133) or “A/F SEN1(B2) P1288/P1289” (for DTC P0153)
of “A/F SEN1” in “DTC WORK SUPPORT” mode with CONSULT-III.

8.

Touch “START”.

Is “COMPLETED” displayed on CONSULT-III screen?

YES

>> GO TO 3

NO

>> GO TO 4.

3.

PERFORM DTC CONFIRMATION PROCEDURE-II

Touch “SELF-DIAG RESULT”.
Which is displayed on CONSULT-III screen?

OK

>> INSPECTION END

NG

>> Go to

EC-209, "Diagnosis Procedure"

.

4.

PERFORM DTC CONFIRMATION PROCEDURE-II

1.

After perform the following procedure, “TESTING” will be displayed on the CONSULT-III screen.

-

Increase the engine speed up to about 3,600 rpm and keep it for 10 seconds.

-

Fully release accelerator pedal and then let engine idle for about 10 seconds.

If “TESTING” is not displayed after 10 seconds, refer to

EC-132, "Component Function Check"

.

2.

Wait for about 20 seconds at idle at under the condition that “TESTING” is displayed on the CONSULT-III
screen.

3.

Make sure that “TESTING” changes to “COMPLETED”.
If “TESTING” changed to “OUT OF CONDITION”, refer to

EC-132, "Component Function Check"

4.

Touch “SELF-DIAG RESULT”.

Which is displayed on CONSULT-III screen?

OK

>> INSPECTION END

NG

>> Go to

EC-209, "Diagnosis Procedure"

.

5.

CHECK AIR-FUEL RATIO SELF-LEARNING VALUE

With GST

1.

Start engine and warm it up to normal operating temperature.

2.

Select Service $01 with GST.

3.

Calculate the total value of “Short term fuel trim” and “Long term fuel trim” indications.

Is the total percentage within

±

15%?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

DETECT MALFUNCTIONING PART

Check the following.
• Intake air leaks
• Exhaust gas leaks
• Incorrect fuel pressure
• Lack of fuel
• Fuel injector
• Incorrect PCV hose connection
• PCV valve
• Mass air flow sensor
