Diagnosis Procedure

INFOID:0000000001733969

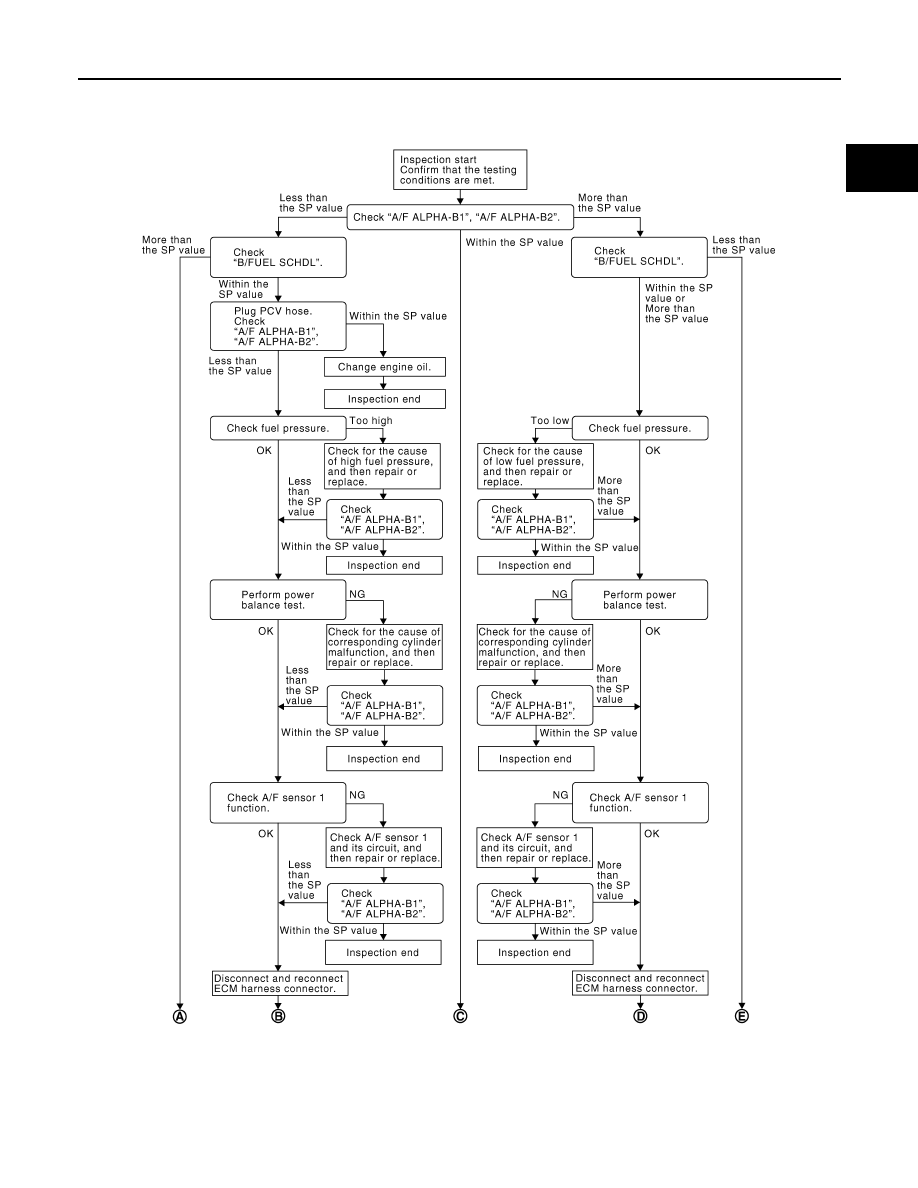

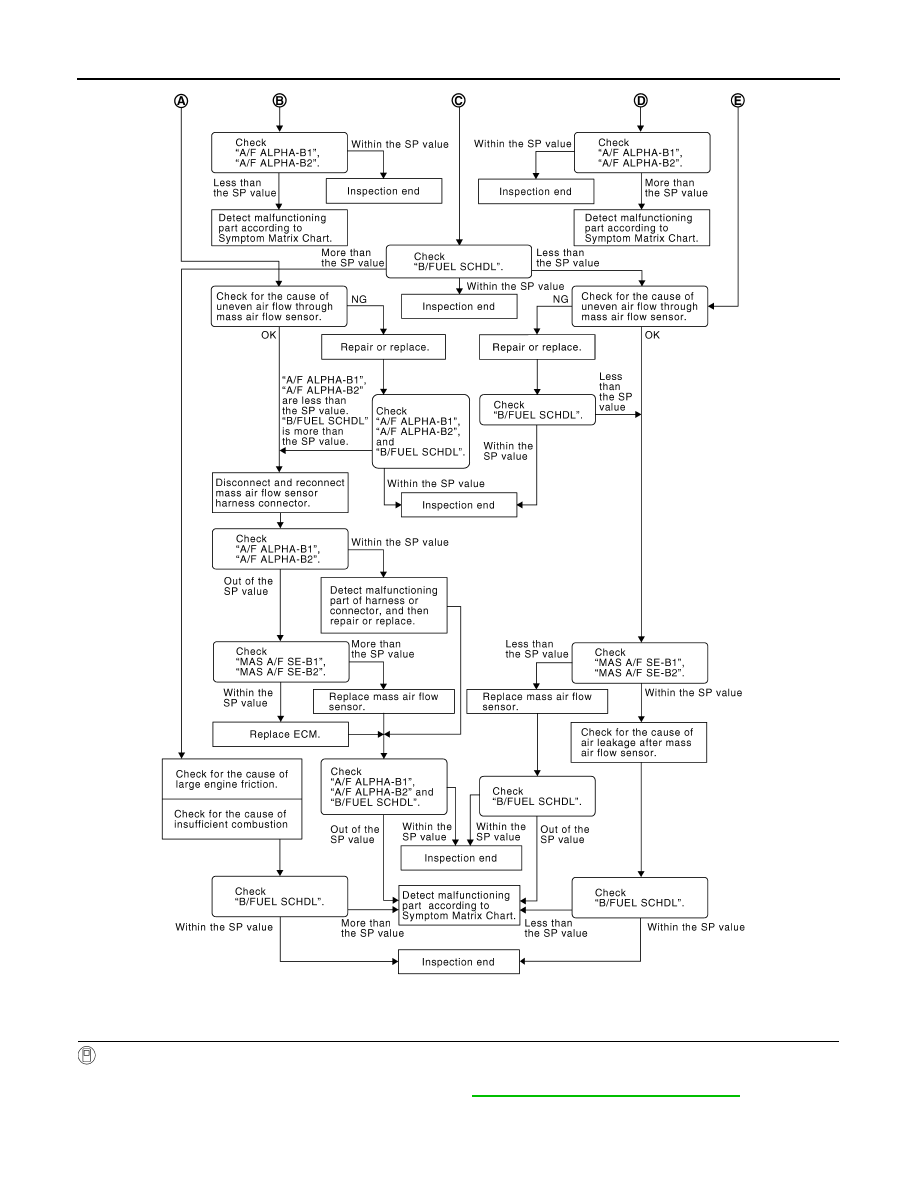

OVERALL SEQUENCE

PBIB2268E

EC-134

< COMPONENT DIAGNOSIS >

[VQ37VHR]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

DETAILED PROCEDURE

1.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

With CONSULT-III

1.

Start engine.

2.

Confirm that the testing conditions are met. Refer to

EC-132, "Component Function Check"

.

3.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.

JMBIA0056GB

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-135

< COMPONENT DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NOTE:
Check “A/F ALPHA-B1”, “A/F ALPHA-B2” for approximately 1 minute because they may fluctuate. It is NG
if the indication is out of the SP value even a little.

Is the measurement value within the SP value?

YES

>> GO TO 17.

NO-1

>> Less than the SP value: GO TO 2.

NO-2

>> More than the SP value: GO TO 3.

2.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.

Is the measurement value within the SP value?

YES

>> GO TO 4.

NO

>> More than the SP value: GO TO 19.

3.

CHECK “B/FUEL SCHDL”

Select “B/FUEL SCHDL” in “SPEC” of “DATA MONITOR” mode, and make sure that the indication is within the
SP value.

Is the measurement value within the SP value?

YES

>> GO TO 6.

NO-1

>> More than the SP value: GO TO 6.

NO-2

>> Less than the SP value: GO TO 25.

4.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Stop the engine.

2.

Disconnect PCV hose, and then plug it.

3.

Start engine.

4.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.

Is the measurement value within the SP value?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

CHANGE ENGINE OIL

1.

Stop the engine.

2.

Change engine oil.
NOTE:
This symptom may occur when a large amount of gasoline is mixed with engine oil because of driving
conditions (such as when engine oil temperature does not rise enough since a journey distance is too
short during winter). The symptom will not be detected after changing engine oil or changing driving con-
dition.

>> INSPECTION END

6.

CHECK FUEL PRESSURE

Check fuel pressure. (Refer to

EC-601, "Inspection"

.)

Is the inspection result normal?

YES

>> GO TO 9.

NO-1

>> Fuel pressure is too high: Replace “fuel filter and fuel pump assembly” and then GO TO 8.

NO-2

>> Fuel pressure is too low: GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?

YES

>> Replace “fuel filter and fuel pump assembly” and then GO TO 8.

NO

>> Repair or replace and then GO TO 8.

8.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

EC-136

< COMPONENT DIAGNOSIS >

[VQ37VHR]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.

Is the measurement value within the SP value?

YES

>> INSPECTION END

NO

>> GO TO 9.

9.

PERFORM POWER BALANCE TEST

1.

Perform “POWER BALANCE” in “ACTIVE TEST” mode.

2.

Make sure that the each cylinder produces a momentary engine speed drop.

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> GO TO 10.

10.

DETECT MALFUNCTIONING PART

Check the following.
• Ignition coil and its circuit (Refer to

EC-498, "Component Function Check"

.)

• Fuel injector and its circuit (Refer to

EC-487, "Component Function Check"

.)

• Intake air leakage
• Low compression pressure (Refer to

EM-22, "Inspection"

.)

Is the inspection result normal?

YES

>> Replace fuel injector and then GO TO 11.

NO

>> Repair or replace malfunctioning part and then GO TO 11.

11.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.

Is the measurement value within the SP value?

YES

>> INSPECTION END

NO

>> GO TO 12.

12.

CHECK A/F SENSOR 1 FUNCTION

Perform all DTC CONFIRMATION PROCEDURE related with A/F sensor 1.
• For DTC P0130, P0150, refer to

EC-197, "DTC Logic"

.

• For DTC P0131, P0151, refer to

EC-201, "DTC Logic"

.

• For DTC P0132, P0152, refer to

EC-204, "DTC Logic"

.

• For DTC P0133, P0153, refer to

EC-207, "DTC Logic"

.

• For DTC P2A00, P2A03, refer to

EC-471, "DTC Logic"

.

Is any DTC detected?

YES

>> GO TO 13.

NO

>> GO TO 15.

13.

CHECK A/F SENSOR 1 CIRCUIT

Perform Diagnosis Procedure according to corresponding DTC.

>> GO TO 14.

14.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1.

Start engine.

2.

Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that the
each indication is within the SP value.

Is the measurement value within the SP value?

YES

>> INSPECTION END

NO

>> GO TO 15.

15.

DISCONNECT AND RECONNECT ECM HARNESS CONNECTOR

1.

Stop the engine.
