AIR CONDITIONING CUT CONTROL

EC-57

< FUNCTION DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PBIB1907E

 : Vehicle front

1.

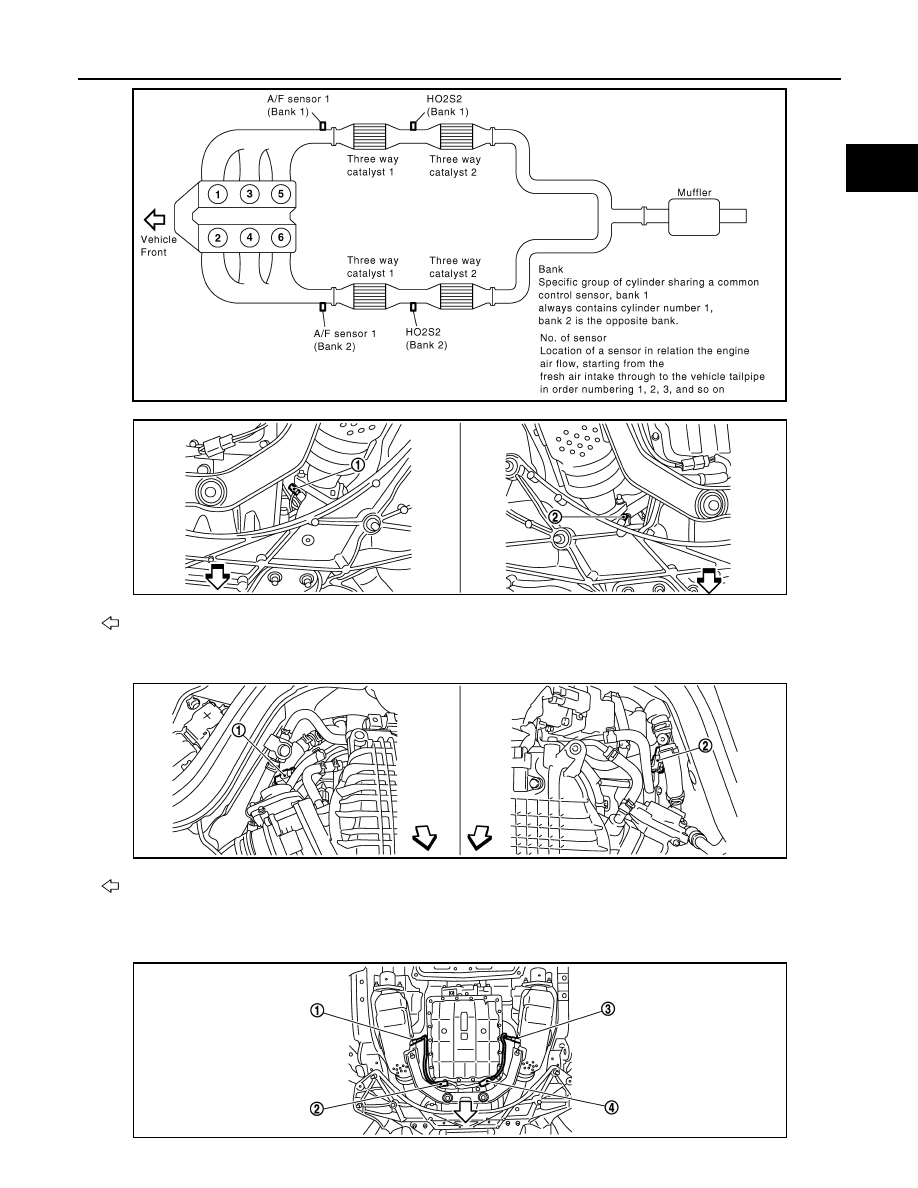

A/F sensor 1 (bank 1)

2.

A/F sensor 1 (bank 2)

 : Vehicle front

1.

A/F sensor 1 (bank 1) harness con-
nector

2.

A/F sensor 1 (bank 2) harness con-
nector

JMBIA0007ZZ

JMBIA0841ZZ

JMBIA0018ZZ

EC-58

< FUNCTION DIAGNOSIS >

[VQ37VHR]

AIR CONDITIONING CUT CONTROL

 : Vehicle front

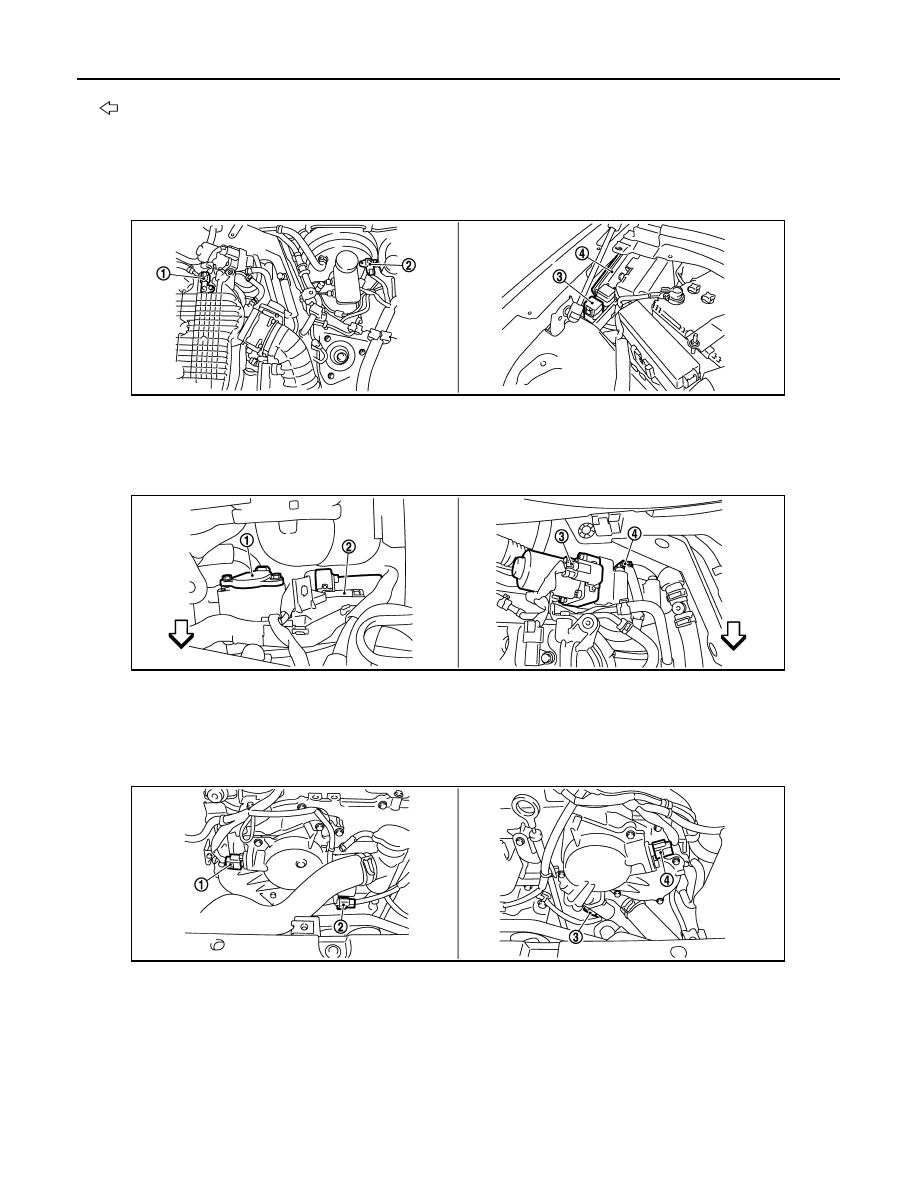

1.

Heated oxygen sensor 2 (bank 2)

2.

Heated oxygen sensor 2 (bank 2)
harness connector

3.

Heated oxygen sensor 2 (bank 1)

4.

Heated oxygen sensor 2 (bank 1)
harness connector

1.

Manifold absolute pressure (MAP)
sensor

2.

Brake booster pressure sensor

3.

VVEL actuator motor relay

4.

VVEL control module

1.

VVEL control shaft position sensor
(bank 1)

2.

VVEL actuator motor (bank 1)

3.

VVEL actuator motor (bank 2)

4.

VVEL control shaft position sensor
(bank 2)

1.

Camshaft position sensor (PHASE)
(bank 1)

2.

Intake valve timing control solenoid
valve (bank 1) harness connector

3.

Intake valve timing control solenoid
valve (bank 2) harness connector

4.

Camshaft position sensor (PHASE)
(bank 2)

JMBIA0850ZZ

JMBIA0851ZZ

JMBIA0842ZZ

AIR CONDITIONING CUT CONTROL

EC-59

< FUNCTION DIAGNOSIS >

[VQ37VHR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

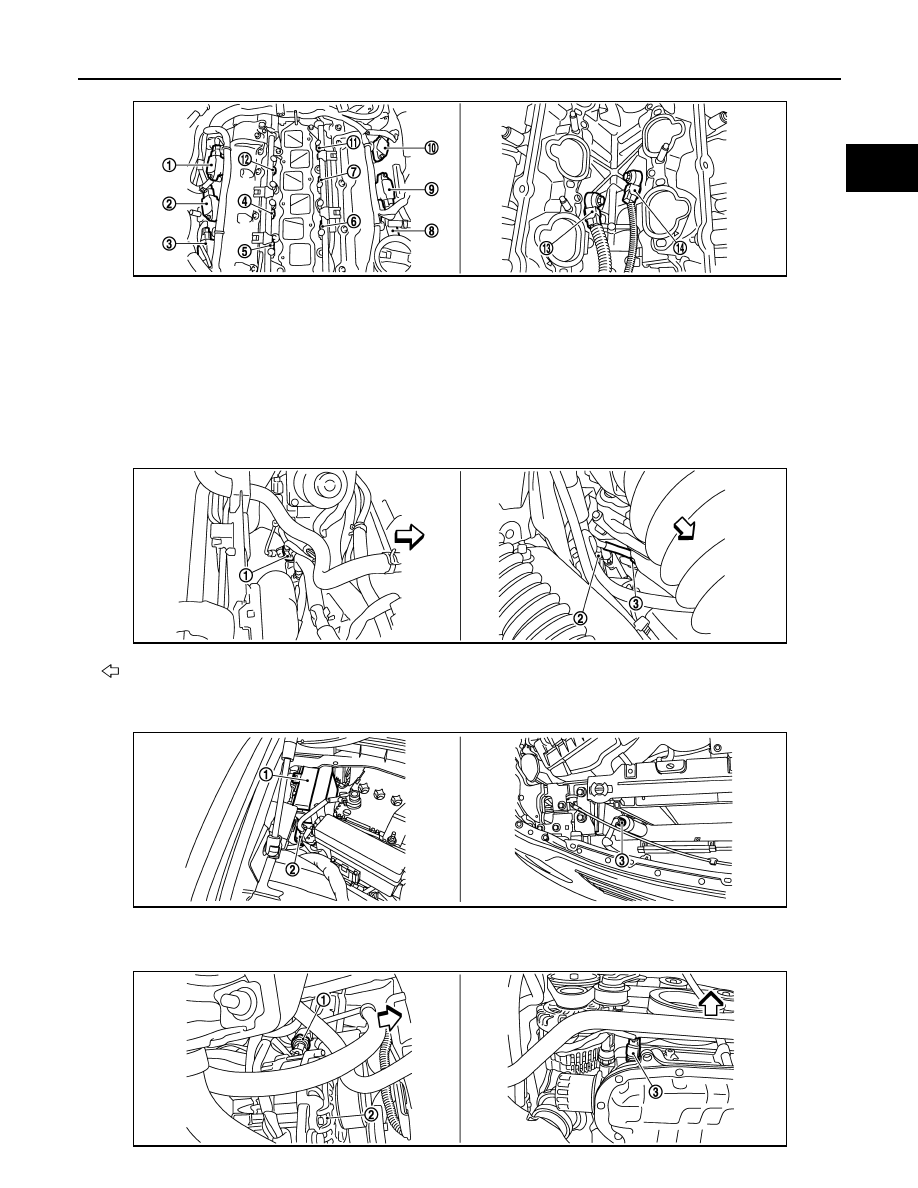

1.

Ignition coil No.5 (with power transis-
tor)

2.

Ignition coil No.3 (with power transis-
tor)

3.

Ignition coil No.1 (with power transis-
tor)

4.

Fuel injector No.3

5.

Fuel injector No.1

6.

Fuel injector No.2

7.

Fuel injector No.4

8.

Ignition coil No.2 (with power transis-
tor)

9.

Ignition coil No.4 (with power transis-
tor)

10. Ignition coil No.6 (with power transis-

tor)

11.

Fuel injector No.6

12. Fuel injector No.5

13. Knock sensor (bank 1)

14. Knock sensor (bank 2)

 : Vehicle front

1.

Engine coolant temperature sensor

2.

A/F sensor 1 (bank 1)

3.

Crankshaft position sensor (POS)

1.

IPDM E/R

2.

Battery current sensor

3.

Refrigerant pressure sensor

JMBIA0843ZZ

JMBIA0844ZZ

JMBIA0013ZZ

JMBIA0014ZZ

EC-60

< FUNCTION DIAGNOSIS >

[VQ37VHR]

AIR CONDITIONING CUT CONTROL

 : Vehicle front

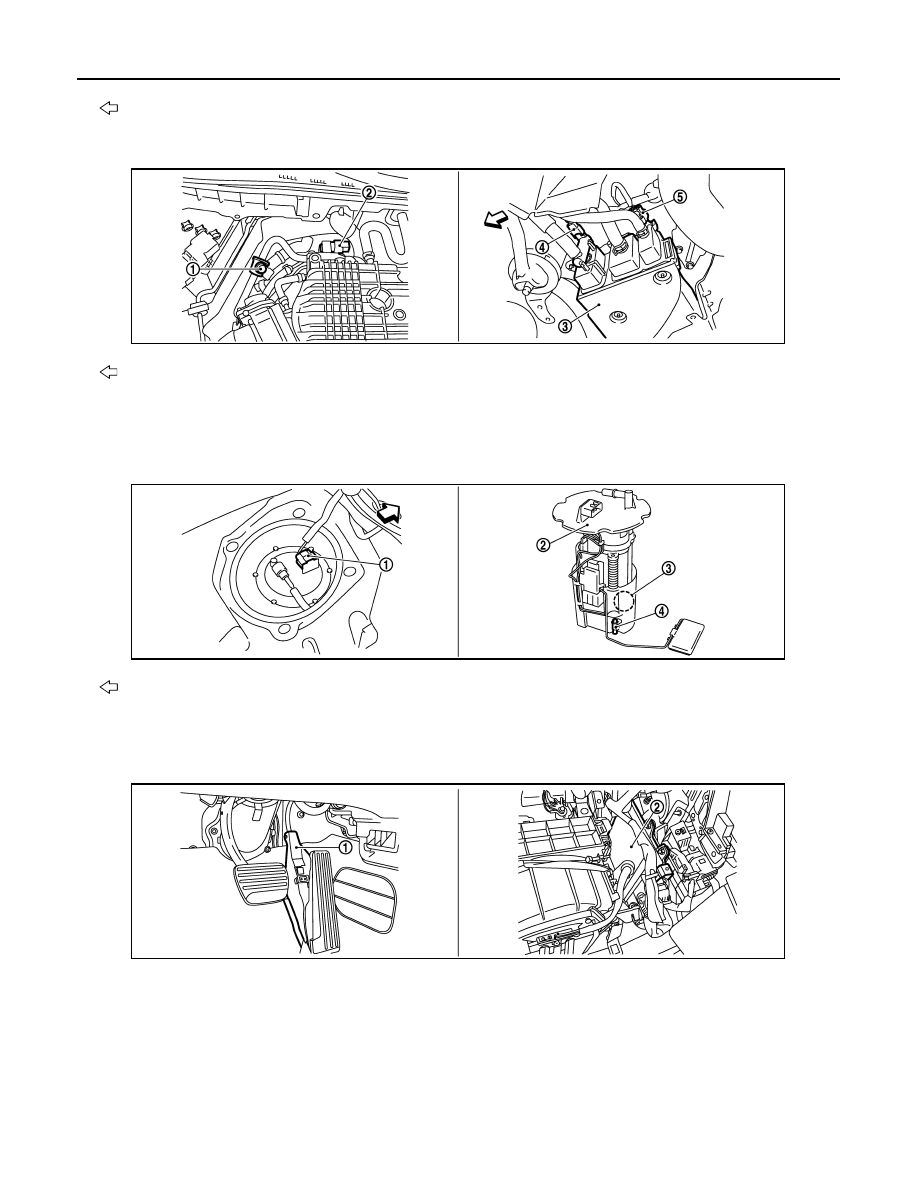

1.

Power steering pressure sensor

2.

Alternator

3.

Engine oil temperature sensor

 : Vehicle front

1.

EVAP service port

2.

EVAP canister purge volume control
solenoid valve

3.

EVAP canister

4.

EVAP canister vent control valve

5.

EVAP control system pressure sen-
sor

 : Vehicle front

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

4.

Fuel tank temperature sensor

1.

Accelerator pedal position sensor

2.

ECM

JMBIA0845ZZ

JMBIA0019ZZ

JMBIA0015ZZ
