Infiniti G37 Coupe. Manual - part 462
ENGINE CONTROL SYSTEM
EC-29
< FUNCTION DIAGNOSIS >
[VQ37VHR]
C
D
E
F
G
H
I
J
K
L
M
A
EC
N
P
O

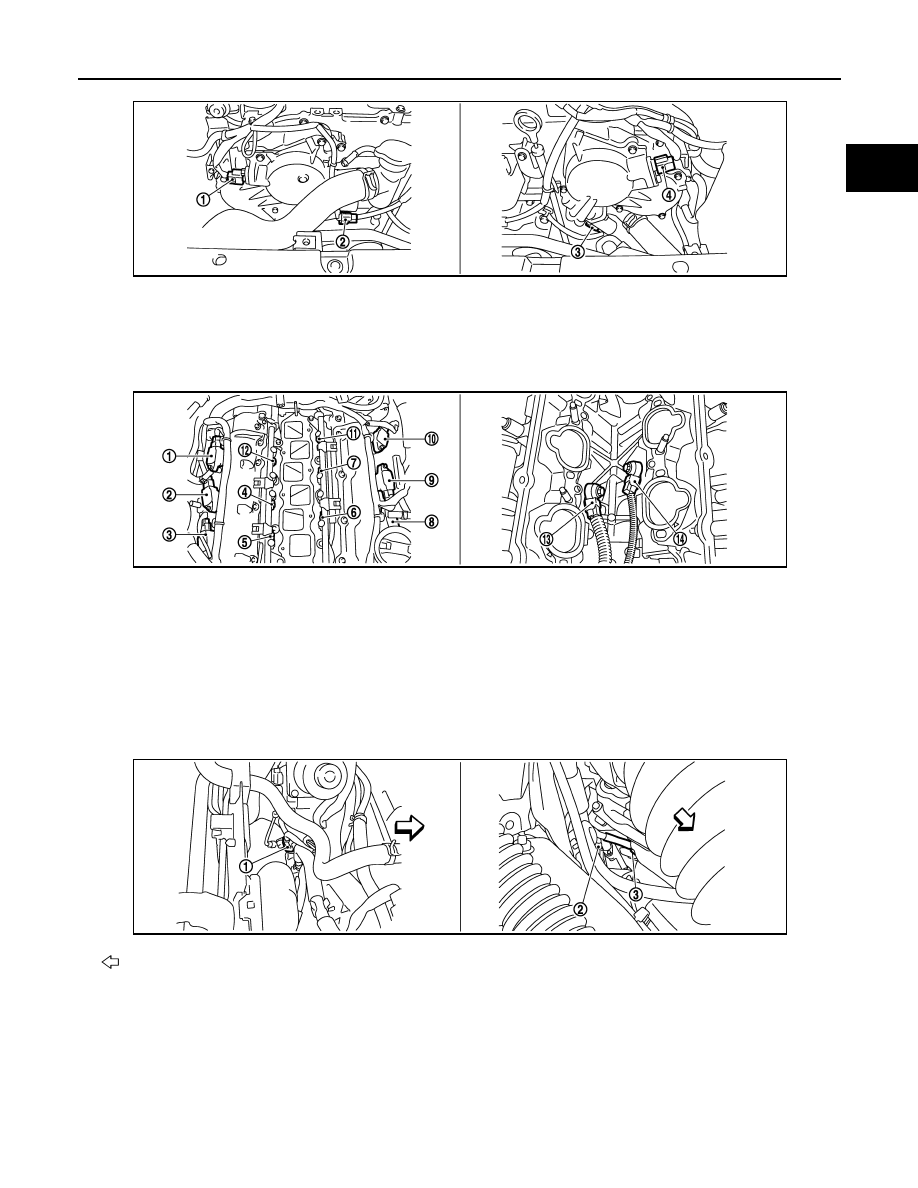

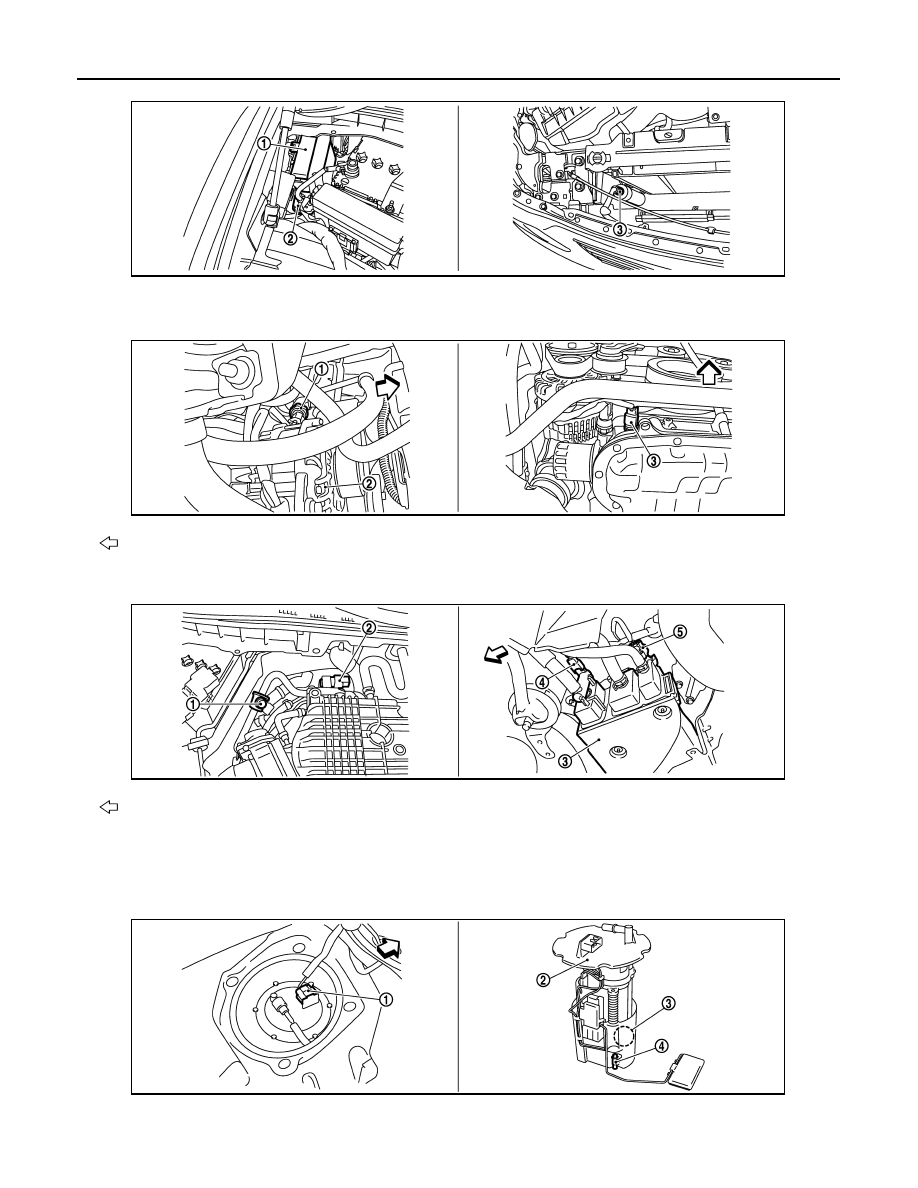

1.
Camshaft position sensor (PHASE)
(bank 1)
2.
Intake valve timing control solenoid
valve (bank 1) harness connector
3.
Intake valve timing control solenoid
valve (bank 2) harness connector
4.
Camshaft position sensor (PHASE)
(bank 2)
1.
Ignition coil No.5 (with power transis-
tor)
2.
Ignition coil No.3 (with power transis-
tor)
3.
Ignition coil No.1 (with power transis-
tor)
4.
Fuel injector No.3
5.
Fuel injector No.1
6.
Fuel injector No.2
7.
Fuel injector No.4
8.
Ignition coil No.2 (with power transis-
tor)
9.
Ignition coil No.4 (with power transis-
tor)
10. Ignition coil No.6 (with power transis-
tor)
11.
Fuel injector No.6
12. Fuel injector No.5
13. Knock sensor (bank 1)
14. Knock sensor (bank 2)
: Vehicle front
1.
Engine coolant temperature sensor
2.
A/F sensor 1 (bank 1)
3.
Crankshaft position sensor (POS)
JMBIA0842ZZ
JMBIA0843ZZ
JMBIA0844ZZ
